Thelio Spark (External Overview)

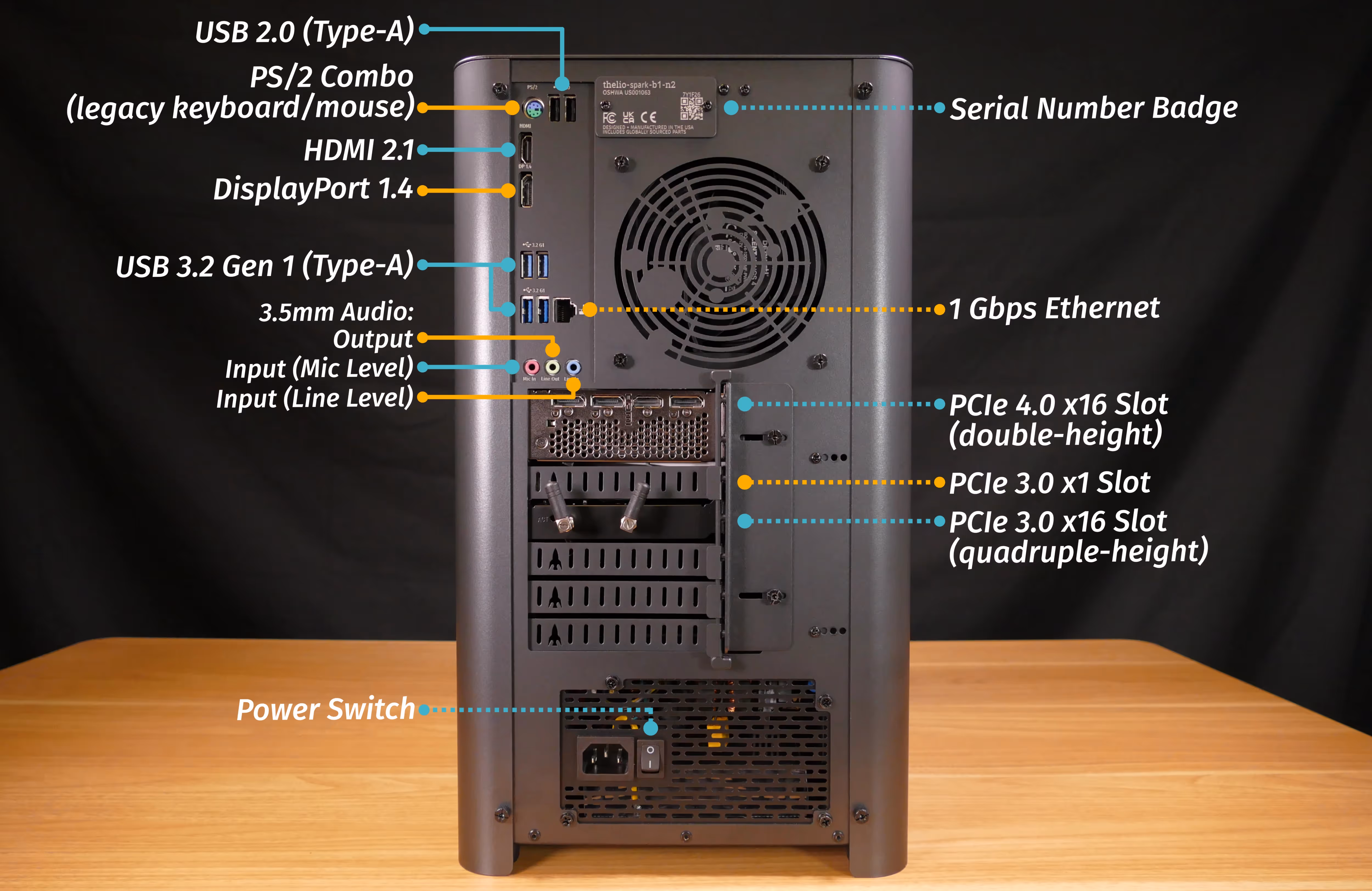

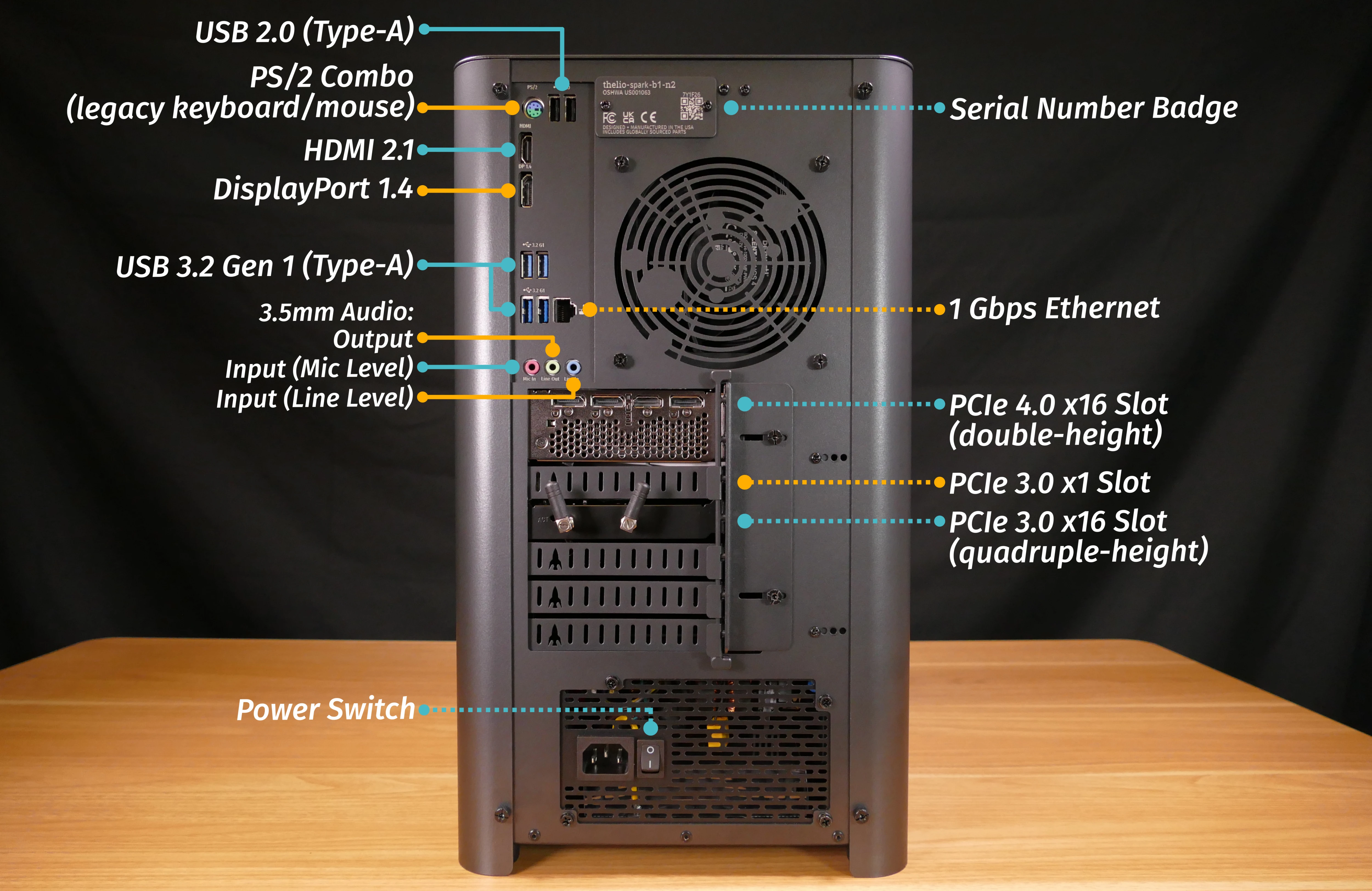

Back overview:
Section titled “Back overview:”
Power Switch Guide:
Section titled “Power Switch Guide:”- 0: Off
- 1: On
PCI Express Slot Guide:
Section titled “PCI Express Slot Guide:”The recommended PCIe slot configuration is:
- Top slot (4.0 x16): Used for dedicated GPU (if ordered)
- Middle slot (3.0 x1): Empty
- Bottom slot (3.0 x16): Used for wireless card
Cards can be moved into other compatible slots to accomplish different aftermarket configurations. Note that the wireless card may obstruct the GPU fans if placed in the middle PCIe slot (3.0 x1).

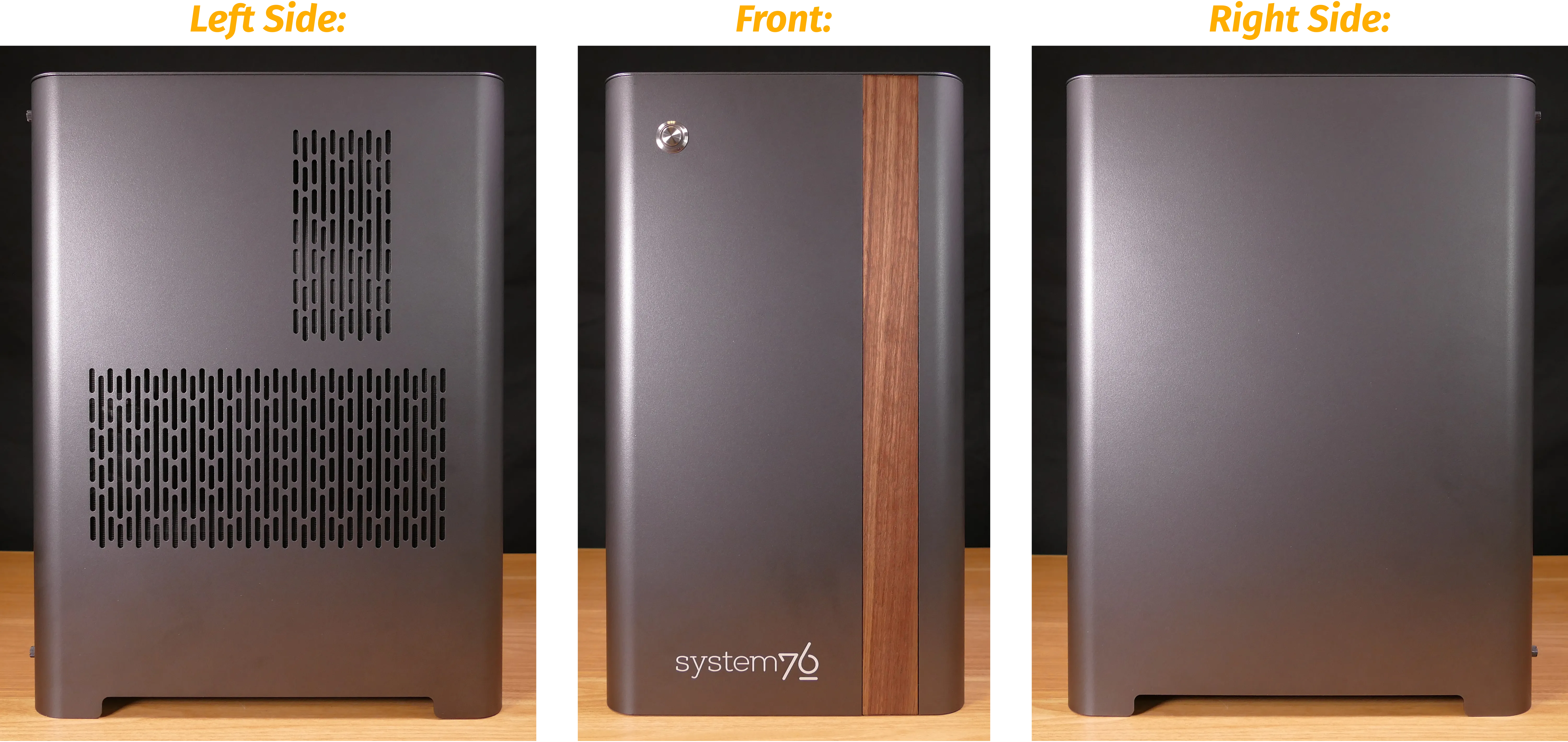

Front/side overview:
Section titled “Front/side overview:”

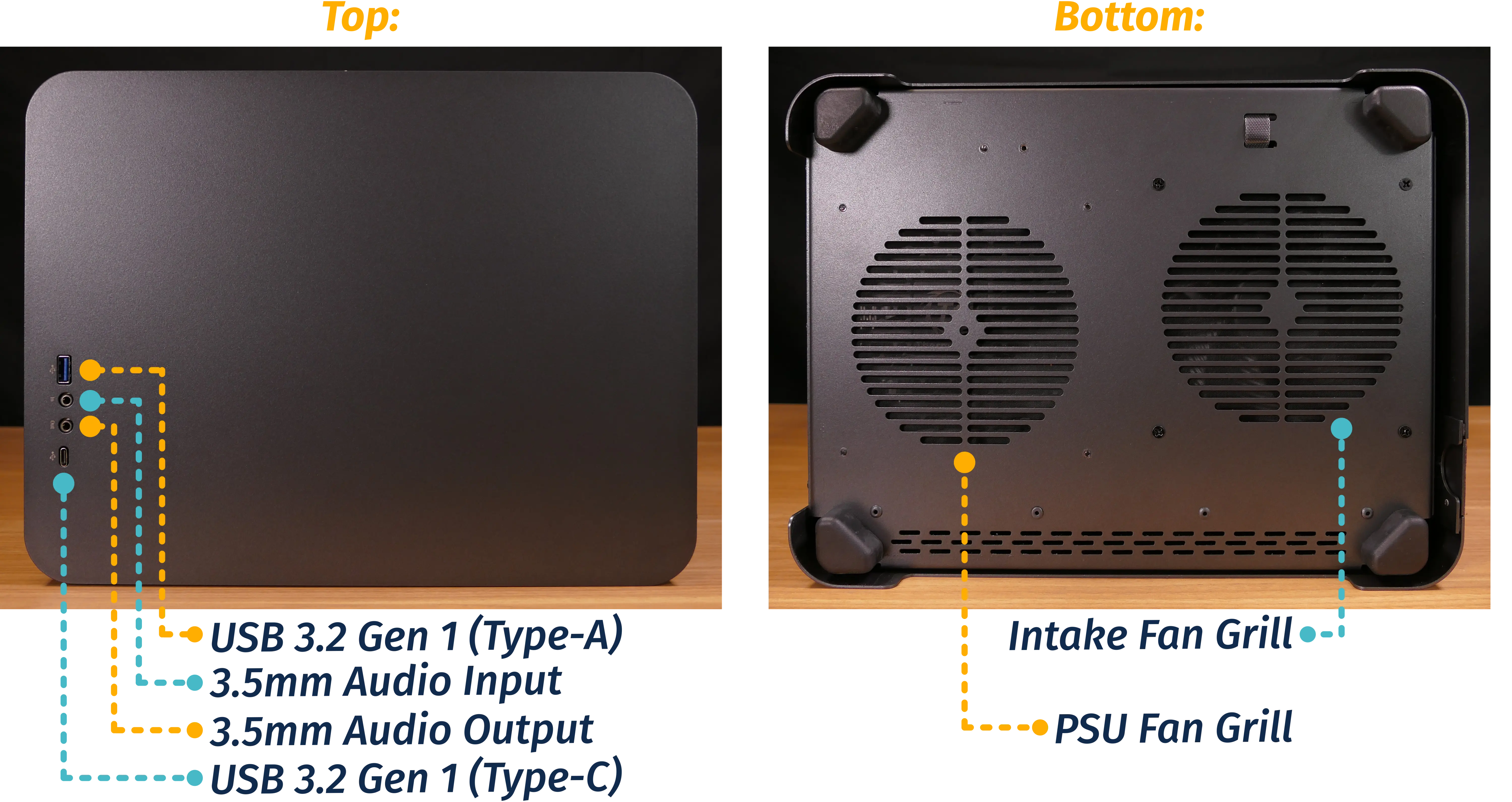

Top/bottom overview:
Section titled “Top/bottom overview:”
