Darter Pro (External Overview)
Left side:

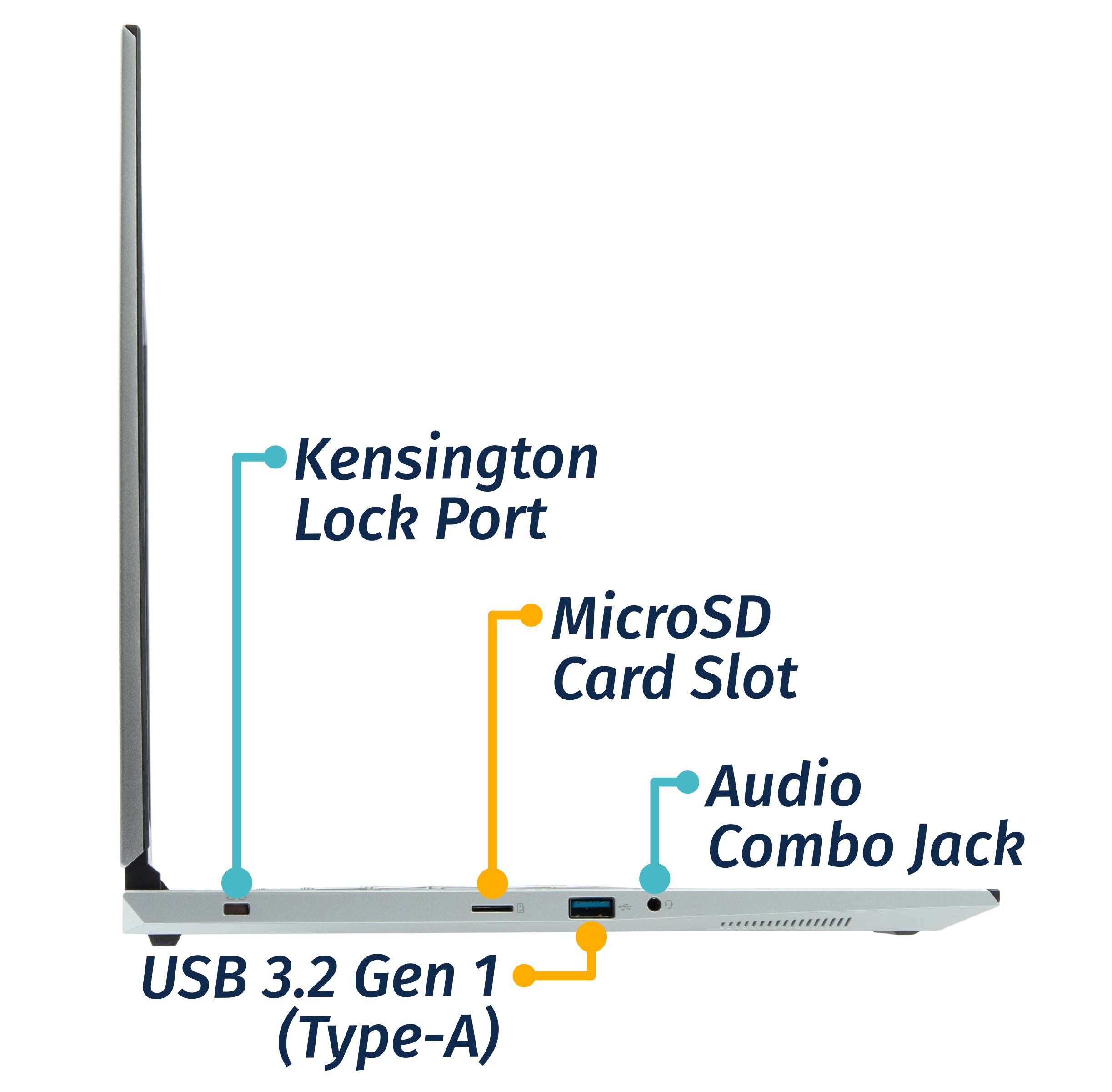

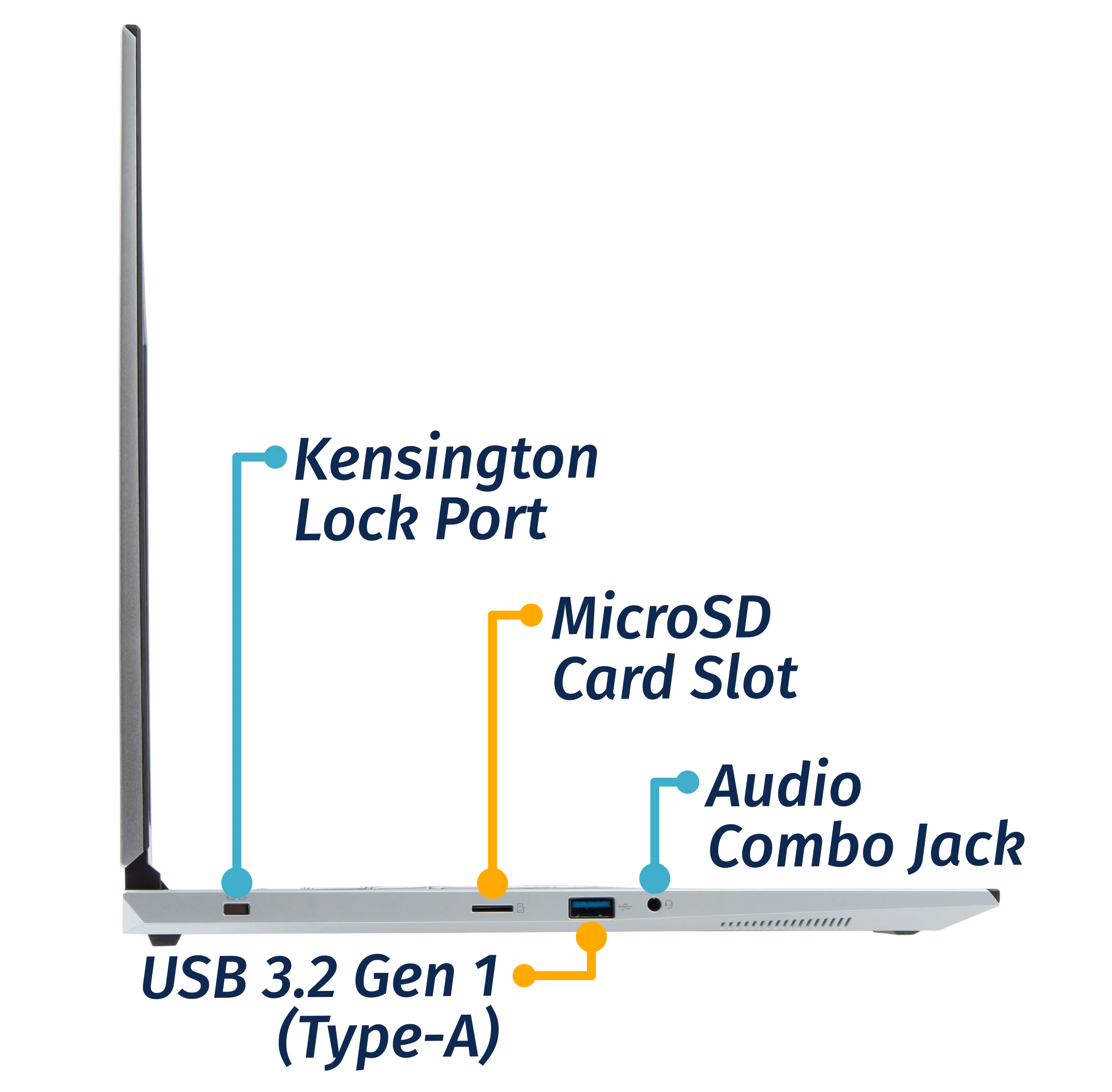

Section titled “Left side:”16” model (darp10):
Section titled “16” model (darp10):”

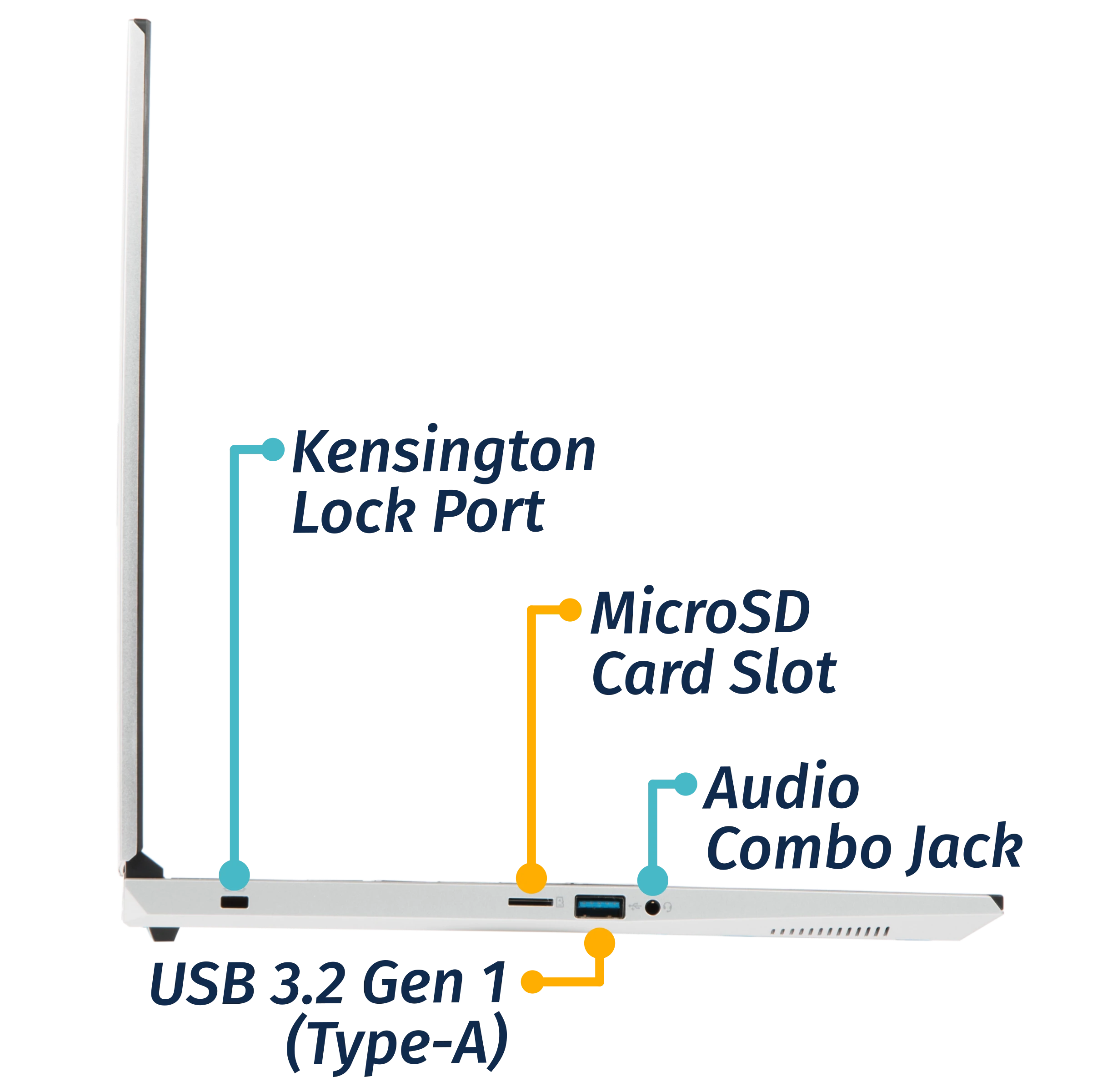

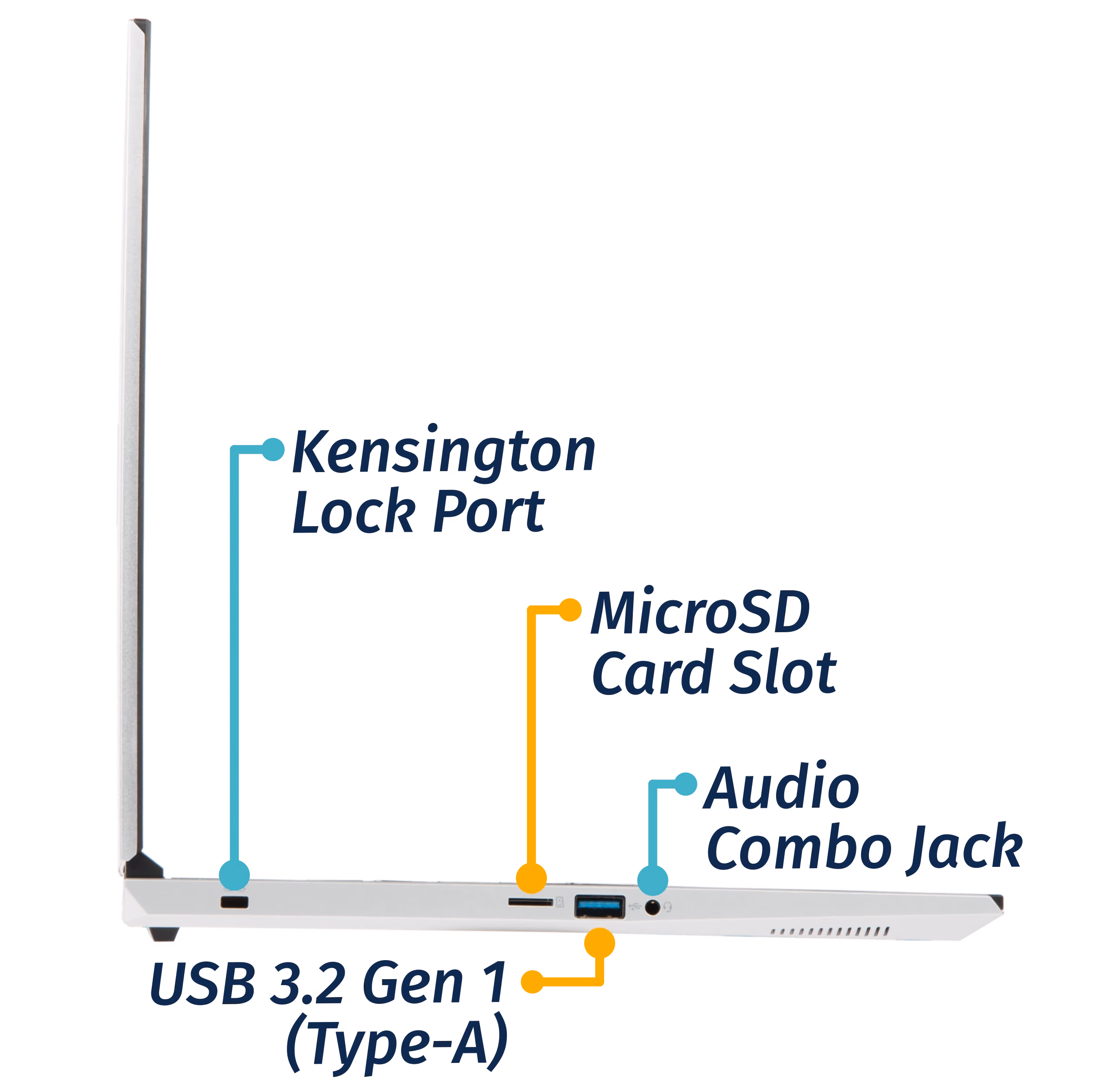

14” model (darp10-b):
Section titled “14” model (darp10-b):”
Right side:

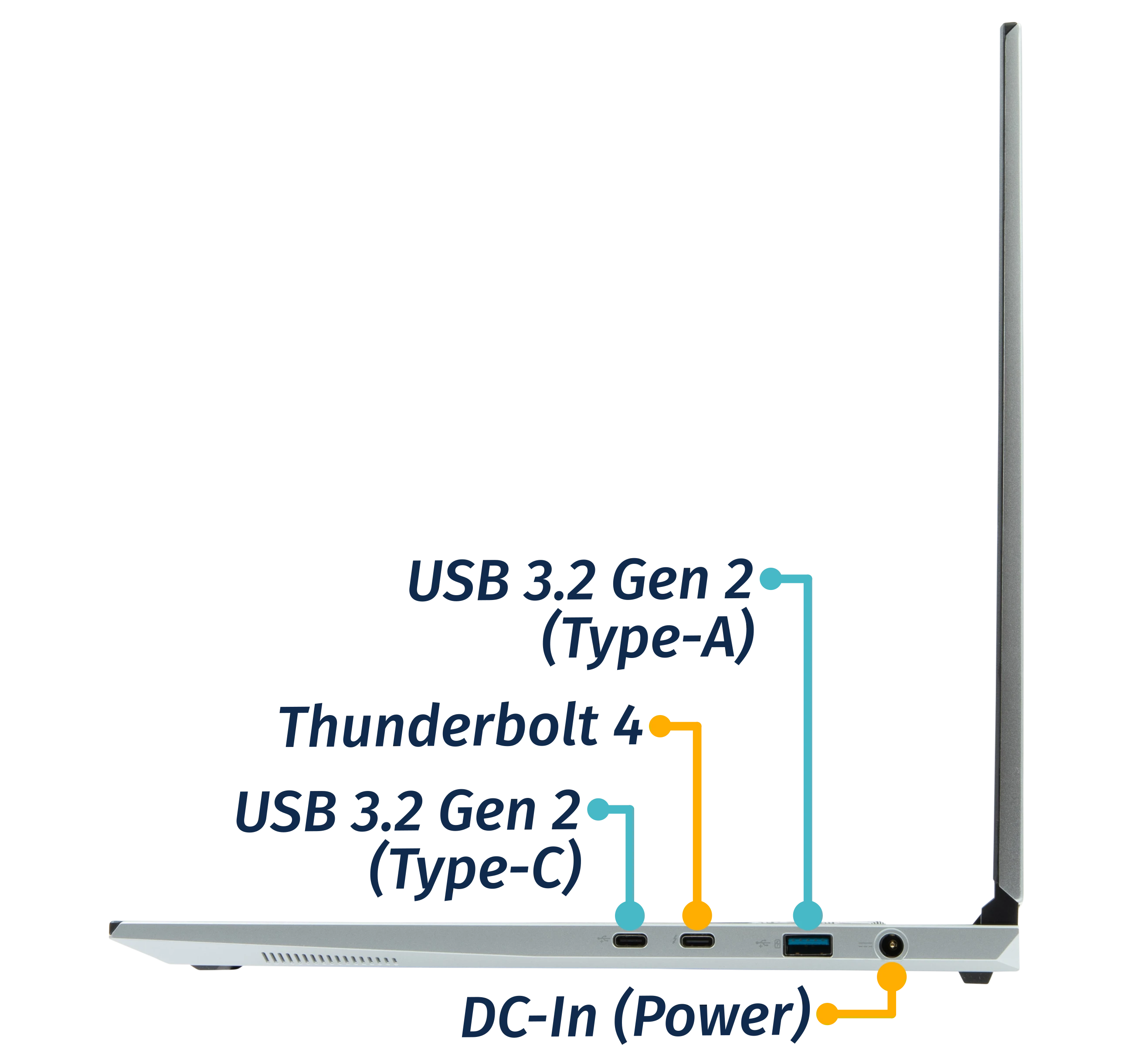

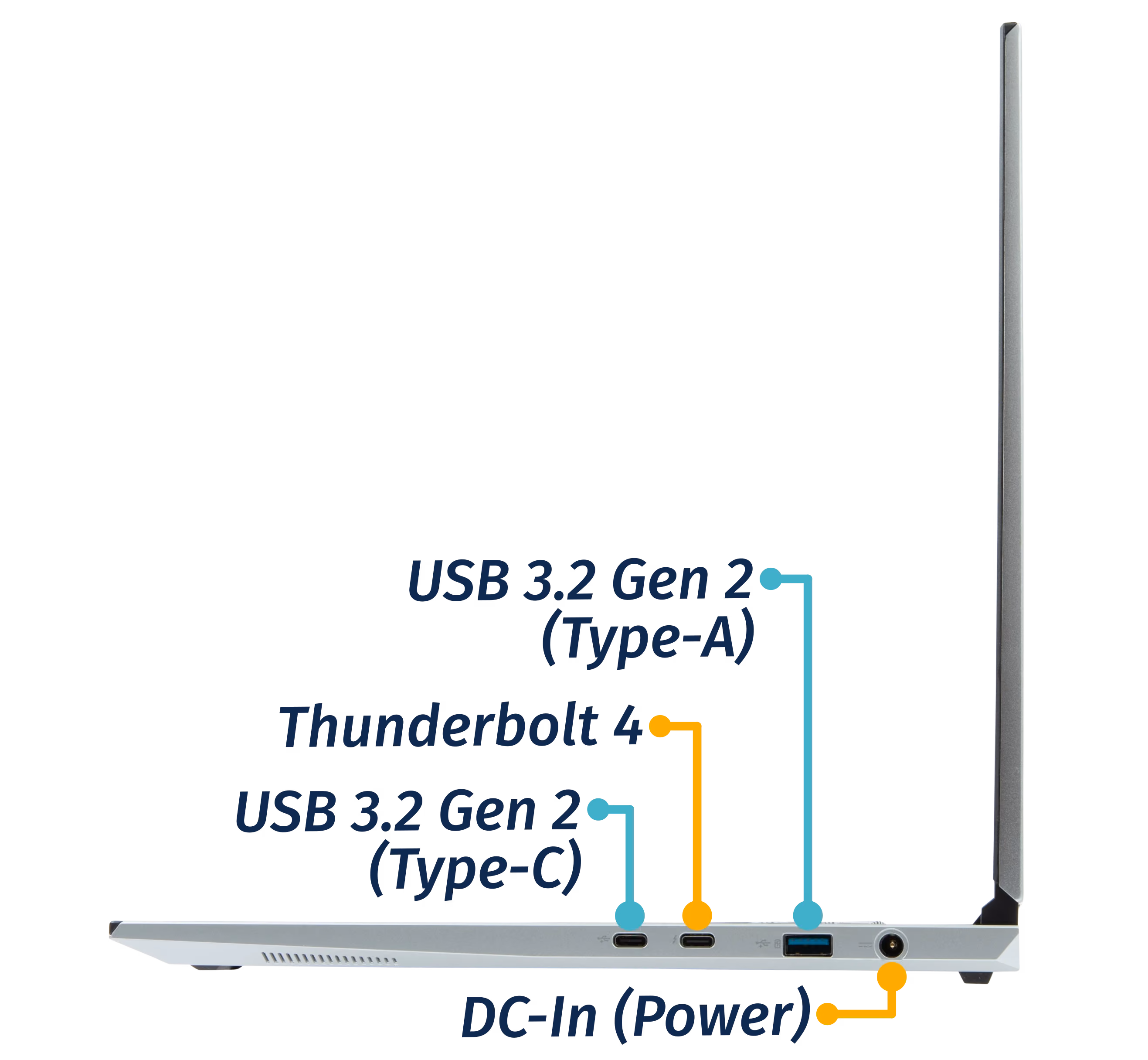

Section titled “Right side:”16” model (darp10):
Section titled “16” model (darp10):”

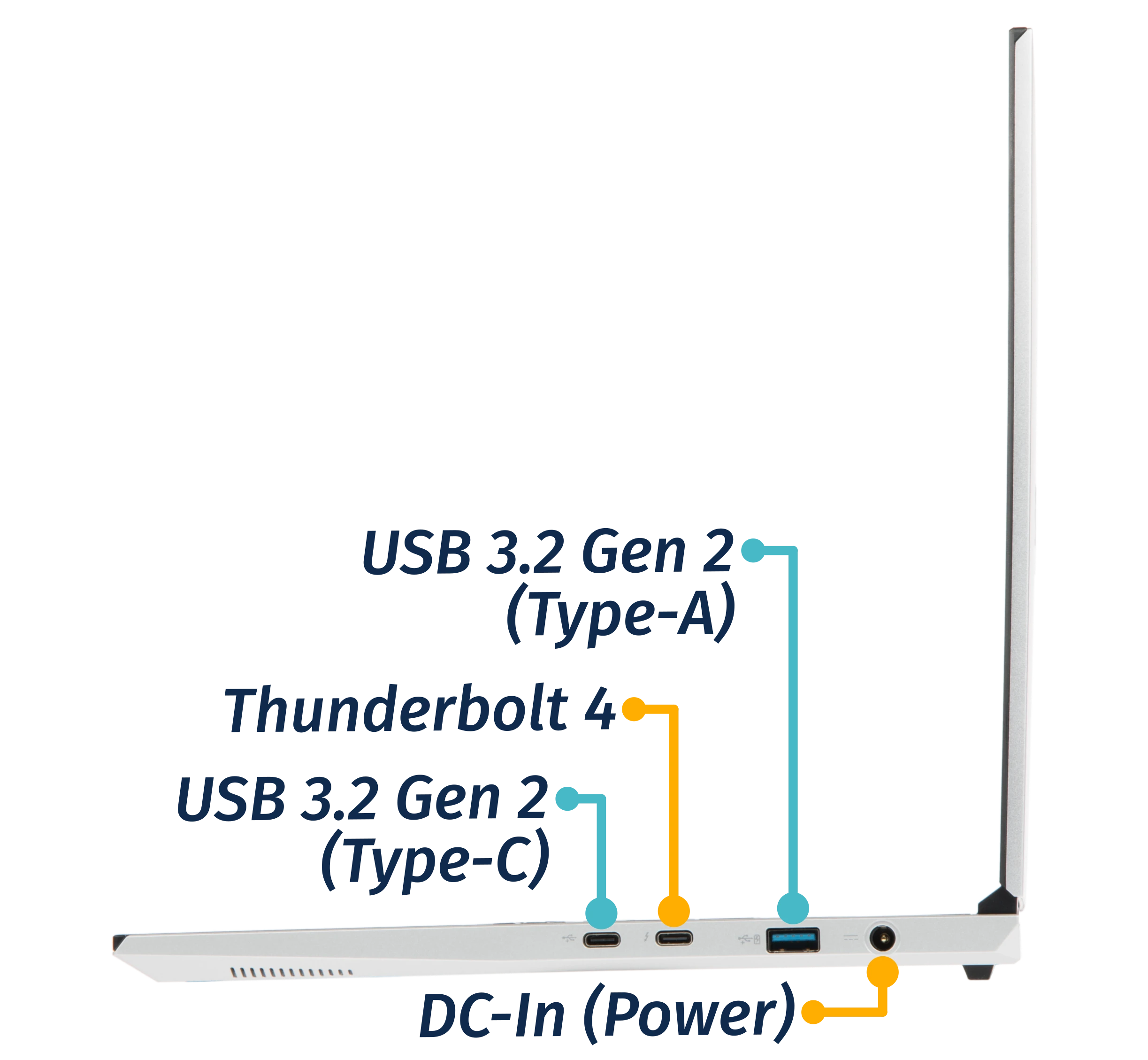

14” model (darp10-b):
Section titled “14” model (darp10-b):”
Front side:

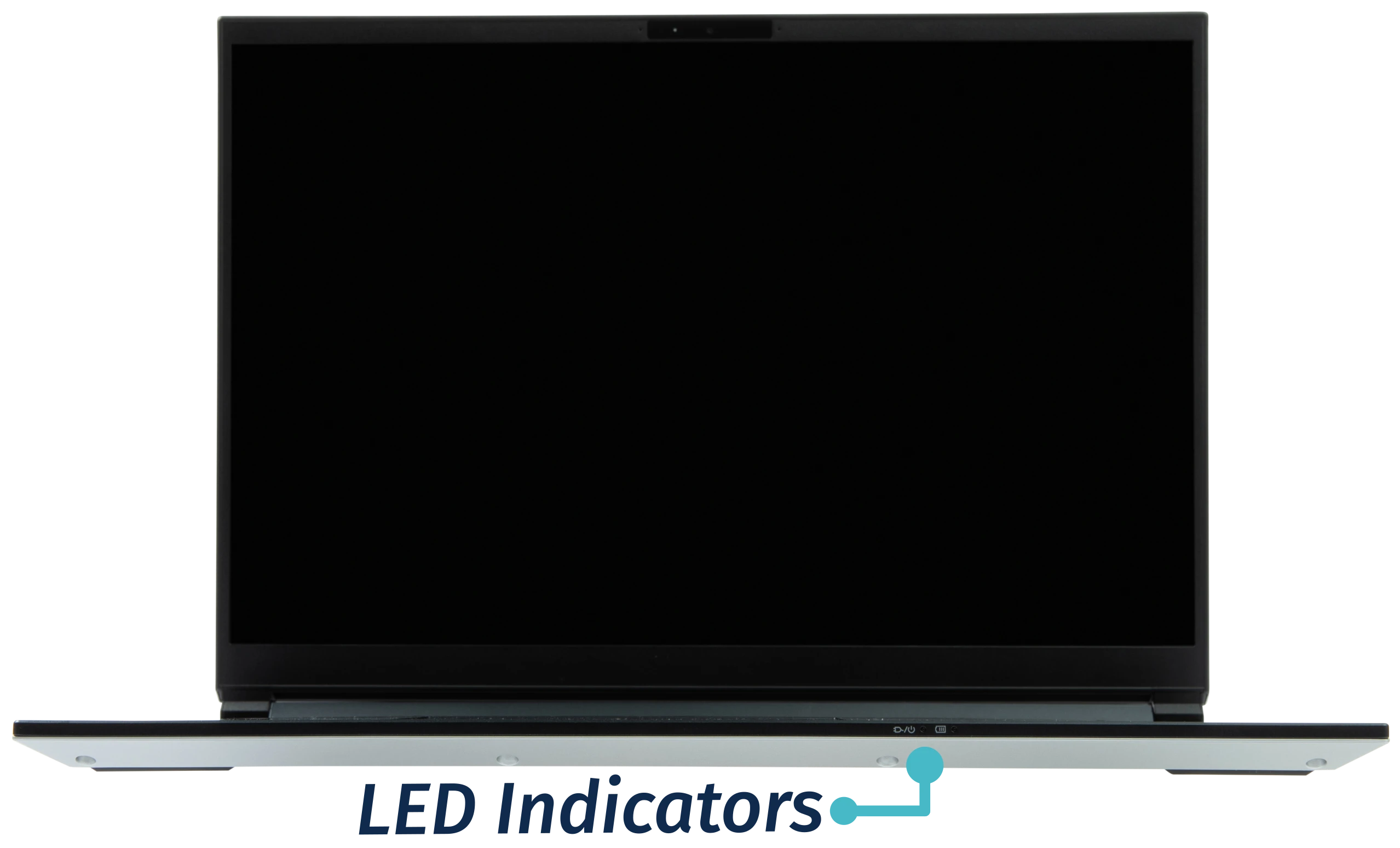

Section titled “Front side:”16” model (darp10):
Section titled “16” model (darp10):”

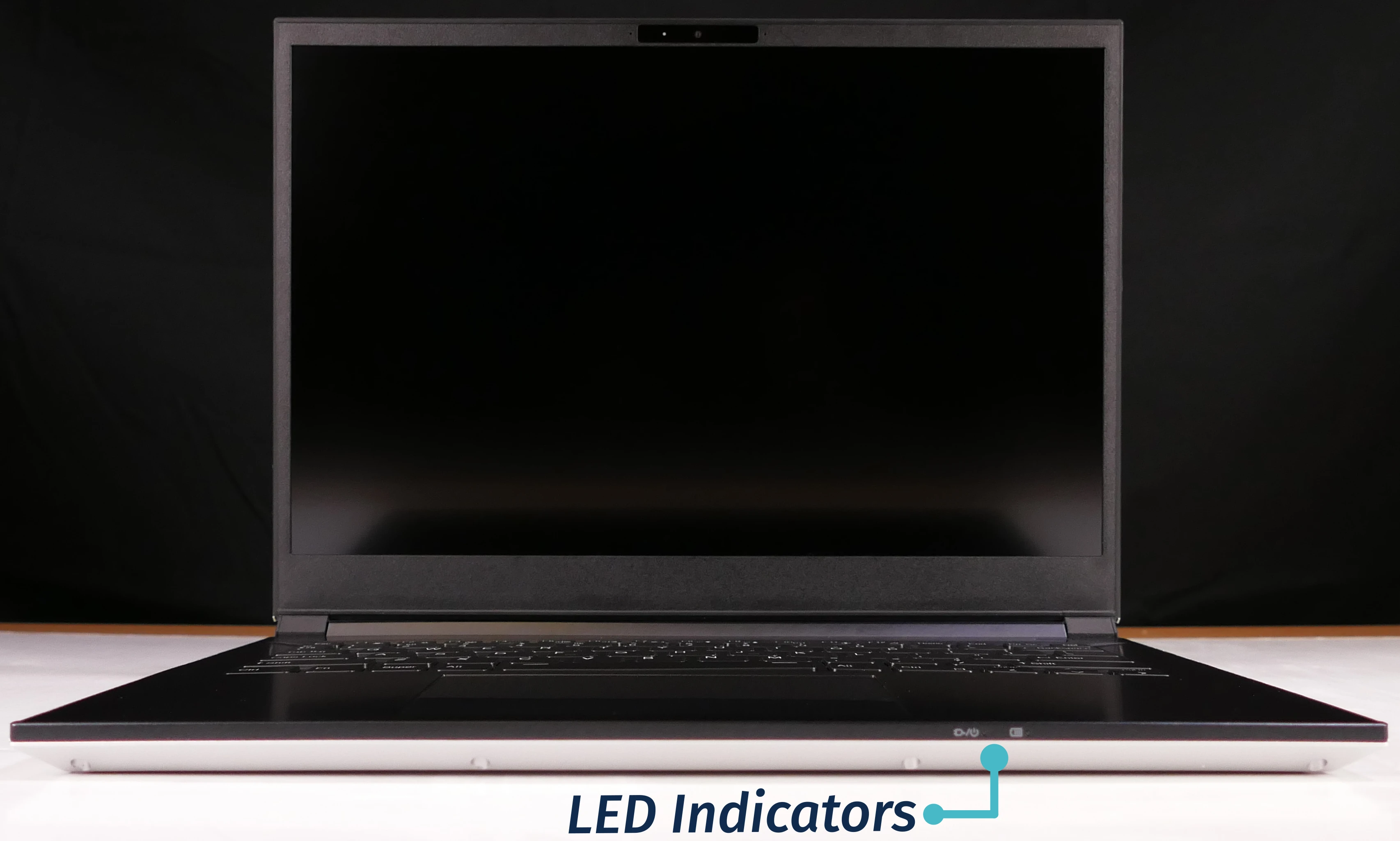

14” model (darp10-b):
Section titled “14” model (darp10-b):”
Back side:

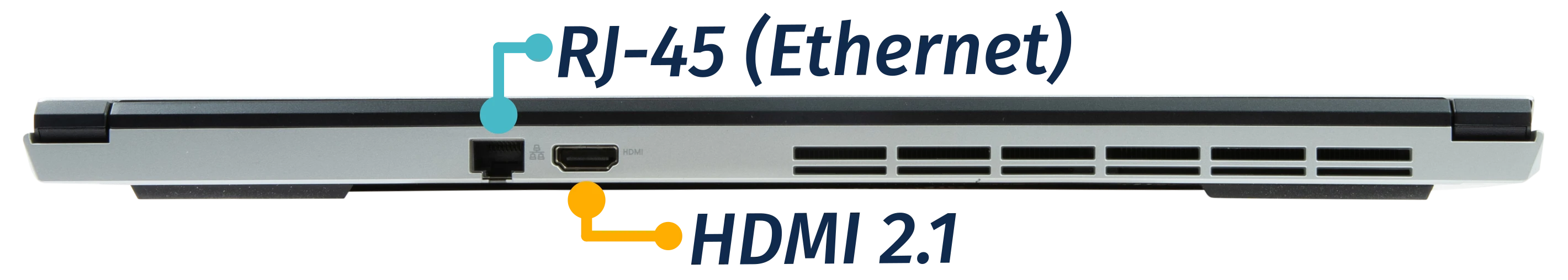

Section titled “Back side:”16” model (darp10):
Section titled “16” model (darp10):”

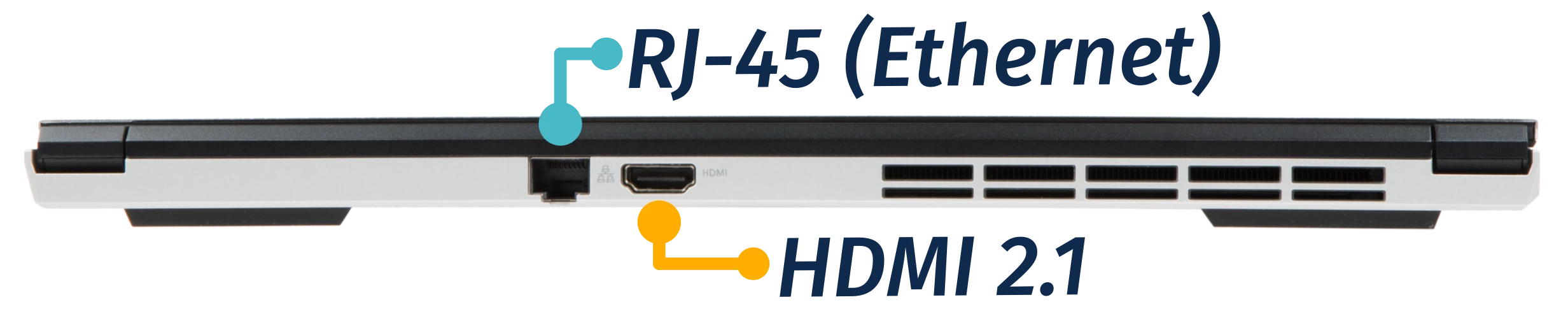

14” model (darp10-b):
Section titled “14” model (darp10-b):”
Keyboard & touchpad:

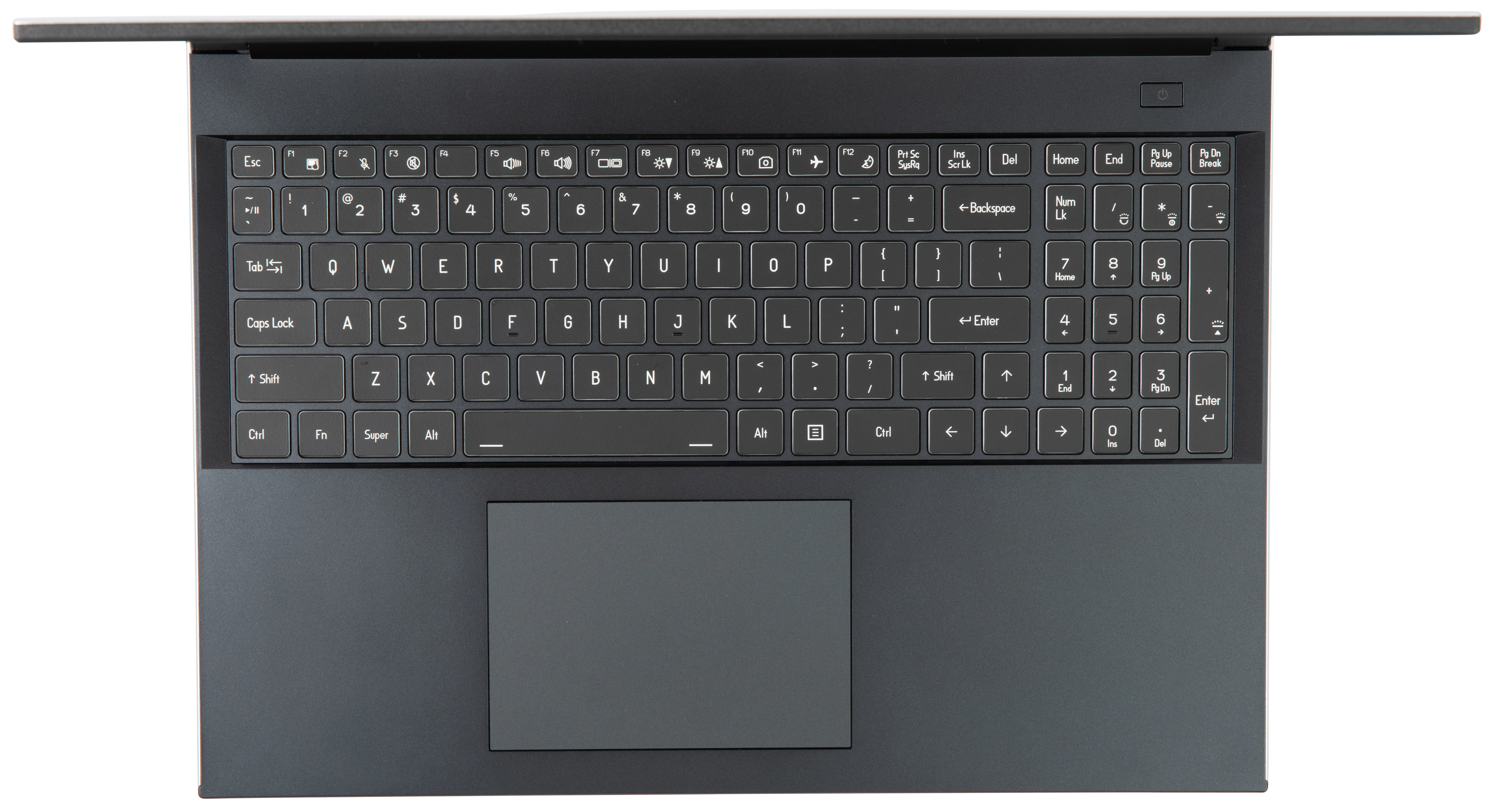

Section titled “Keyboard & touchpad:”16” model (darp10):
Section titled “16” model (darp10):”

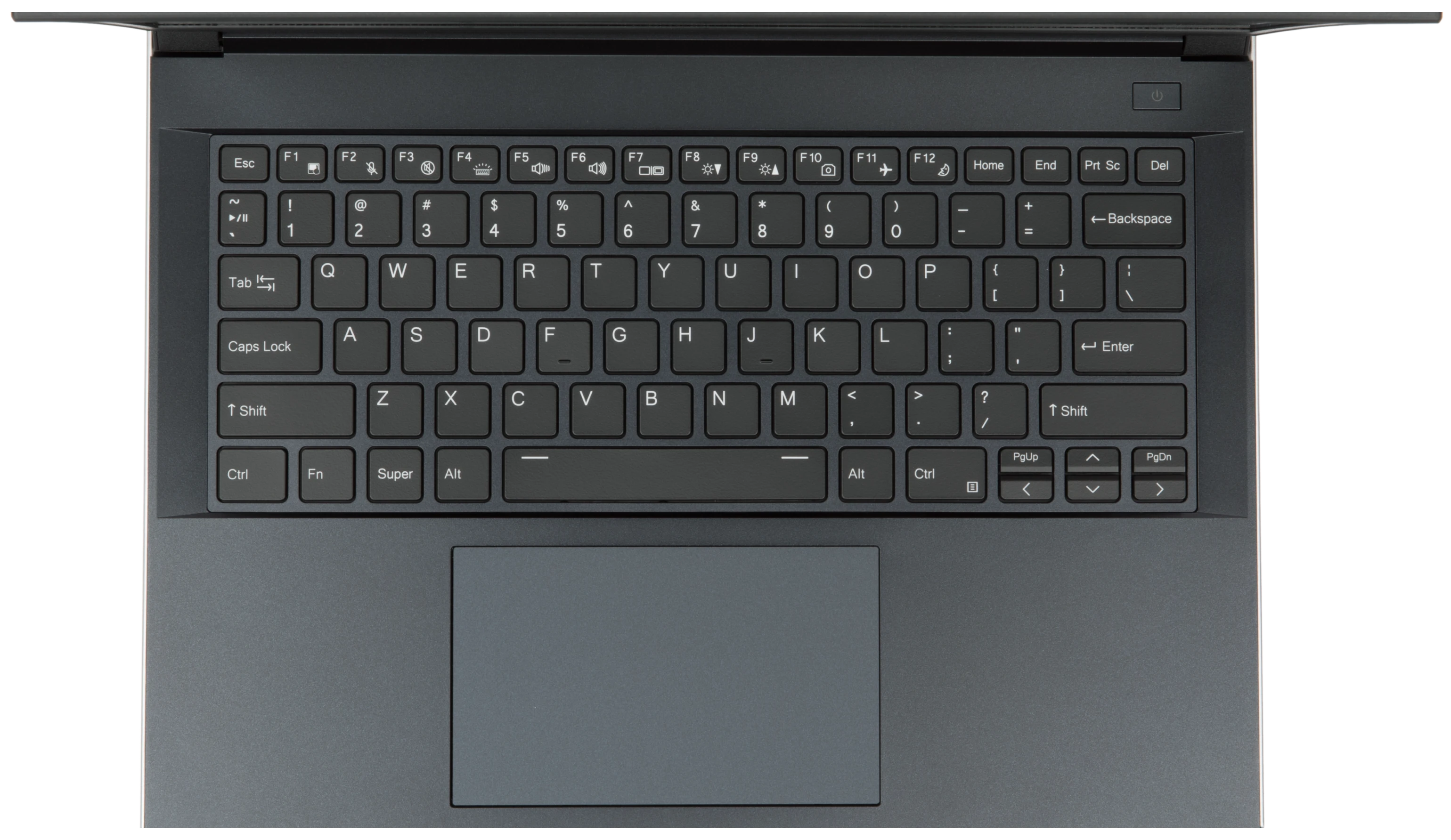

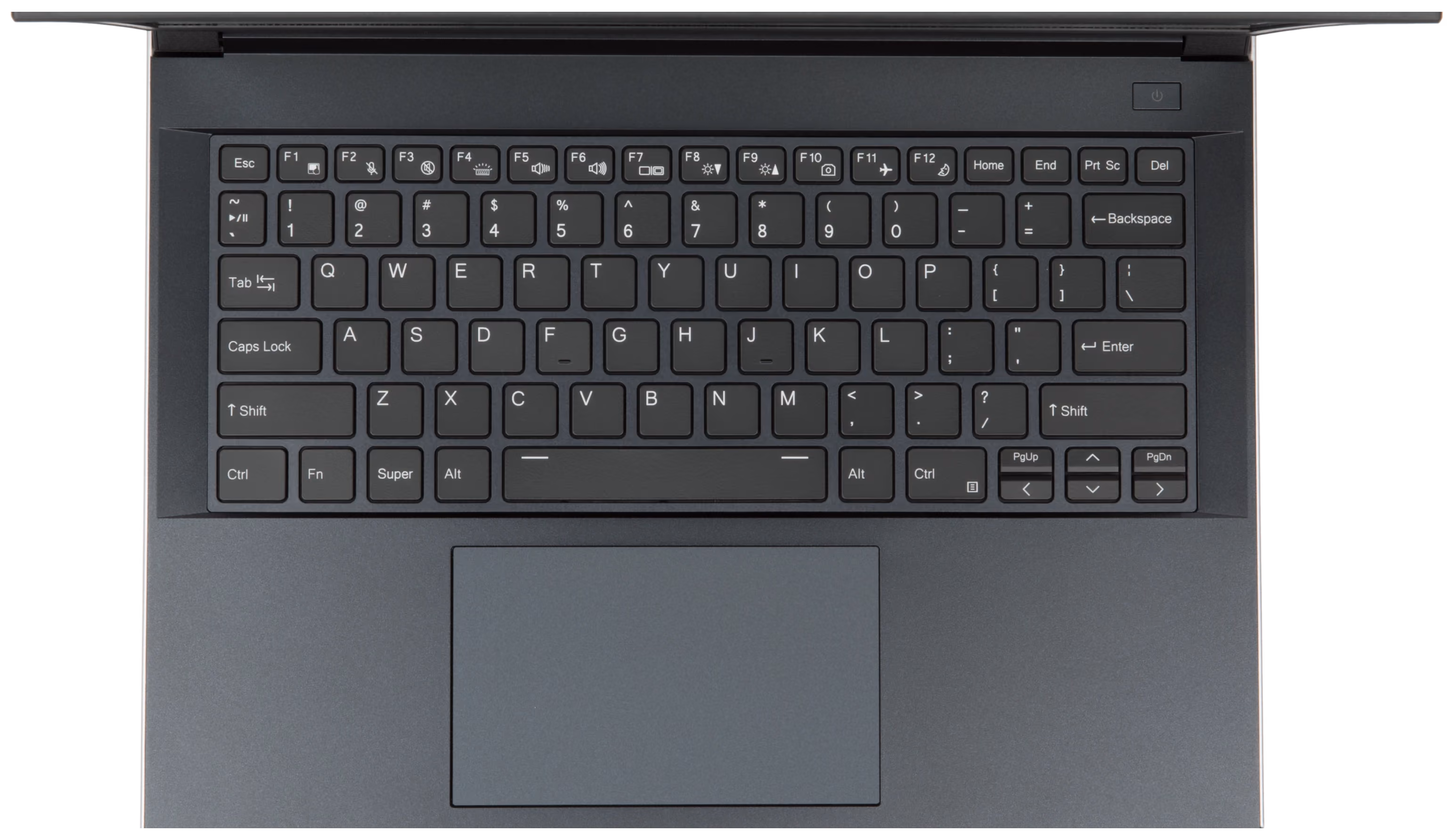

14” model (darp10-b):
Section titled “14” model (darp10-b):”

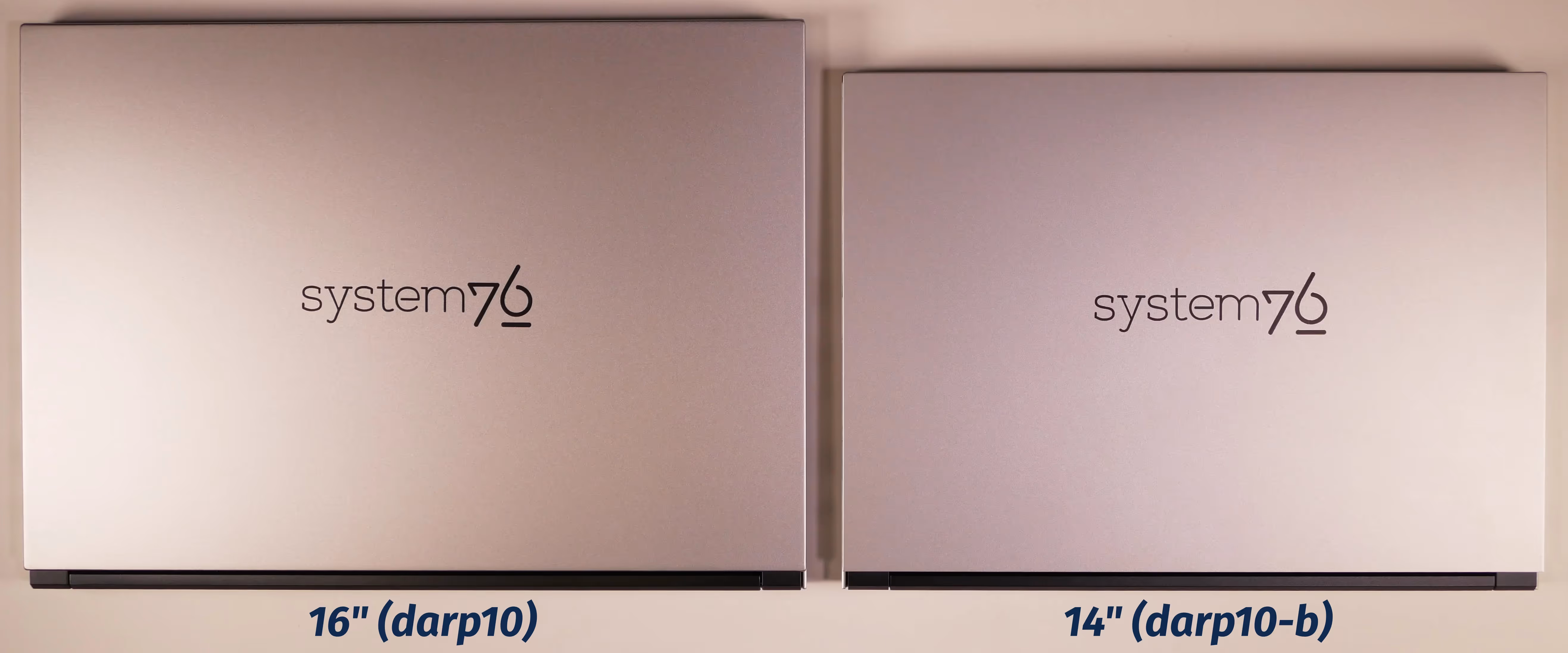

Materials:
Section titled “Materials:”| Part | Material | Part Number |
|---|---|---|
| LCD back cover (lid) | Aluminum | 16” (darp10): 6-39-V56T1-022 14” (darp10-b): 6-39-V54T1-022 |
| LCD front cover (bezel) | Plastic | 16” (darp10): 6-39-V5601-012 14” (darp10-b): 6-39-V5401-012 |
| Top case (palm rests/port covers) | Plastic | 16” (darp10): 6-39-V5602-012 14” (darp10-b): 6-39-V5402-012 |
| Bottom panel | Aluminum | 16” (darp10): 6-39-V56T3-012 14” (darp10-b): 6-39-V54T3-012 |
LED indicators:
Section titled “LED indicators:”| Icon | Color | Description |
|---|---|---|
 | Orange | Powered off, DC power plugged in |
| Green | Powered on | |
| Blinking green | Sleeping (suspended) | |
 | Orange | Battery charging |
| Green | Battery fully charged |
Keyboard shortcuts:
Section titled “Keyboard shortcuts:”| Key | Shortcut | Action |
|---|---|---|
 | Fn+F1 | Toggle trackpad |
 | Fn+F2 | Mic mute |
 | Fn+F3 | Mute |
 | Fn+F4 | 14” model (darp10-b): Toggle keyboard backlight |
 | Fn+F5 | Volume down |
 | Fn+F6 | Volume up |
 | Fn+F7 | Toggle displays |
 | Fn+F8 | Screen brightness down |
 | Fn+F9 | Screen brightness up |
 | Fn+F10 | Toggle webcam |
 | Fn+F11 | Toggle airplane mode |
 | Fn+F12 | Suspend |
 | Fn+` | Play/Pause |
| Fn+* | 16” model (darp10): Toggle keyboard backlight |
 | Fn+/ | 16” model (darp10): Cycle keyboard brightness levels |
 | Fn+- | 16” model (darp10): Decrease keyboard brightness |
 | Fn++ | 16” model (darp10): Increase keyboard brightness |
| 1 | Fn+1 | Toggle fan between max/automatic |
