Darter Pro (External Overview)

Left side:

Section titled “Left side:”

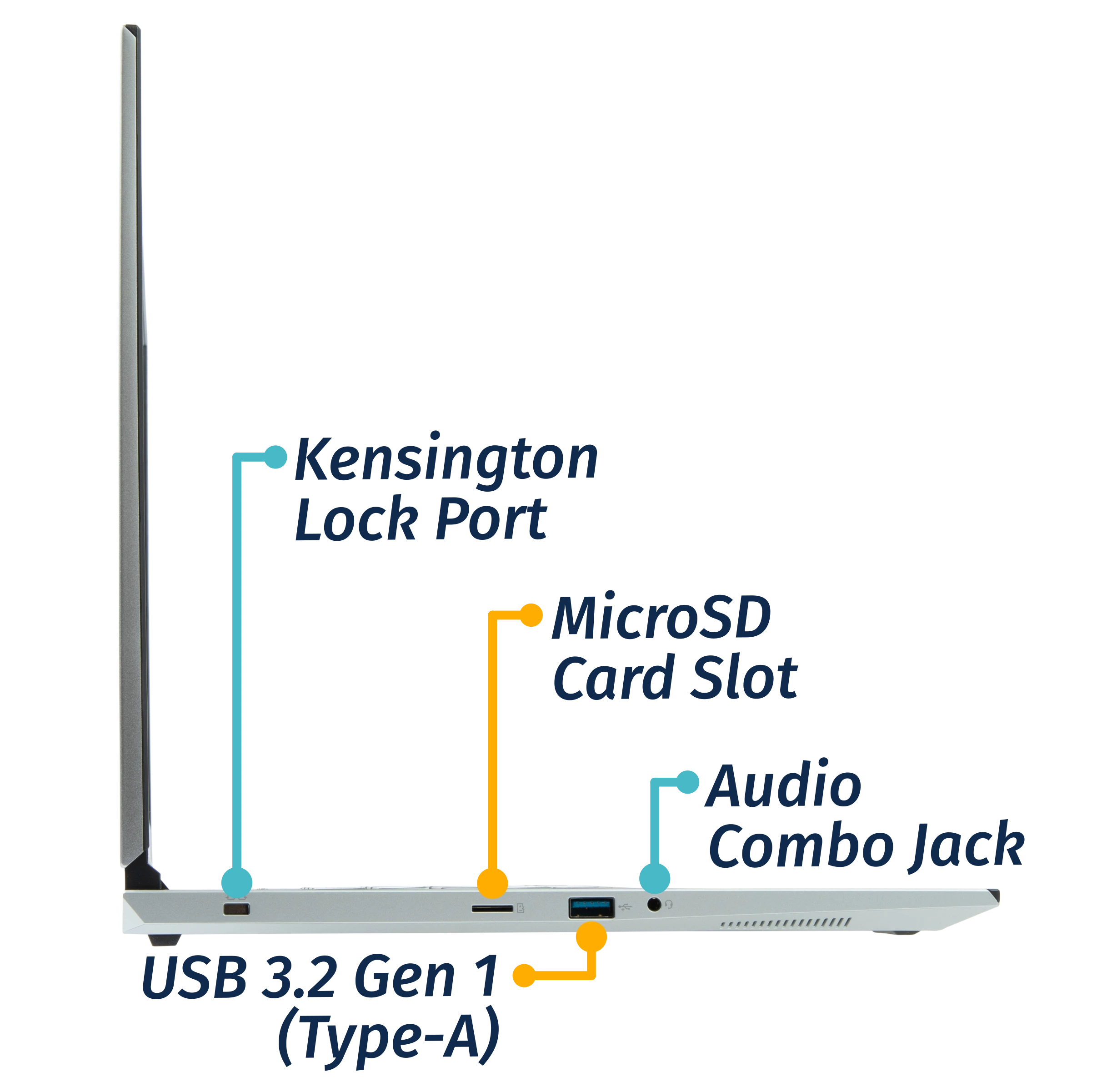

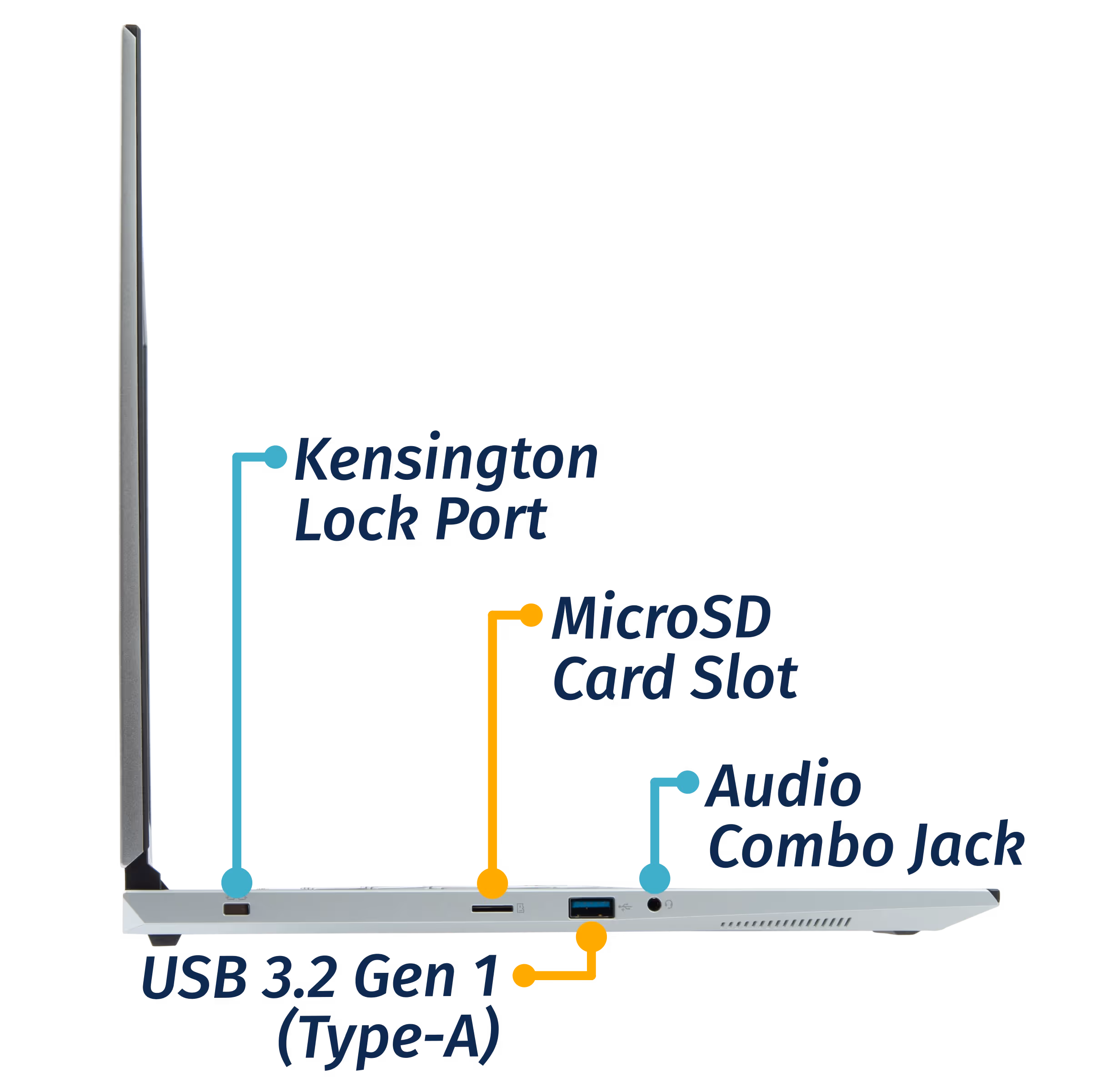

16“ model (darp11):

Section titled “16“ model (darp11):”
Left Ports

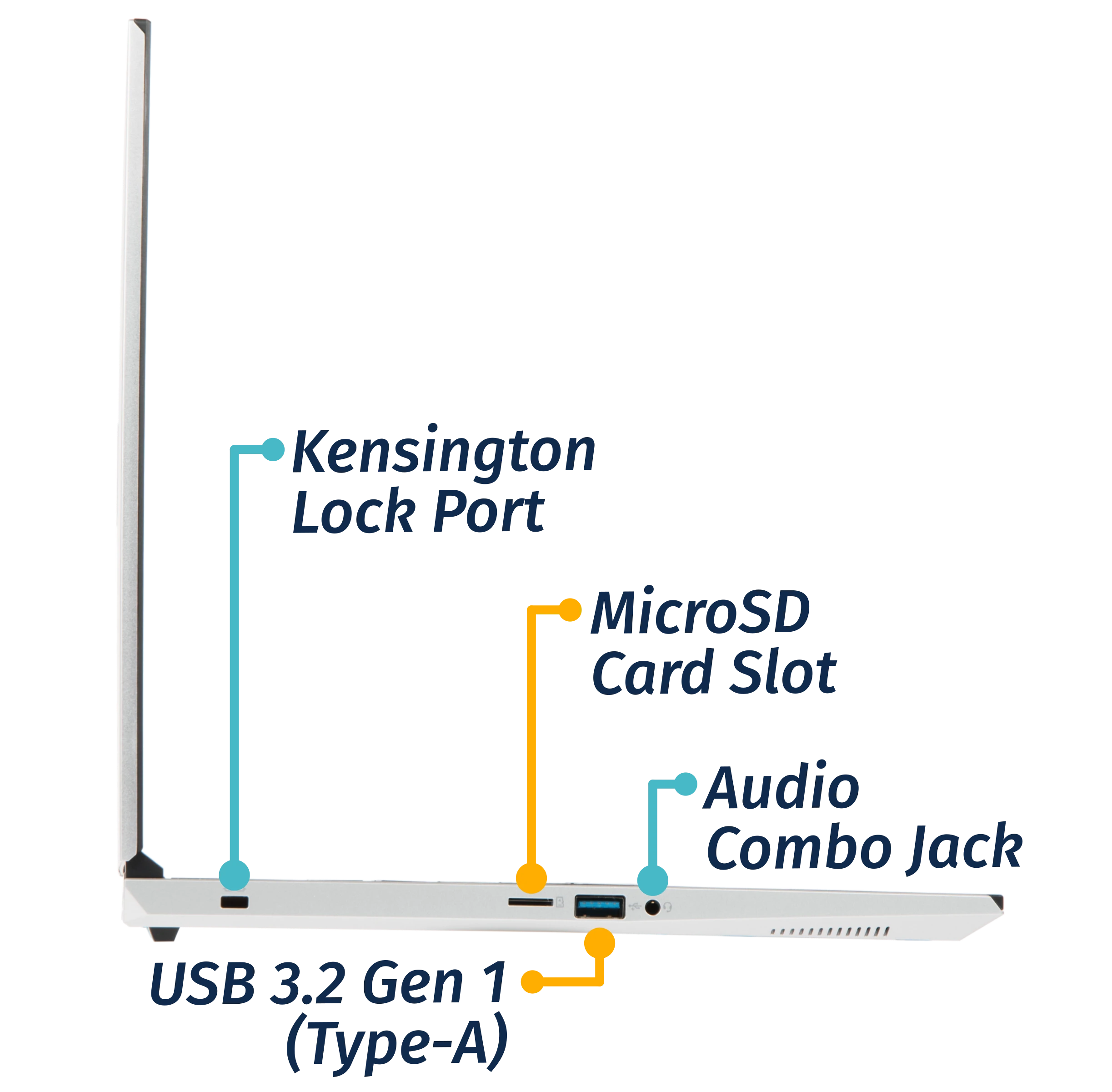

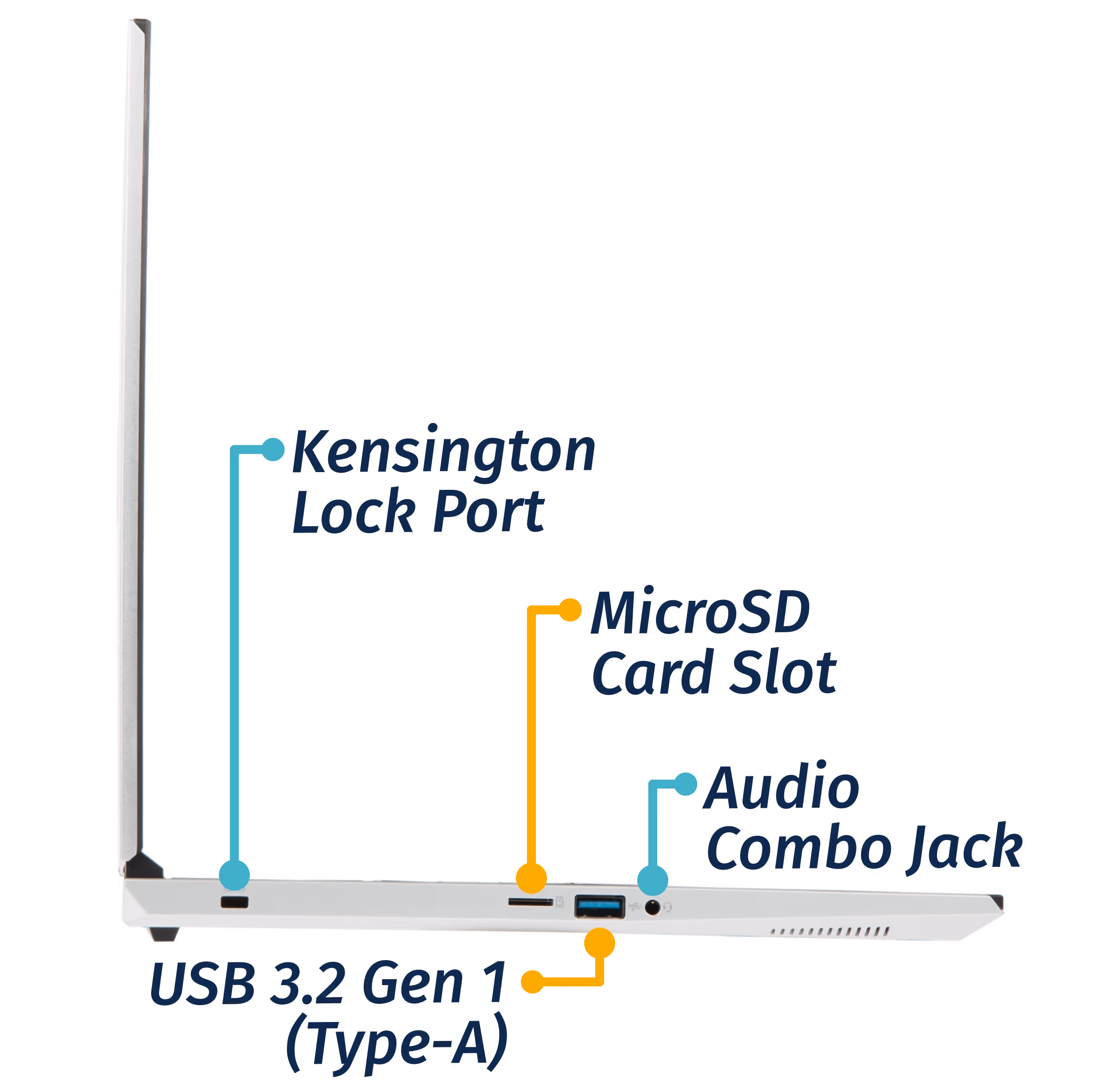

14“ model (darp11-b):

Section titled “14“ model (darp11-b):”
Left Ports

Right side:

Section titled “Right side:”

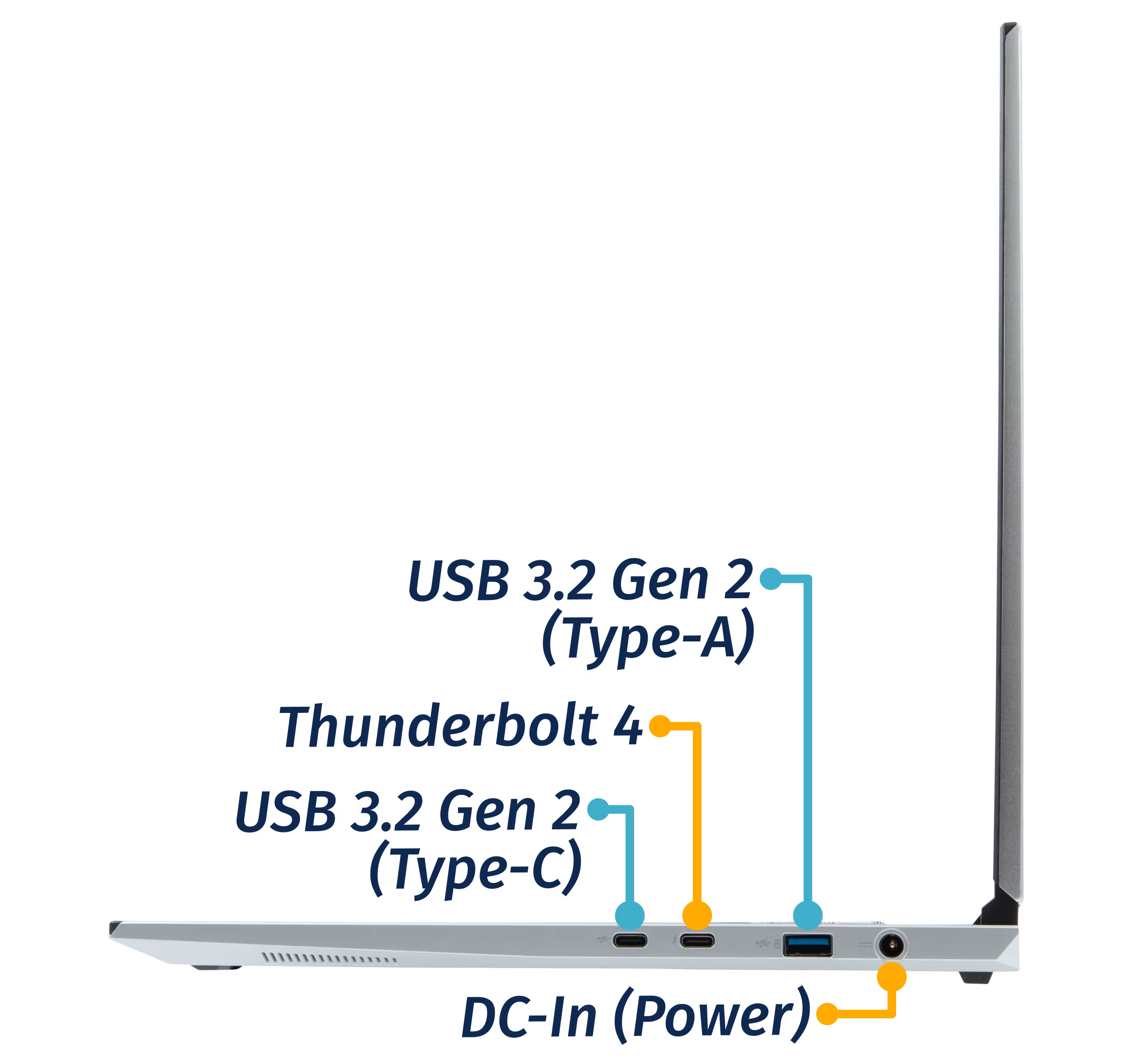

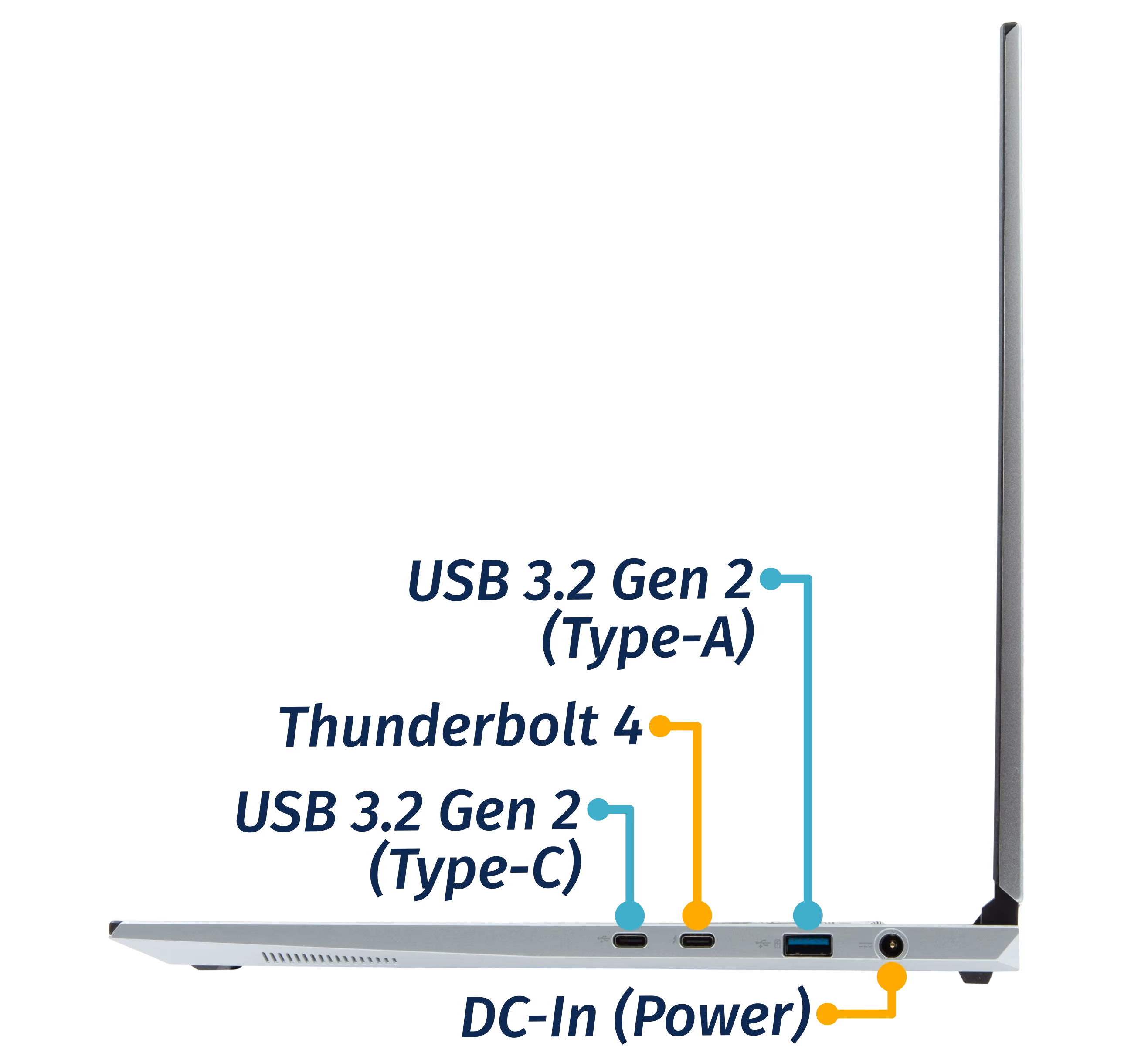

16“ model (darp11):

Section titled “16“ model (darp11):”
Right Ports

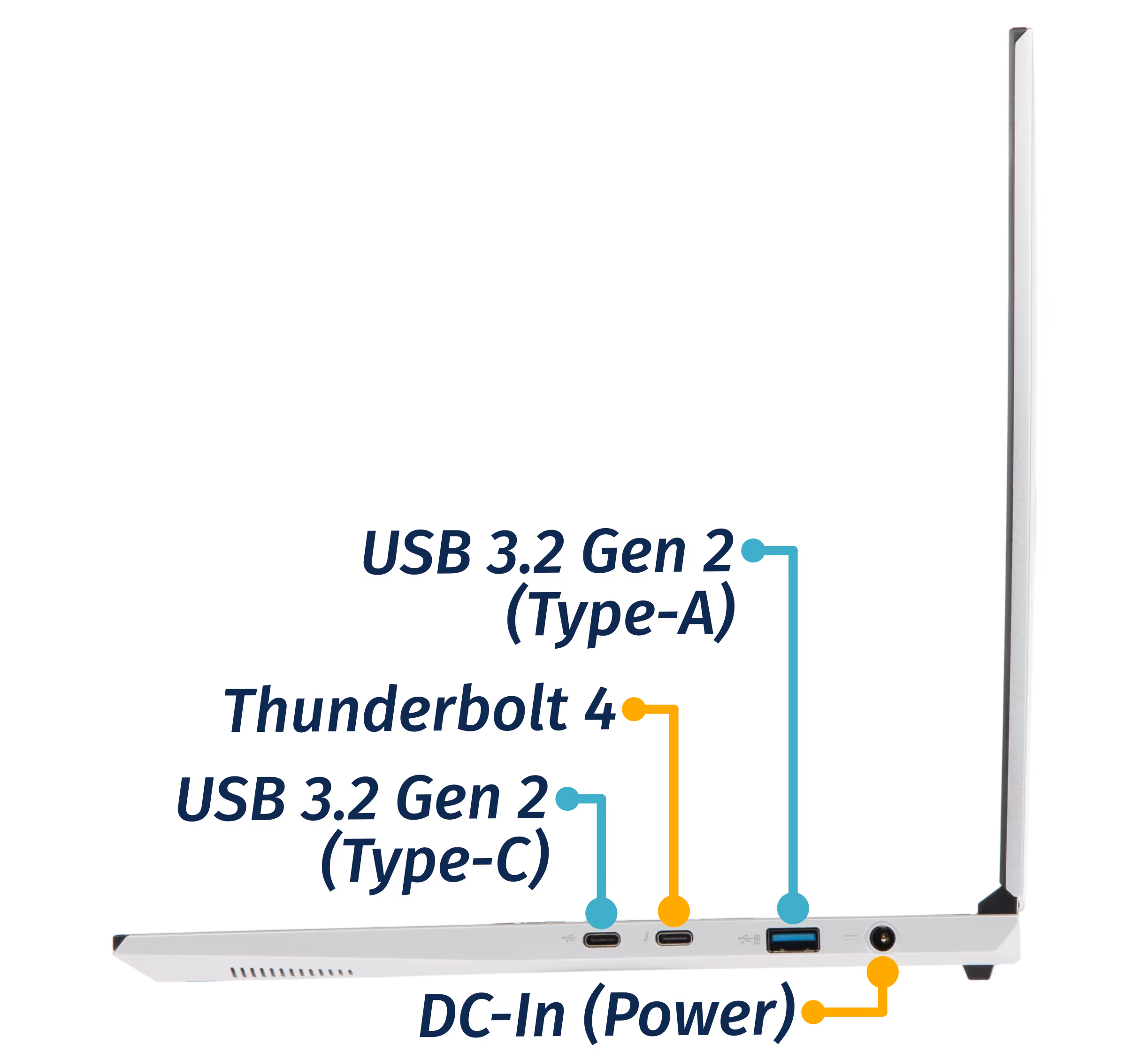

14“ model (darp11-b):

Section titled “14“ model (darp11-b):”
Left Ports

Front side:

Section titled “Front side:”

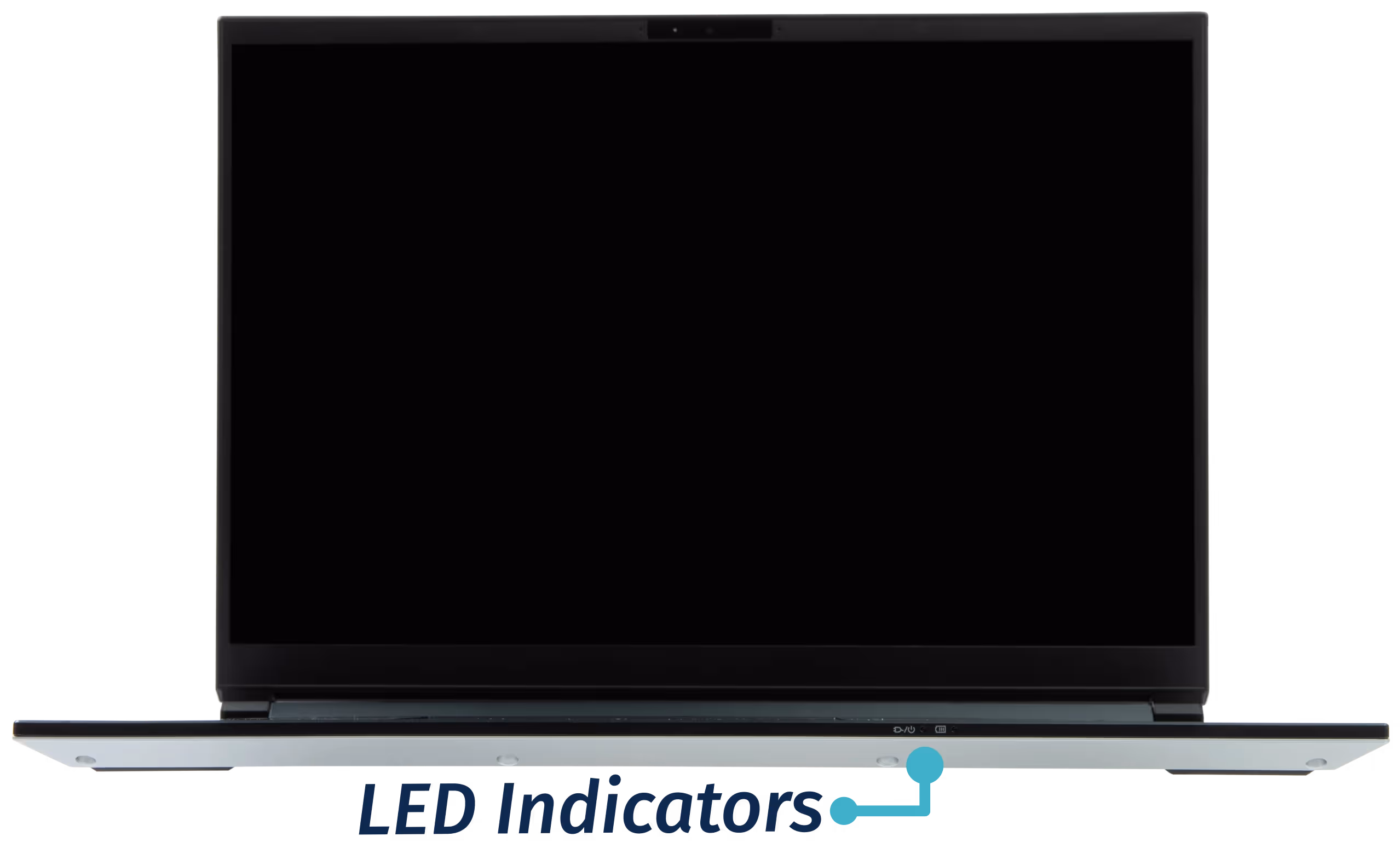

16“ model (darp11):

Section titled “16“ model (darp11):”
Front Ports

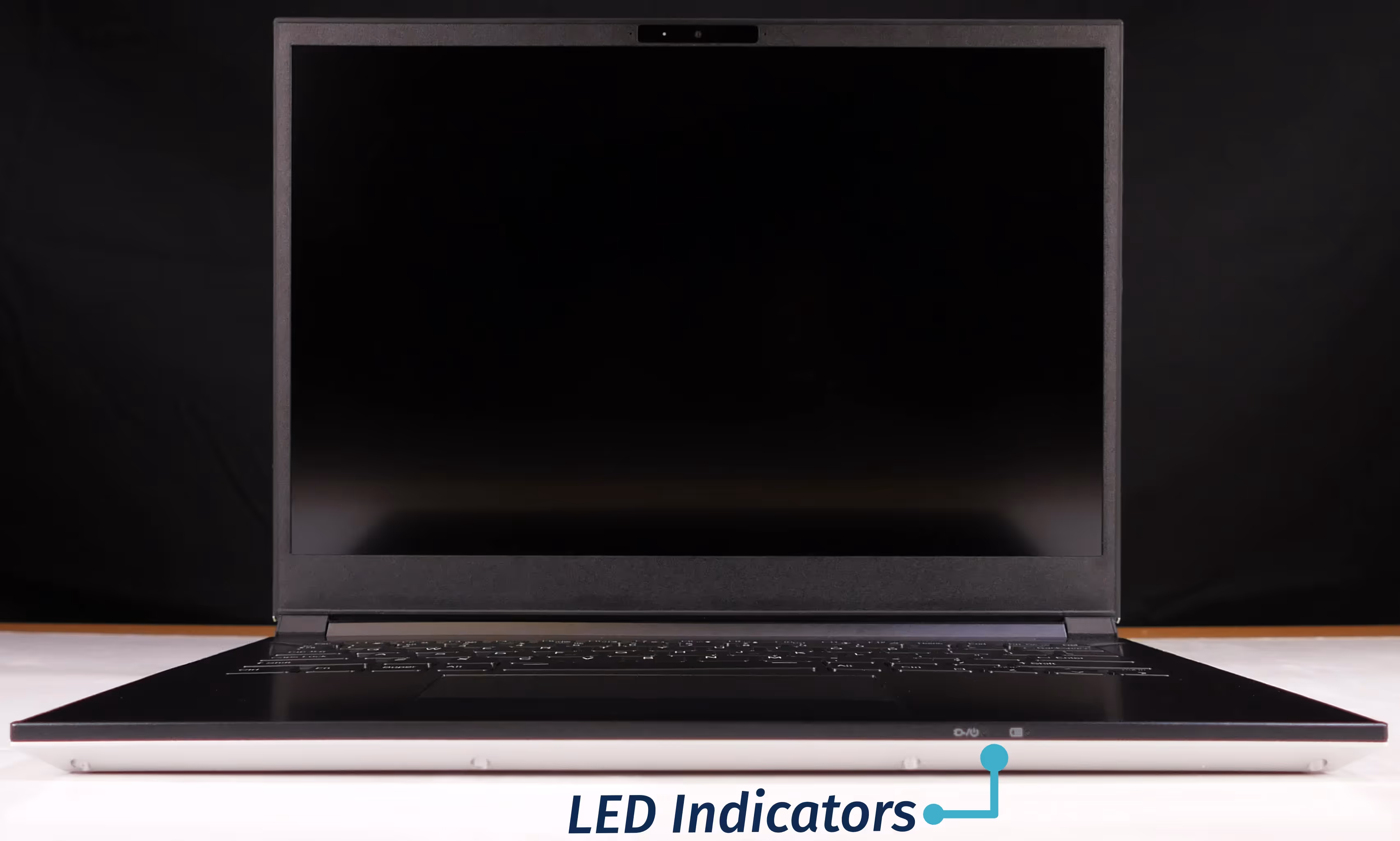

14“ model (darp11-b):

Section titled “14“ model (darp11-b):”

Left Ports

Back side:

Section titled “Back side:”

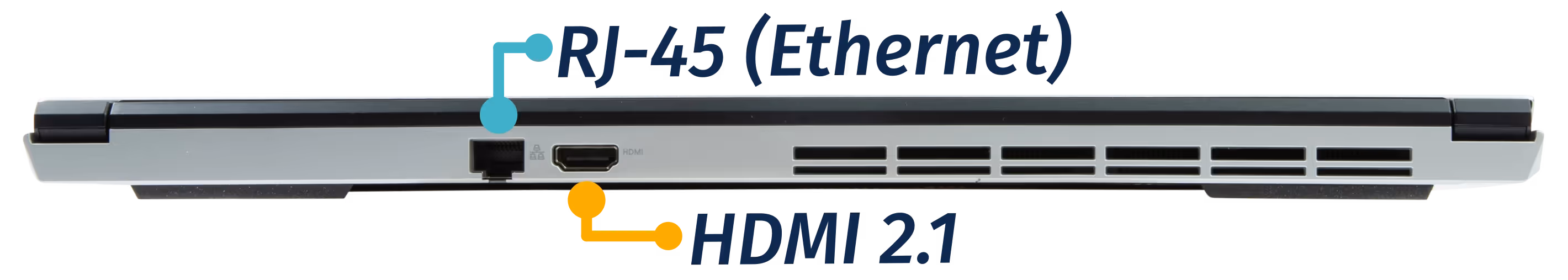

16“ model (darp11):

Section titled “16“ model (darp11):”
Back Ports

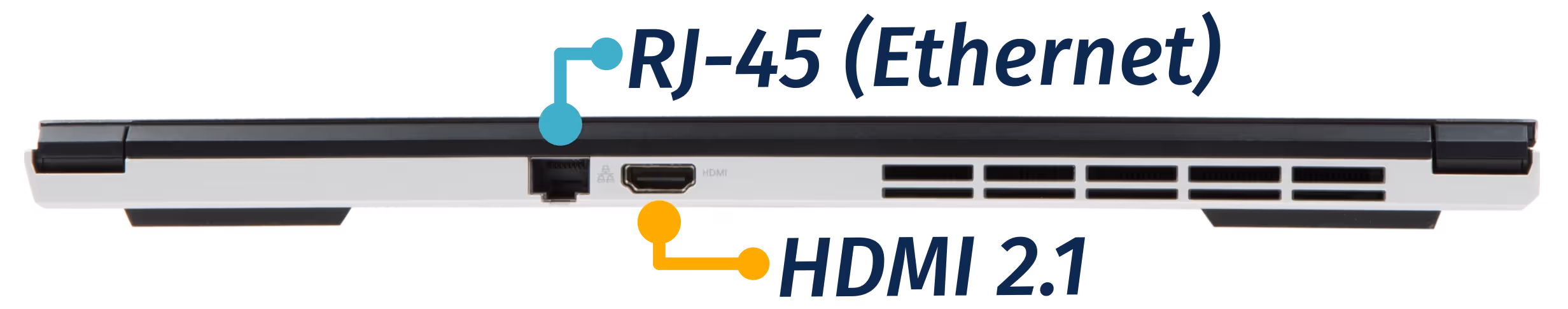

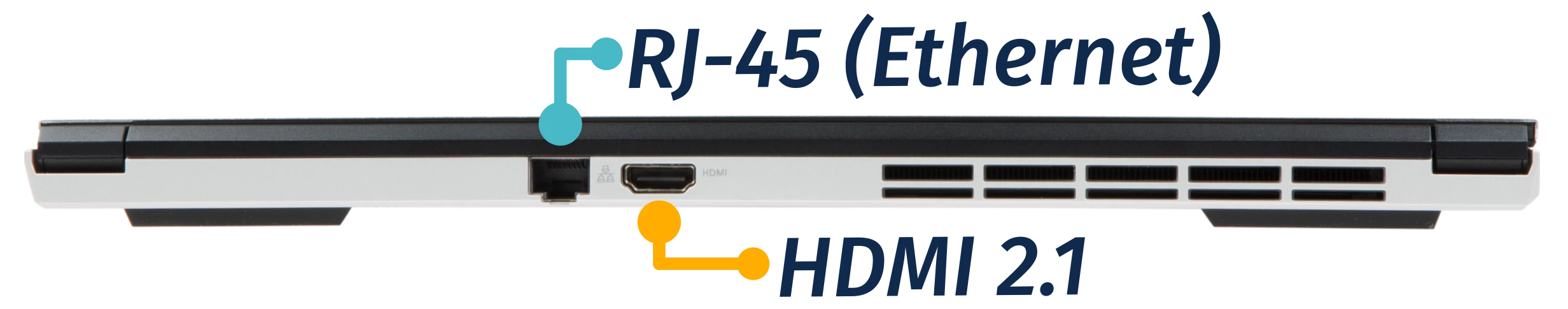

14“ model (darp11-b):

Section titled “14“ model (darp11-b):”
Back Ports

Keyboard & touchpad:

Section titled “Keyboard & touchpad:”

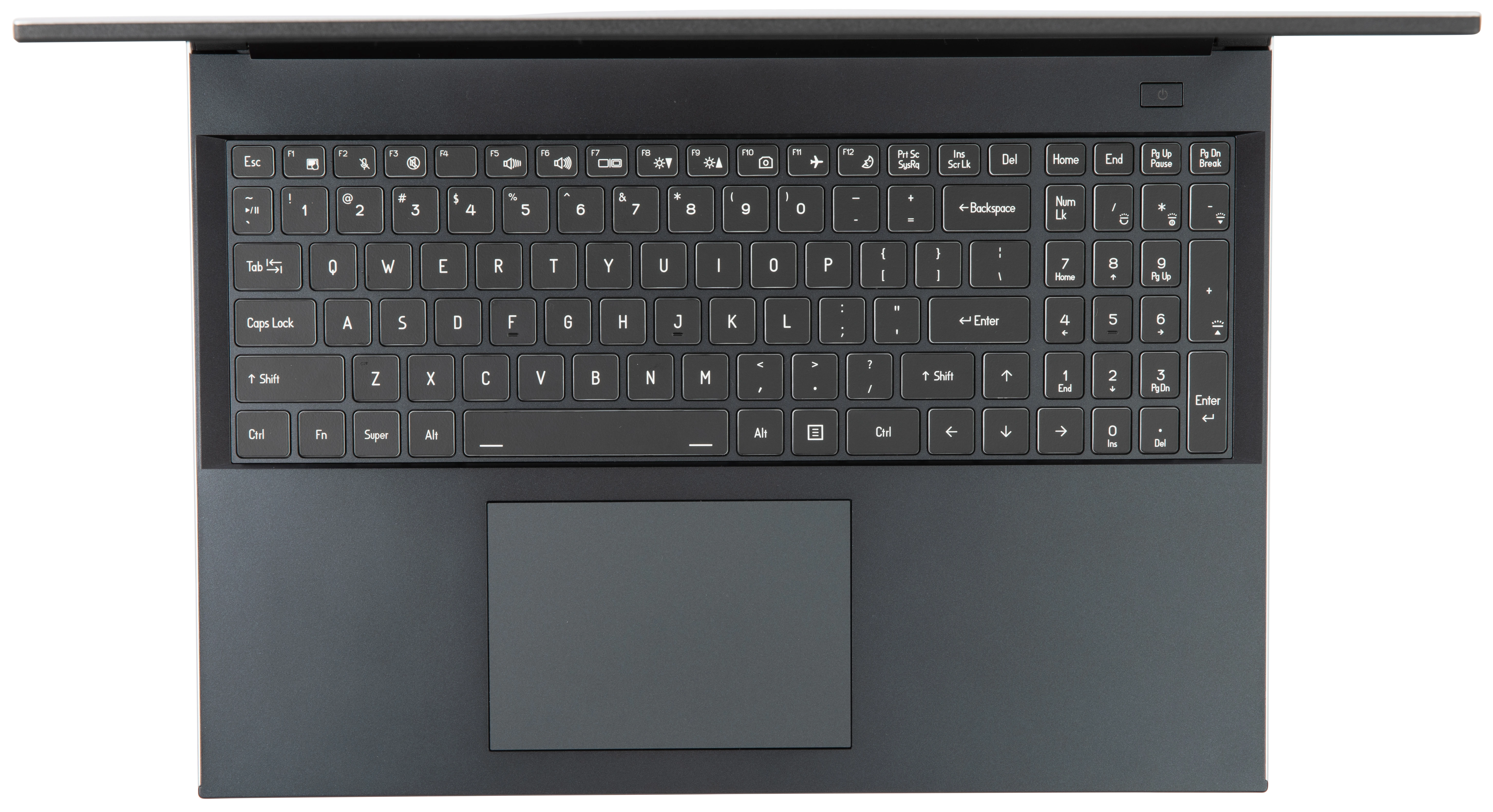

16“ model (darp11):

Section titled “16“ model (darp11):”

Keyboard & Touchpad

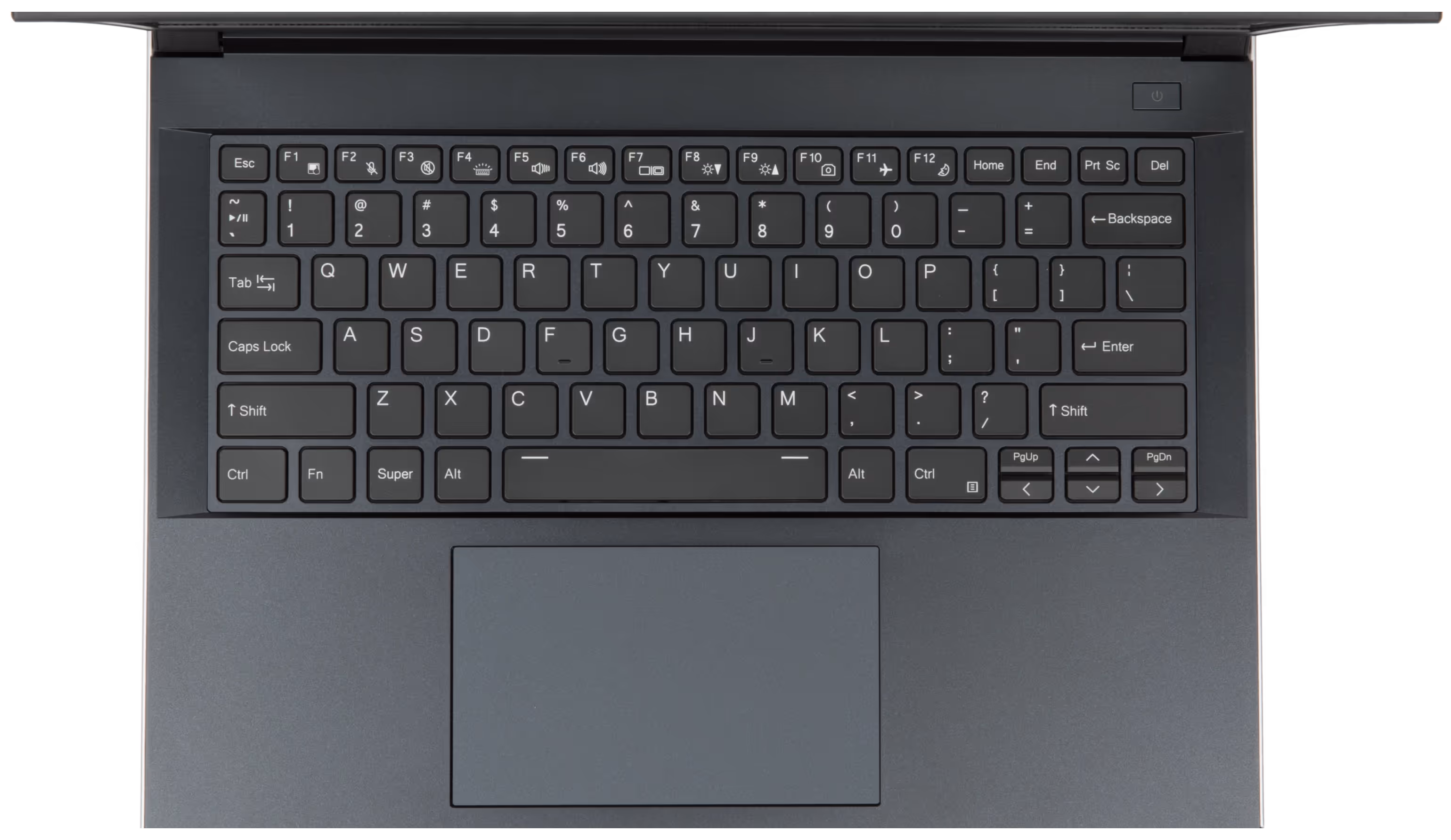

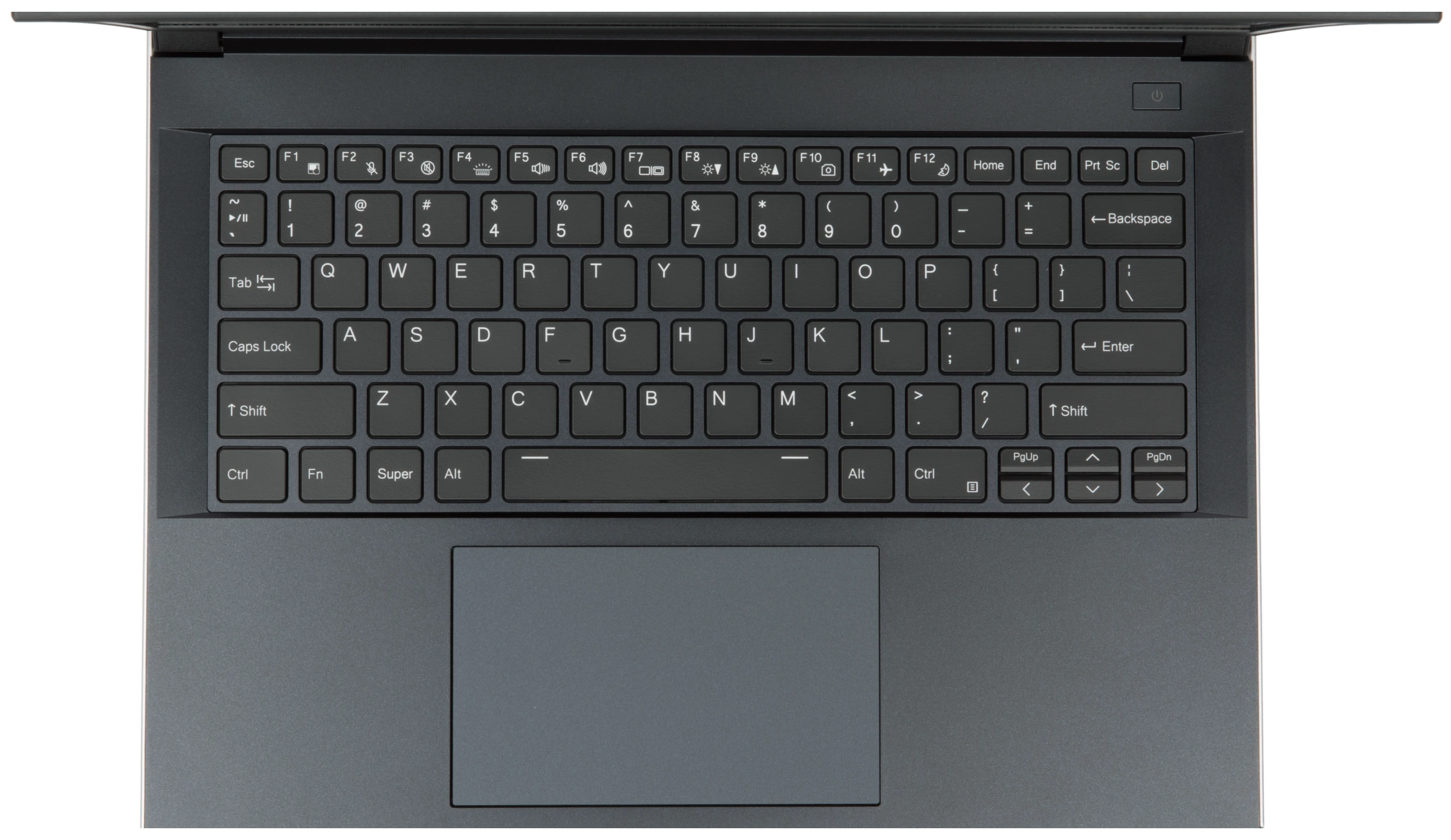

14“ model (darp11-b):

Section titled “14“ model (darp11-b):”

Keyboard & Touchpad

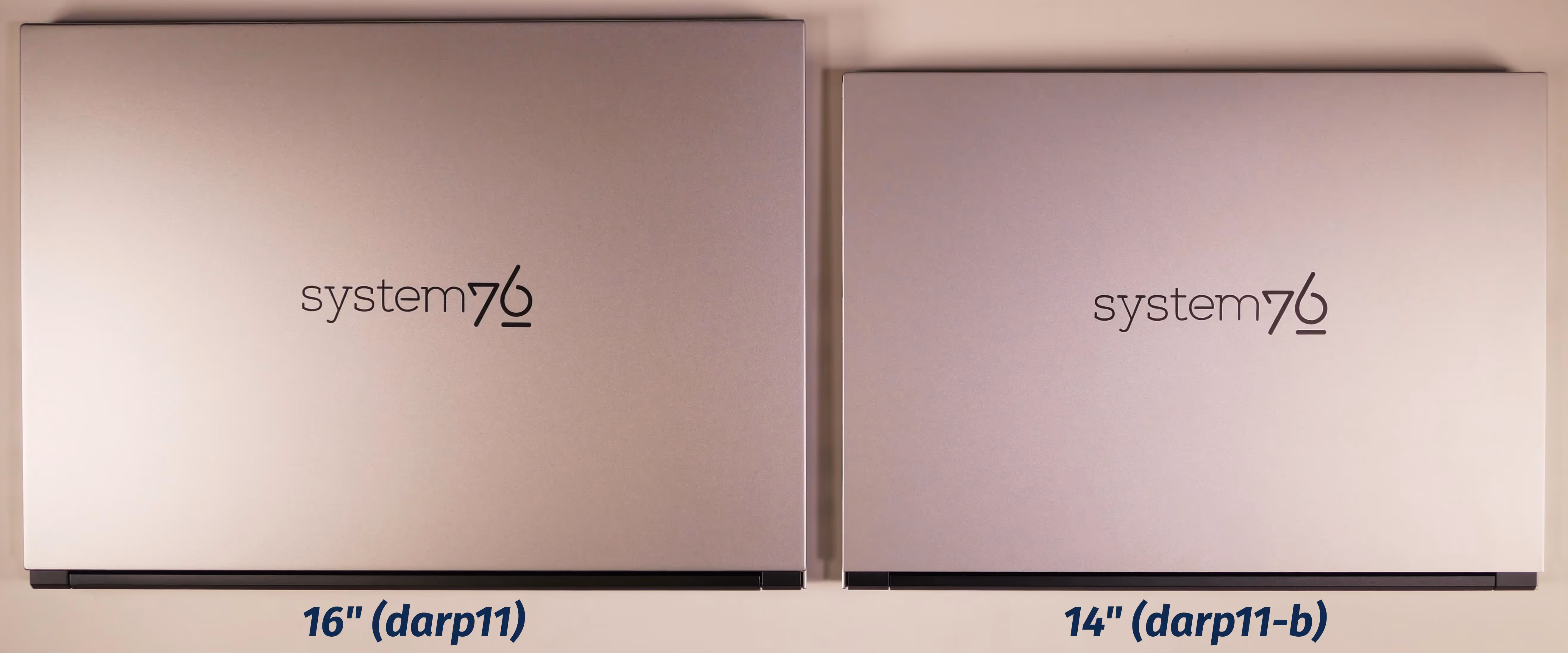

Lid:

Section titled “Lid:”

Lid

Materials:

Section titled “Materials:”
Part Material Part Number
LCD back cover (lid) Aluminum 16“ (darp11):
6-39-V56T1-022
14“ (darp11-b):
6-39-V54T1-022
LCD front cover (bezel) Plastic 16“ (darp11):
6-39-V5601-012
14“ (darp11-b):
6-39-V5401-012
Top case (palm rests/port covers) Plastic 16“ (darp11):
6-39-V5602-012
14“ (darp11-b):
6-39-V5402-012
Bottom panel Aluminum 16“ (darp11):
6-39-V56T3-012
14“ (darp11-b):
6-39-V54T3-012

LED indicators:

Section titled “LED indicators:”
Icon Color Description
Power LED Orange Powered off, DC power plugged in
Green Powered on
Blinking green Sleeping (suspended)
Battery LED Orange Battery charging
Green Battery fully charged

Keyboard shortcuts:

Section titled “Keyboard shortcuts:”
Key Shortcut Action
Fn-F1 Fn+F1 Toggle trackpad
Fn-F2 Fn+F2 Mic mute
Fn-F3 Fn+F3 Mute
Fn-F4 Fn+F4 14“ model (darp11-b):
Toggle keyboard backlight
Fn-F5 Fn+F5 Volume down
Fn-F6 Fn+F6 Volume up
Fn-F7 Fn+F7 Toggle displays
Fn-F8 Fn+F8 Screen brightness down
Fn-F9 Fn+F9 Screen brightness up
Fn-F10 Fn+F10 Toggle webcam
Fn-F11 Fn+F11 Toggle airplane mode
Fn-F12 Fn+F12 Suspend
Fn-F12 Fn+` Play/Pause
Fn-* Fn+* 16“ model (darp11):
Toggle keyboard backlight
Fn-/ Fn+/ 16“ model (darp11):
Cycle keyboard brightness levels
Fn– Fn+- 16“ model (darp11):
Decrease keyboard brightness
Fn-+ Fn++ 16“ model (darp11):
Increase keyboard brightness
1 Fn+1 Toggle fan between max/automatic
