Serval WS (Internal Overview)

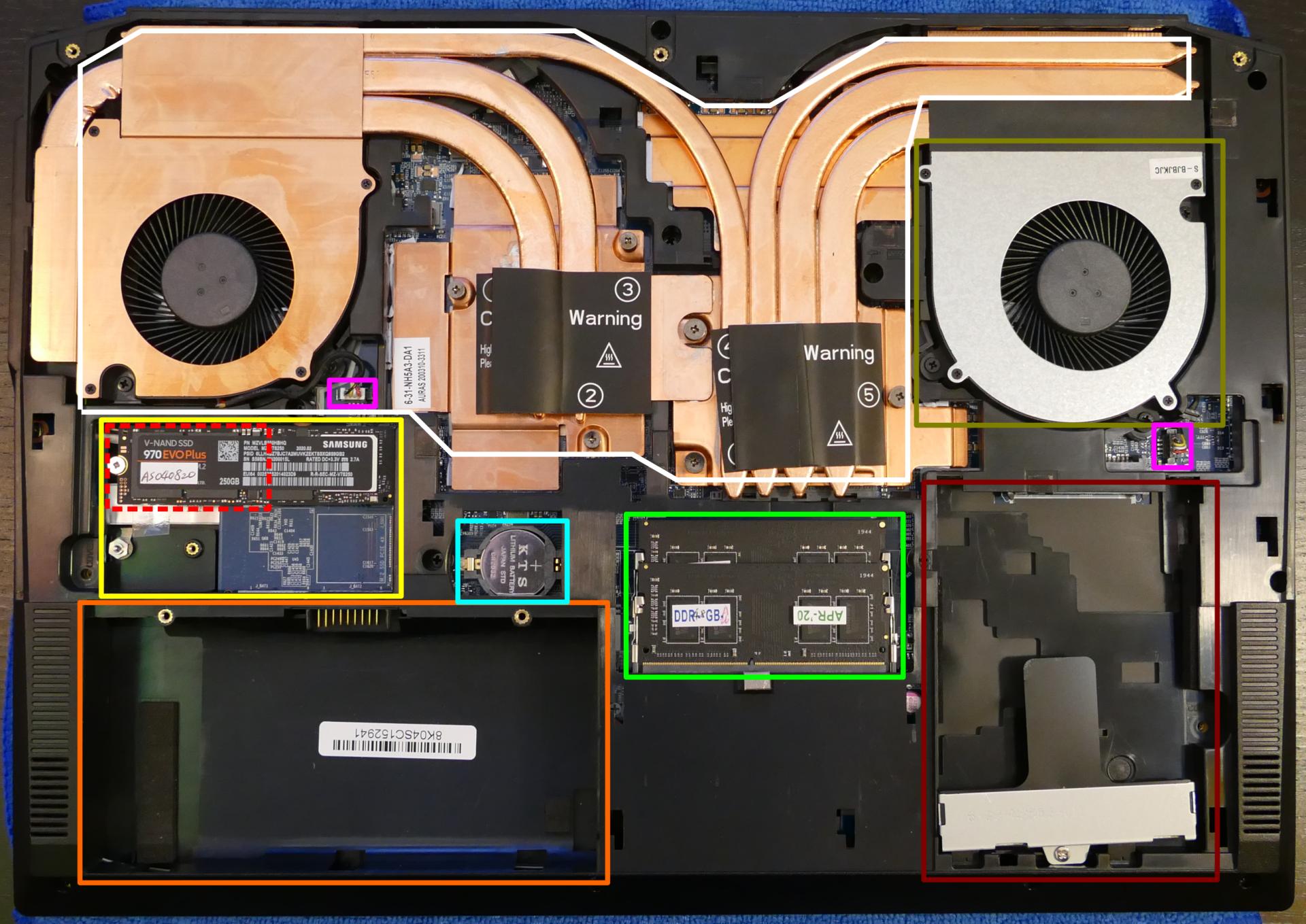

Bottom components and connectors:

• Fan/heatsink module is highlighted in white
• Additional fan is highlighted in olive
• Fan connectors are highlighted in pink
• M.2 SSDs are highlighted in yellow
• Wireless card is below the top M.2 SSD, highlighted dashed red
• CMOS battery connector is highlighted in cyan
• RAM is highlighted in light green
• 2.5” drive bay is highlighted in dark red
• Battery slot is highlighted in orange
• BIOS flash chip (U47), not highlighted

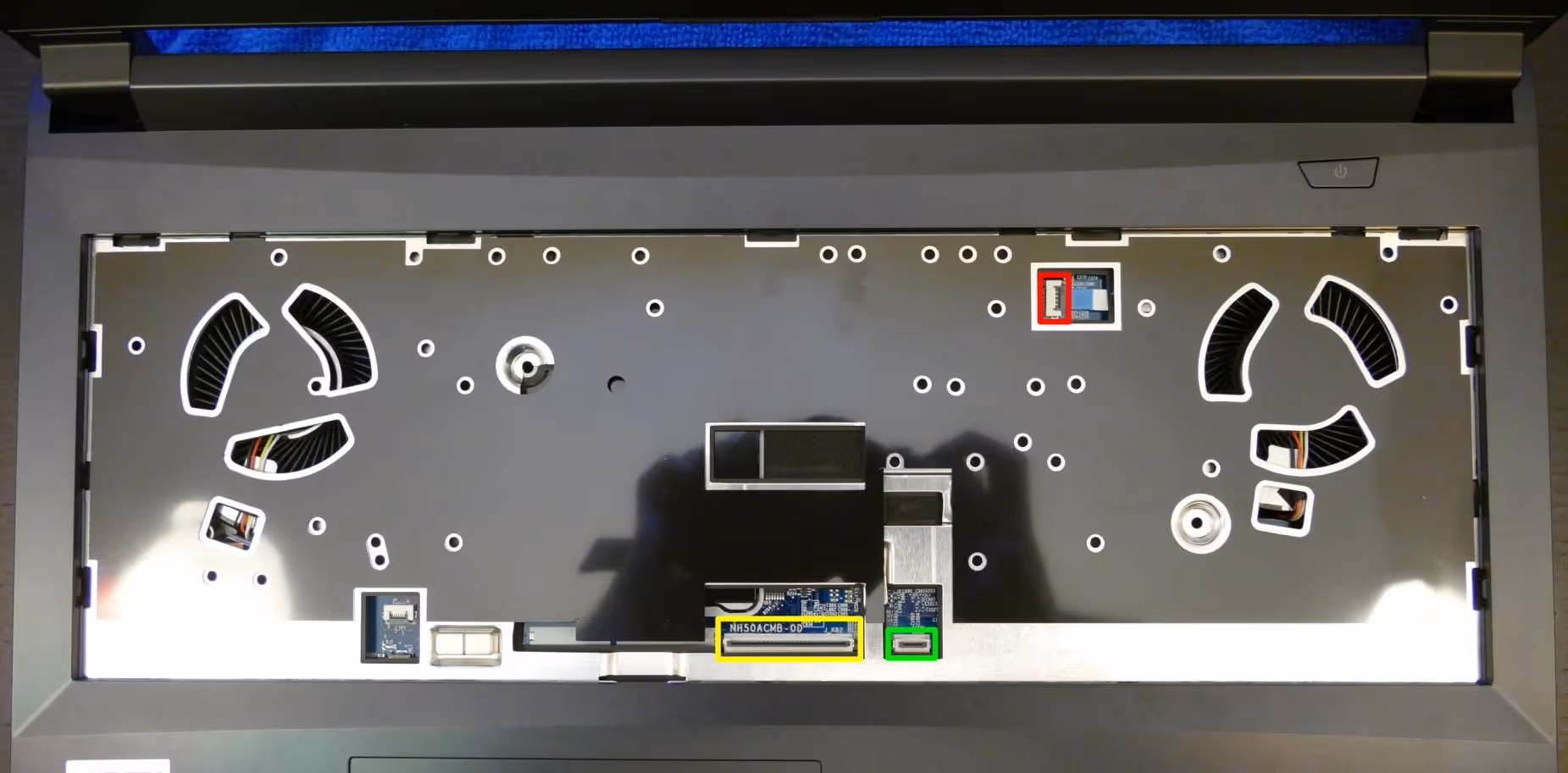

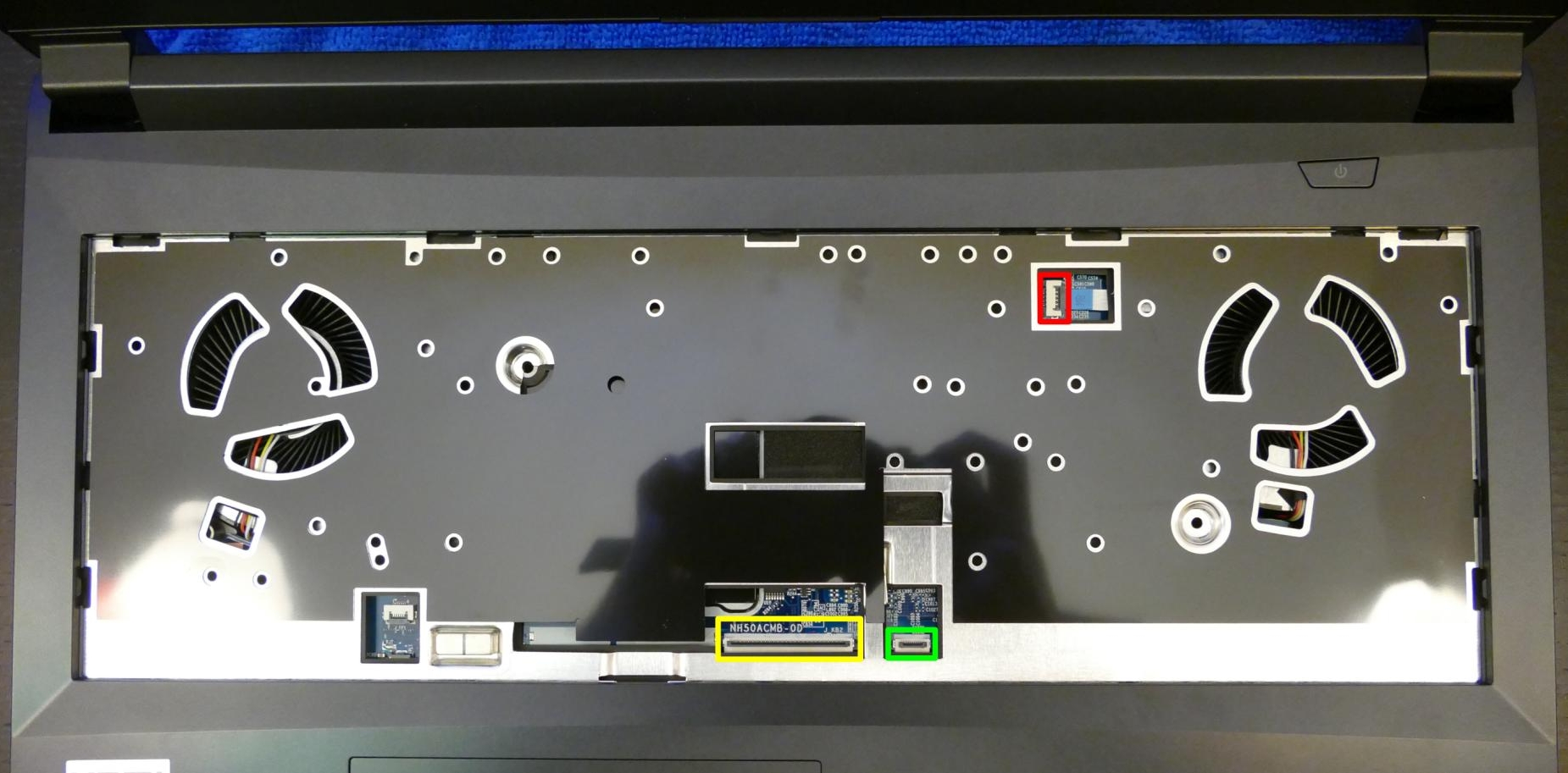

Under-keyboard components and connectors:

• Keyboard connector is highlighted in yellow
• Keyboard backlight connector is highlighted in green
• Power button/LED connector is highlighted in red
