Lemur Pro (External Overview)

14“ model (lemp14)

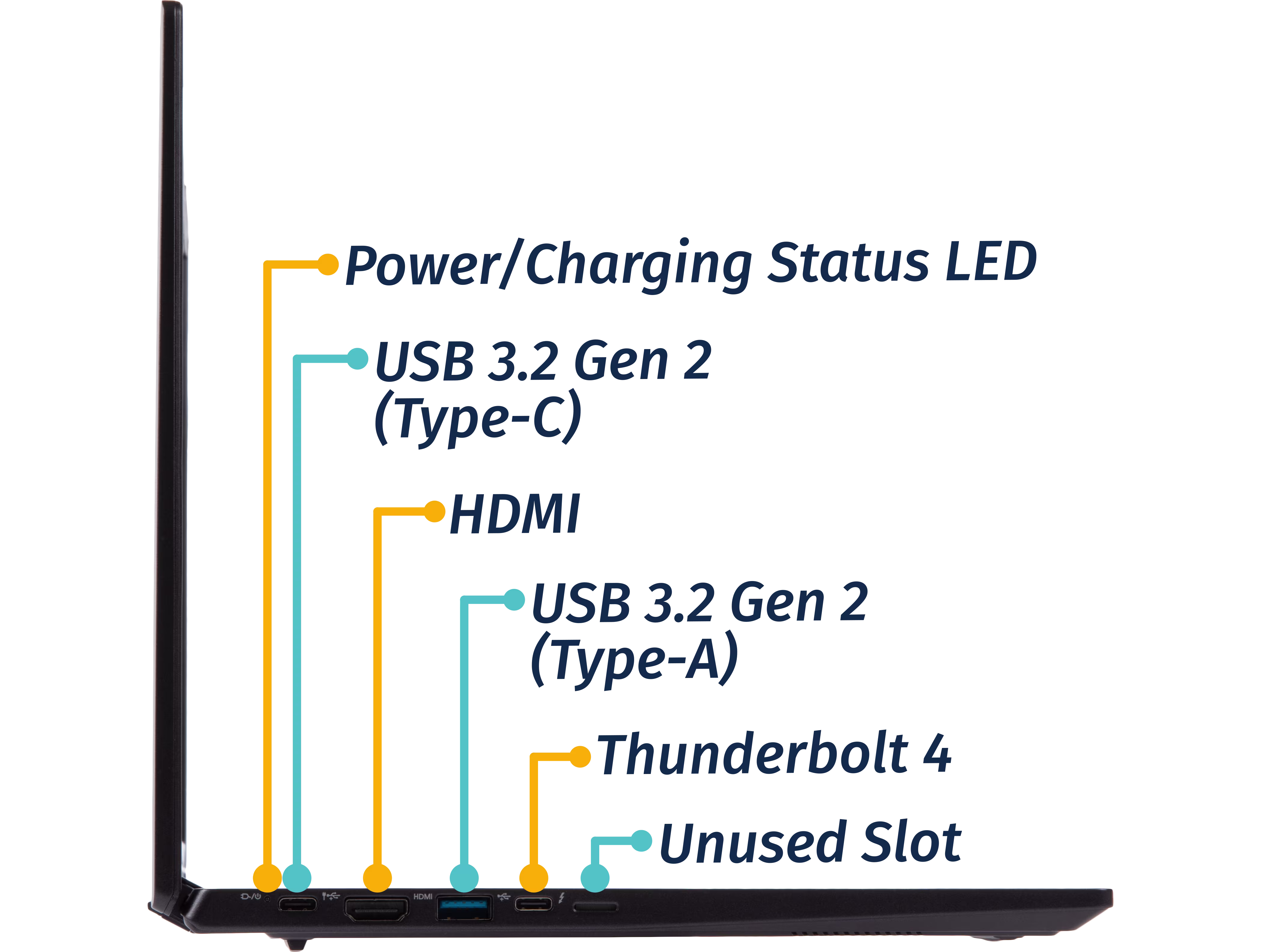

Left side:

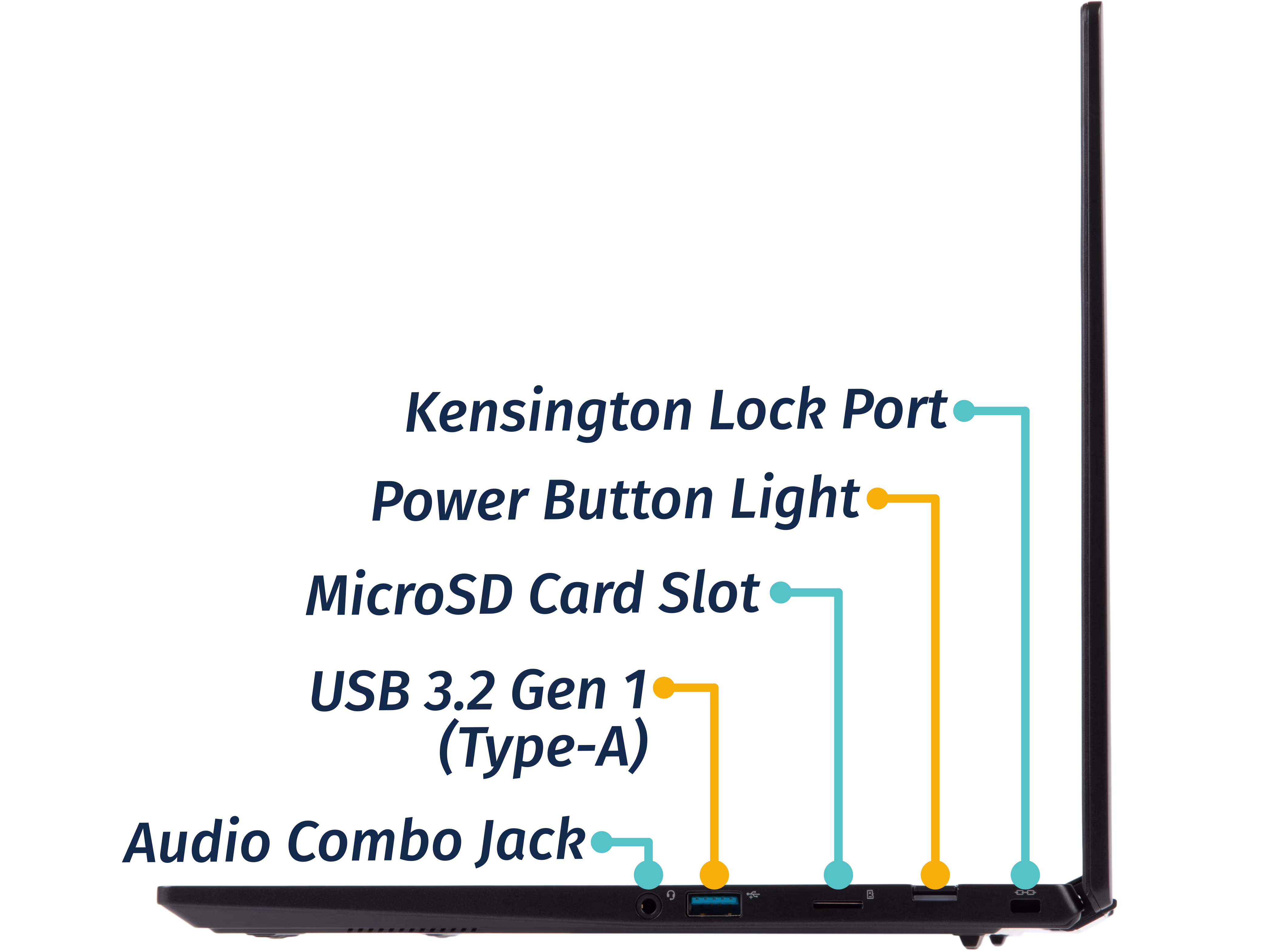

Right side:

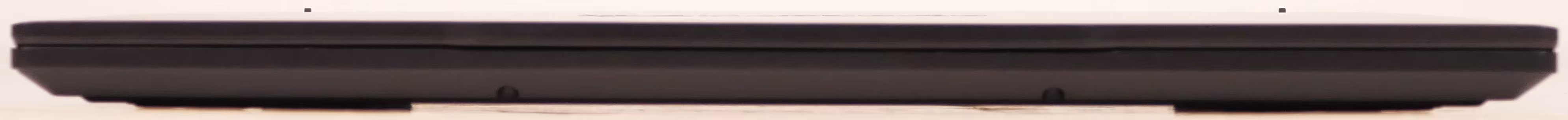

Front side:

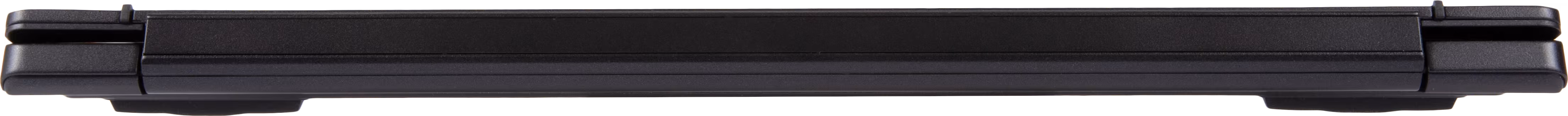

Back side:

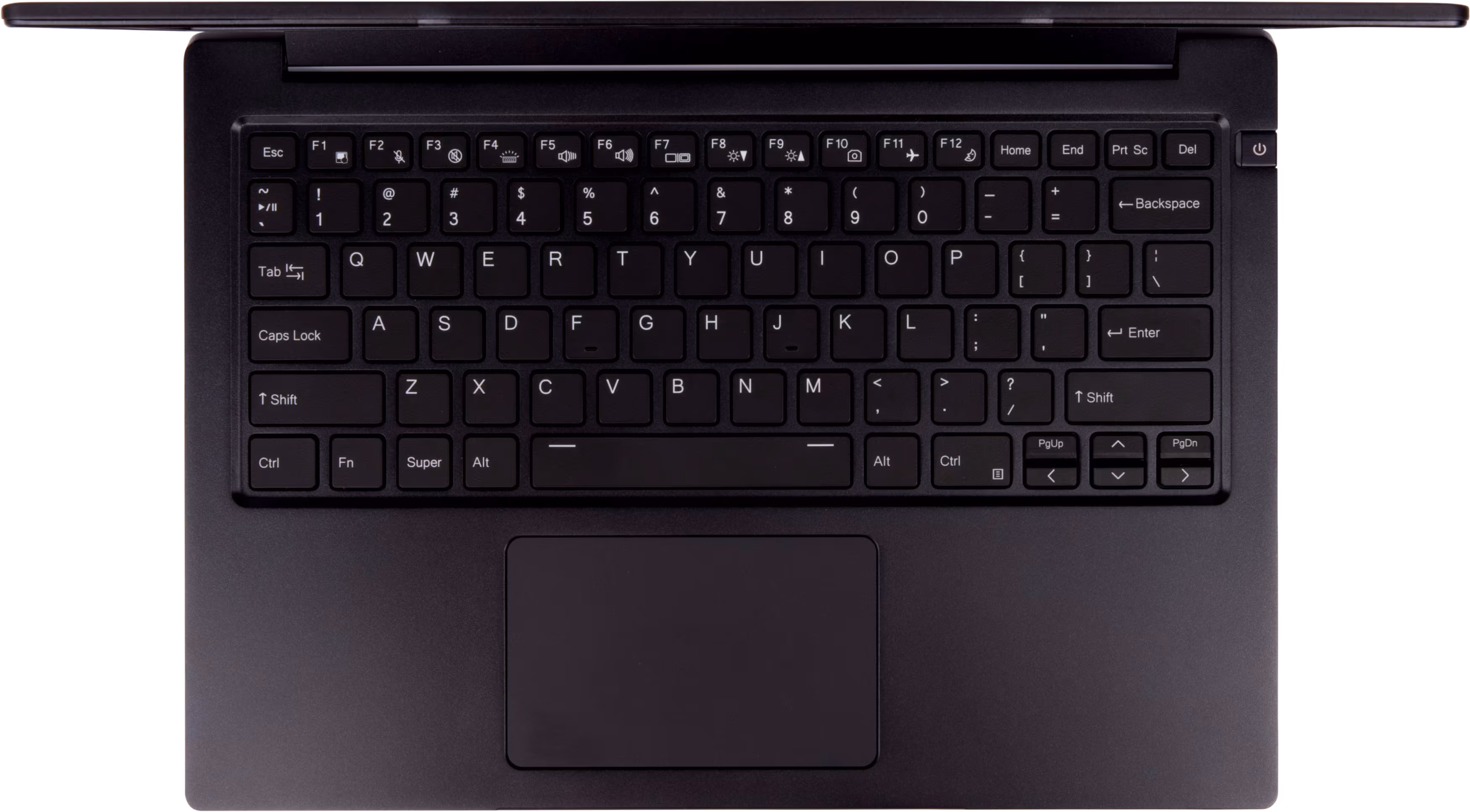

Keyboard & touchpad:

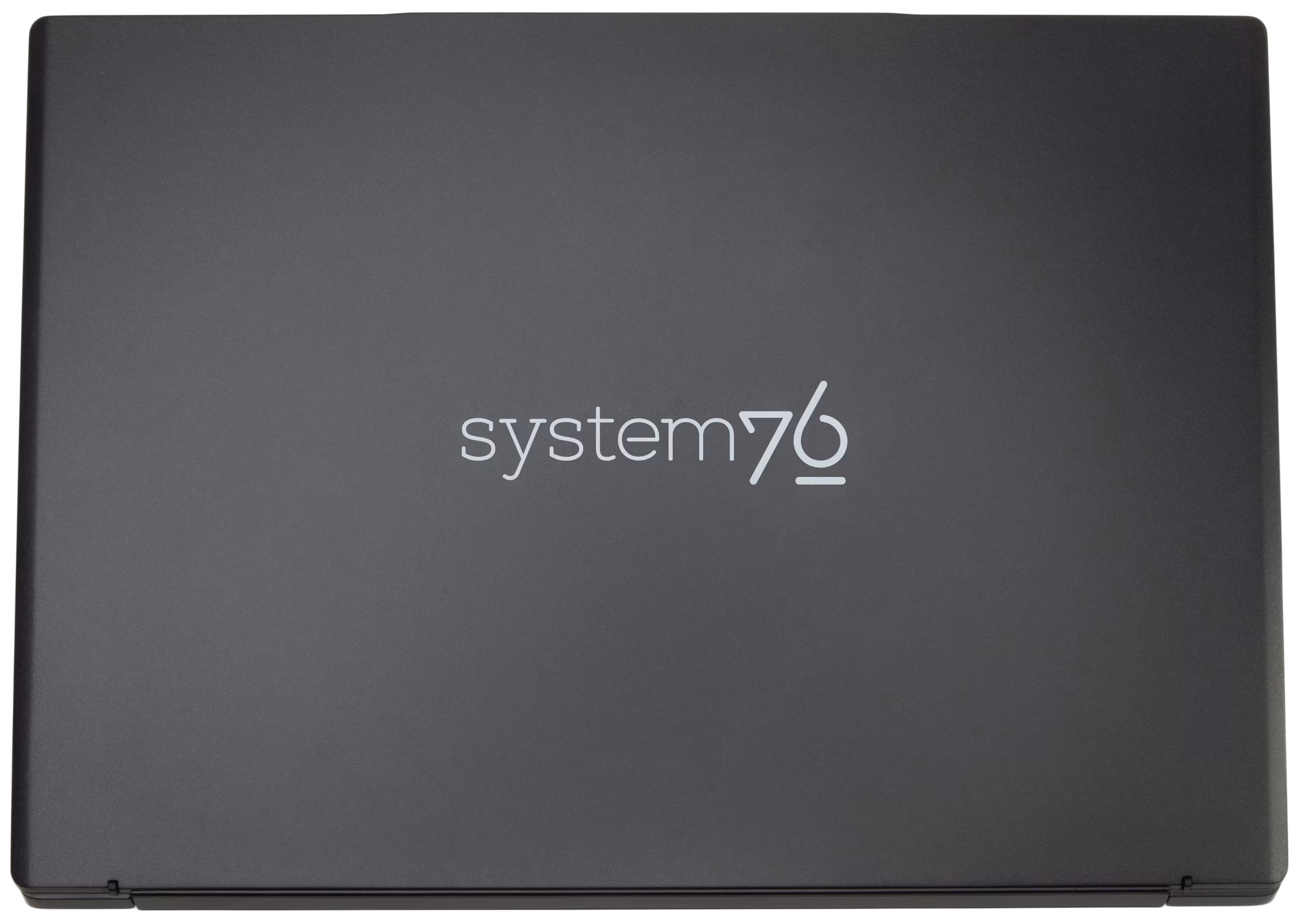

Lid:

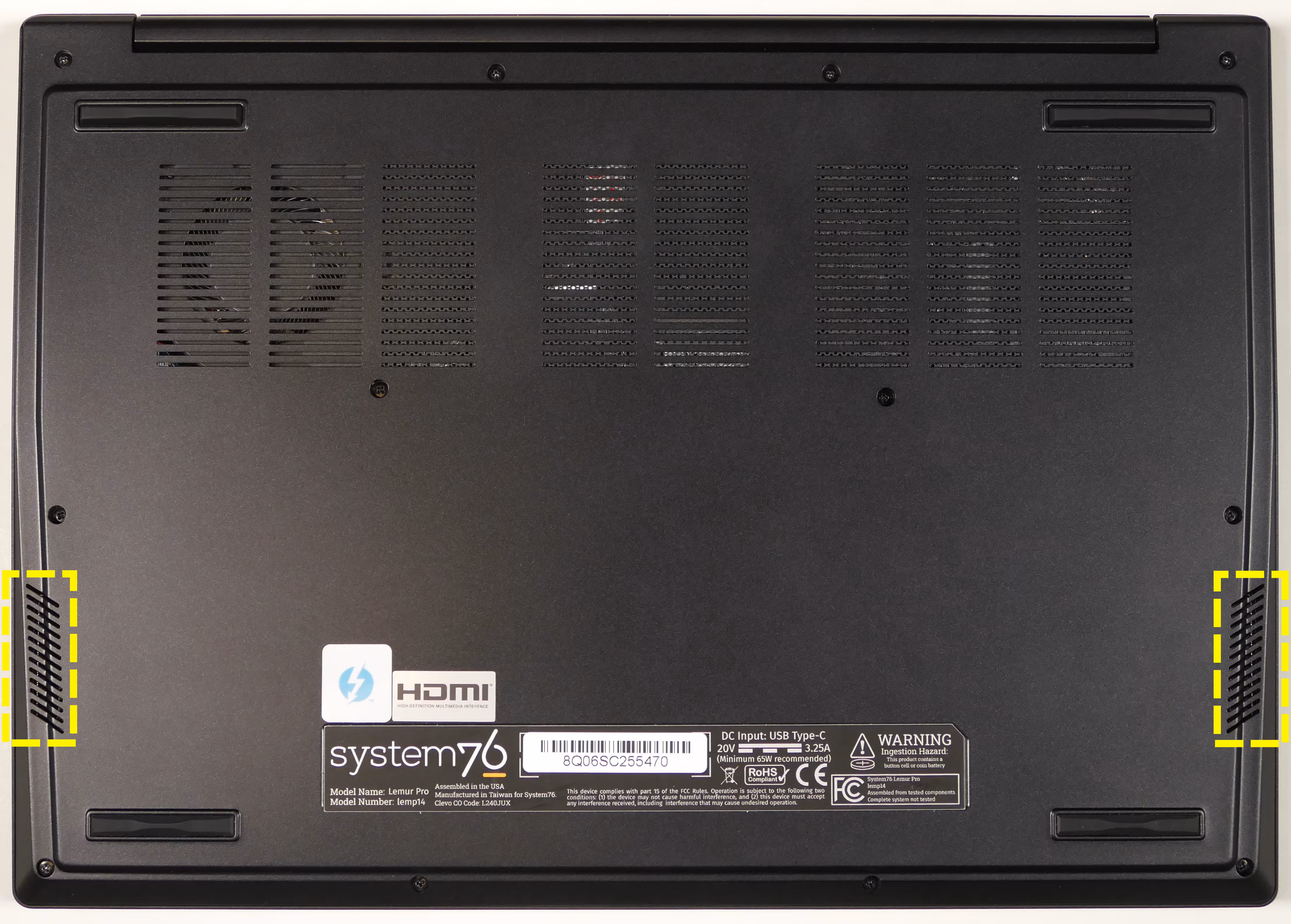

Speakers:

The machine has two bottom-firing speakers near the front.

16“ model (lemp14-b)

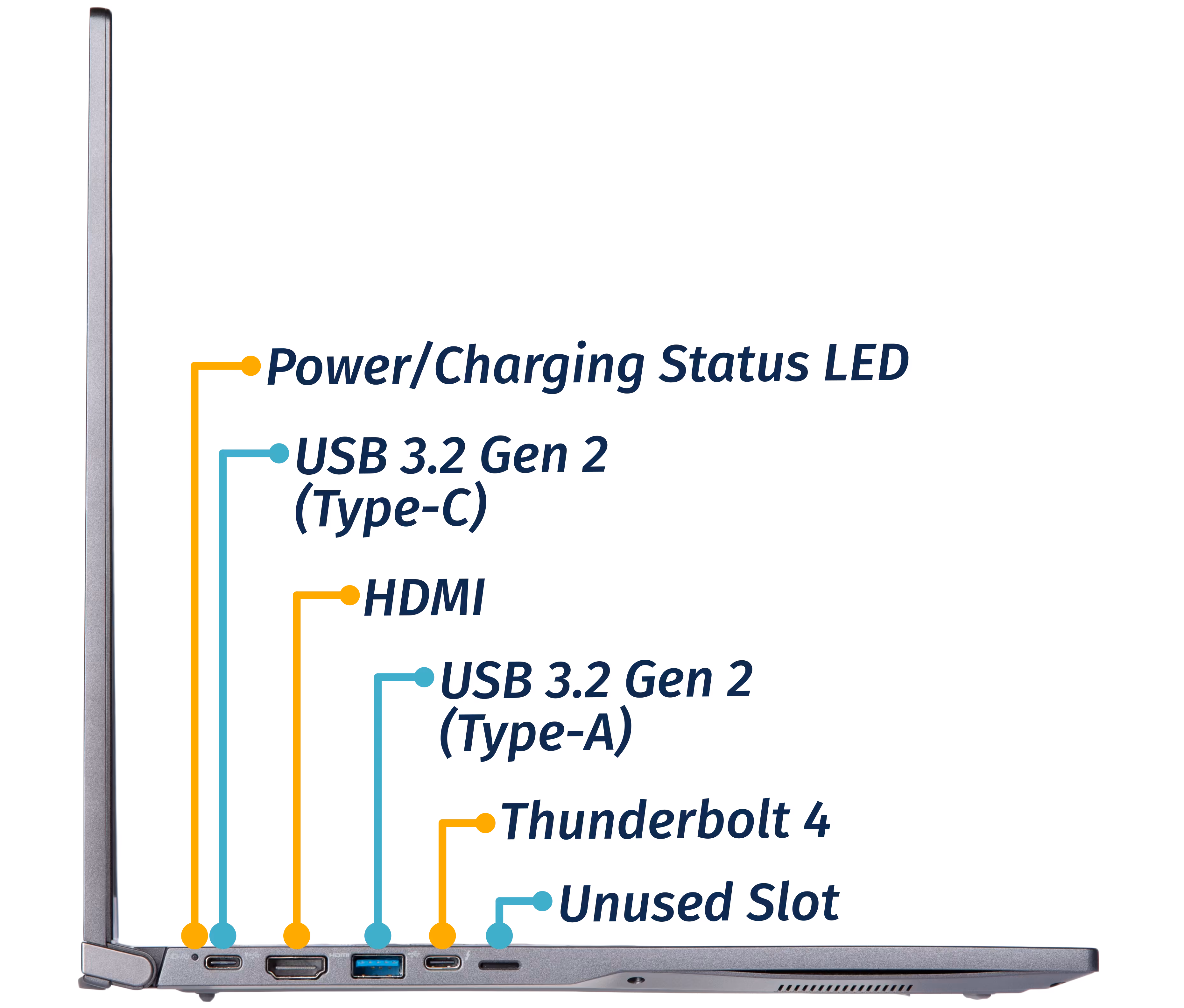

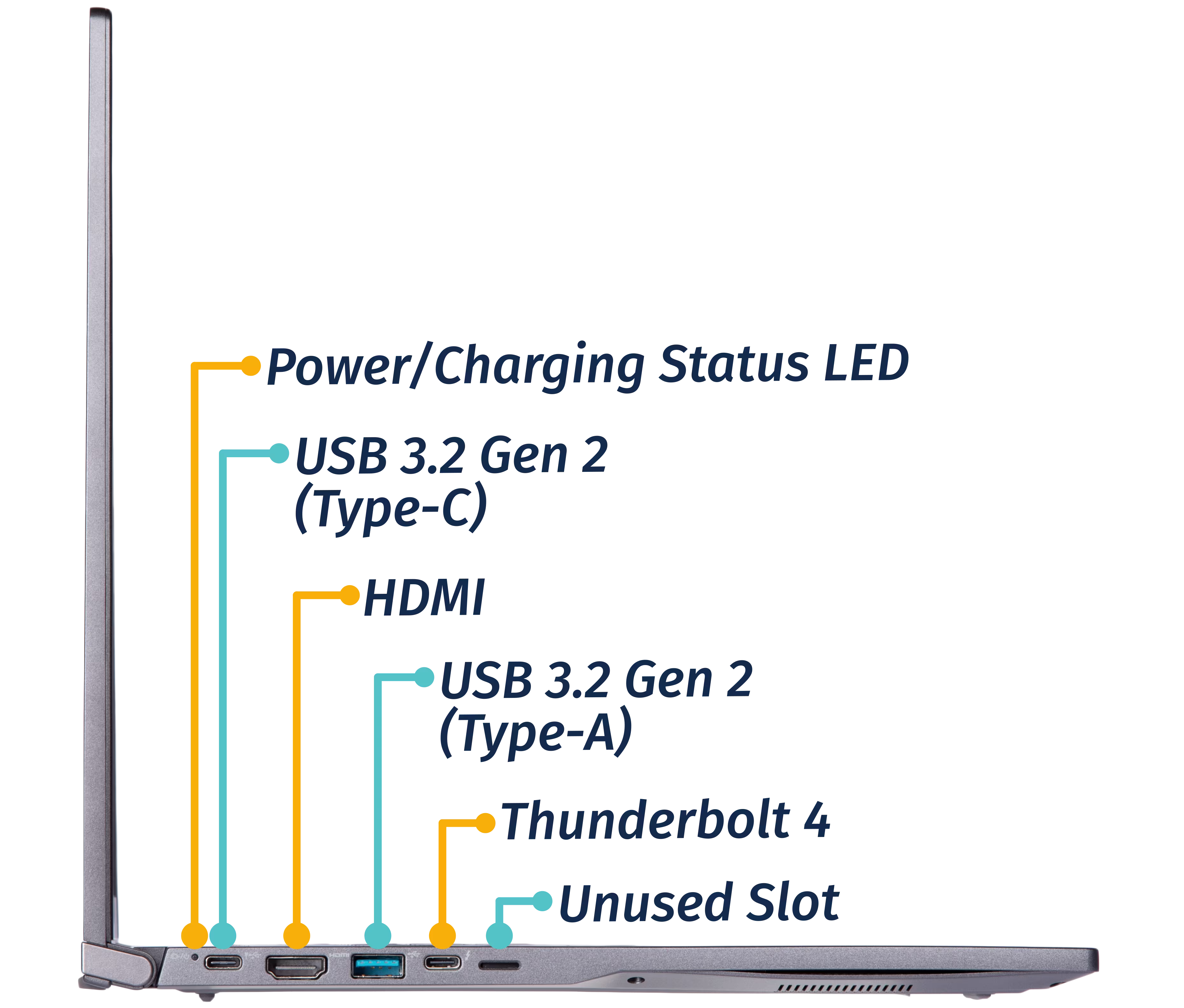

Left side:

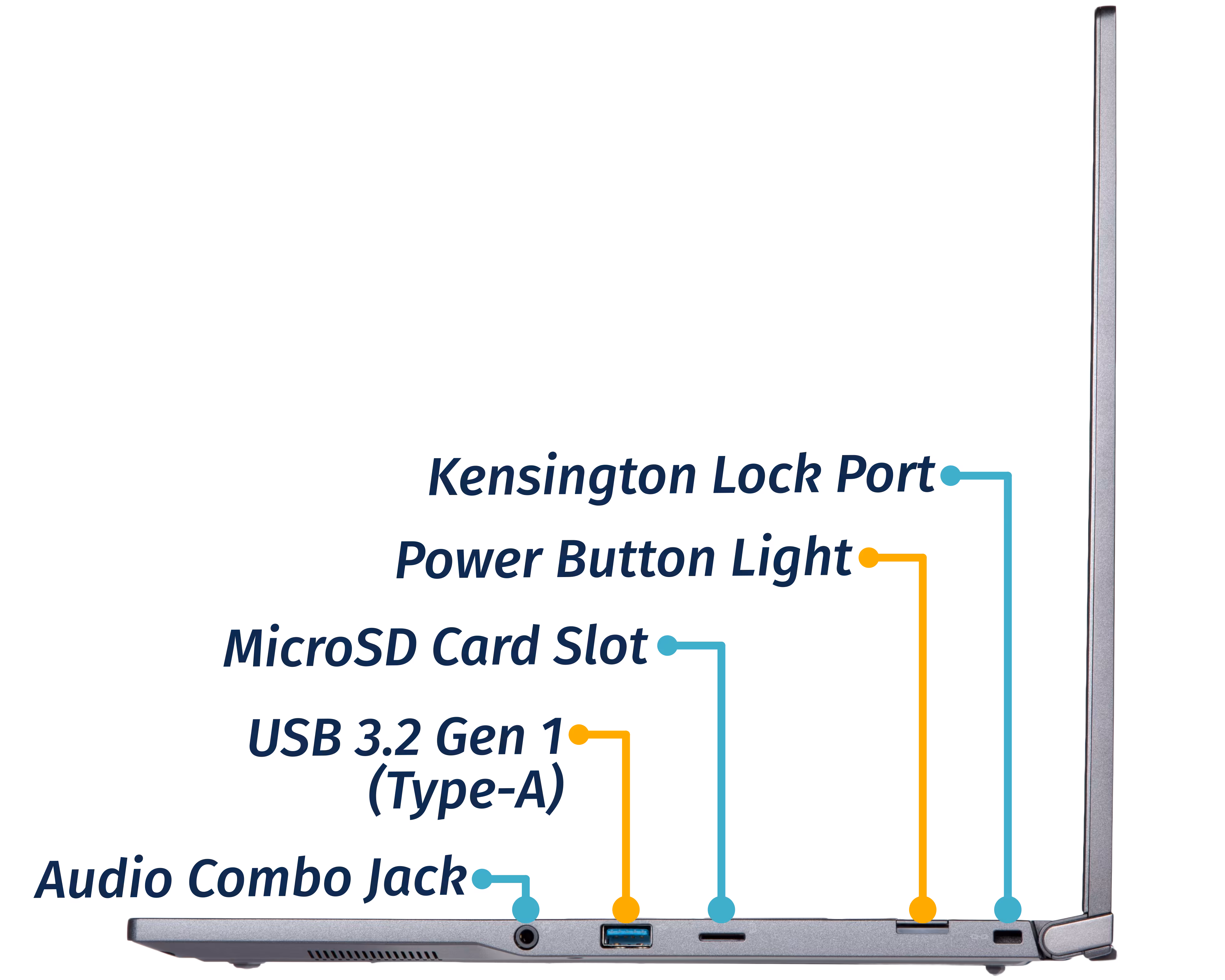

Right side:

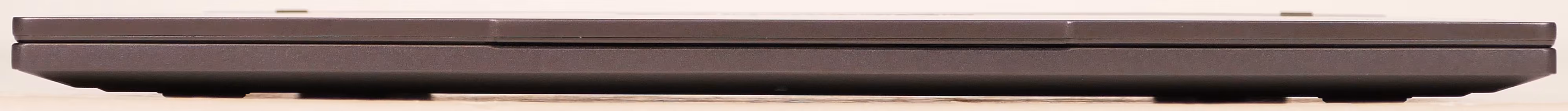

Front side:

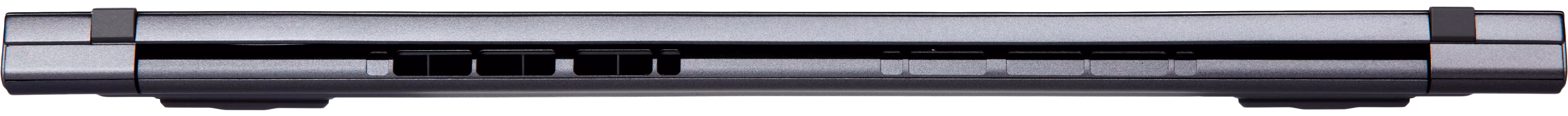

Back side:

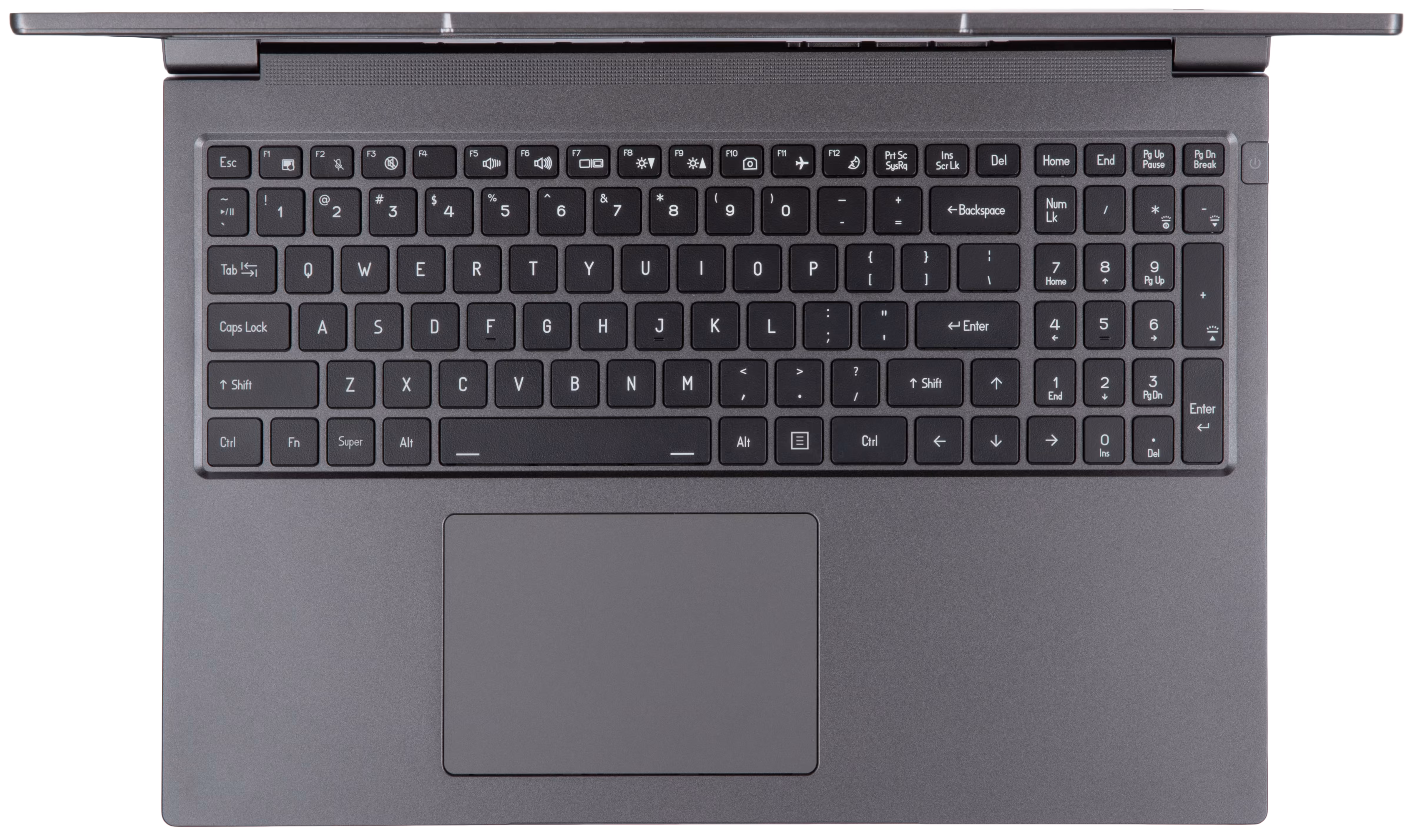

Keyboard & touchpad:

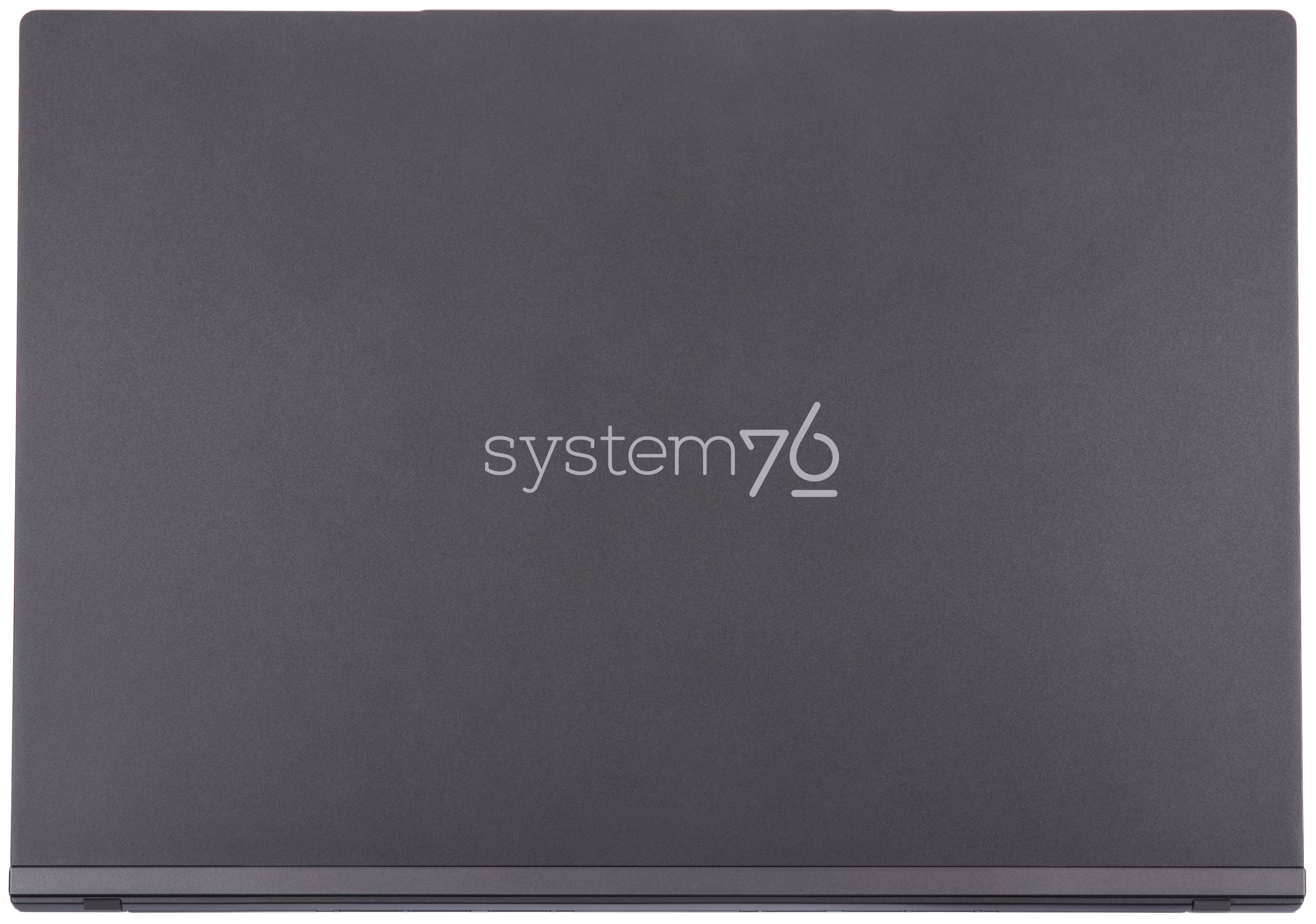

Lid:

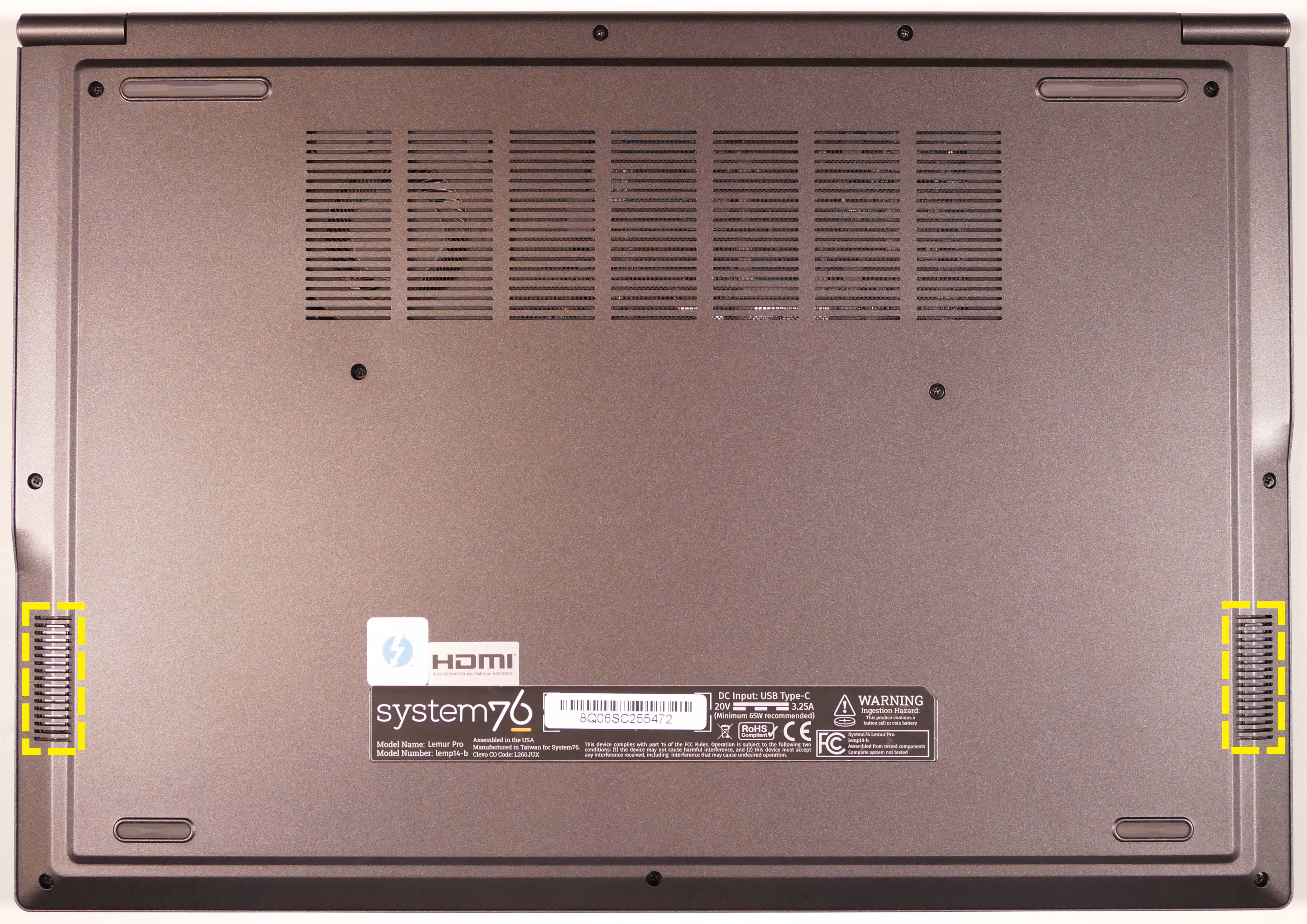

Speakers:

The machine has two bottom-firing speakers near the front.

Materials:

14“ model (lemp14):

Part	Material	Part Number
LCD back cover (lid)	Magnesium-aluminum alloy	6-39-L2401-022
LCD front cover (bezel)	Plastic	6-39-L2401-013
Top case (palm rests/port covers)	Magnesium-aluminum alloy	6-39-L24J2-032
Bottom panel	Magnesium-aluminum alloy	6-39-L24J3-012

16“ model (lemp14-b):

Part	Material	Part Number
LCD back cover (lid)	Magnesium-aluminum alloy	6-39-L2601-023
LCD front cover (bezel)	Plastic	6-39-L2601-014
Top case (palm rests/port covers)	Magnesium-aluminum alloy	6-39-L26J2-012
Bottom panel	Magnesium-aluminum alloy	6-39-L26J3-012

LED indicators

The color and pattern for the power/charging status LED indicate:

• Solid green: Powered on and not suspended.
• Flashing green: Powered on and suspended.
• Solid yellow: Powered off and charging.
• Off: Powered off and not charging.

Keyboard Shortcuts

The Lemur Pro has the following actions available using the Fn and Function keys:

Both models:

Key	Shortcut	Action
	Fn+F1	Toggle trackpad
	Fn+F2	Mute/unmute microphone
	Fn+F3	Mute/unmute speakers
	Fn+F5	Volume down
	Fn+F6	Volume up
	Fn+F7	Toggle displays
	Fn+F8	Screen brightness down
	Fn+F9	Screen brightness up
	Fn+F10	Toggle webcam
	Fn+F11	Toggle airplane mode
	Fn+F12	Suspend
	Fn+`	Play/Pause
1	Fn+1	Toggle fan between max/automatic

14“ model (lemp14) only:

Key	Shortcut	Action
	Fn+F4	Cycle keyboard backlight brightness

16“ model (lemp14-b) only:

Key	Shortcut	Action
	Fn+*	Toggle keyboard backlight
	Fn+-	Decrease keyboard brightness
	Fn++	Increase keyboard brightness
