Adder WS (External Overview)

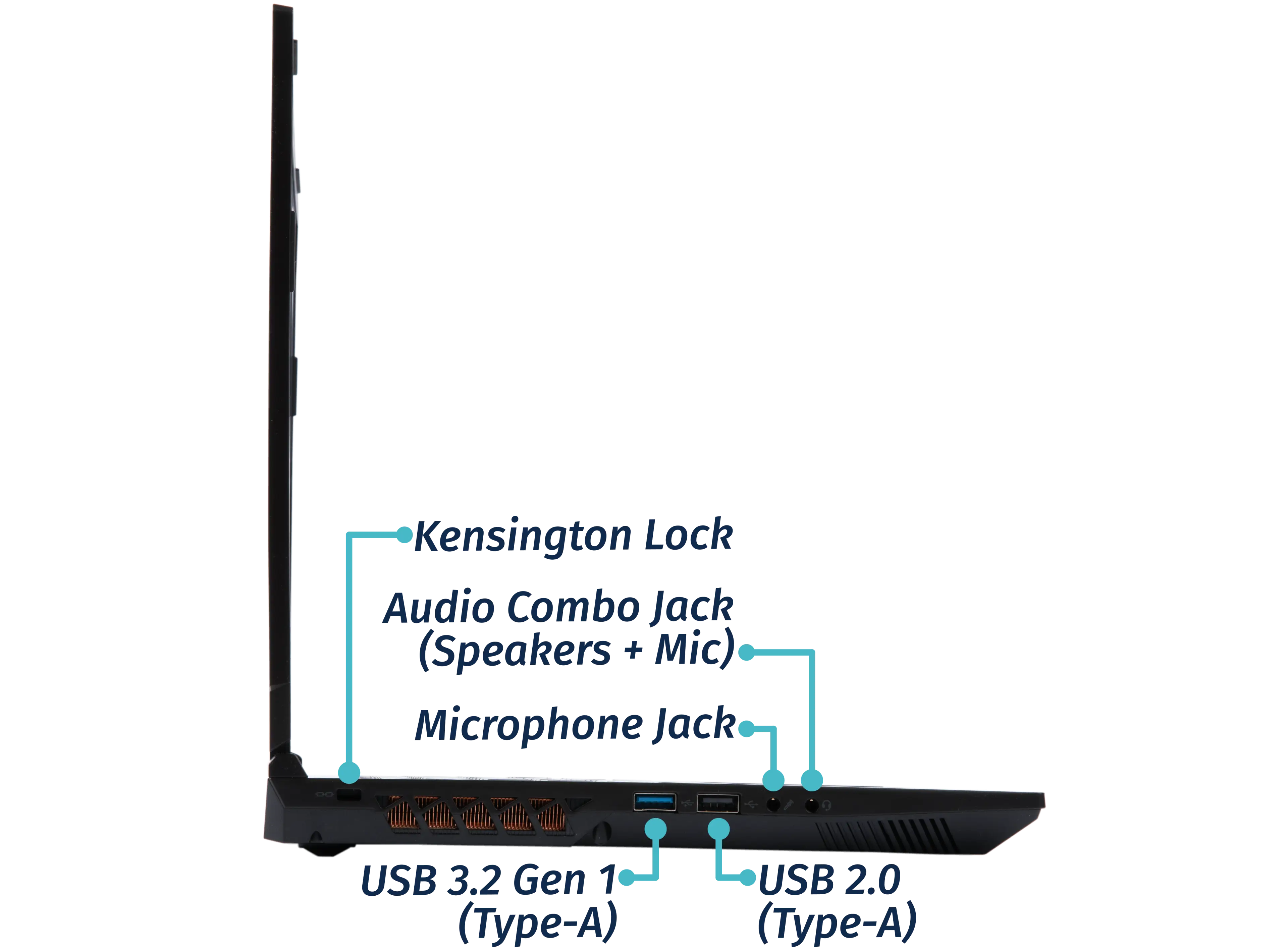

Left side overview:
Section titled “Left side overview:”

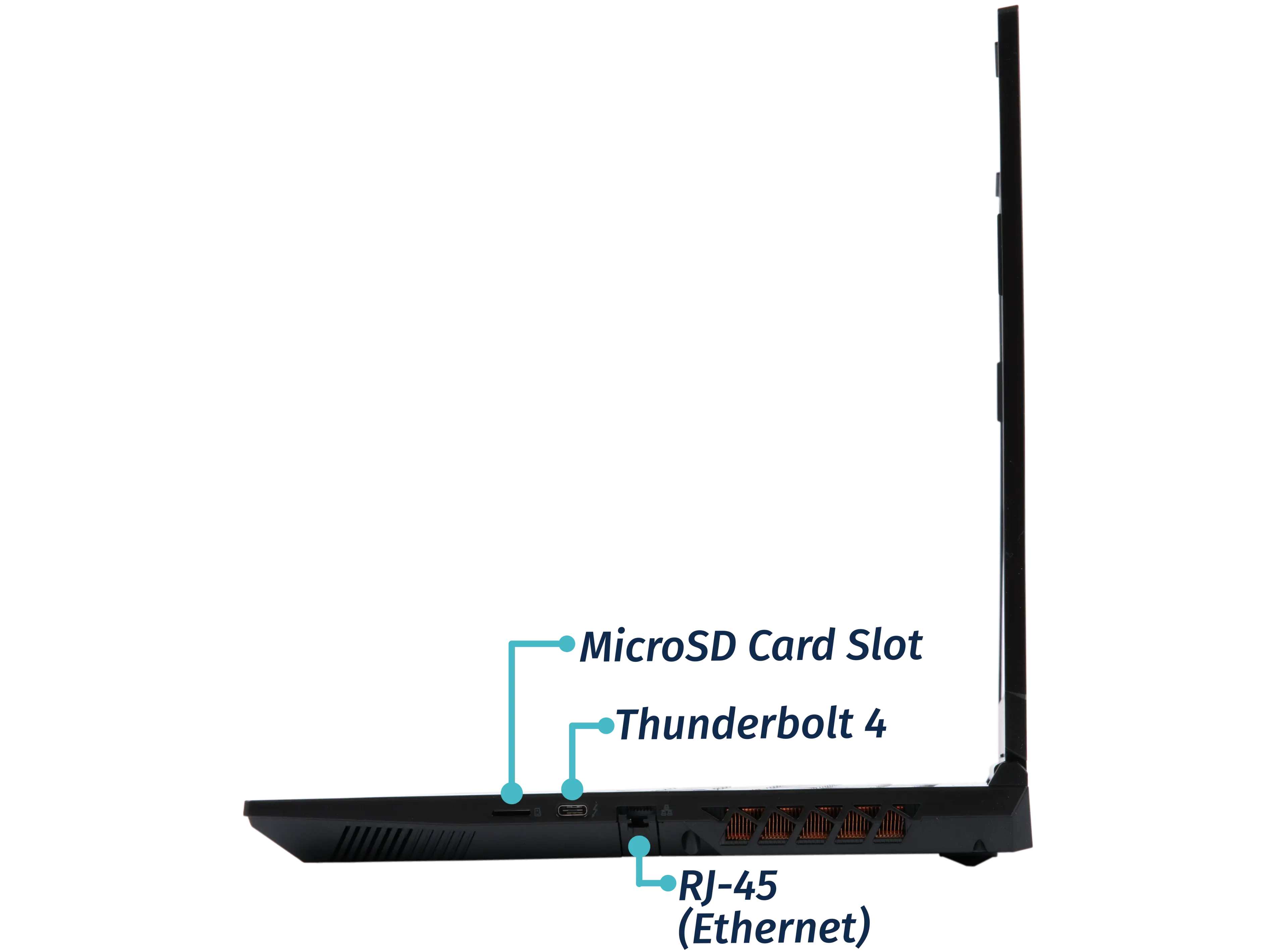

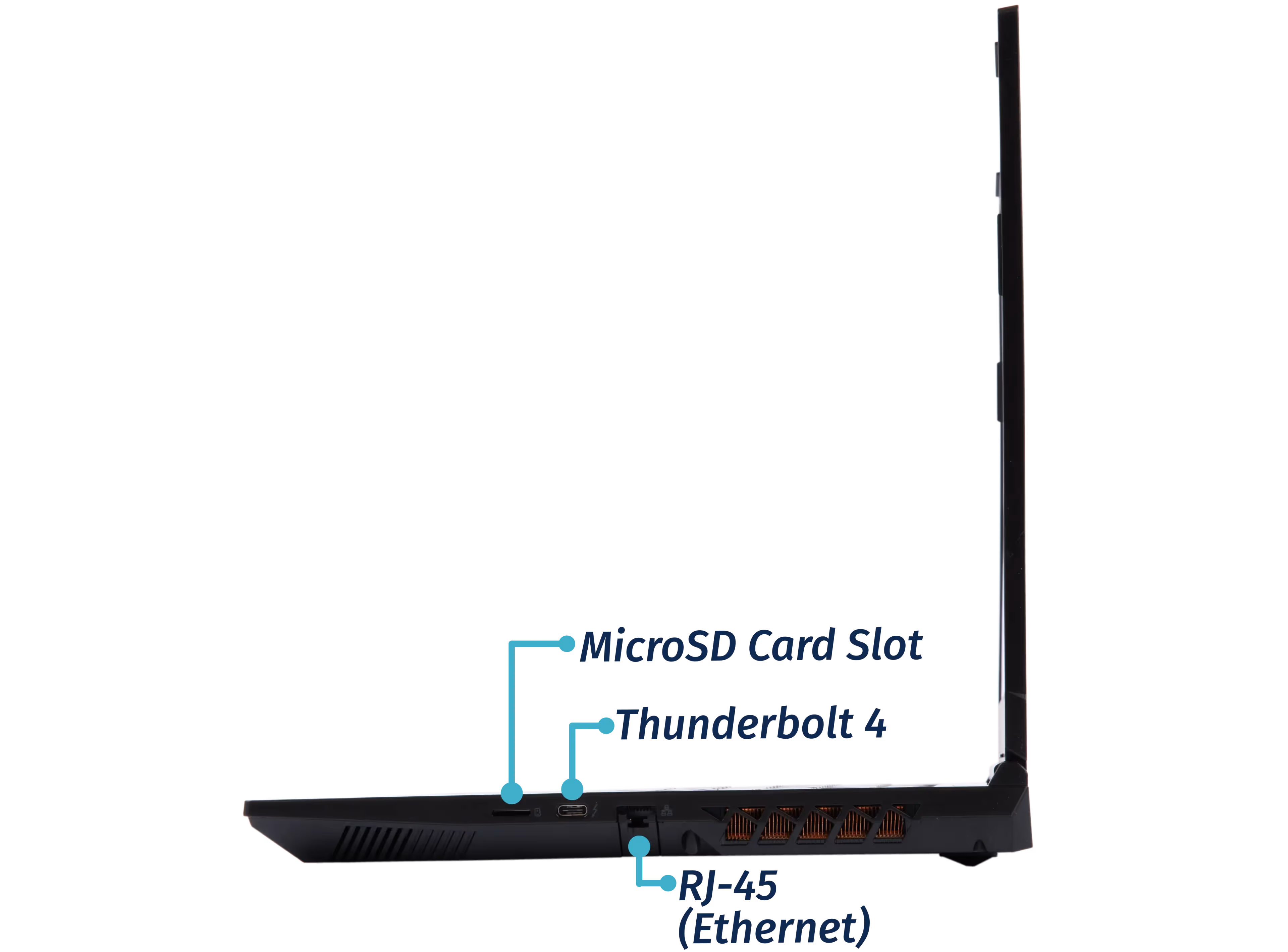

Right side overview:
Section titled “Right side overview:”

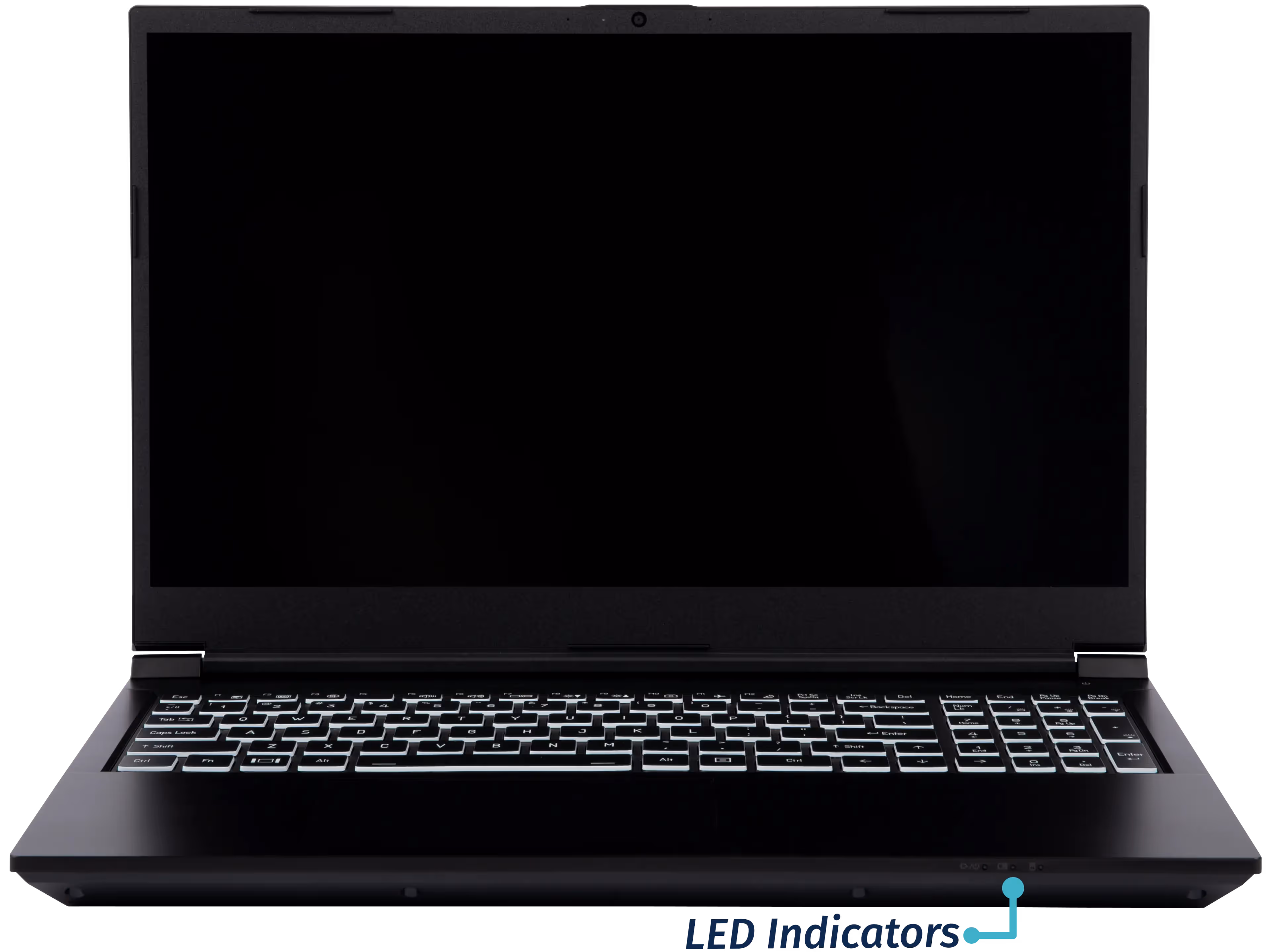

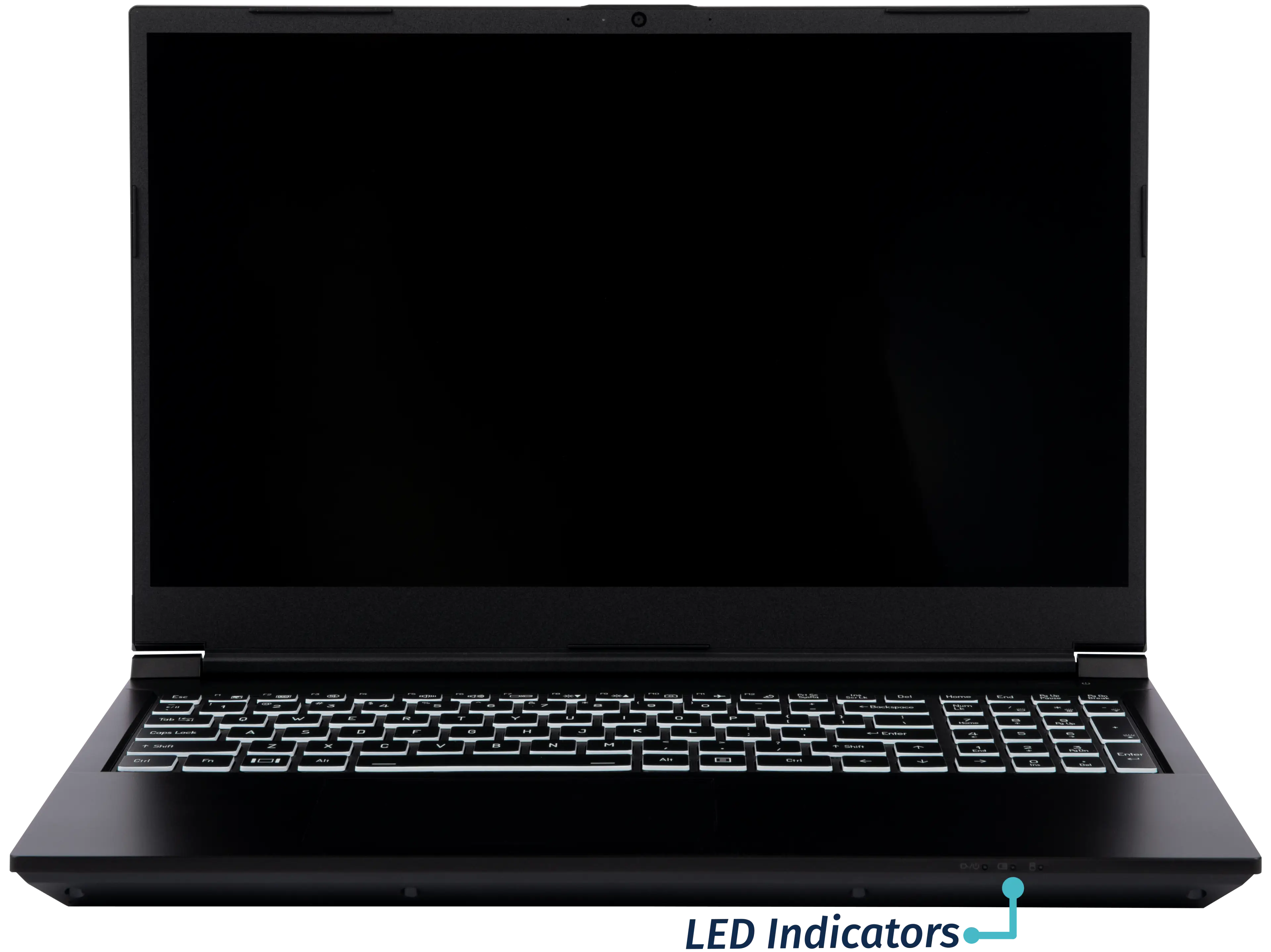

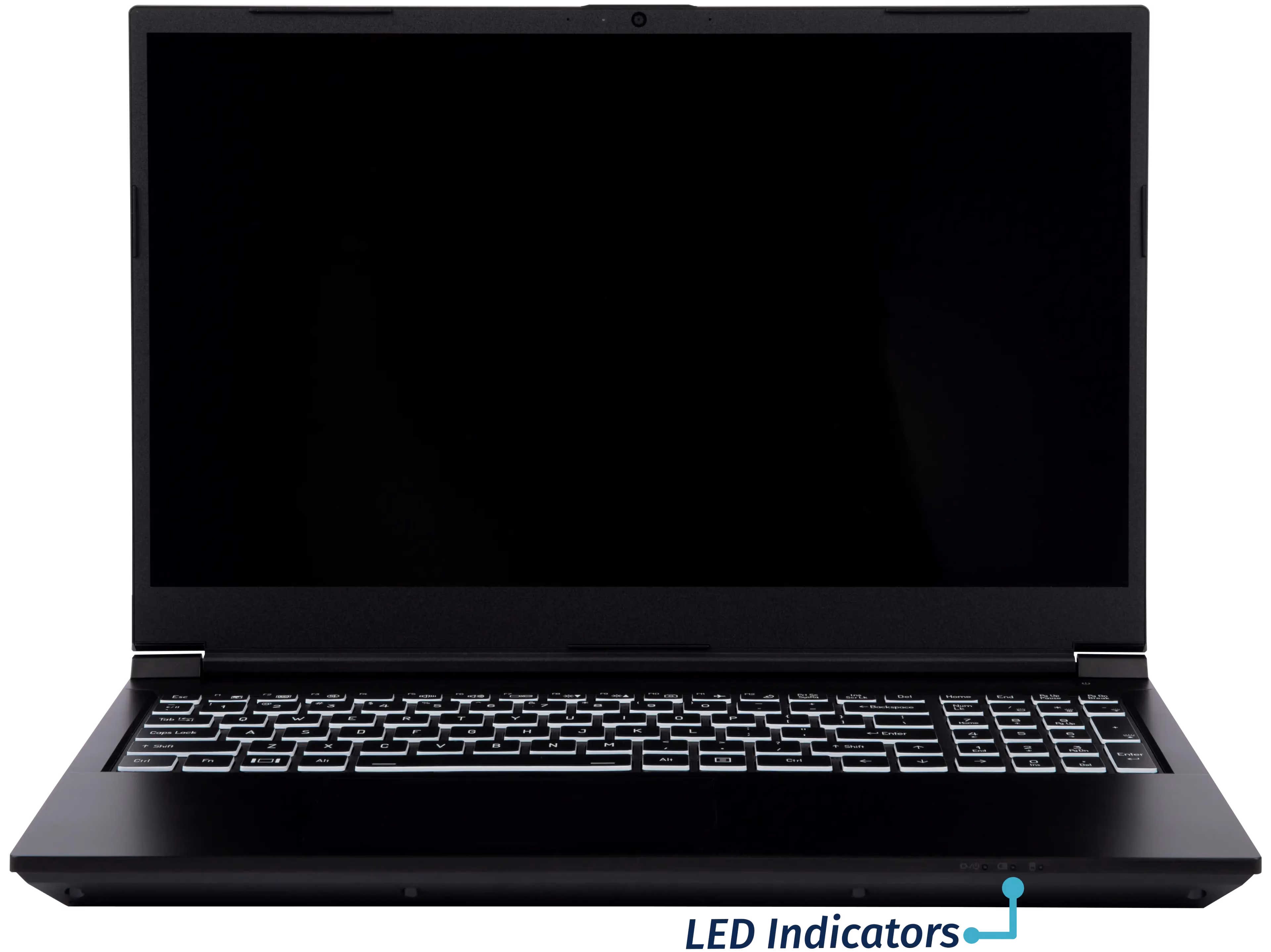

Front side overview:
Section titled “Front side overview:”

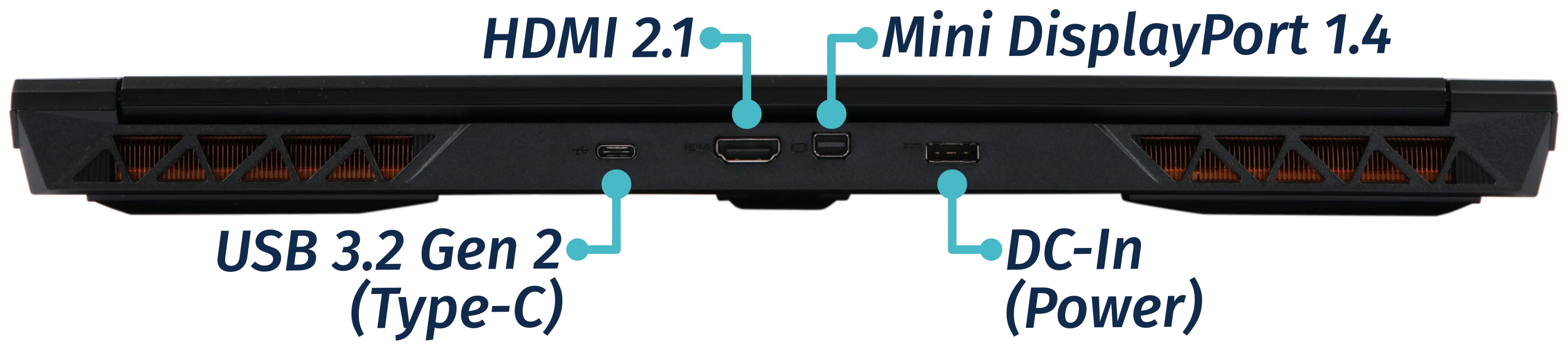

Back side overview:
Section titled “Back side overview:”

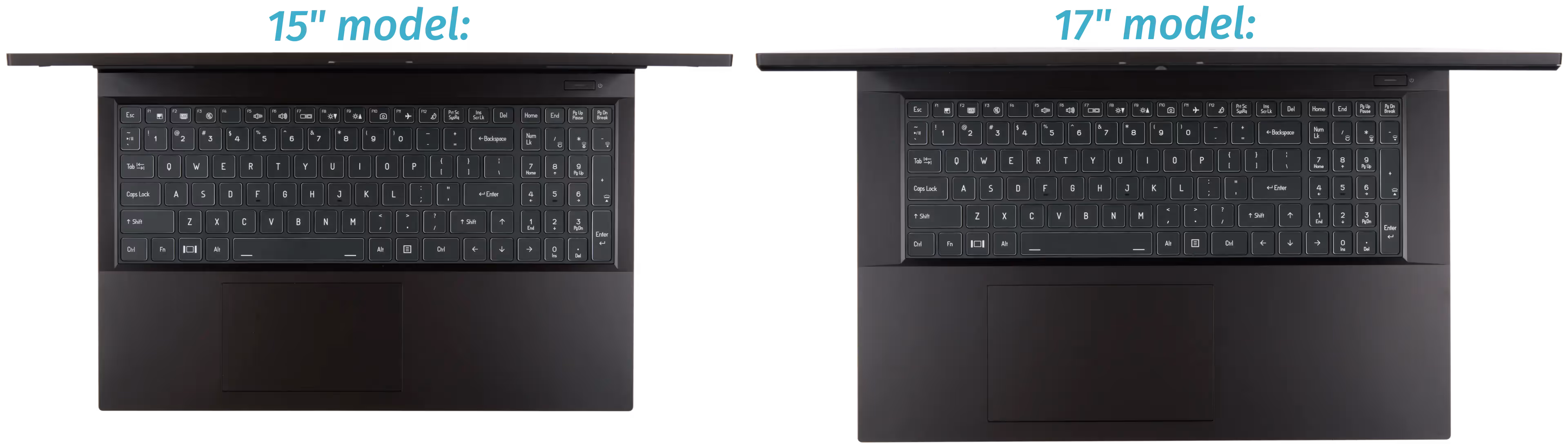

Keyboard & touchpad overview:
Section titled “Keyboard & touchpad overview:”
Materials:
Section titled “Materials:”| Part | Material | Part Number |
|---|---|---|
| LCD back cover (lid) | Plastic | • 15”: 6-39-NP501-024 • 17”: 6-39-PD701-023 or 6-39-PD711-021 |
| LCD front cover (bezel) | Plastic | • 15”: 6-39-NP501-033 • 17”: 6-39-PD701-012 |
| Top case (palm rests/port covers) | Plastic | • 15”: 6-78-NP50SNE2-010 • 17”: 6-78-PD70SNEG2-010 |
| Bottom panel | Plastic | • 15”: 6-39-NP5S3-012 • 17”: 6-39-PD7S3-012 |
LED indicators
Section titled “LED indicators”The Adder WS has the following LED indicators:
| Icon | Color | Description |
|---|---|---|
 | Orange | Powered off, DC power plugged in |
| Green | Powered on | |
| Blinking green | Sleeping (suspended) | |
 | Orange | Battery charging |
| Green | Battery fully charged | |
| Blinking orange | Battery critically low | |
 | Green | Storage drive activity |
Keyboard Shortcuts
Section titled “Keyboard Shortcuts”The Adder WS has the following actions available using the Fn and Function keys:
| Key | Shortcut | Action |
|---|---|---|
 | Fn+F1 | Toggle trackpad |
 | Fn+F2 | Toggle built-in LCD |
 | Fn+F3 | Mute |
 | Fn+F5 | Volume down |
 | Fn+F6 | Volume up |
 | Fn+F7 | Toggle displays |
 | Fn+F8 | Screen brightness down |
 | Fn+F9 | Screen brightness up |
 | Fn+F10 | Toggle webcam |
 | Fn+F11 | Toggle airplane mode |
 | Fn+F12 | Suspend |
 | Fn+` | Play/Pause |
 | Fn+* | Toggle keyboard backlight |
 | Fn+/ | Cycle keyboard color |
 | Fn+- | Decrease keyboard brightness |
 | Fn++ | Increase keyboard brightness |
| 1 | Fn+1 | Toggle fan between max/automatic |
