Thelio (Internal Overview)

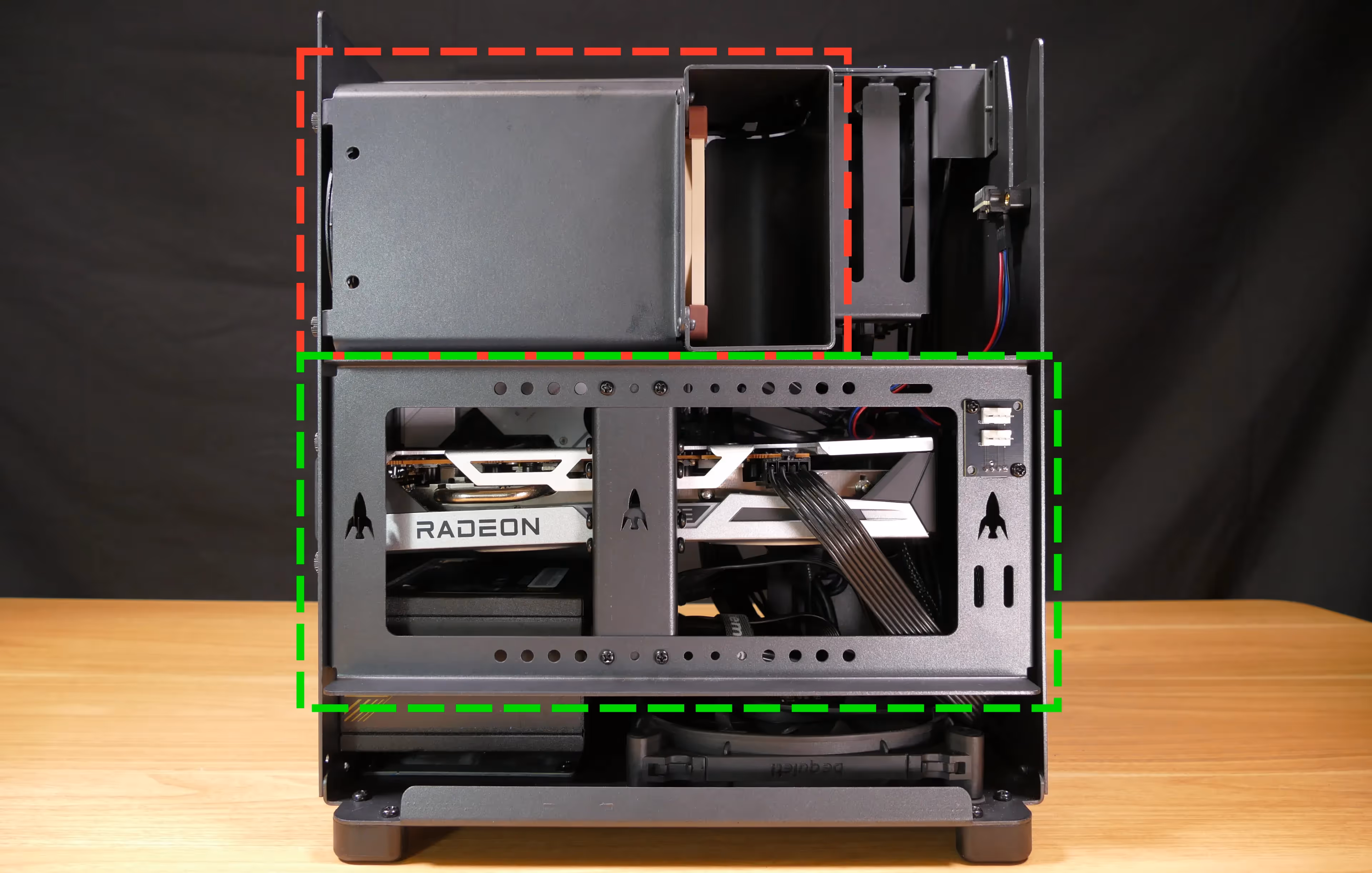

Left side overview:

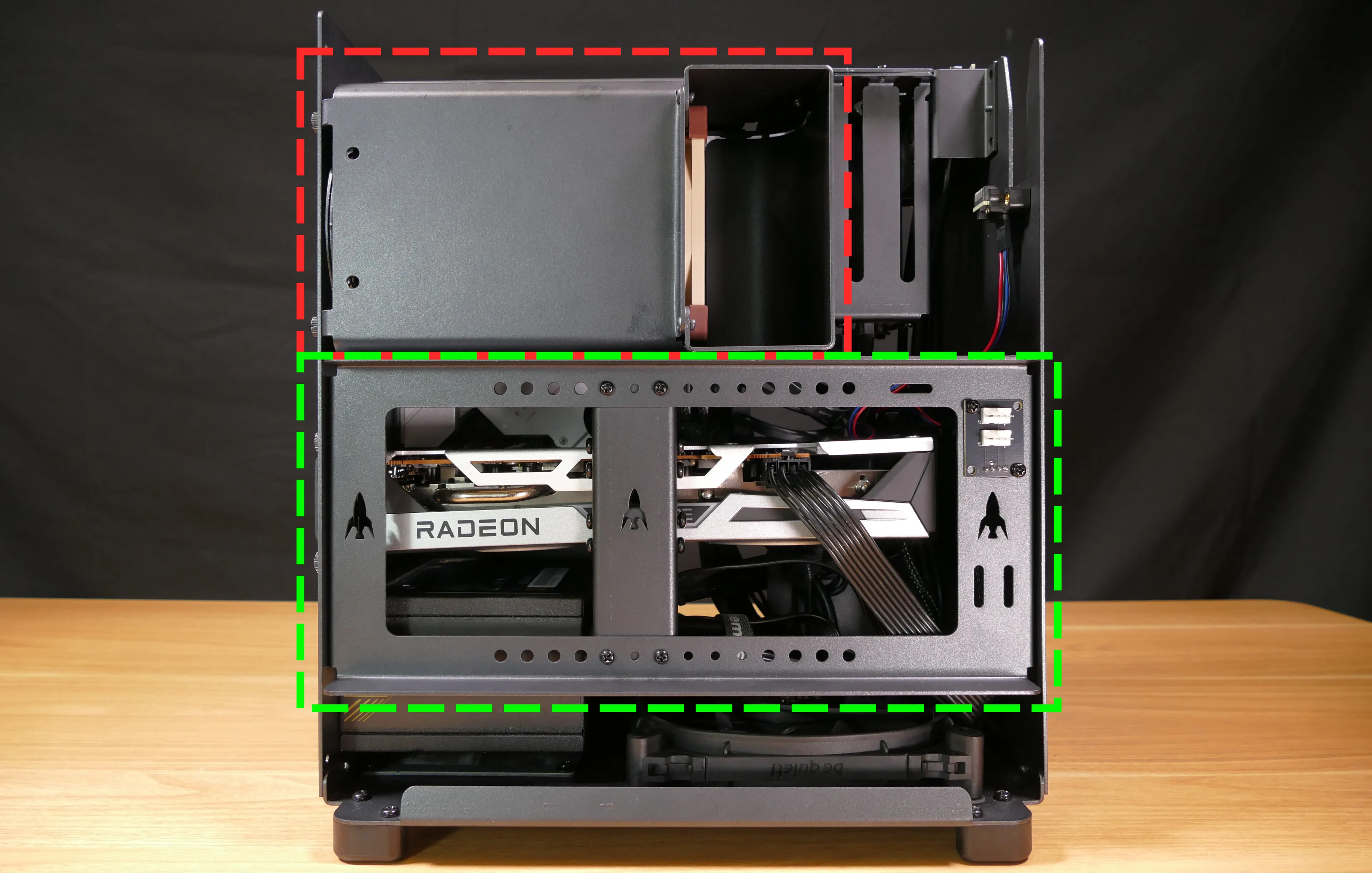

Chassis components:

• CPU duct is highlighted in red
• Side brace is highlighted in green

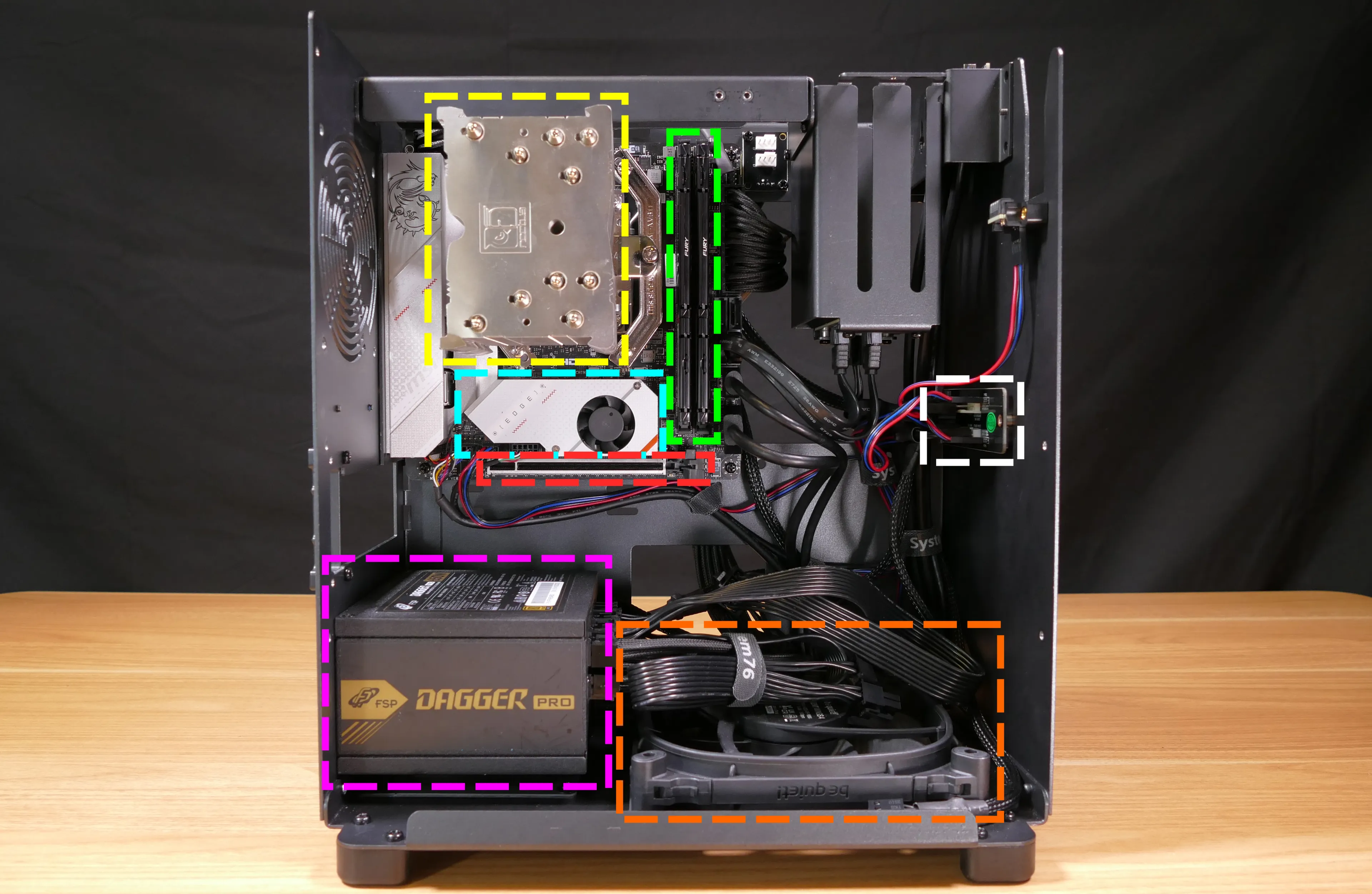

Electronic components:

• CPU heatsink is highlighted in yellow
• RAM slots are highlighted in green
• M.2 slot 1 heatsink is highlighted in cyan
• GPU slot (PCIe 4.0 x16 slot) is highlighted in red
• Power supply is highlighted in pink
• Bottom case fan is highlighted in orange
• Thelio Io daughterboard is highlighted in white

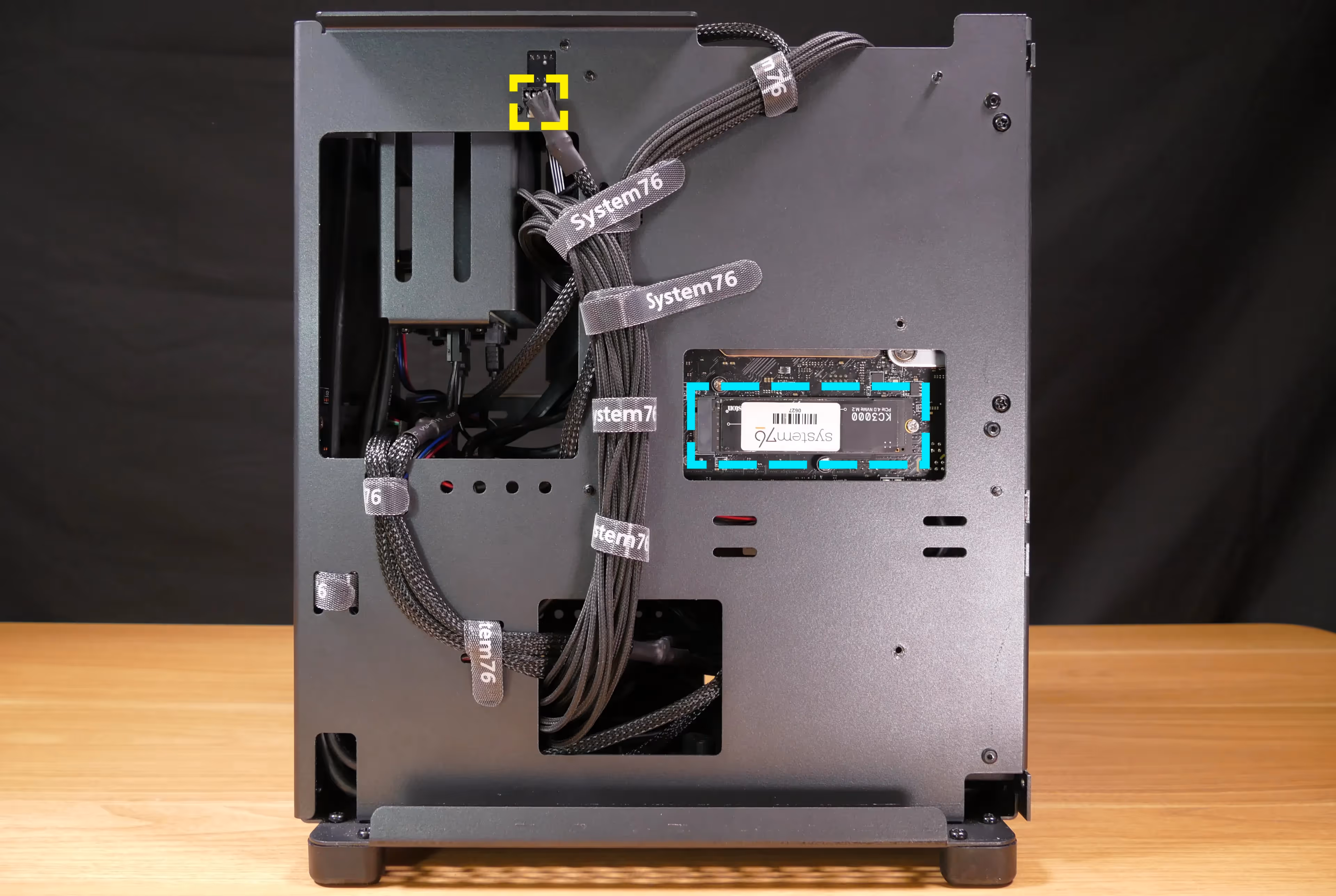

Right side overview:

• M.2 slot 2 is highlighted in cyan
• CPU fan Y-cable connector is highlighted in yellow

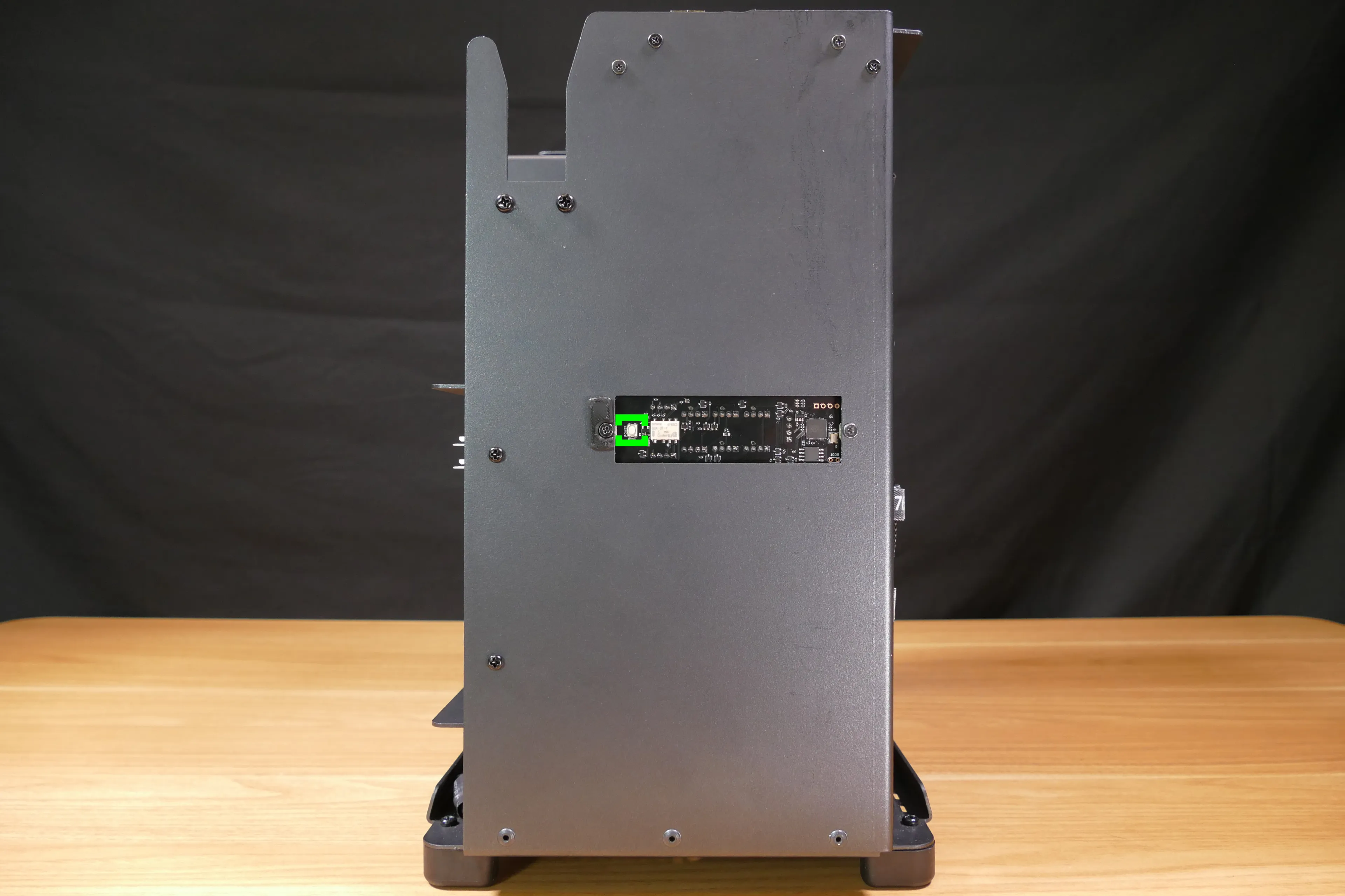

Front side overview:

• Internal power button (on the Thelio Io board) is highlighted in green

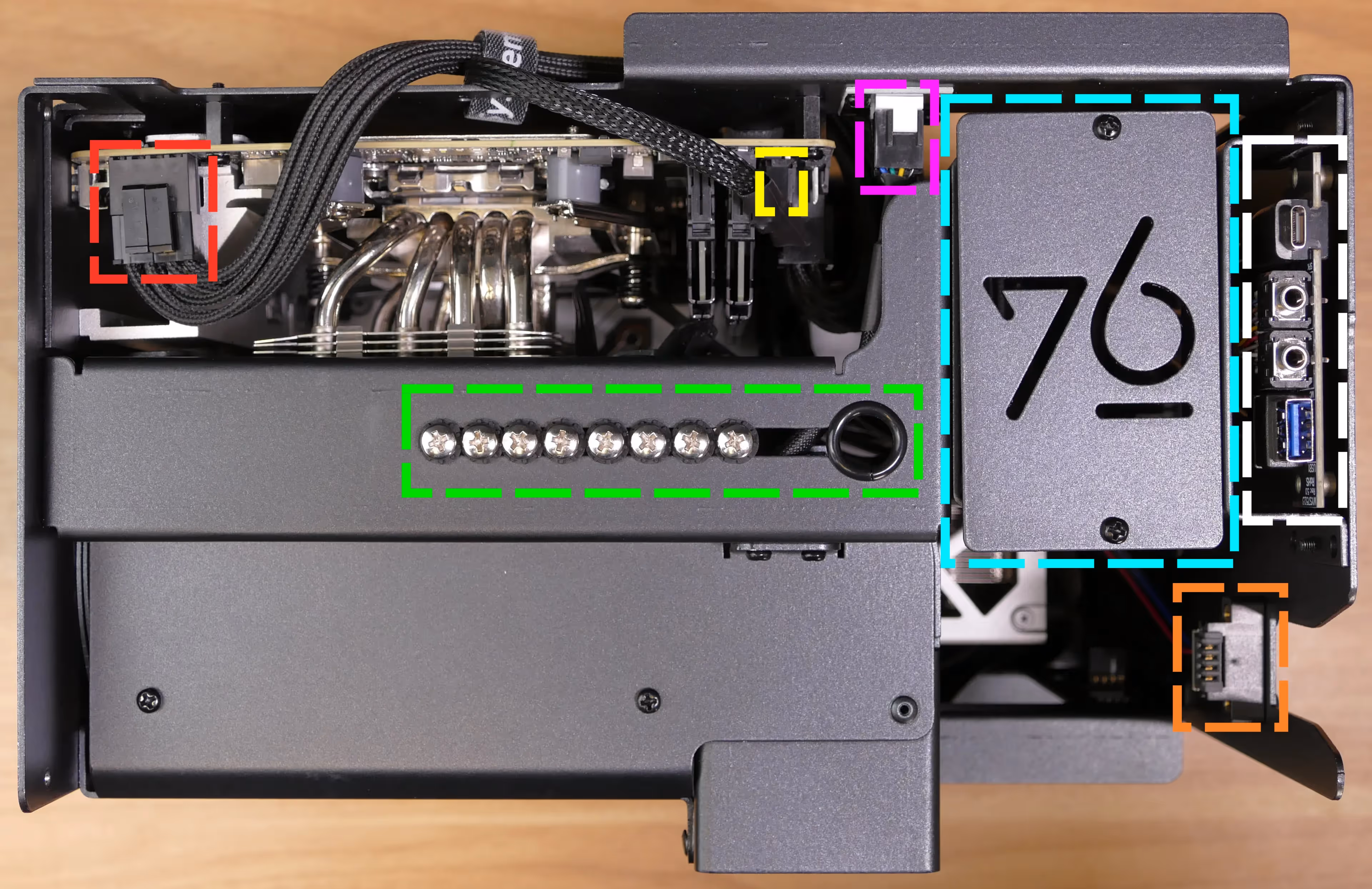

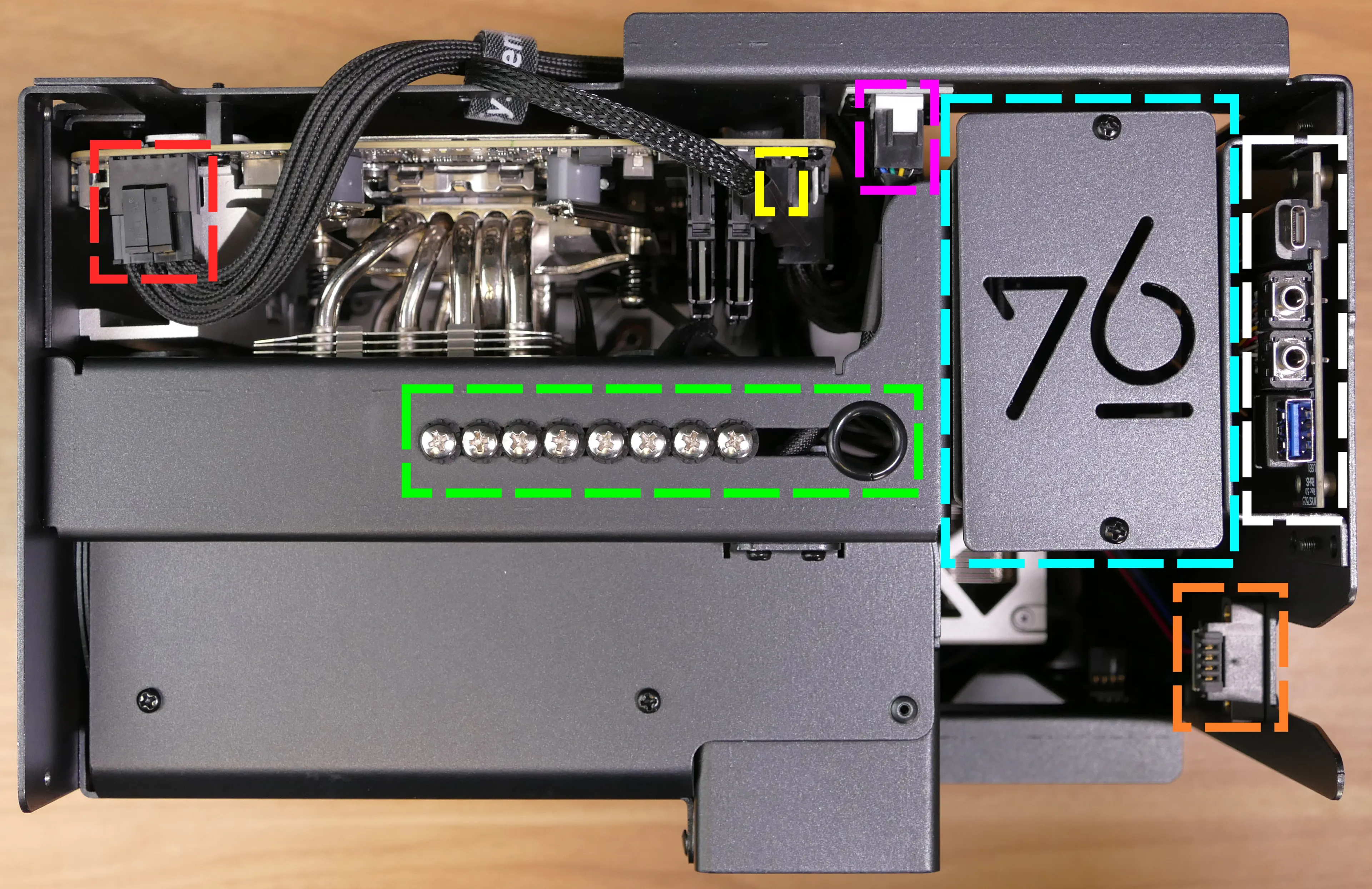

Top overview:

• 2.5” drive screws are highlighted in green
• 2.5” drive cage cover is highlighted in cyan
• Top I/O board is highlighted in white
  • Connects to motherboard
• Motherboard CPU fan header is highlighted in yellow
  • Connects to Thelio-IO board
• CPU power connector is highlighted in red
  • Connects to power supply
• CPU fan splitter is highlighted in pink
  • Connects to Thelio Io board and CPU fans
• Power button receptacle is highlighted in orange
