Adder WS (External Overview)

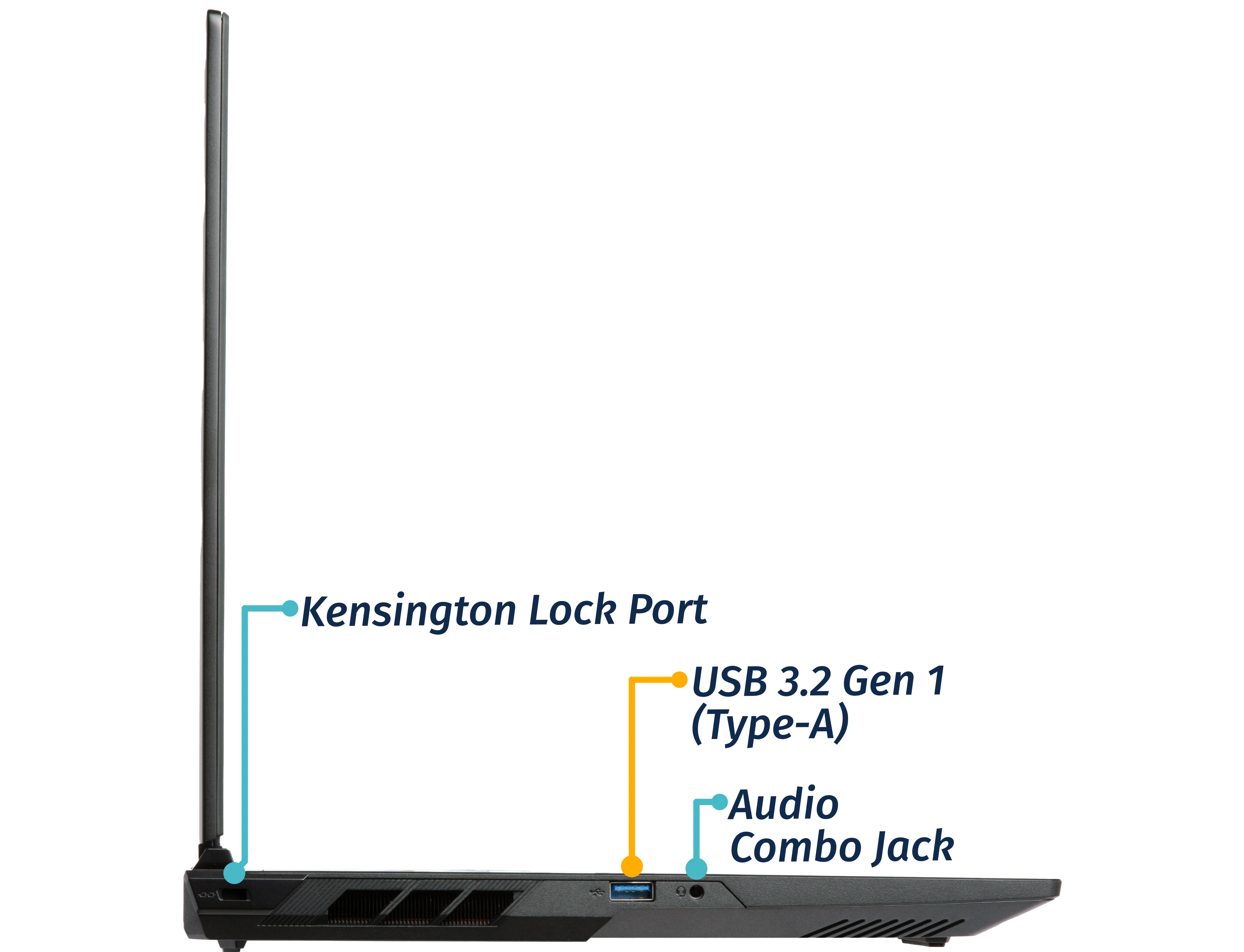

Left side:

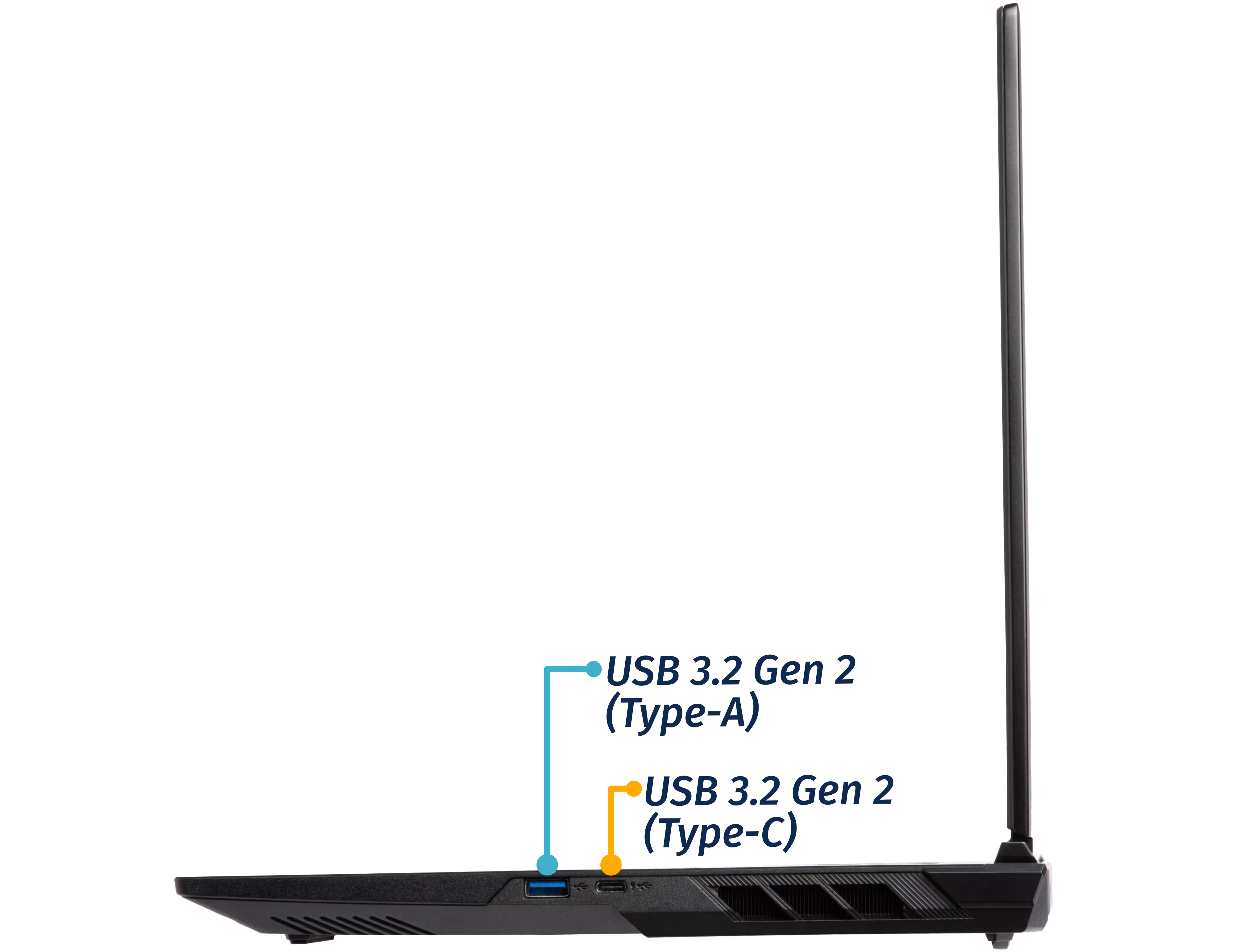

Right side:

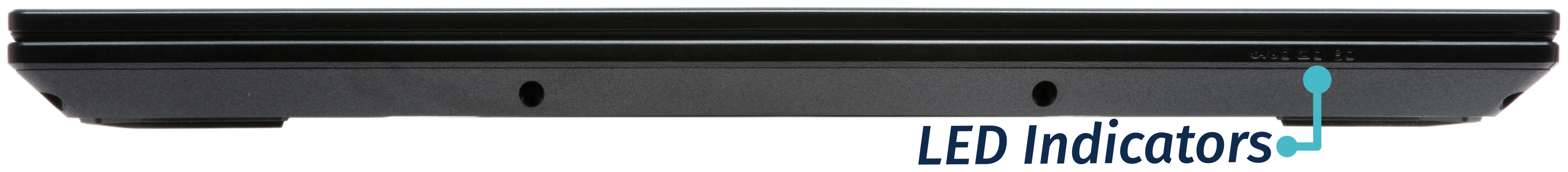

Front side:

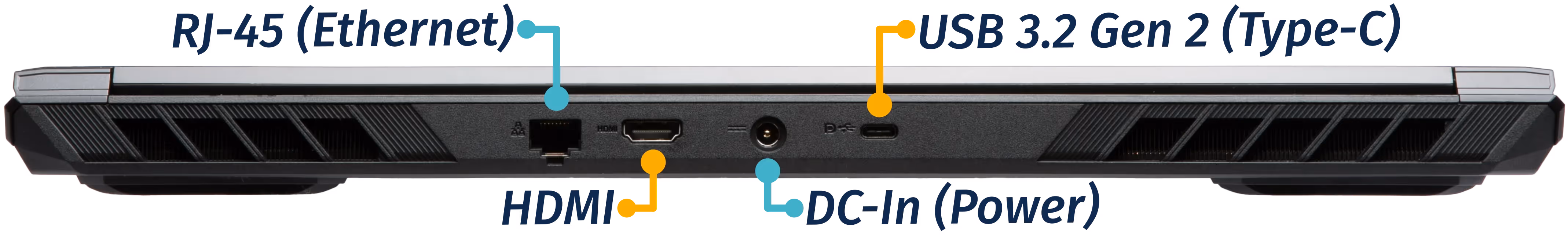

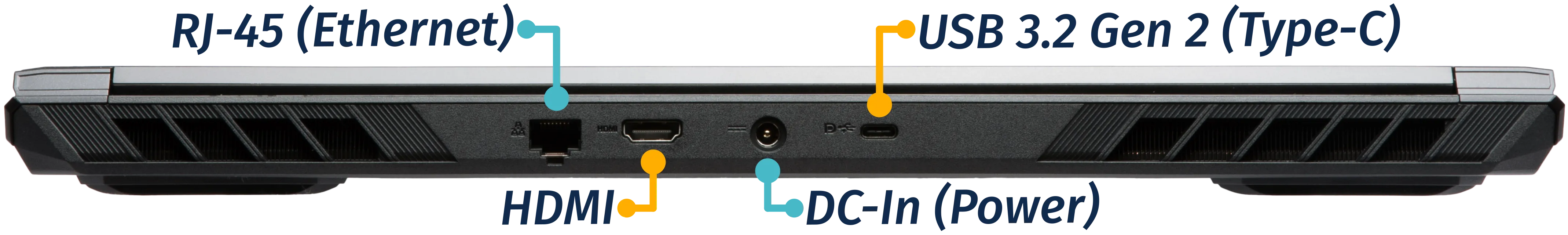

Back side:

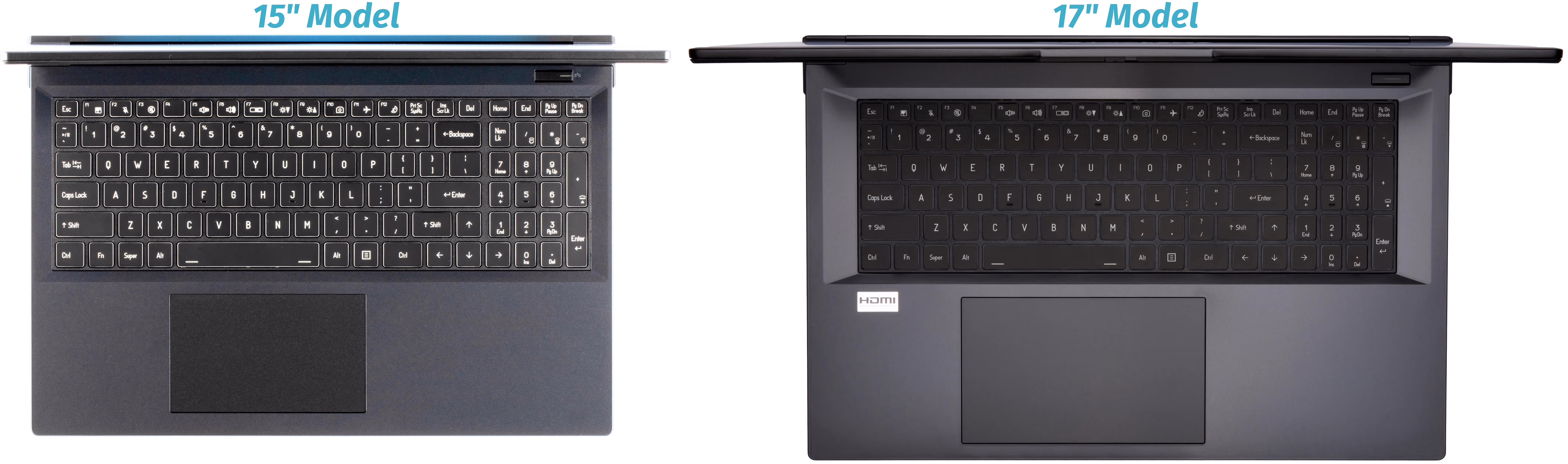

Keyboard & touchpad:

15” model:

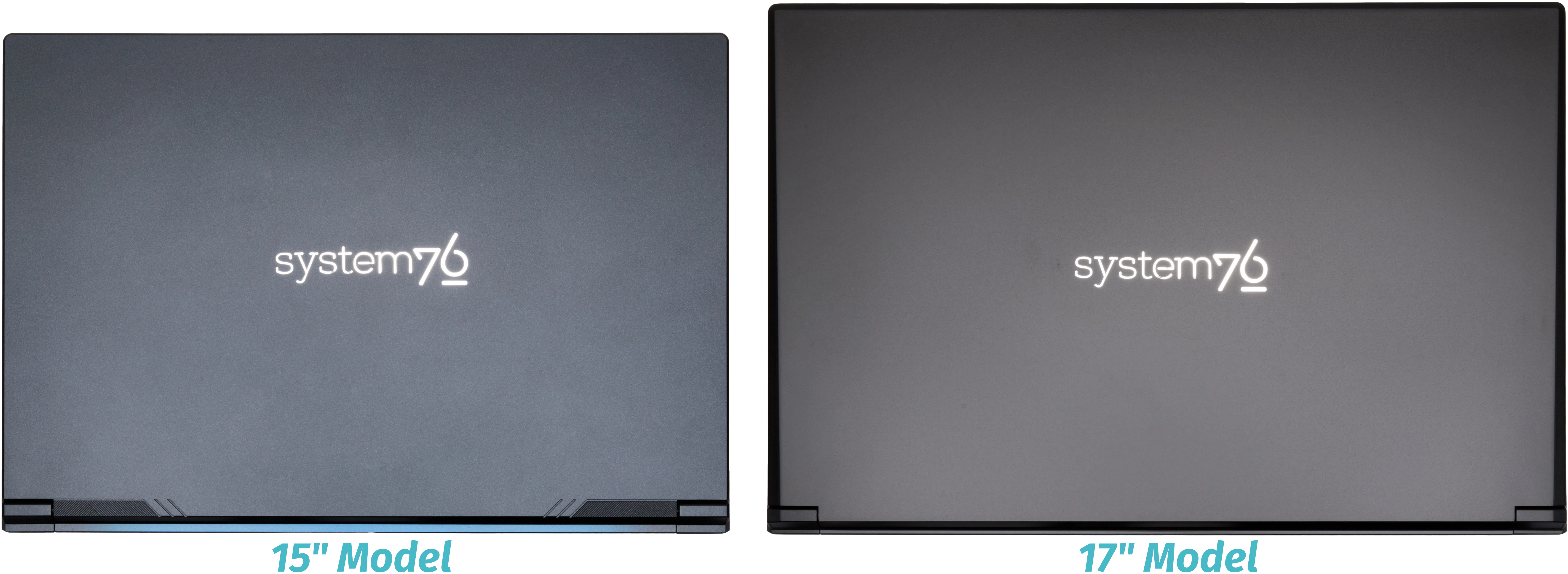

Lid:

Materials:

15” model:

Part	Material	Part Number
LCD back cover (lid)	Plastic	6-39-V3501-022
LCD front cover (bezel)	Plastic	6-39-V3501-012
Top case (palm rests/port covers)	Plastic	6-39-V3502-012
Bottom panel	Plastic	6-39-V35W3-011

17” model:

Part	Material	Part Number
LCD back cover (lid)	Aluminum	6-39-V37S1-022
LCD front cover (bezel)	Plastic	6-39-V37S1-012
Top case (palm rests/port covers)	Plastic	6-39-V37S2-N11
Bottom panel	Plastic	6-39-V37W3-011

LED indicators

The Adder WS has the following LED indicators:

Icon	Color	Description
	Orange	Powered off, DC power plugged in
	Green	Powered on
	Blinking green	Sleeping (suspended)
	Orange	Battery charging
	Green	Battery fully charged
	Blinking orange	Battery critically low
	Green	Storage drive activity

Keyboard Shortcuts

The Adder WS has the following actions available using the Fn and Function keys:

Key	Shortcut	Action
	Fn+F1	Toggle trackpad
	Fn+F2	Mute/unmute microphone
	Fn+F3	Mute/unmute speakers
	Fn+F5	Volume down
	Fn+F6	Volume up
	Fn+F7	Toggle displays
	Fn+F8	Screen brightness down
	Fn+F9	Screen brightness up
	Fn+F10	Toggle webcam
	Fn+F11	Toggle airplane mode
	Fn+F12	Suspend
	Fn+`	Play/Pause
	Fn+*	Toggle keyboard backlight
	Fn+/	Cycle keyboard color
	Fn+-	Decrease keyboard brightness
	Fn++	Increase keyboard brightness
1	Fn+1	Toggle fan between max/automatic
