Serval WS (External Overview)

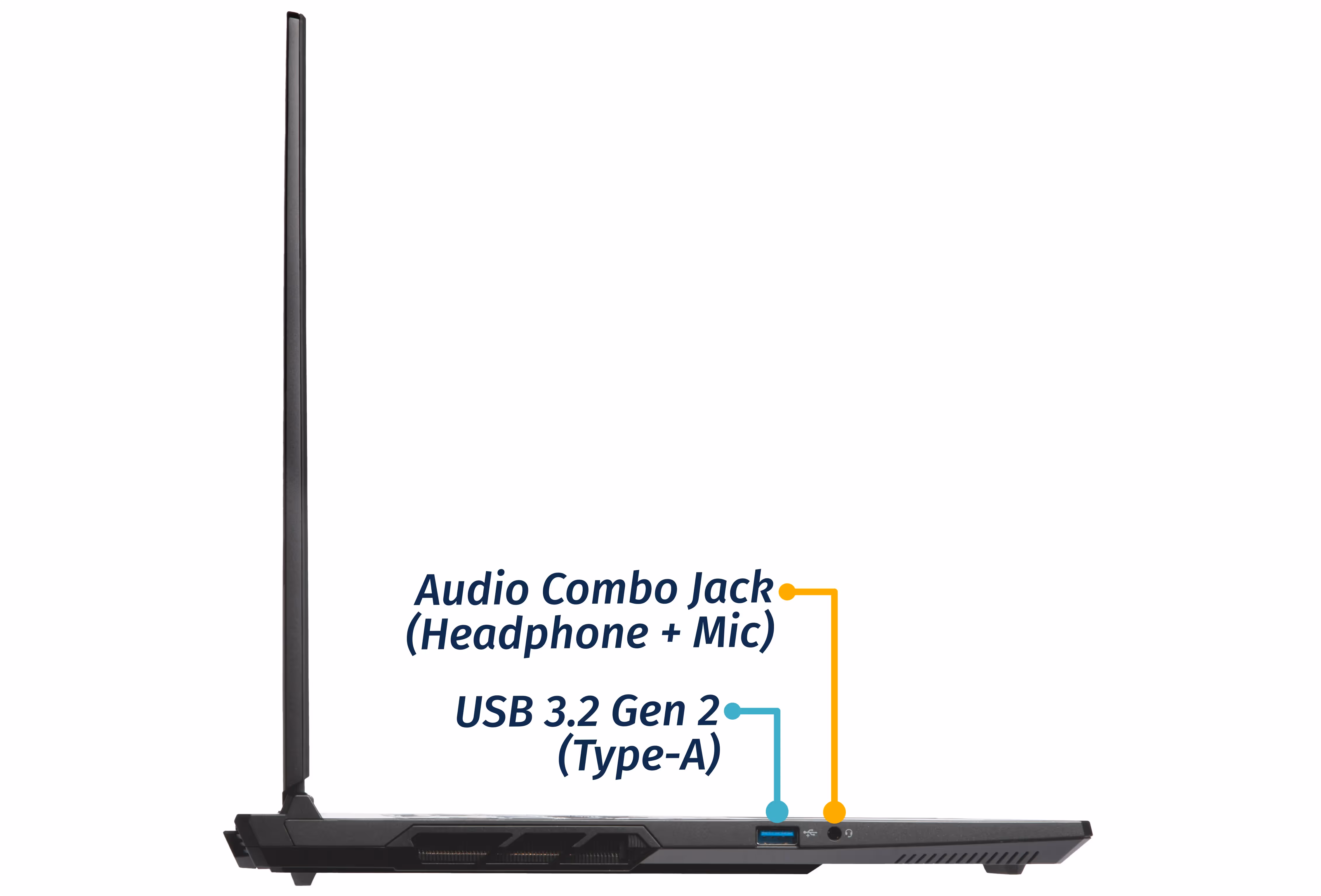

Left side:
Section titled “Left side:”

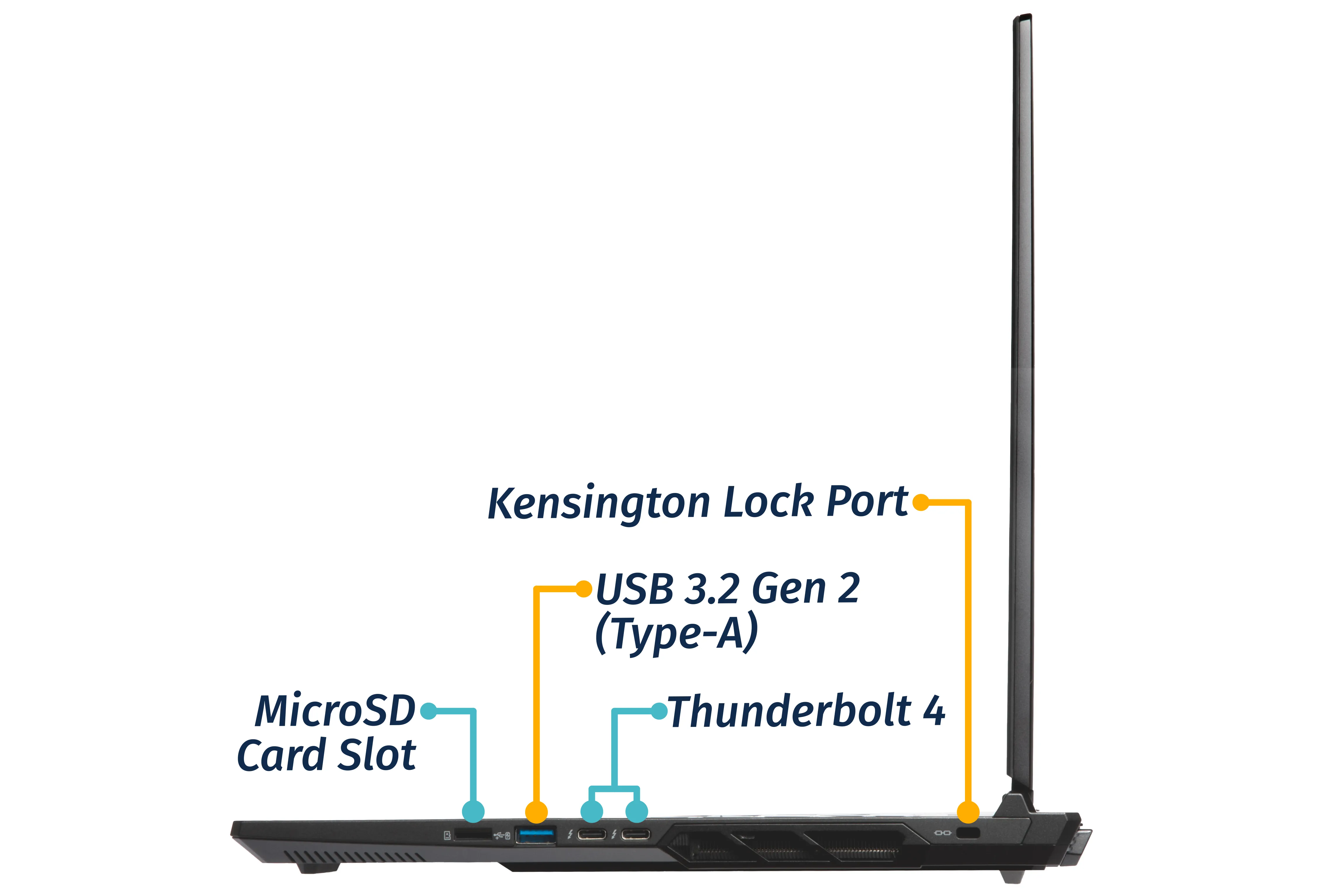

Right side:
Section titled “Right side:”

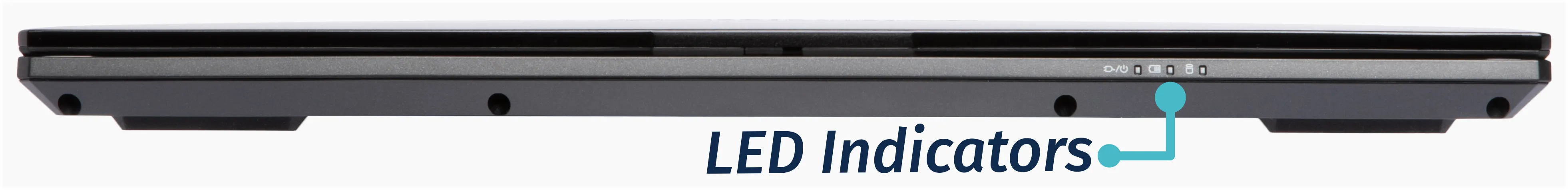

Front side:
Section titled “Front side:”

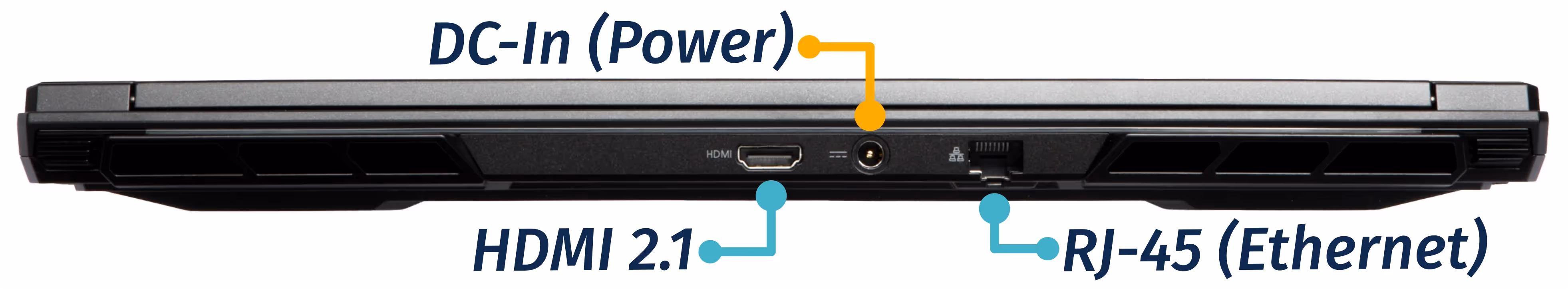

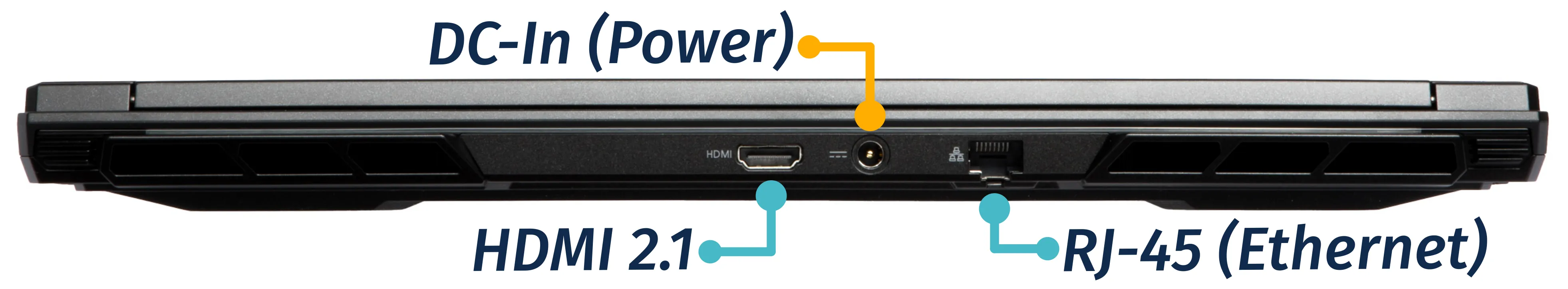

Back side:
Section titled “Back side:”

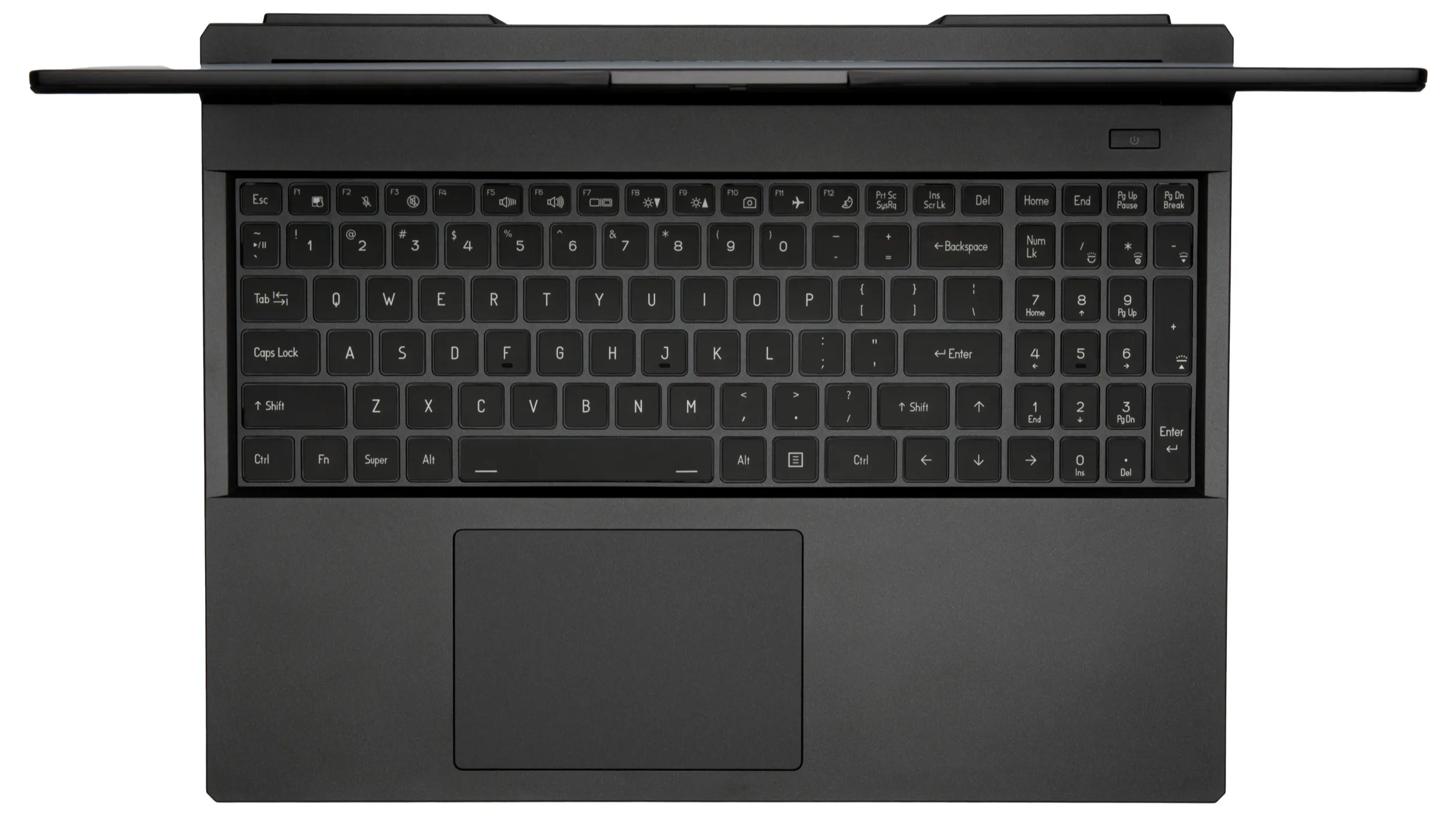

Keyboard & touchpad:
Section titled “Keyboard & touchpad:”
Materials:
Section titled “Materials:”| Part | Material | Part Number |
|---|---|---|

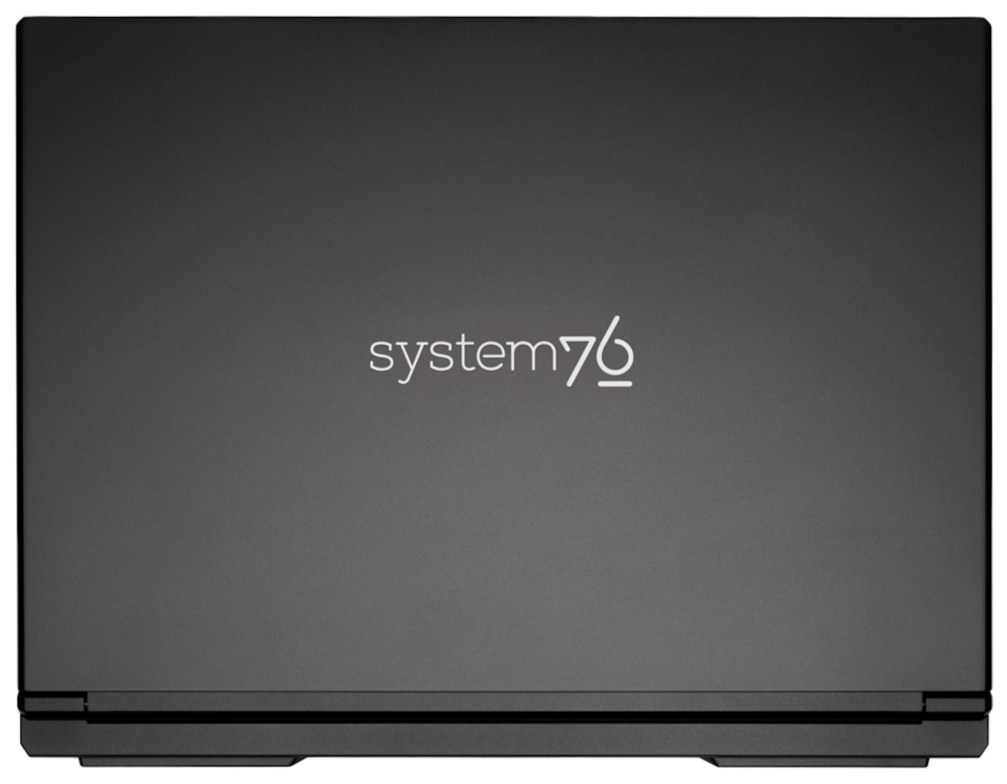

| LCD back cover (lid) | Aluminum | 6-39-X5601-022 |
| LCD front cover (bezel) | Plastic | 6-39-X5601-012 |
| Top case (palm rests/port covers) | Aluminum | 6-39-X5602-012 |
| Bottom panel | Aluminum | 6-39-X5603-012 |
LED indicators
Section titled “LED indicators”The Serval WS has the following LED indicators:
| Icon | Color | Description |
|---|---|---|
 | Orange | Powered off, DC power plugged in |
| Green | Powered on | |
| Blinking green | Sleeping (suspended) | |
 | Orange | Battery charging |
| Green | Battery fully charged | |
| Blinking orange | Battery critically low | |
 | Green | Storage drive activity |
Keyboard Shortcuts
Section titled “Keyboard Shortcuts”The Serval WS has the following actions available using the Fn and Function keys:
| Key | Shortcut | Action |
|---|---|---|
 | Fn+F1 | Toggle trackpad |
 | Fn+F2 | Toggle microphone mute |
 | Fn+F3 | Mute |
 | Fn+F5 | Volume down |
 | Fn+F6 | Volume up |
 | Fn+F7 | Toggle displays |
 | Fn+F8 | Screen brightness down |
 | Fn+F9 | Screen brightness up |
 | Fn+F10 | Toggle webcam |
 | Fn+F11 | Toggle airplane mode |
 | Fn+F12 | Suspend |
 | Fn+` | Play/Pause |
 | Fn+* | Toggle keyboard backlight |
 | Fn+/ | Cycle keyboard color |
 | Fn+- | Decrease keyboard brightness |
 | Fn++ | Increase keyboard brightness |
| 1 | Fn+1 | Toggle fan between max/automatic |
