Thelio Major (Internal Overview)

Left side:

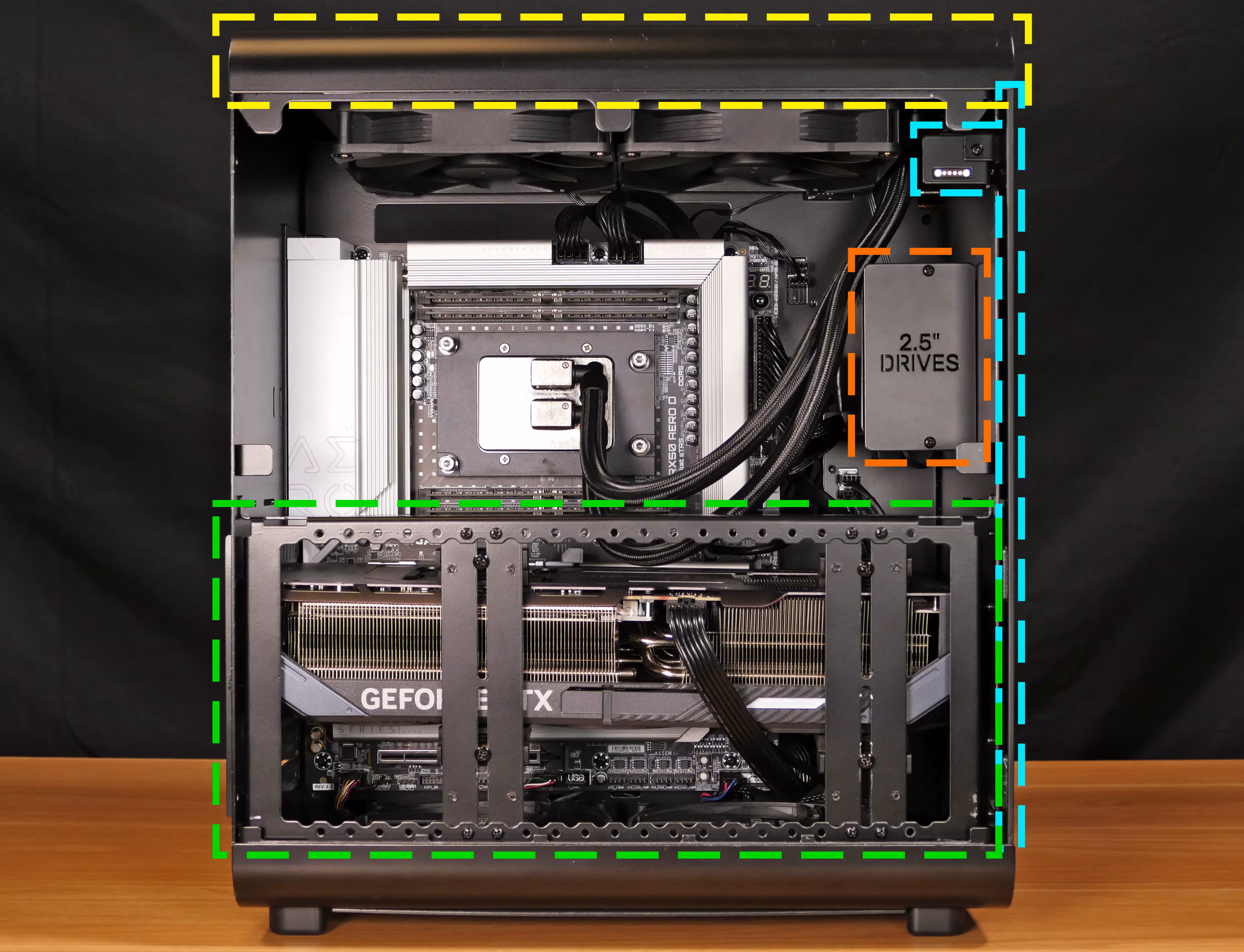

Chassis components:

• Top shell is highlighted in yellow
• Front glass is highlighted in cyan
• GPU brace is highlighted in green
• Front 2.5” drive cage is highlighted in orange

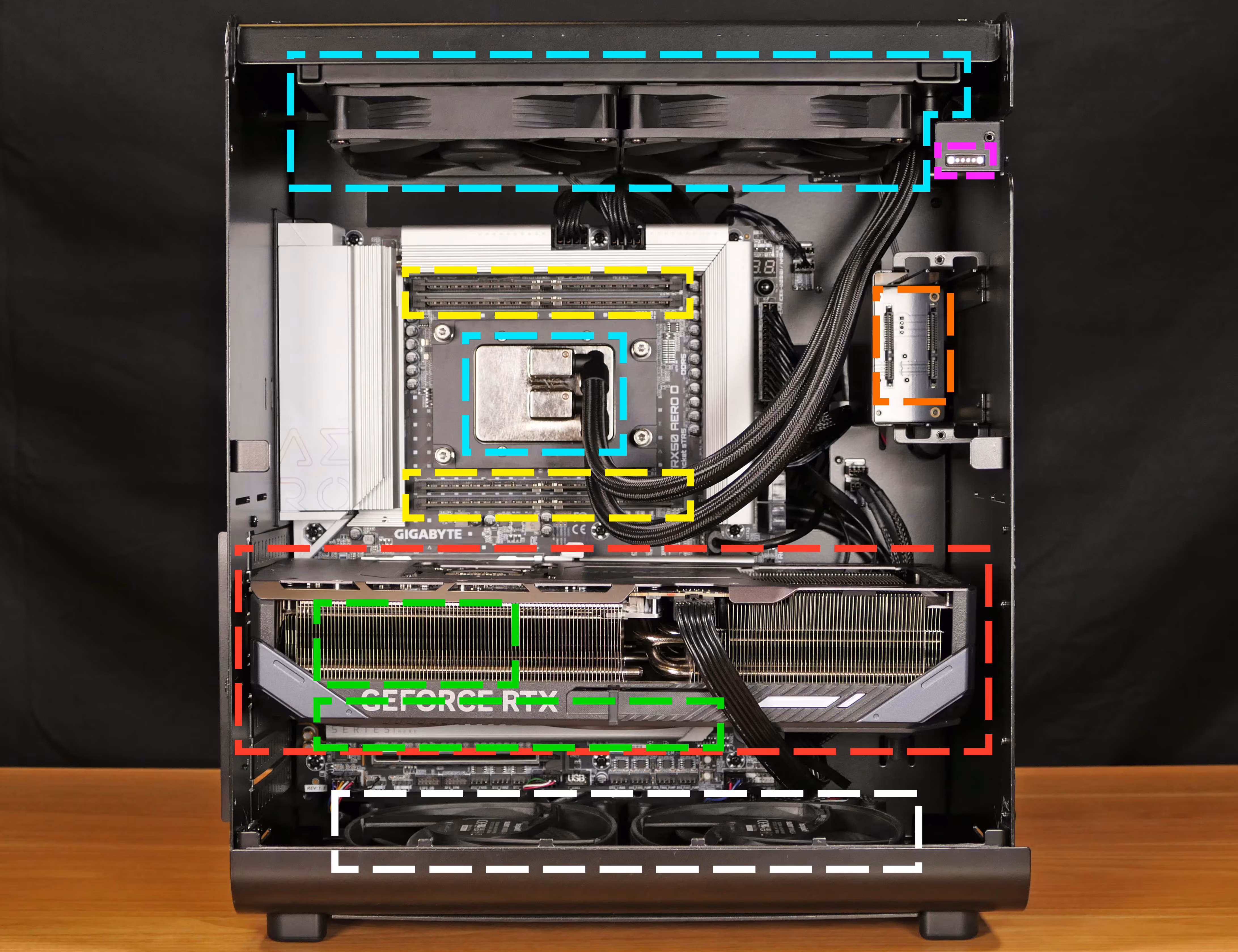

Electronic components:

• CPU cooler contact plate and pump/radiator/fans are highlighted in cyan
• RAM slots are highlighted in yellow
• M.2 slots are highlighted in green
  • Top two M.2 slots are behind the GPU
• GPU (in PCIe 5.0 x16 slot) is highlighted in red
  • CMOS battery is underneath the GPU
• Bottom case fans are highlighted in white
• Pogo pin contacts for side panel fans are highlighted in pink
• 2.5” SATA slots are highlighted in orange
  • Location varies based on power supply count

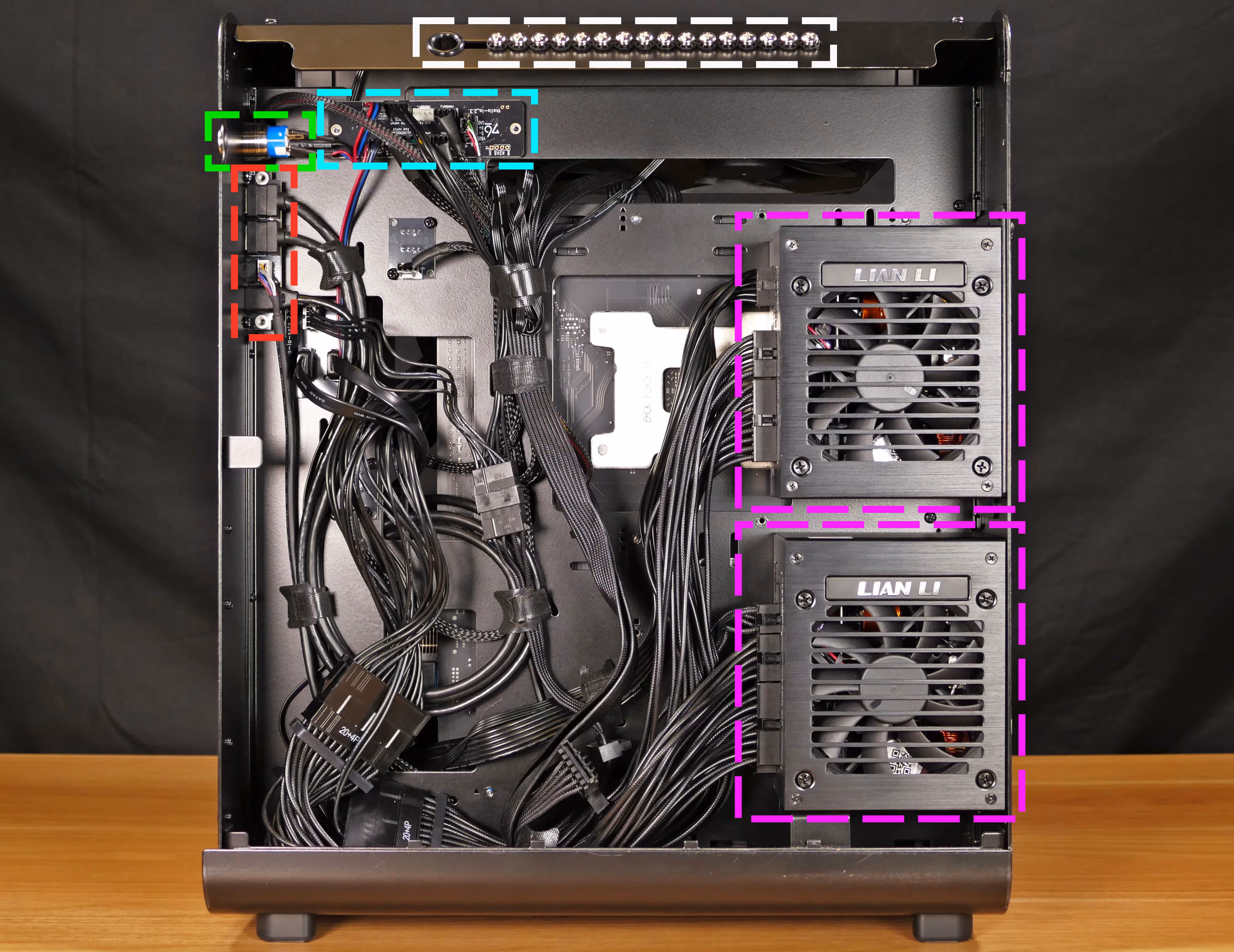

Right side:

• Spare 2.5” drive screws are highlighted in white
• Power button is highlighted in green
• Front I/O board is highlighted in red
• Thelio Io board is highlighted in cyan
• Power supplies are highlighted in pink
  • Top power supply is only included with GPU configurations that require it

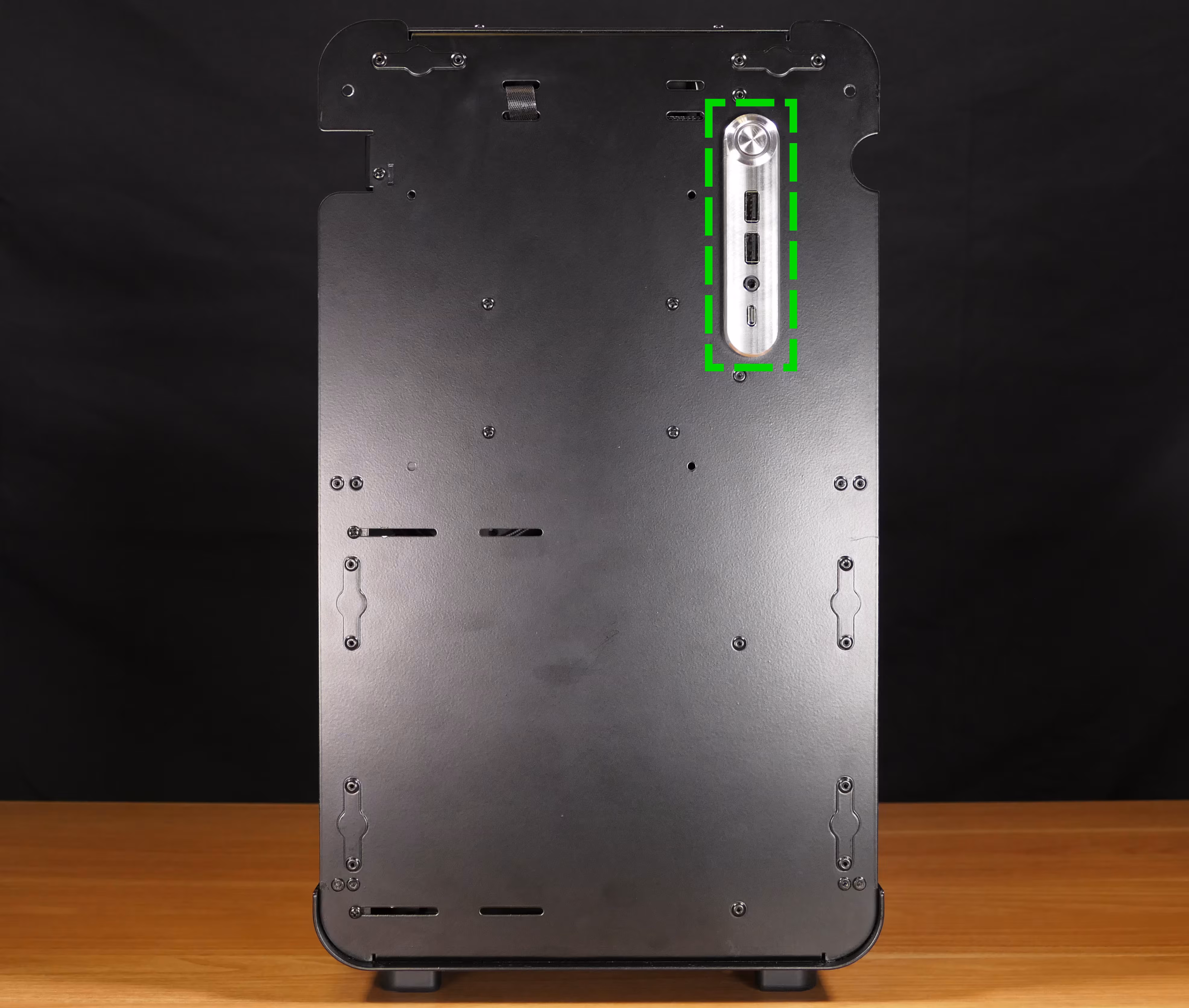

Front side:

• Power button and front I/O ports are highlighted in green

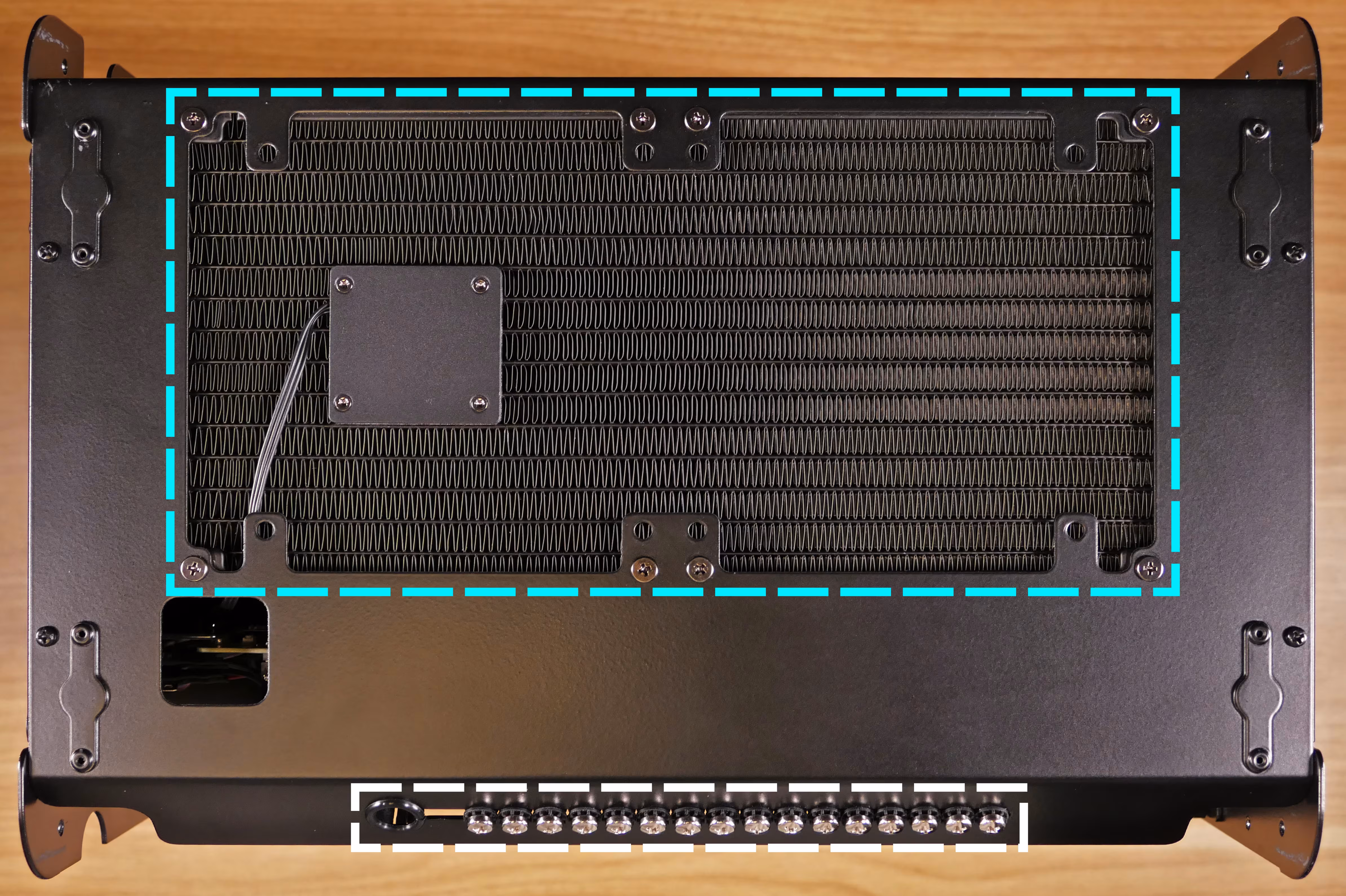

Top:

• CPU cooler radiator is highlighted in cyan
• Spare 2.5” drive screws are highlighted in white

See the repairs page for detailed information about installing or replacing components.
