Pangolin (External Overview)

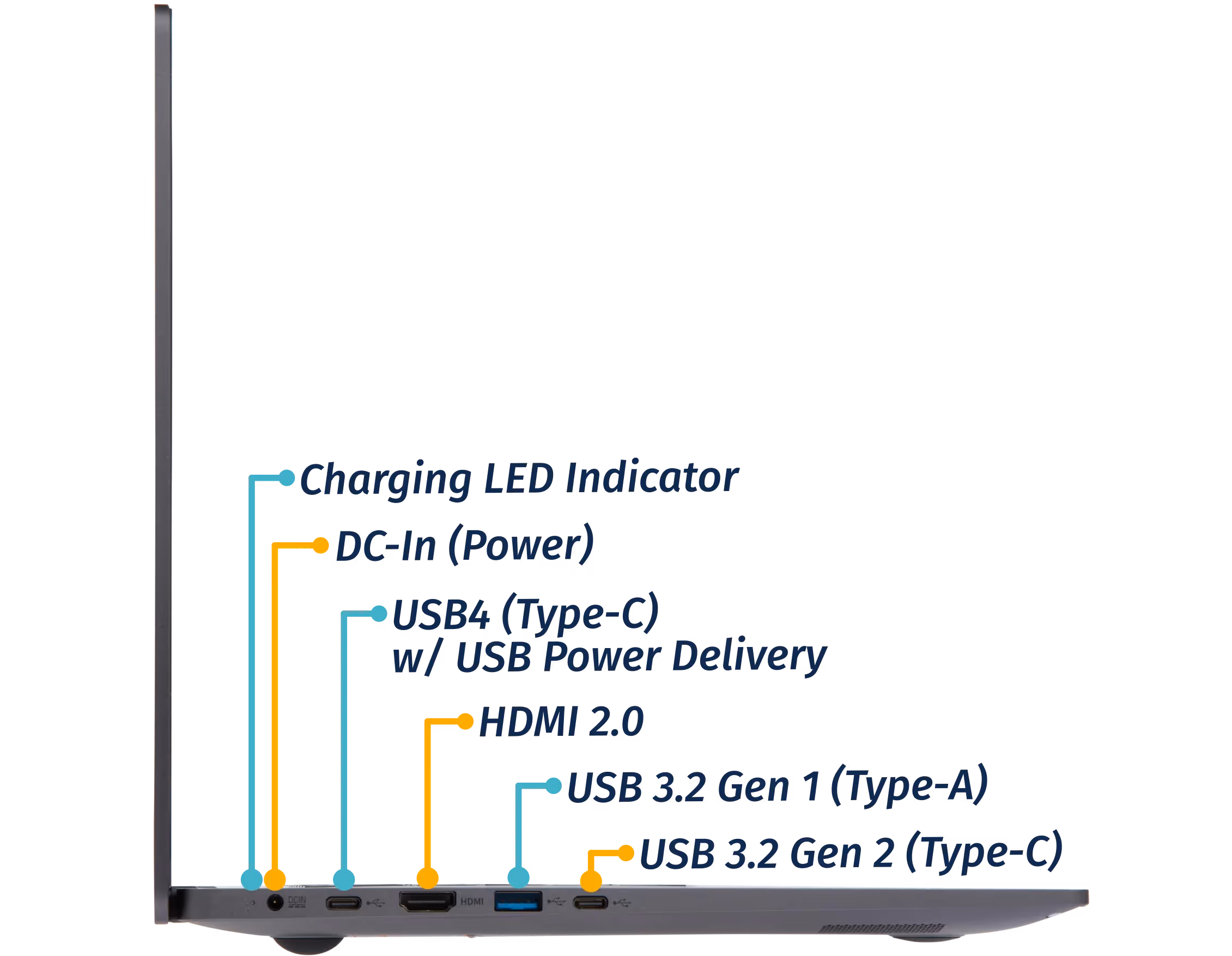

Left side:
Section titled “Left side:”

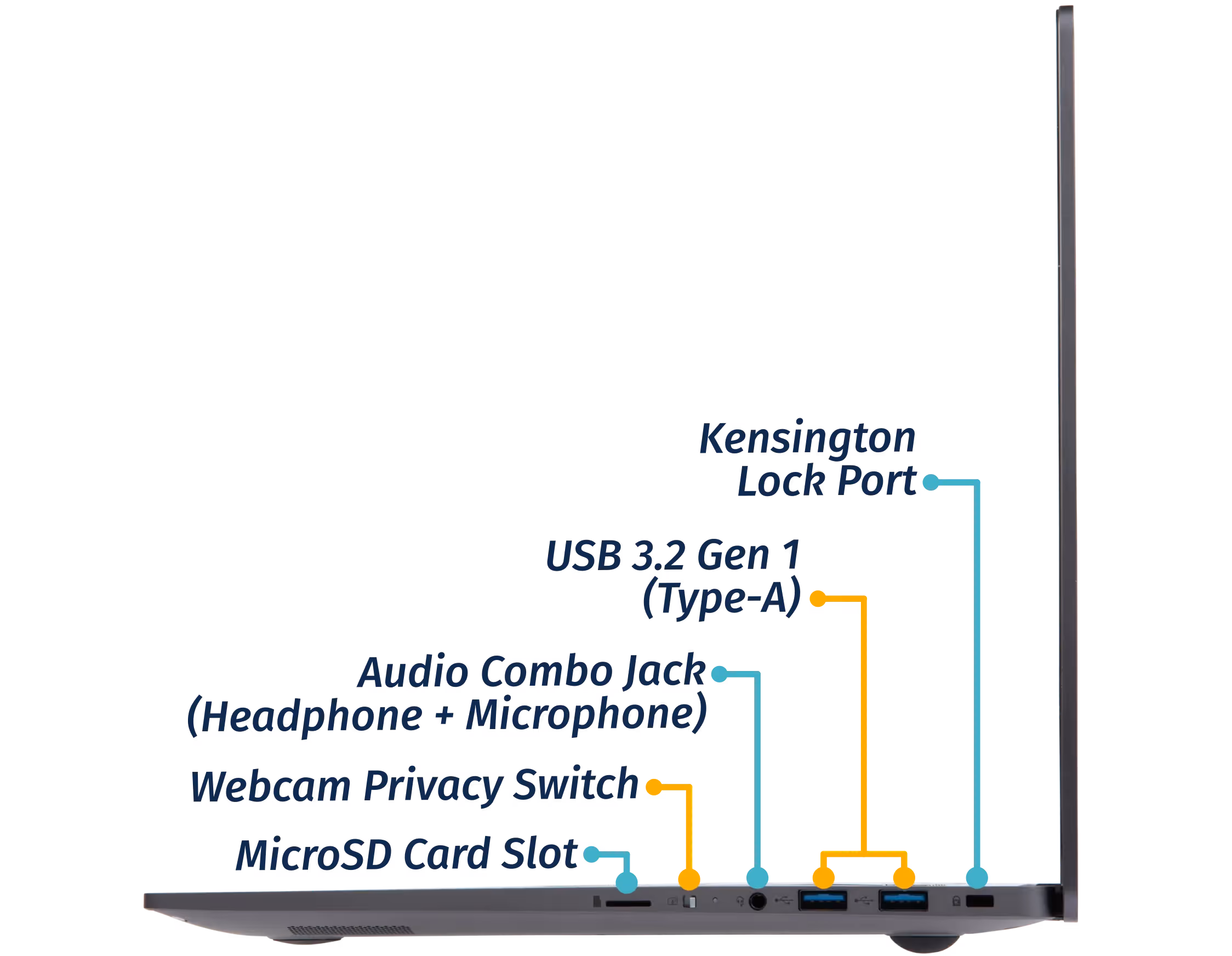

Right side:
Section titled “Right side:”

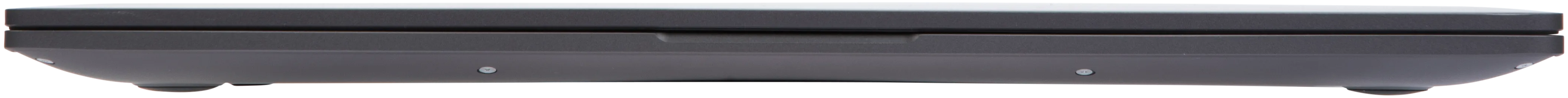

Front side:
Section titled “Front side:”

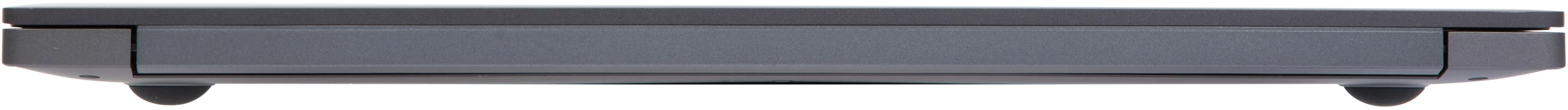

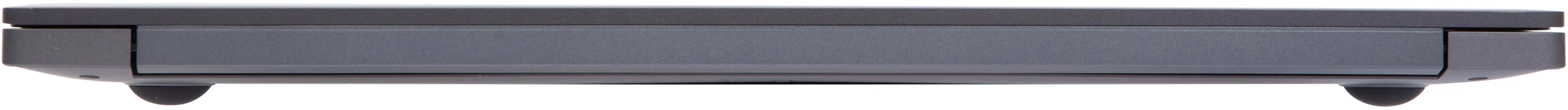

Back side:
Section titled “Back side:”

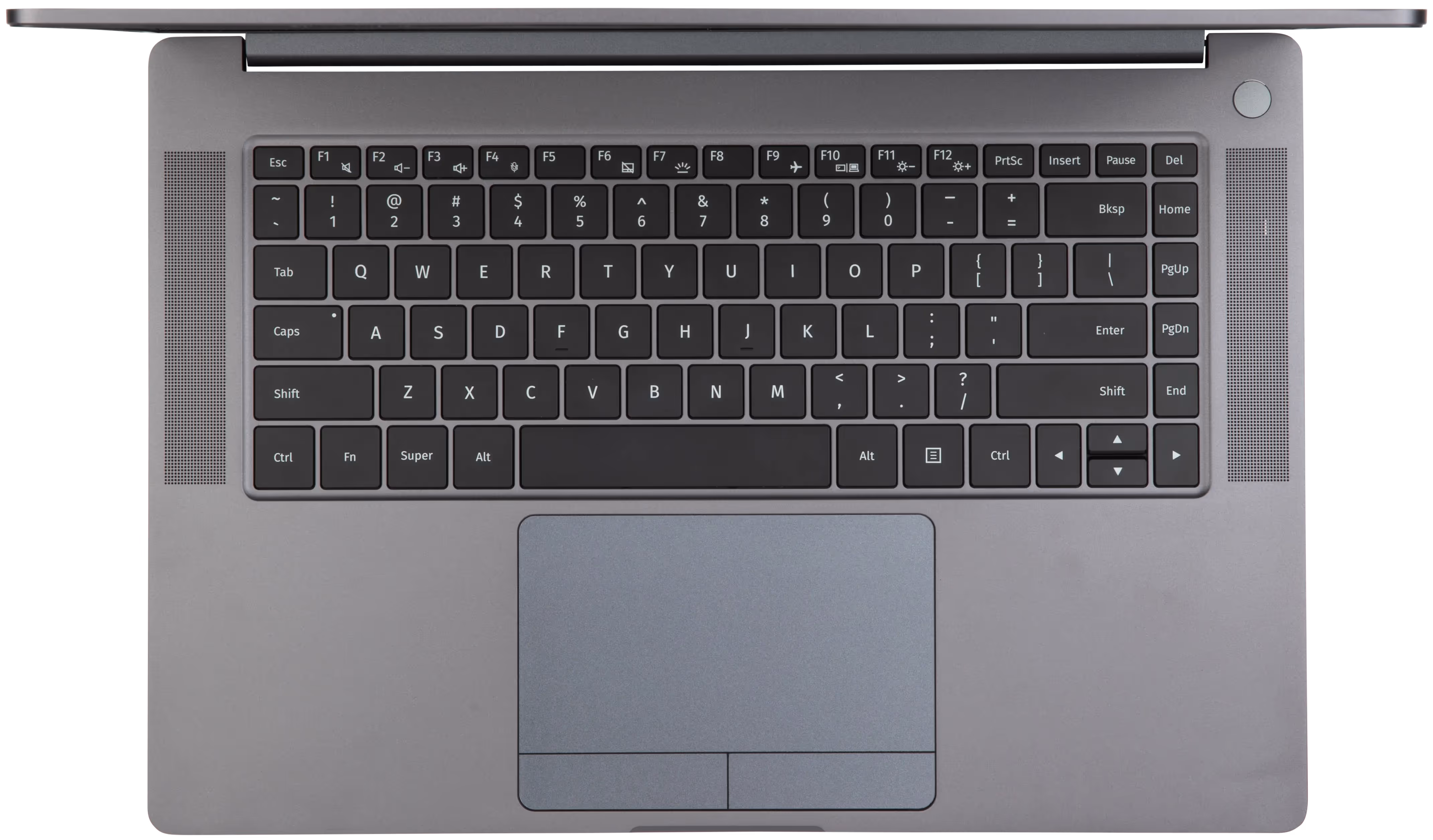

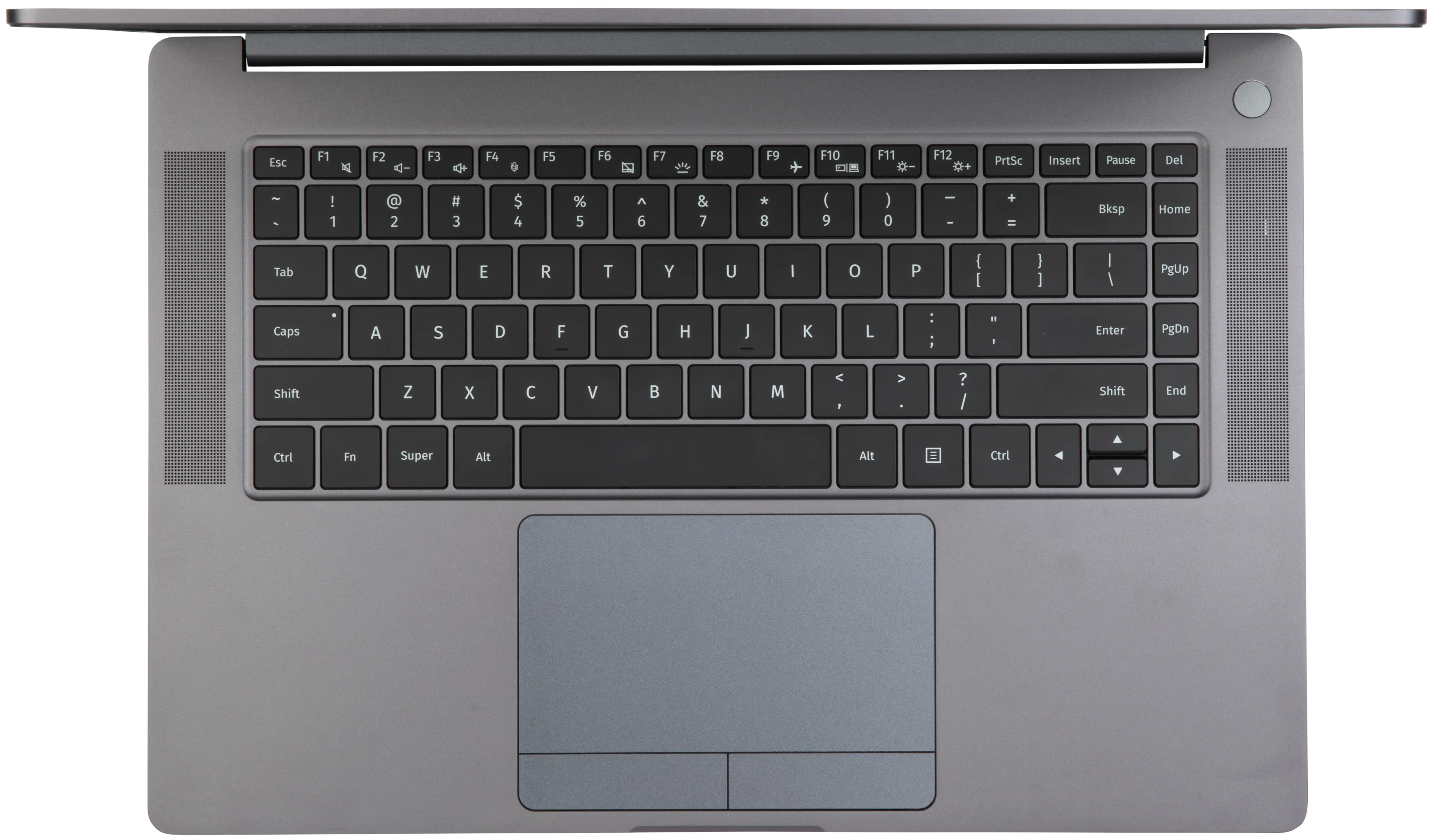

Keyboard & touchpad:
Section titled “Keyboard & touchpad:”

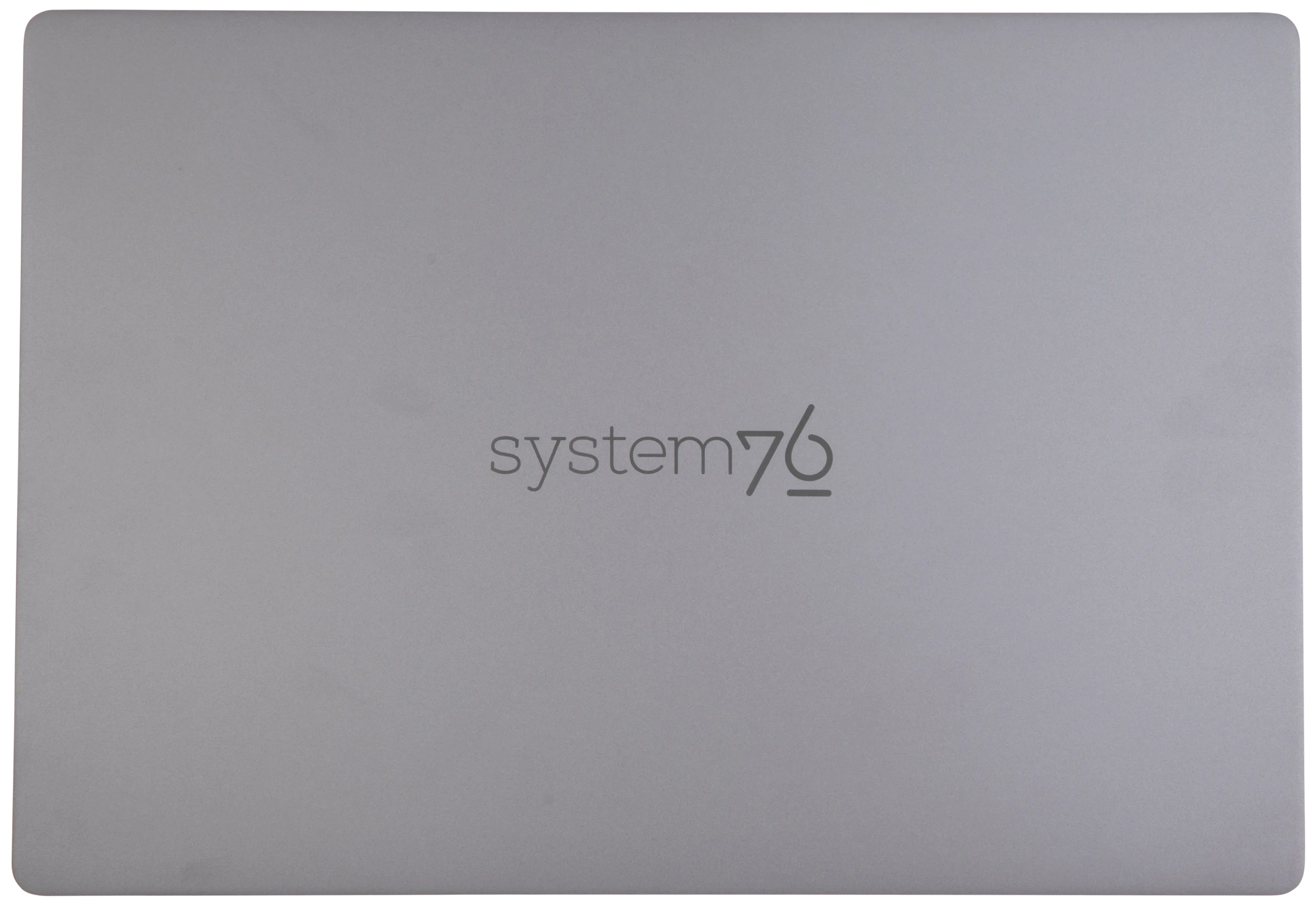

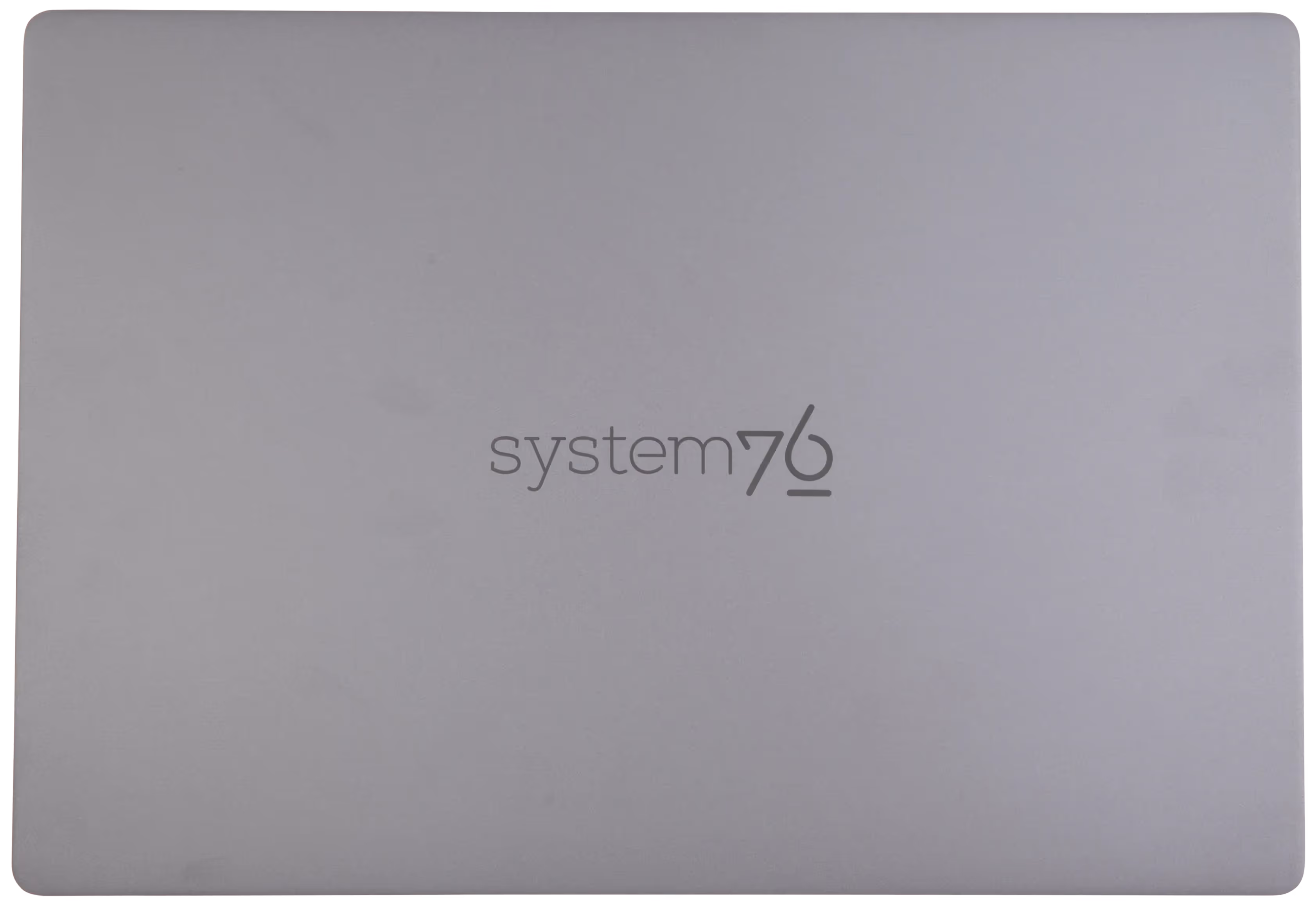

Materials
Section titled “Materials”| Part | Material | Part Number |
|---|---|---|
| LCD back cover (lid) | Aluminum | 02.SKD.NM16AHFTX00 |
| LCD front cover (bezel) | Plastic | 02.SKD.NM16AHFTX00 |
| Top case (palm rests/port covers) | Aluminum | 02.SKD.NM16AHFTX01 |
| Bottom panel | Aluminum | 02.SKD.NM16AHFTX02 |
LED indicators:
Section titled “LED indicators:”| Icon | State | Description |
|---|---|---|
 | Green | Fully charged |
| Red | Charging | |
| Off | Not charging (disconnected) | |
 | On | Webcam disabled (privacy mode on) |
| Off | Webcam enabled (privacy mode off) |
Keyboard shortcuts
Section titled “Keyboard shortcuts”| Key | Shortcut | Action |
|---|---|---|
 | Fn+F1 | Mute |
 | Fn+F2 | Volume down |
 | Fn+F3 | Volume up |
 | Fn+F4 | Mute/unmute microphone |
 | Fn+F6 | Toggle trackpad |
 | Fn+F7 | Cycle keyboard brightness |
 | Fn+F9 | Toggle airplane mode |
 | Fn+F10 | Toggle displays |
 | Fn+F11 | Screen brightness down |
 | Fn+F12 | Screen brightness up |
