Adder Pro (Internal Overview)

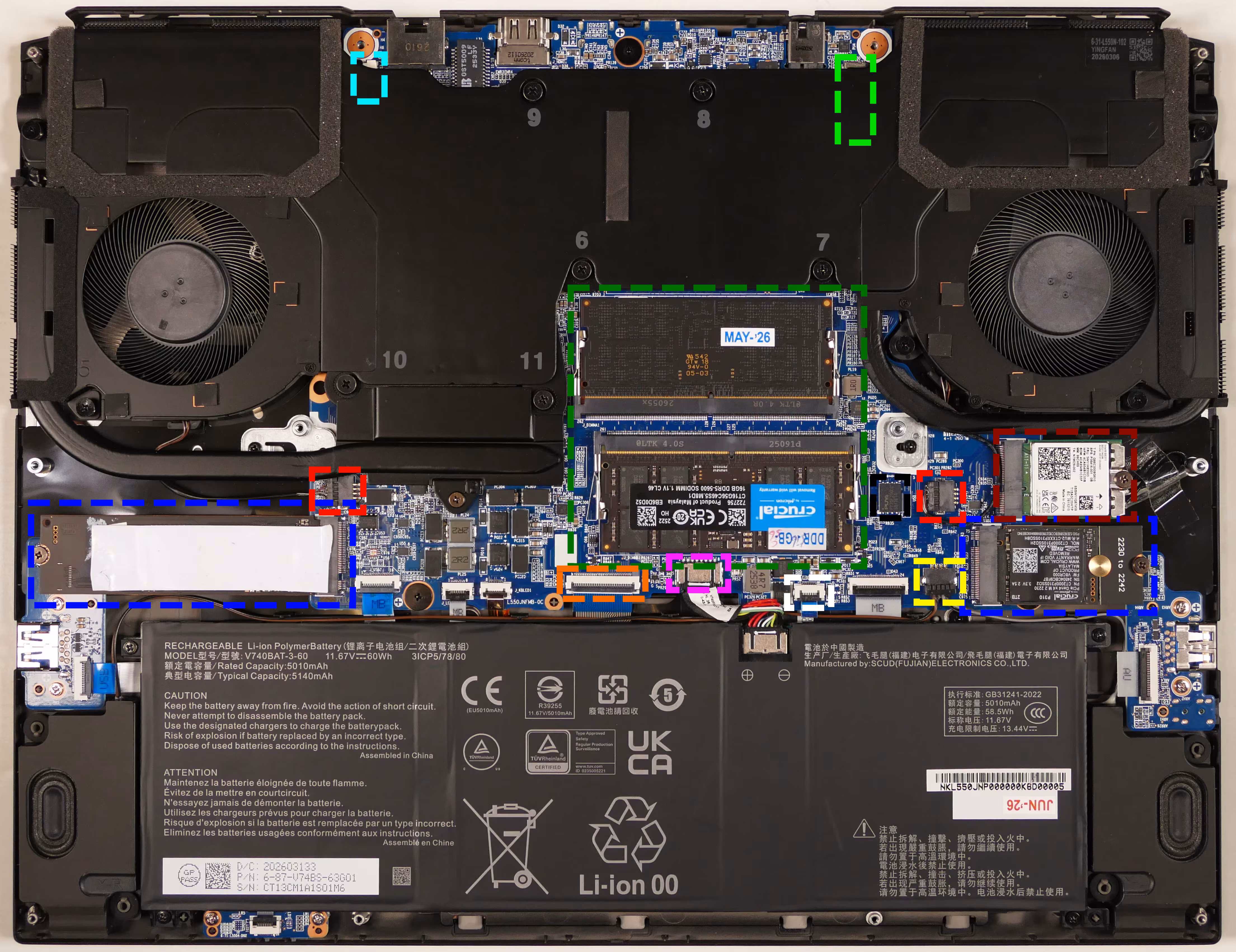

Bottom components and connectors:

• Webcam/microphone connector is highlighted in cyan
  • Webcam/microphone connector is partially below the heatsink
• LCD panel connector is highlighted in light green
  • LCD panel connector is partially below the heatsink
• RAM slots are highlighted in dark green
• BIOS flash chip (U50) is highlighted in black
• Fan connectors are highlighted in red
• Speaker connector is highlighted in yellow
• Wireless card is highlighted in maroon
• M.2 SSDs are highlighted in blue
  • Both slots support PCIe NVMe Gen 4
• Main keyboard connector is highlighted in orange
  • Keyboard LED connector is to the left of the main keyboard connector
  • Front indicator LED connector is to the left of the keyboard LED connector
• Main battery connector is highlighted in pink
• Touchpad connector is highlighted in white
