Lemur Pro (External Overview)

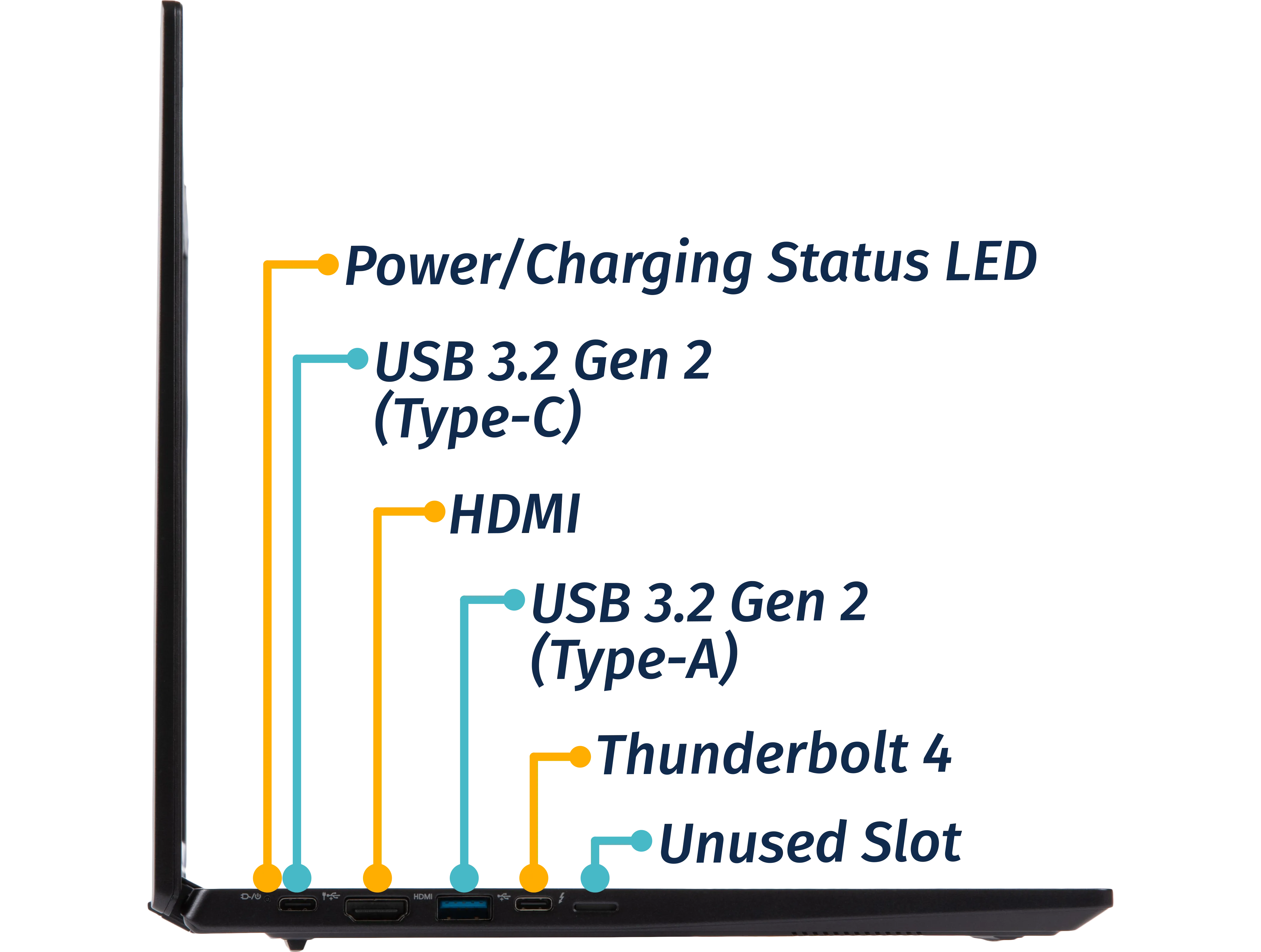

Left side:
Section titled “Left side:”

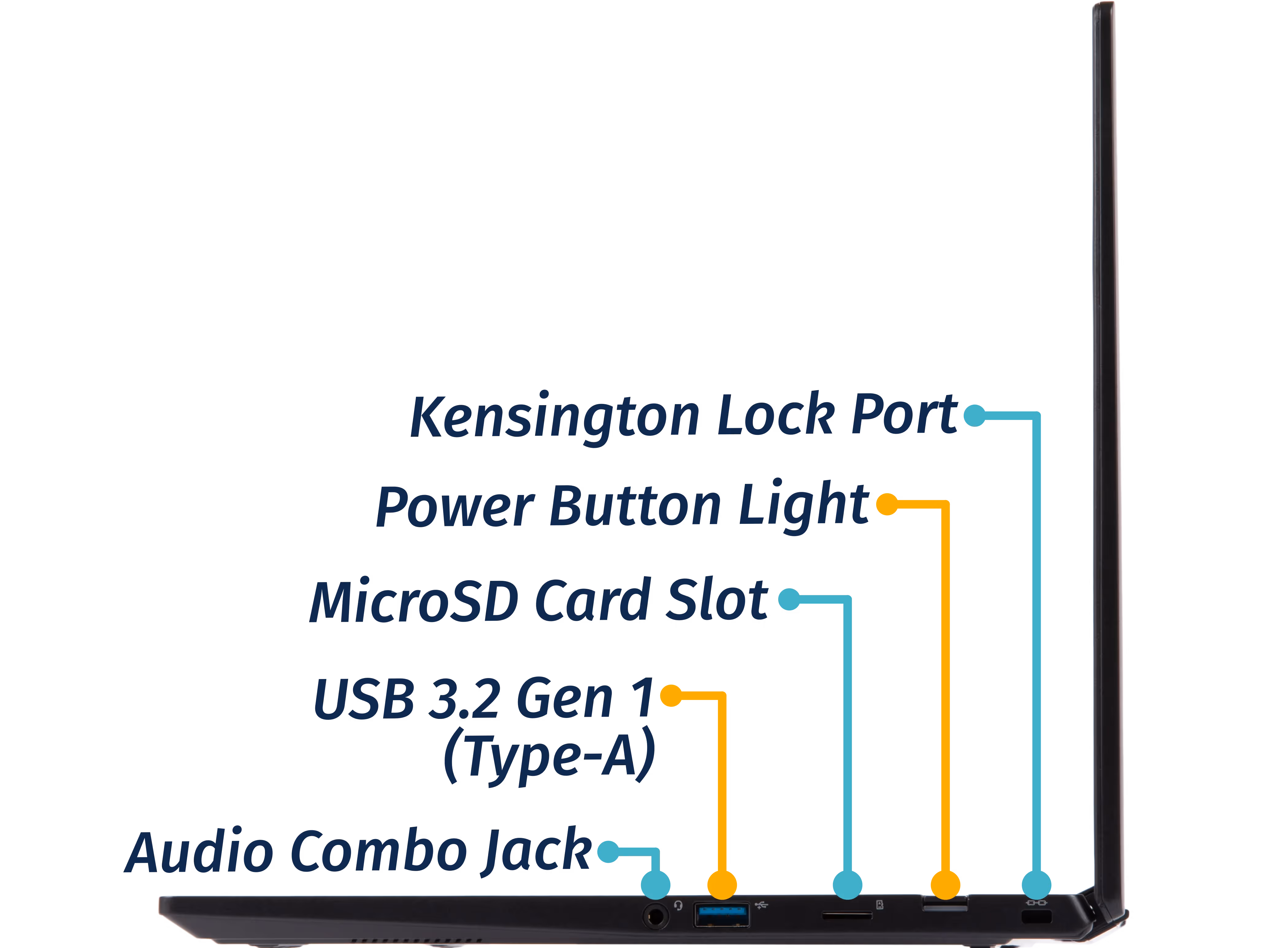

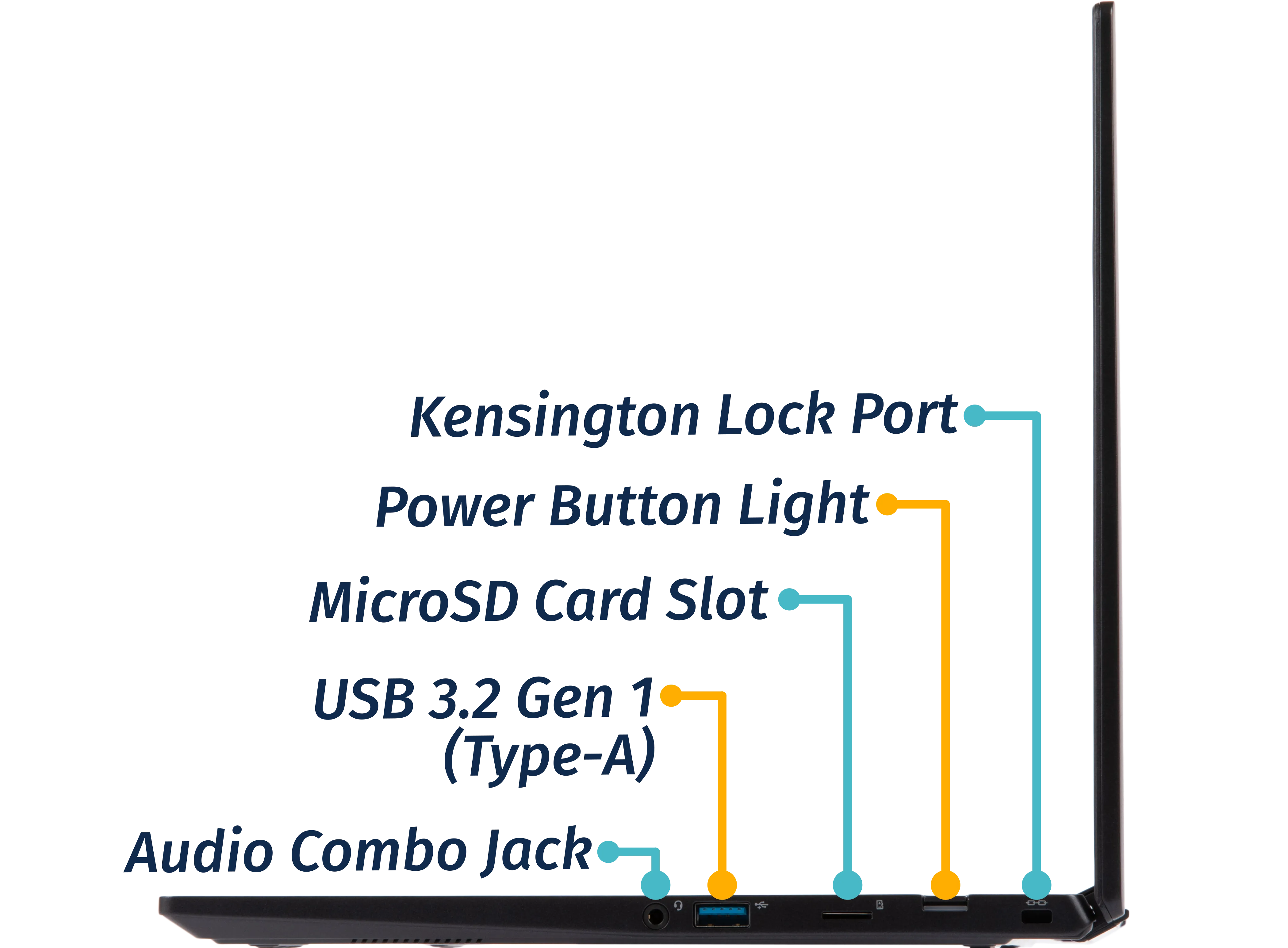

Right side:
Section titled “Right side:”

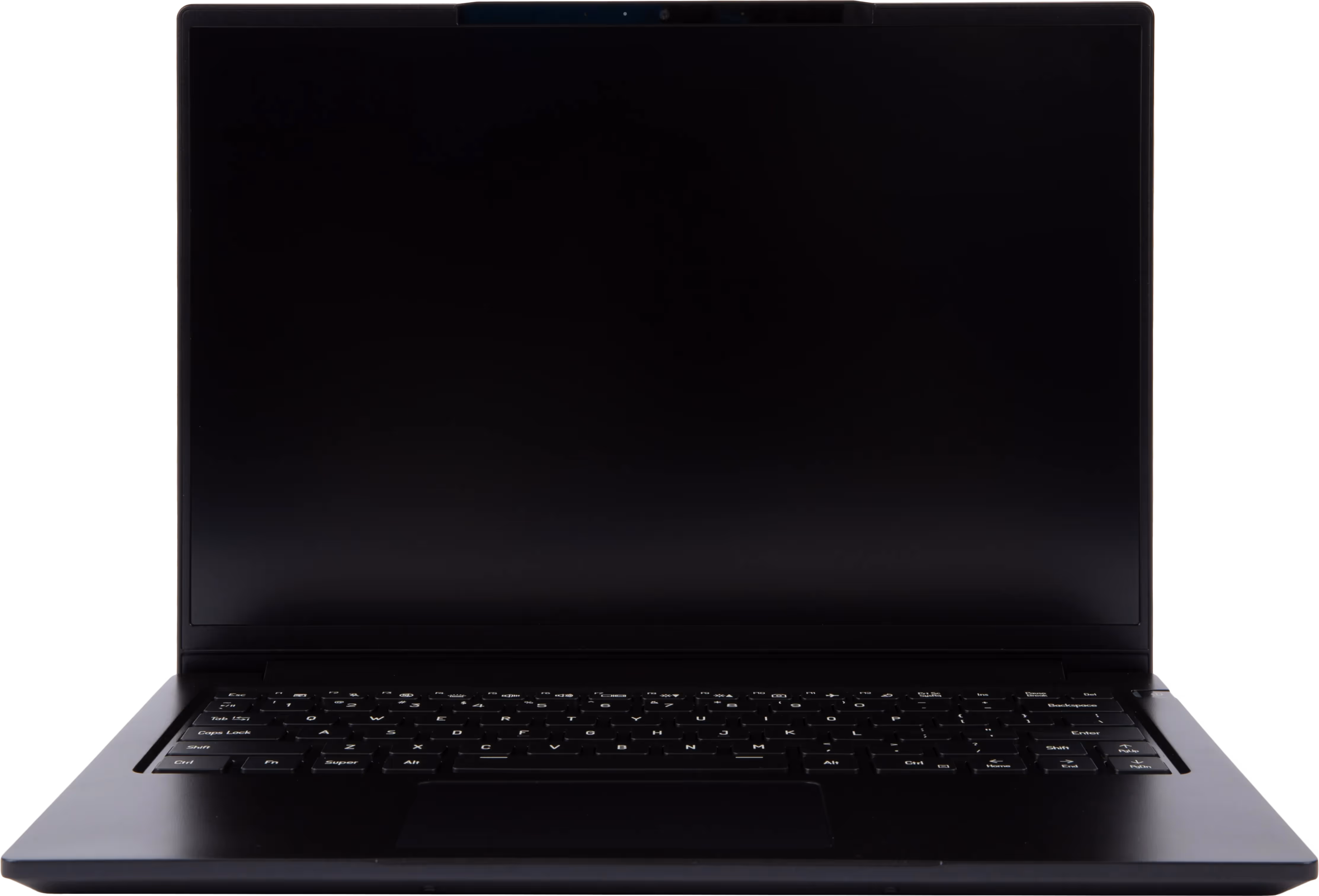

Front side:
Section titled “Front side:”

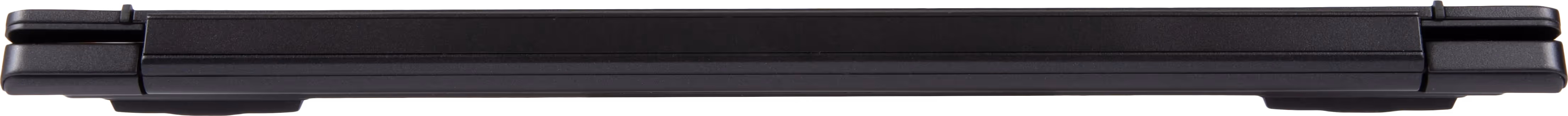

Back side:
Section titled “Back side:”
Keyboard & touchpad:

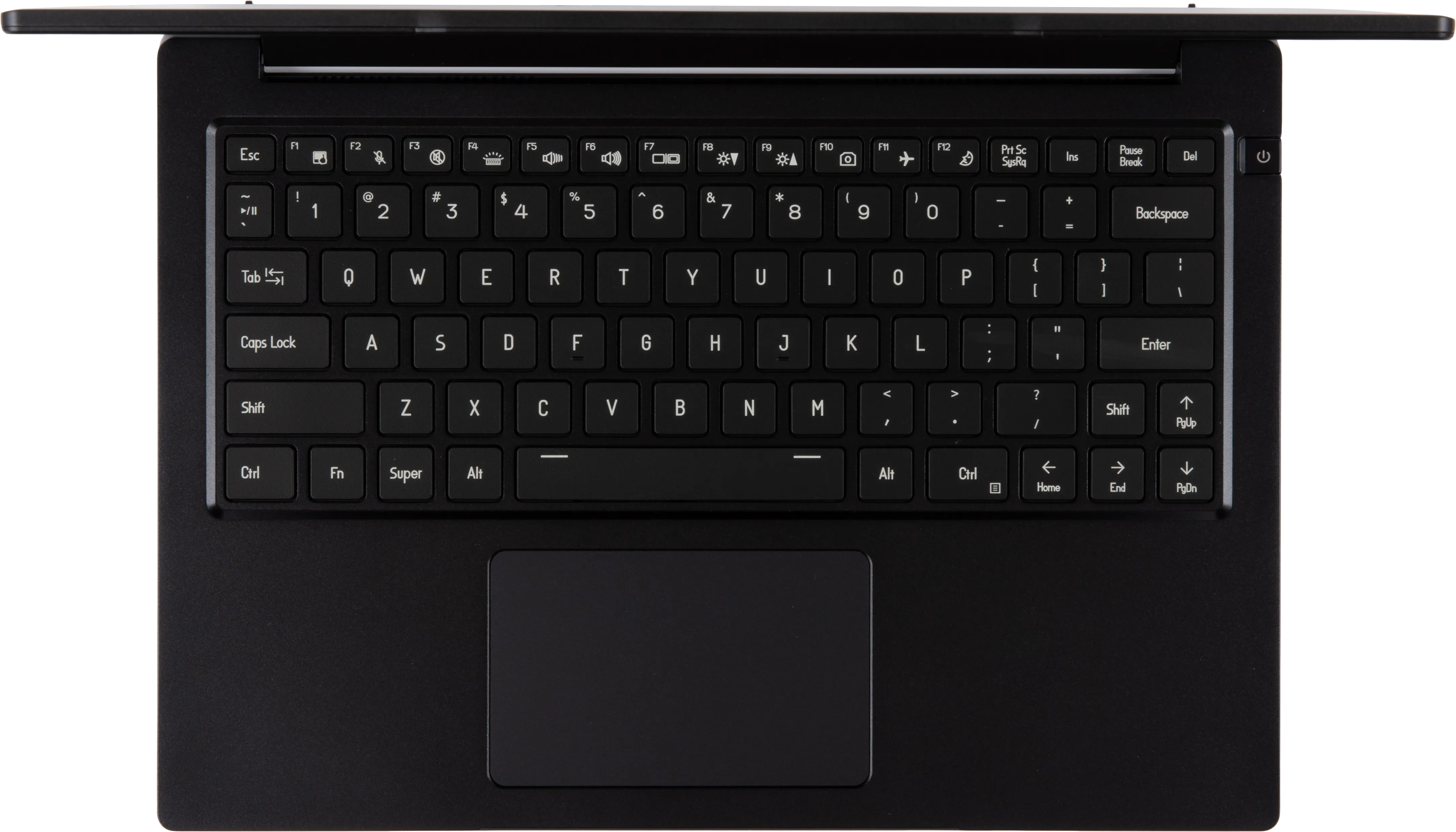

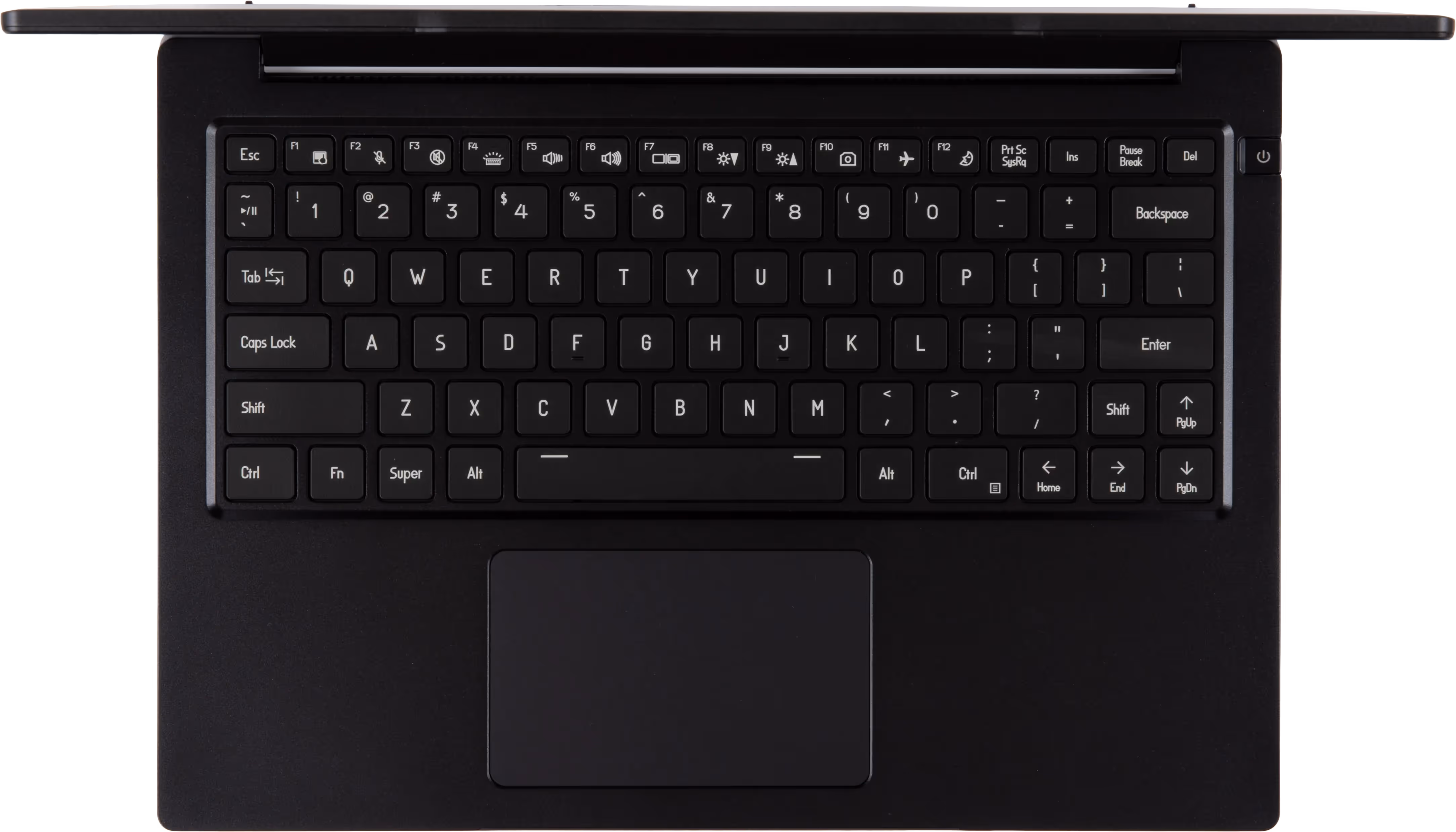

Section titled “Keyboard & touchpad:”Before May 2024 (lemp13):
Section titled “Before May 2024 (lemp13):”

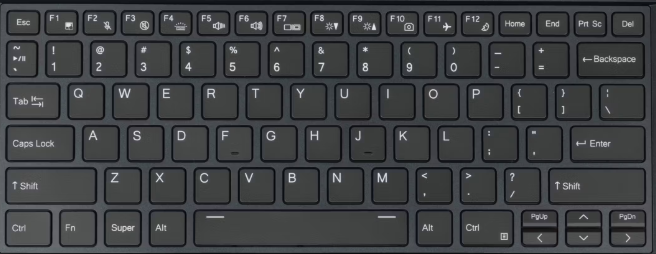

After May 2024 (lemp13-b):
Section titled “After May 2024 (lemp13-b):”

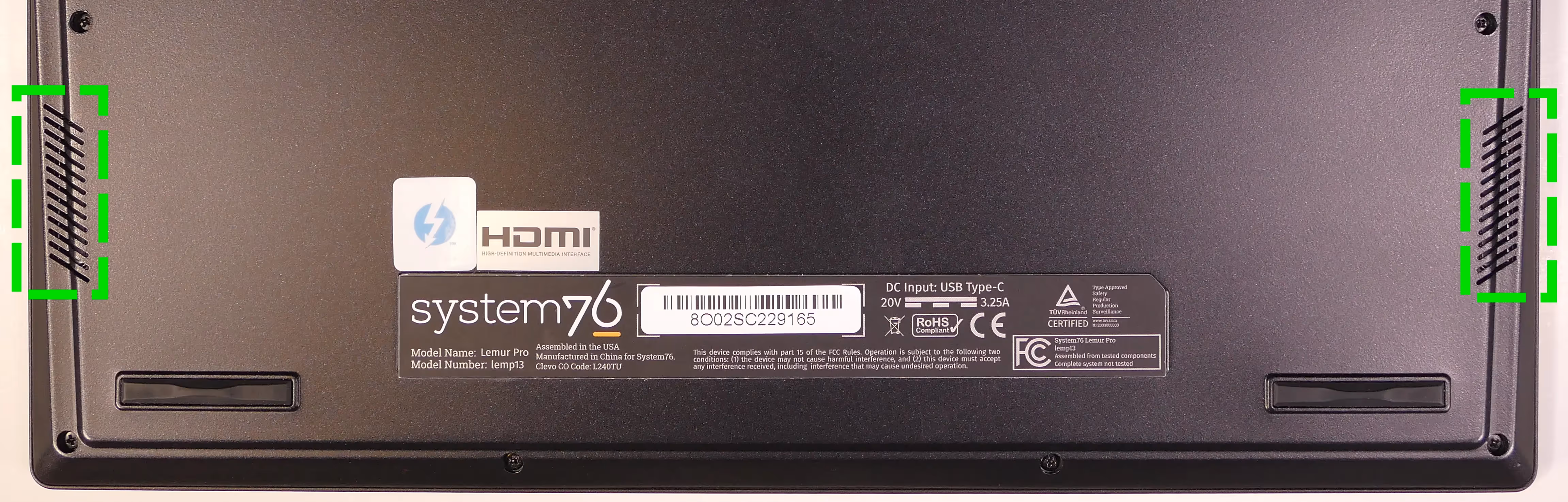

Speakers:
Section titled “Speakers:”The machine has two bottom-firing speakers near the front, angled outward.
Materials:
Section titled “Materials:”| Part | Material | Part Number |
|---|---|---|

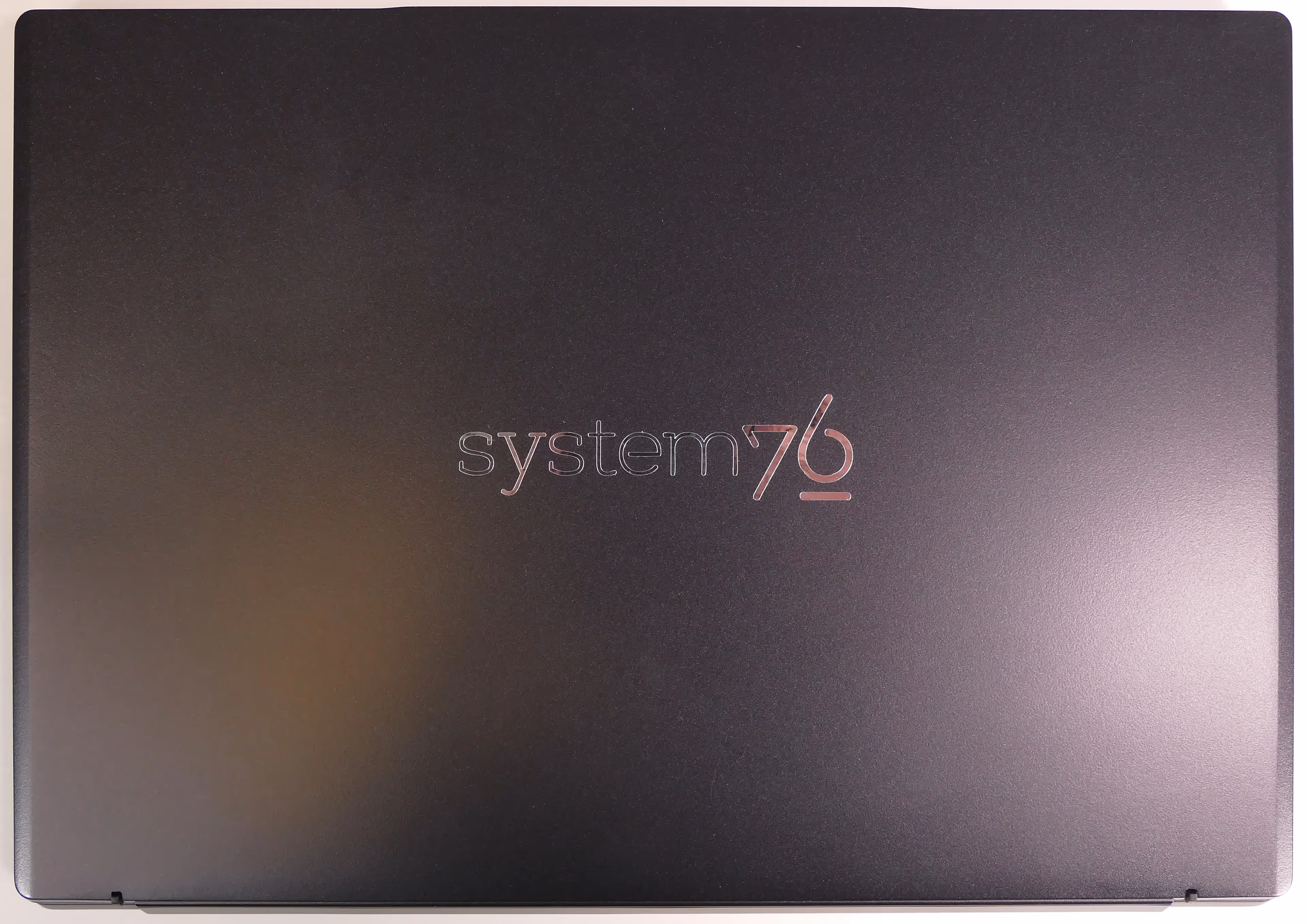

| LCD back cover (lid) | Magnesium-aluminum alloy | 6-39-L2401-022 |
| LCD front cover (bezel) | Plastic | 6-39-L2401-012 |
| Top case (palm rests/port covers) | Magnesium-aluminum alloy | 6-39-L2402-032 |
| Bottom panel | Magnesium-aluminum alloy | 6-39-L2403-012 |
LED indicators
Section titled “LED indicators”The color and pattern for the power/charging status LED indicate:
- Solid green: Powered on and not suspended.
- Flashing green: Powered on and suspended.
- Solid yellow: Powered off and charging.
- Off: Powered off and not charging.
Keyboard Shortcuts
Section titled “Keyboard Shortcuts”The Lemur Pro has the following actions available using the Fn and Function keys:
| Key | Shortcut | Action |
|---|---|---|
 | Fn+F1 | Toggle trackpad |
 | Fn+F2 | Mute/unmute microphone |
 | Fn+F3 | Mute/unmute speakers |
 | Fn+F4 | Cycle keyboard backlight brightness |
 | Fn+F5 | Volume down |
 | Fn+F6 | Volume up |
 | Fn+F7 | Toggle displays |
 | Fn+F8 | Screen brightness down |
 | Fn+F9 | Screen brightness up |
 | Fn+F10 | Toggle webcam |
 | Fn+F11 | Toggle airplane mode |
 | Fn+F12 | Suspend |
 | Fn+` | Play/Pause |
| 1 | Fn+1 | Toggle fan between max/automatic |
