Oryx Pro (External Overview)

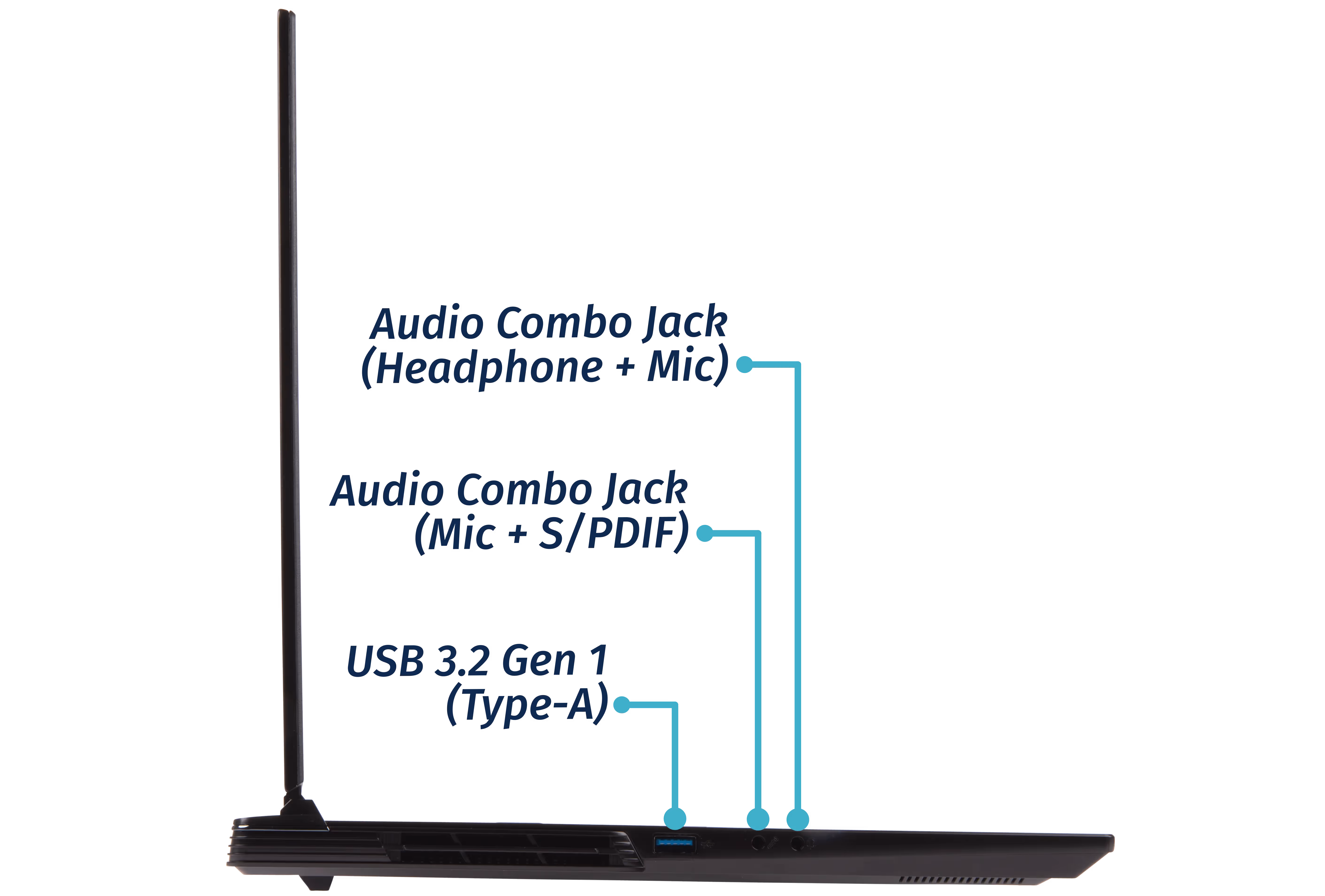

Left side:
Section titled “Left side:”

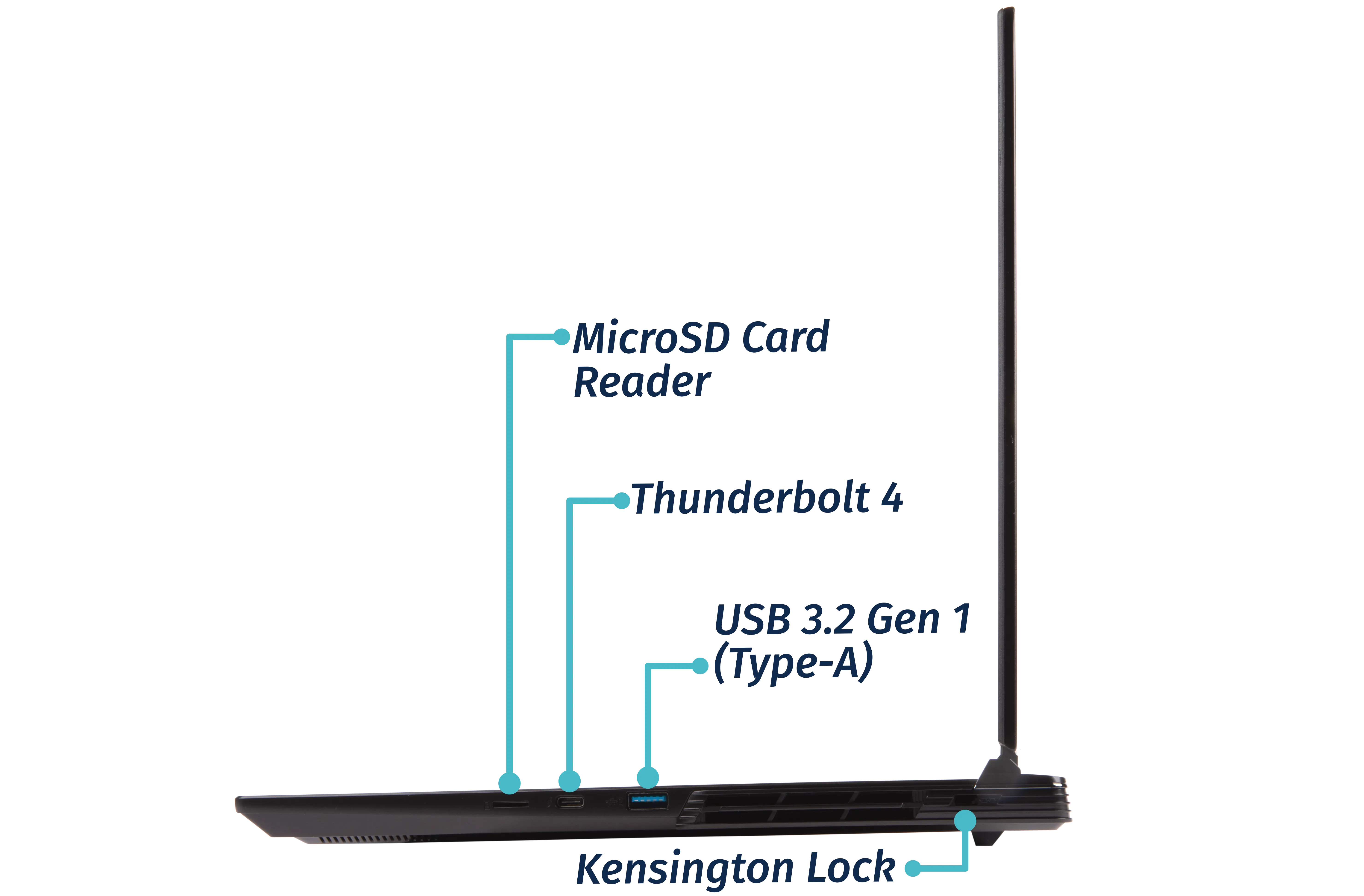

Right side:
Section titled “Right side:”

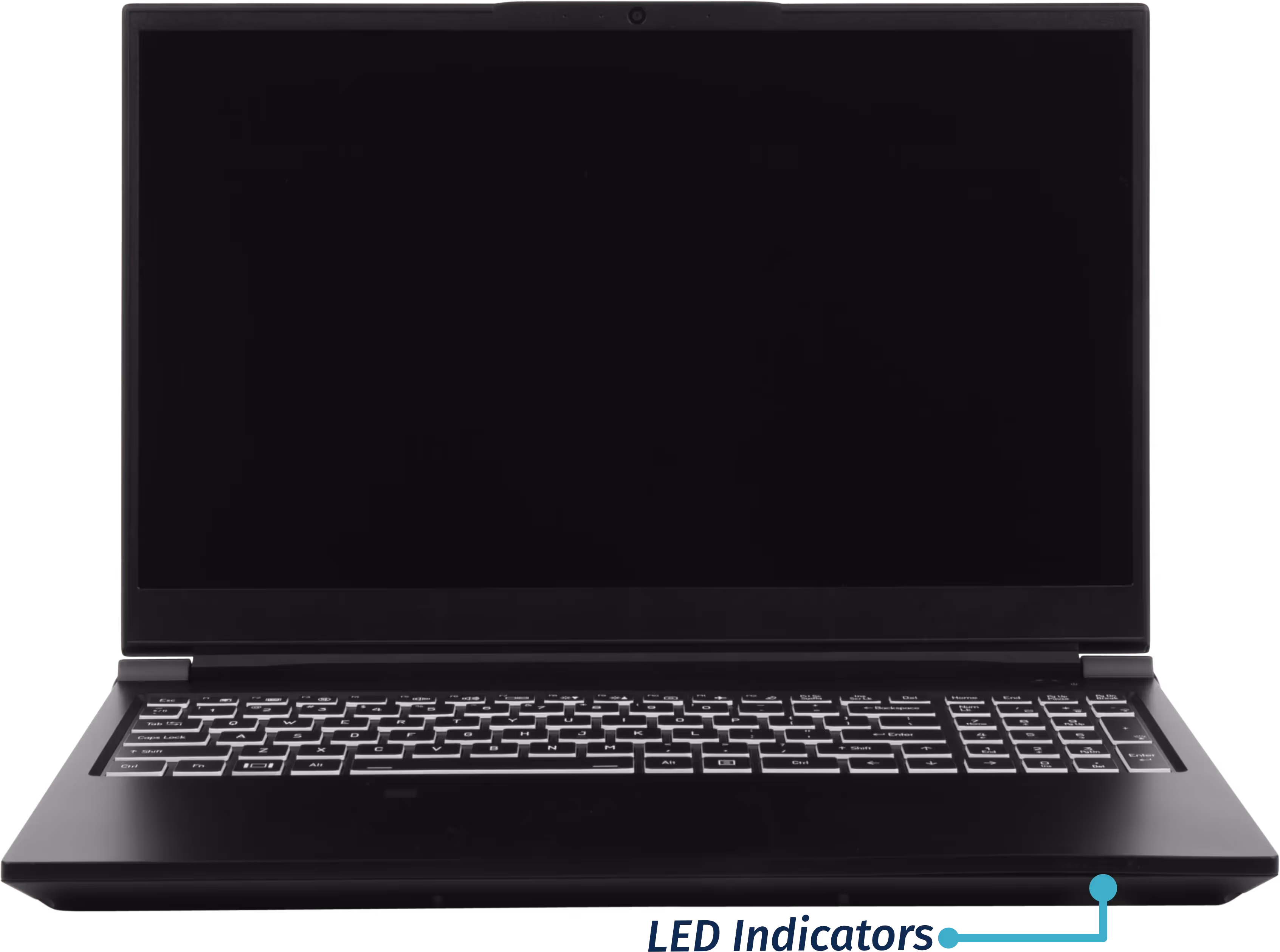

Front side:
Section titled “Front side:”

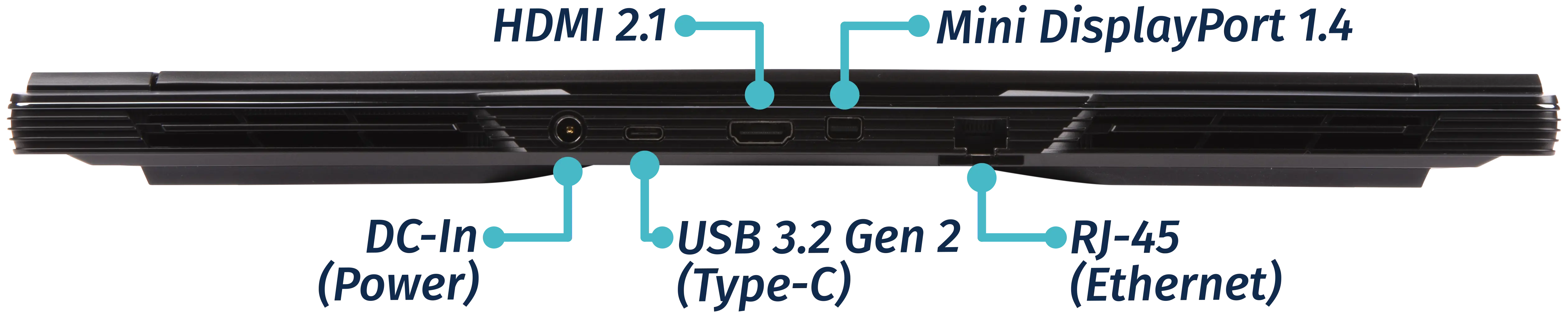

Back side:
Section titled “Back side:”

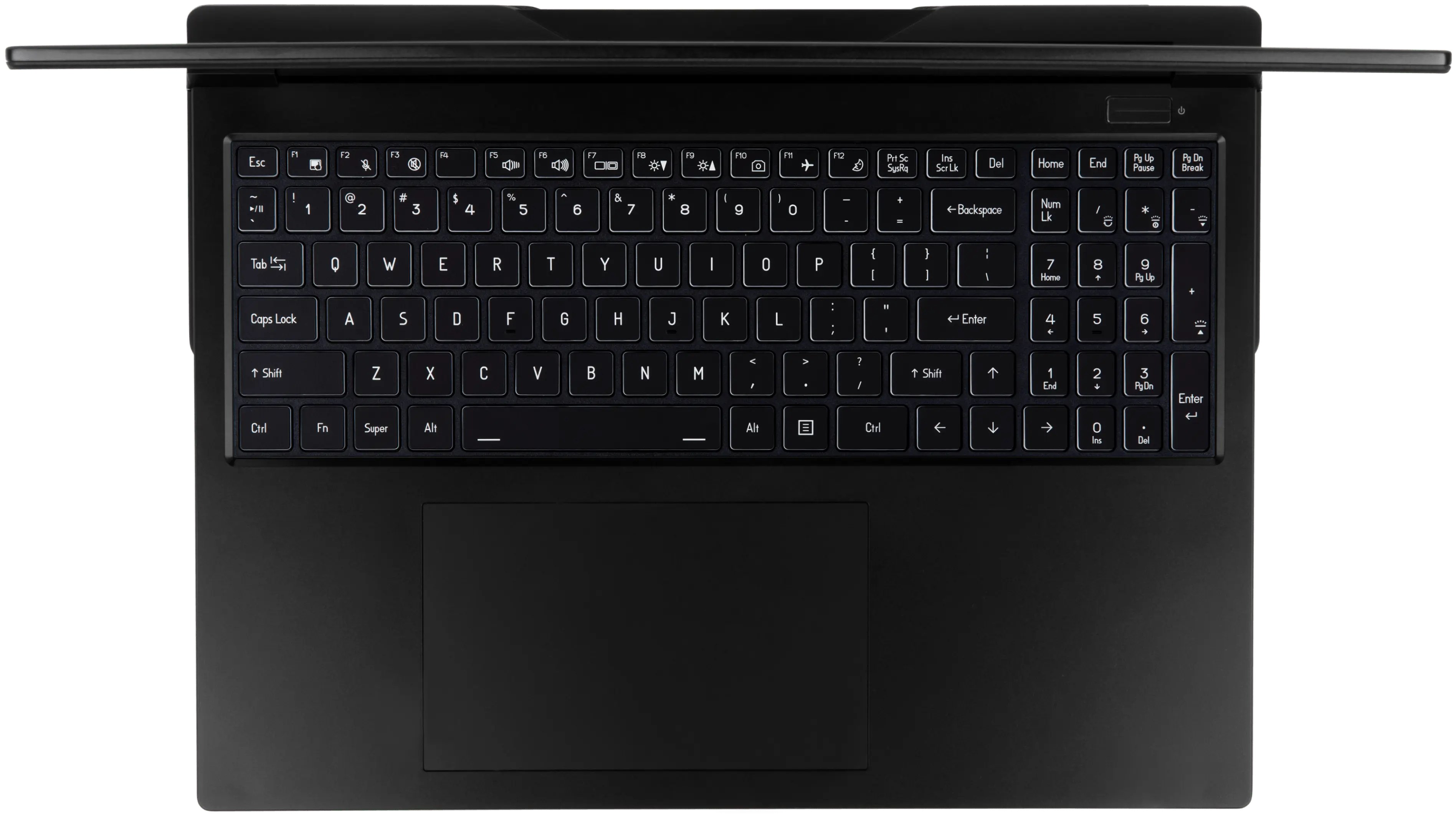

Keyboard & touchpad:
Section titled “Keyboard & touchpad:”
Materials:
Section titled “Materials:”| Part | Material | Part Number |
|---|---|---|

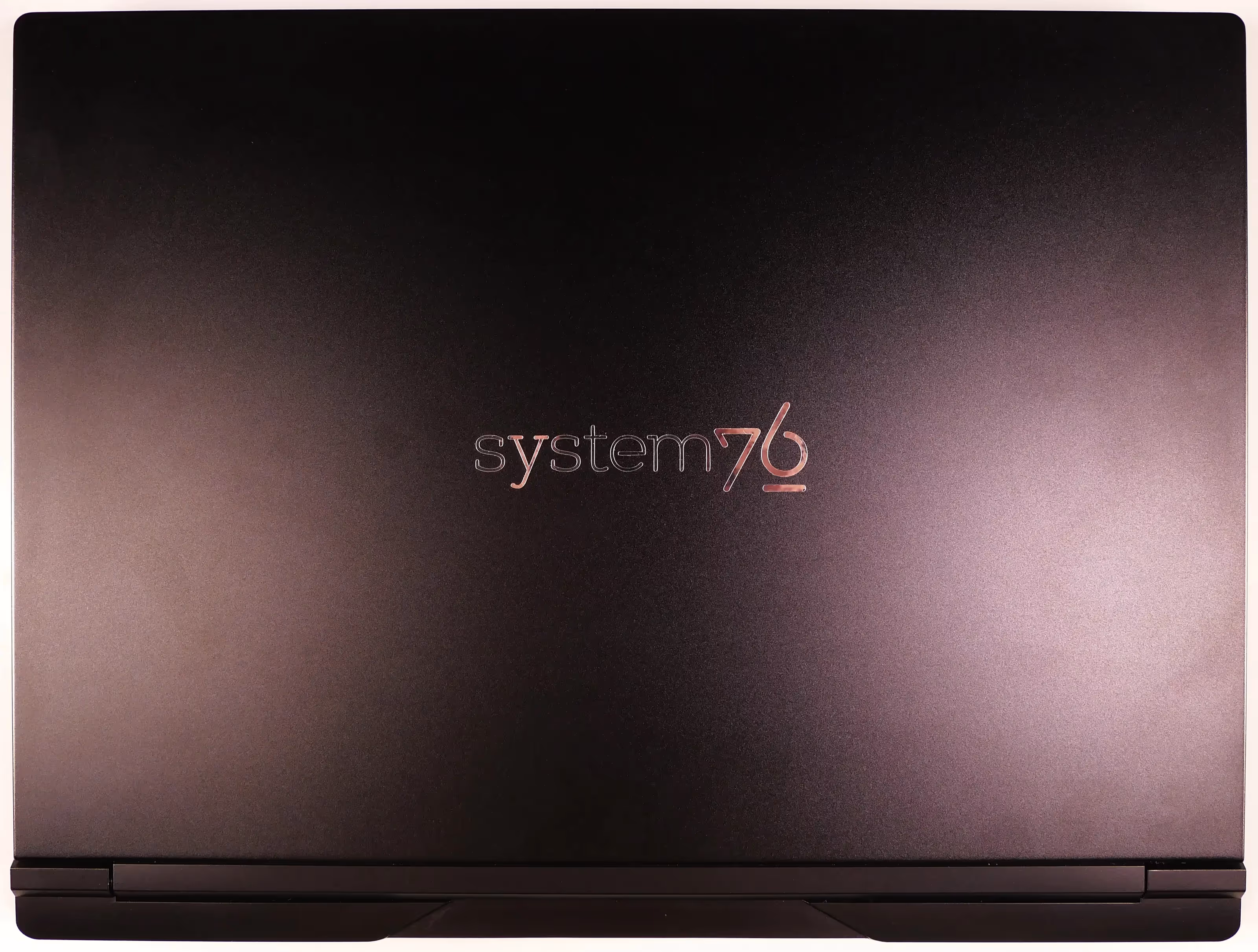

| LCD back cover (lid) | Aluminum | 6-39-PE601-023-1 |
| LCD front cover (bezel) | Plastic | 6-39-PE601-013 |
| Top case (palm rests/port covers) | Plastic | 6-78-PE6S2-012 |
| Bottom panel | Aluminum | 6-39-PE603-014-1 |
LED indicators:
Section titled “LED indicators:”| Icon | Color | Description |
|---|---|---|
 |
Orange | Powered off, DC power plugged in |
| Green | Powered on | |
| Blinking green | Sleeping (suspended) | |
 |
Orange | Battery charging |
| Green | Battery fully charged | |
| Blinking orange | Battery critically low | |
 |
Green | Storage drive activity |
Keyboard shortcuts:
Section titled “Keyboard shortcuts:”| Key | Shortcut | Action |
|---|---|---|
 |
Fn+F1 | Toggle trackpad |
 |
Fn+F2 | Toggle microphone mute |
 |
Fn+F3 | Mute |
 |
Fn+F5 | Volume down |
 |
Fn+F6 | Volume up |
 |
Fn+F7 | Toggle displays |
 |
Fn+F8 | Screen brightness down |
 |
Fn+F9 | Screen brightness up |
 |
Fn+F10 | Toggle webcam |
 |
Fn+F11 | Toggle airplane mode |
 |
Fn+F12 | Suspend |
 |
Fn+` | Play/Pause |
 |
Fn+* | Toggle keyboard backlight |
 |
Fn+/ | Cycle keyboard color |
 |
Fn+- | Decrease keyboard brightness |
 |
Fn++ | Increase keyboard brightness |
| 1 | Fn+1 | Toggle fan between max/automatic |
