Thelio Major (External Overview)

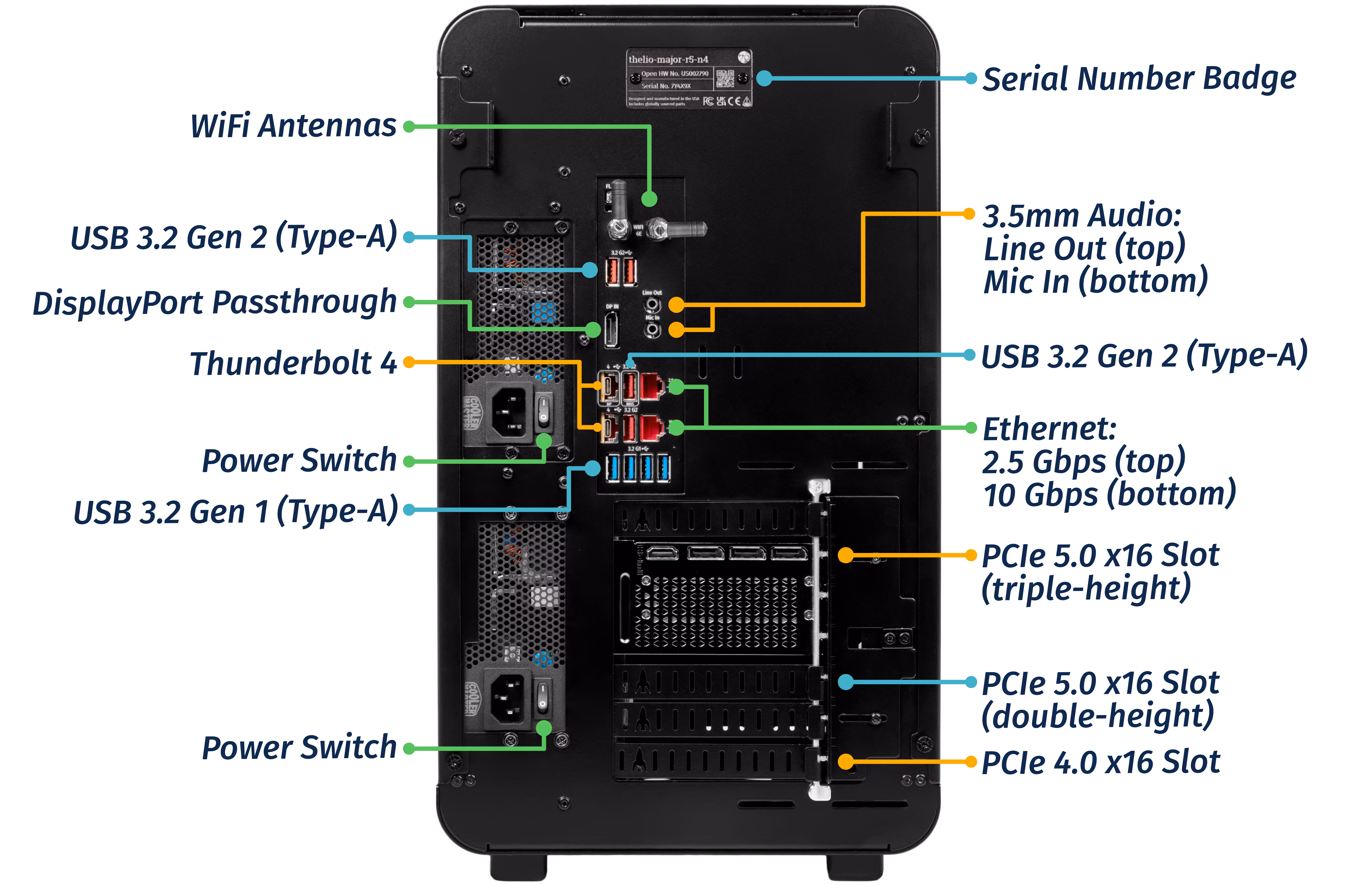

Back:

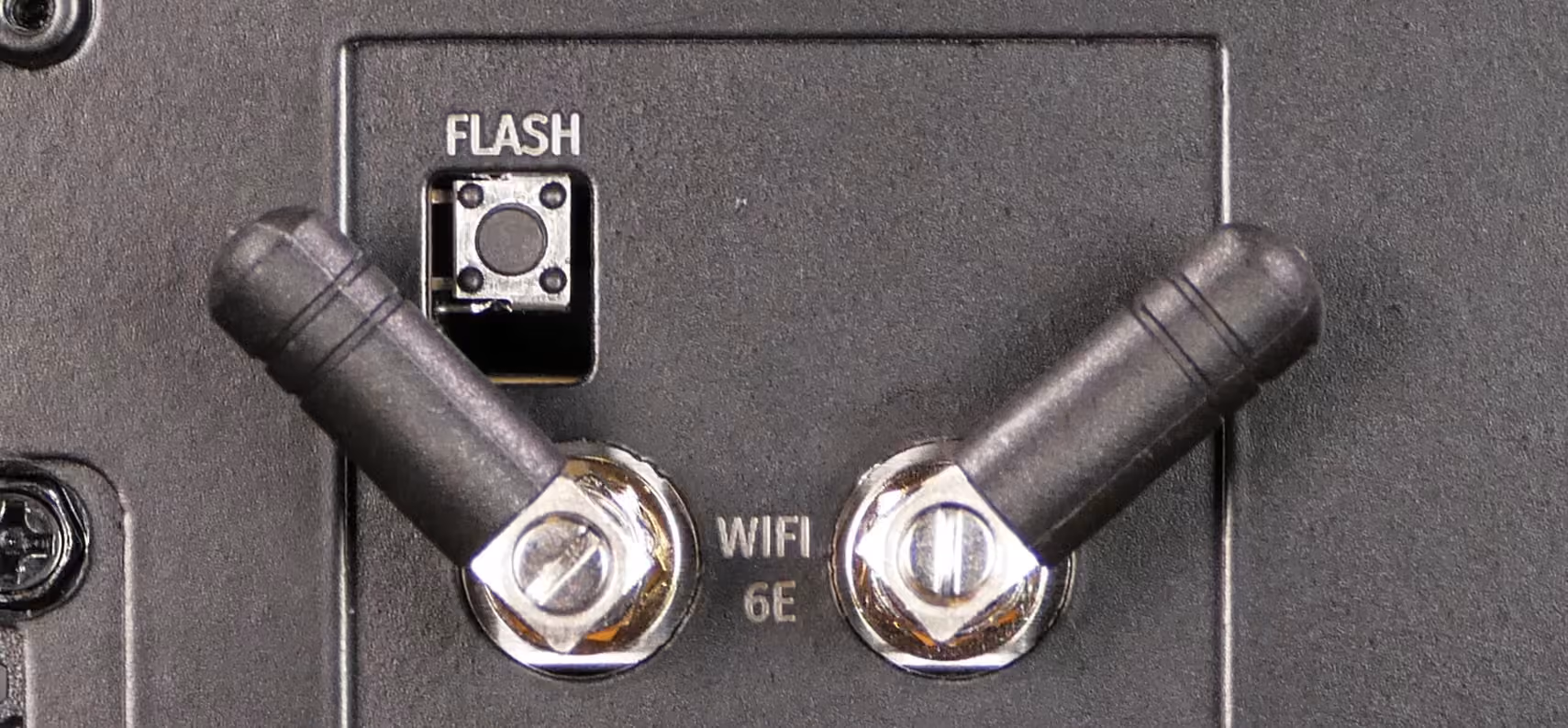

WiFi Antenna Orientation:

• The orientation of the WiFi antennas may vary. Offset them to avoid interference.

Firmware Flash Button:

• The firmware flash button (labeled FLASH) is not needed when performing UEFI firmware updates via the System76 Firmware Manager. Use of the firmware flash button is not recommended.

Power Switch Guide:

If your Thelio Major has two power supplies, both must be powered on to use the computer.

• 1: On
• 0: Off

Front/sides:

Front Accent I/O:

• From top to bottom:
  • Power button
  • 2x USB 3.2 Gen 1 (Type-A)
  • 3.5mm Headphone/Mic Combo Jack
  • USB 3.2 Gen 2 (Type-C)

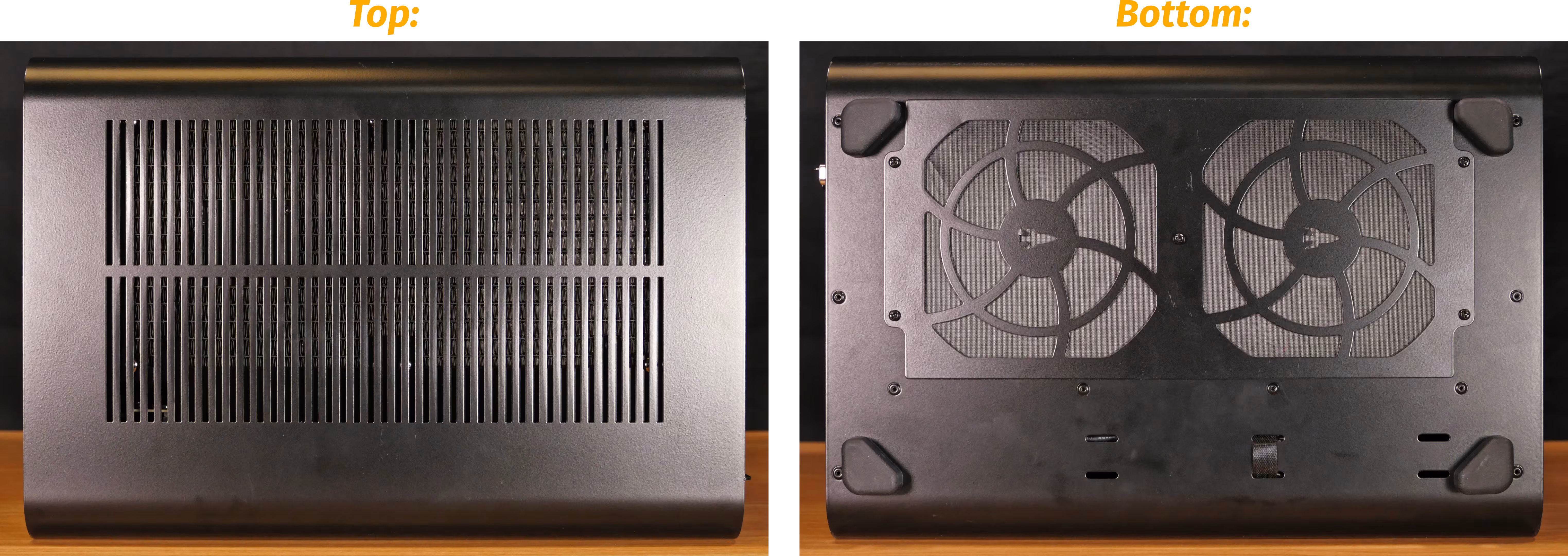

Top/bottom:
