Thelio Mira (External Overview)

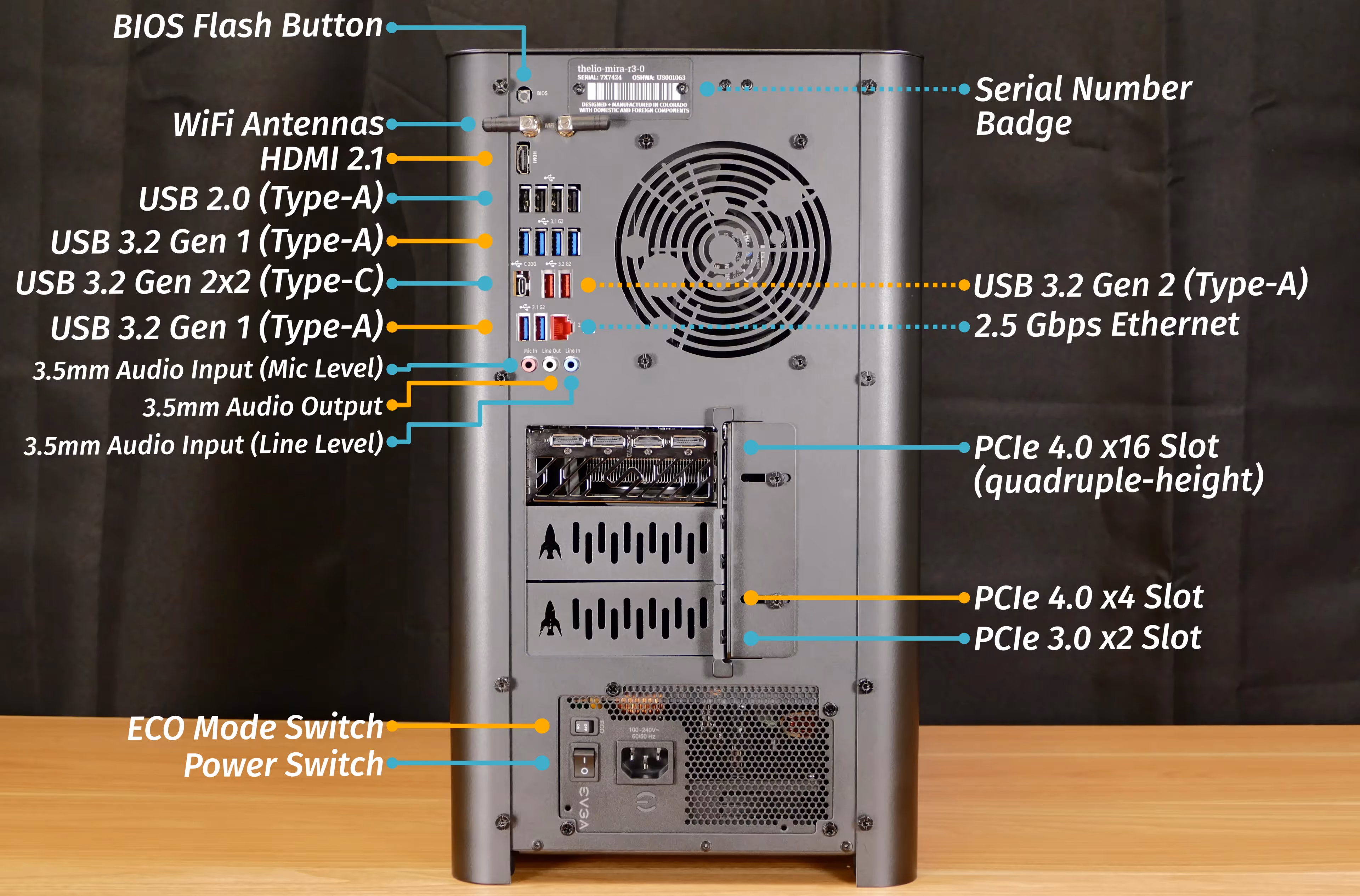

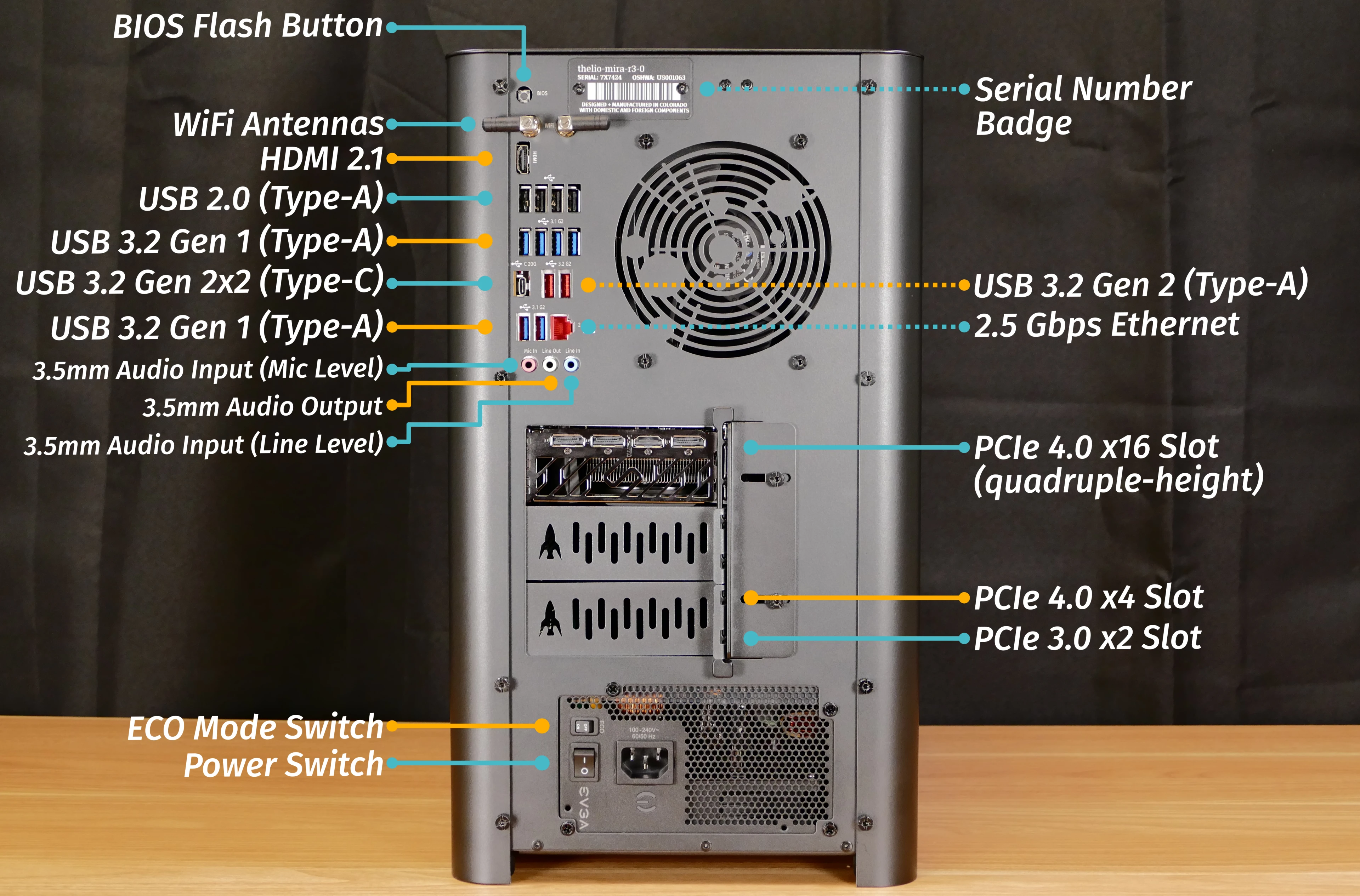

Back overview:
Section titled “Back overview:”
Power Switch Guide:
Section titled “Power Switch Guide:”- 1: On
- 0: Off
Other Notes:
Section titled “Other Notes:”- The
ECO(ECO Mode) switch on the power supply should always be set toONfor an optimal fan curve. - The
BIOS(BIOS Flash) button is not needed when performing UEFI firmware updates via the System76 Firmware Manager. Use of the BIOS Flash button is not recommended.

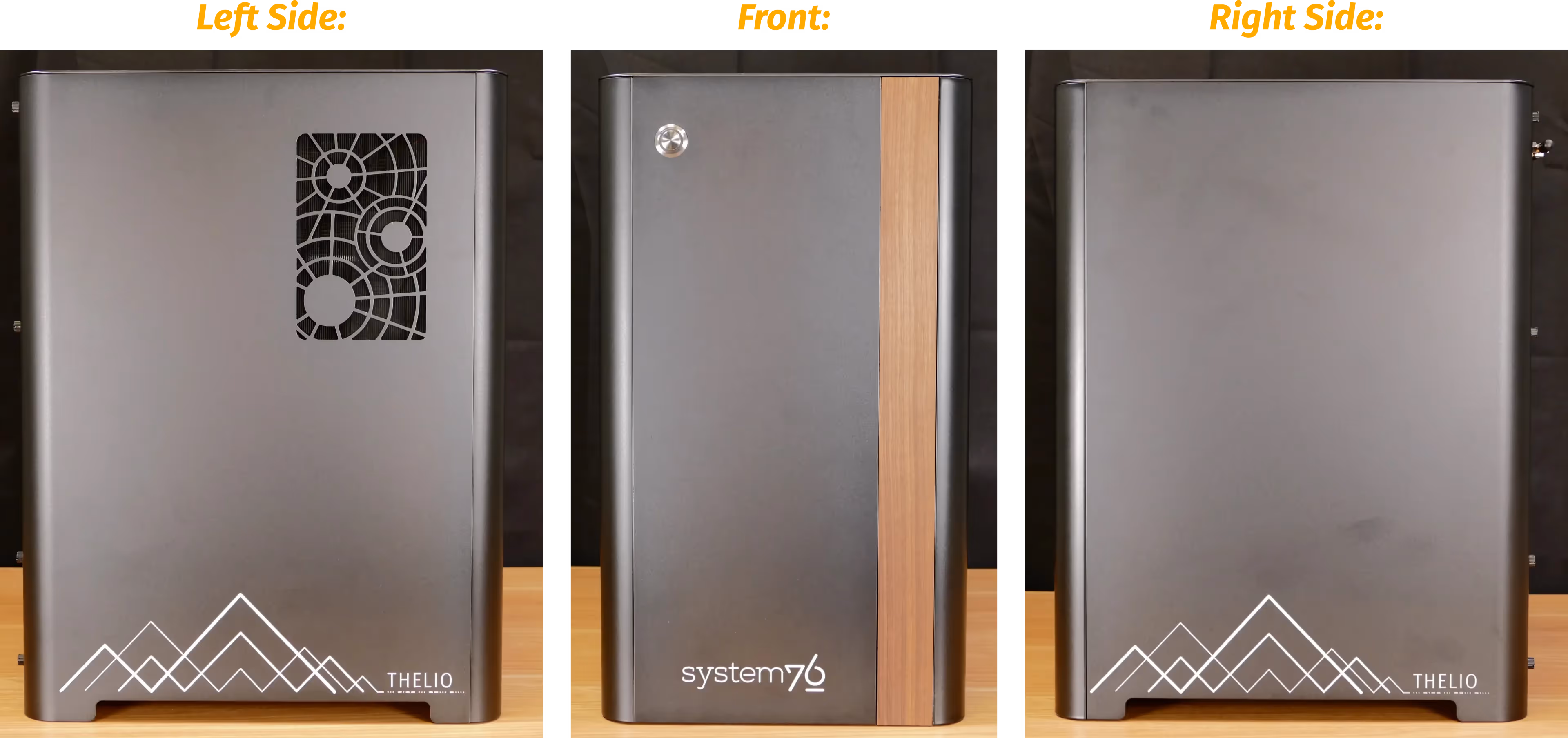

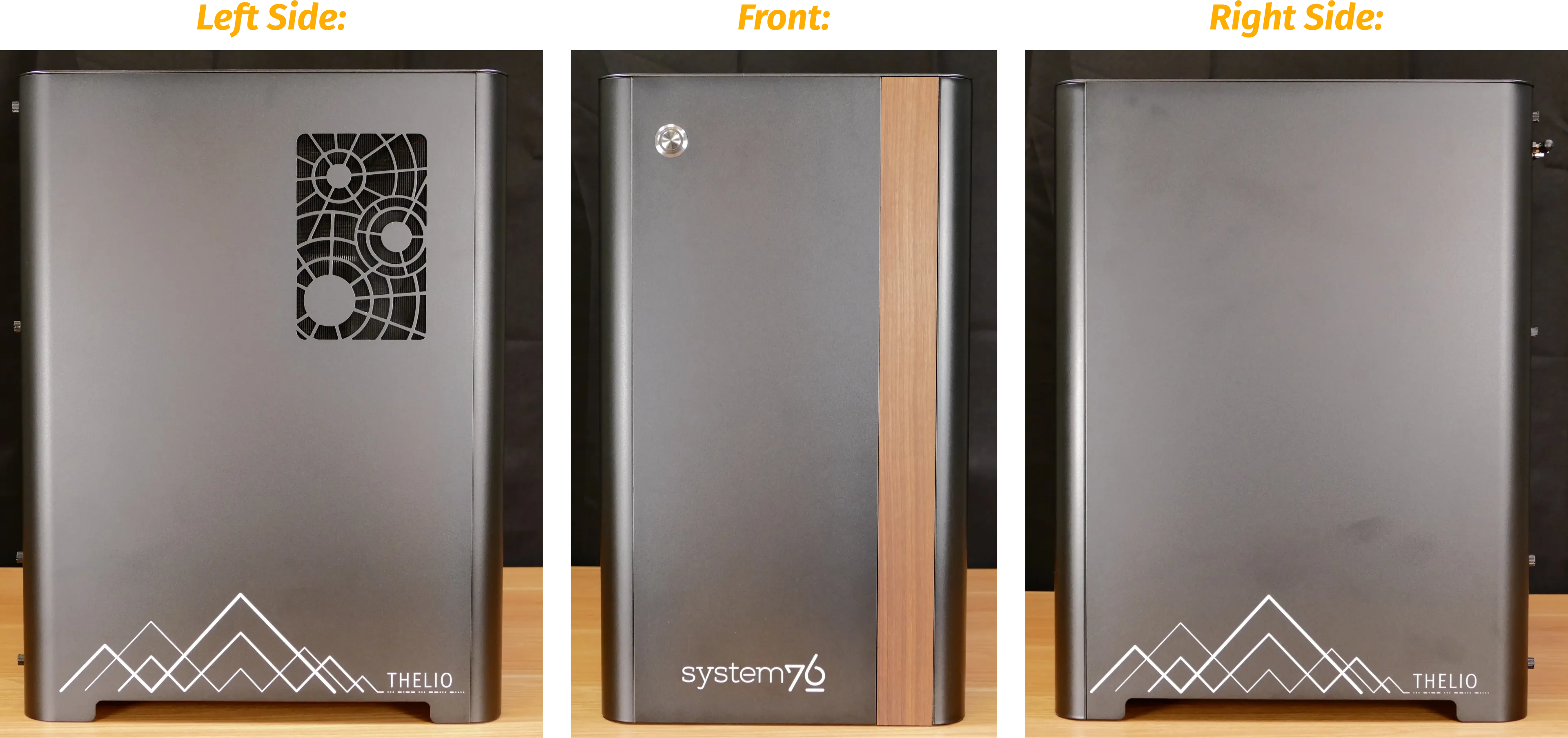

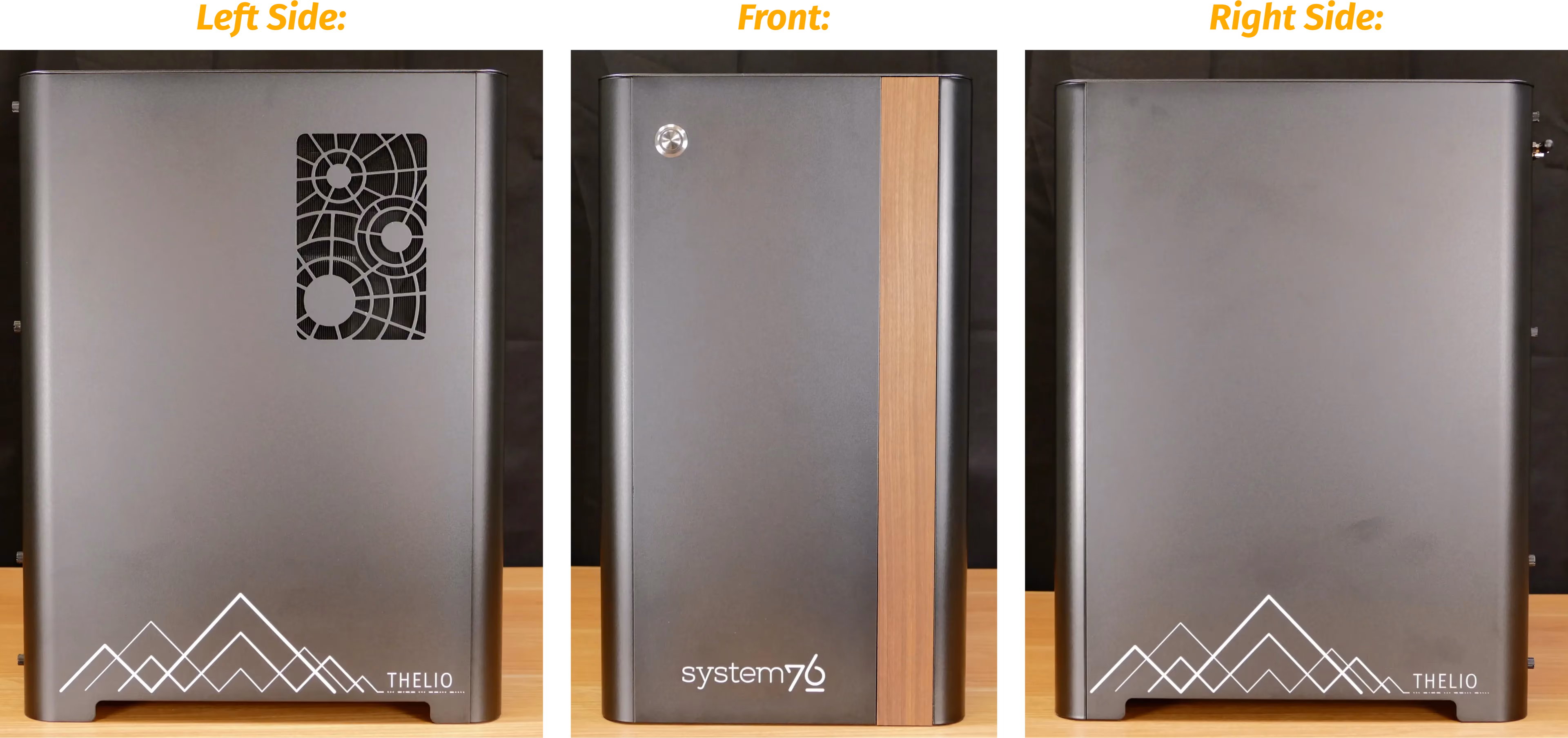

Front/side overview:
Section titled “Front/side overview:”

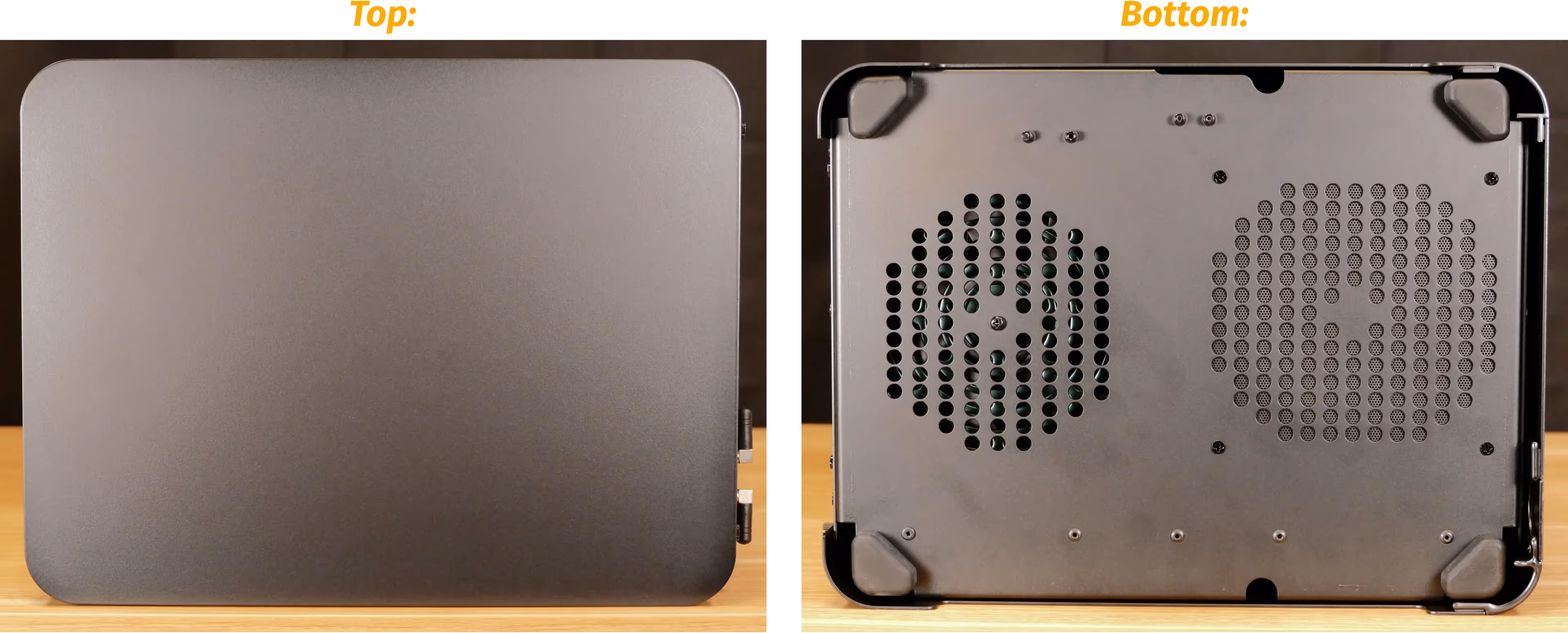

Top/bottom overview:
Section titled “Top/bottom overview:”
