Pangolin (External Overview)

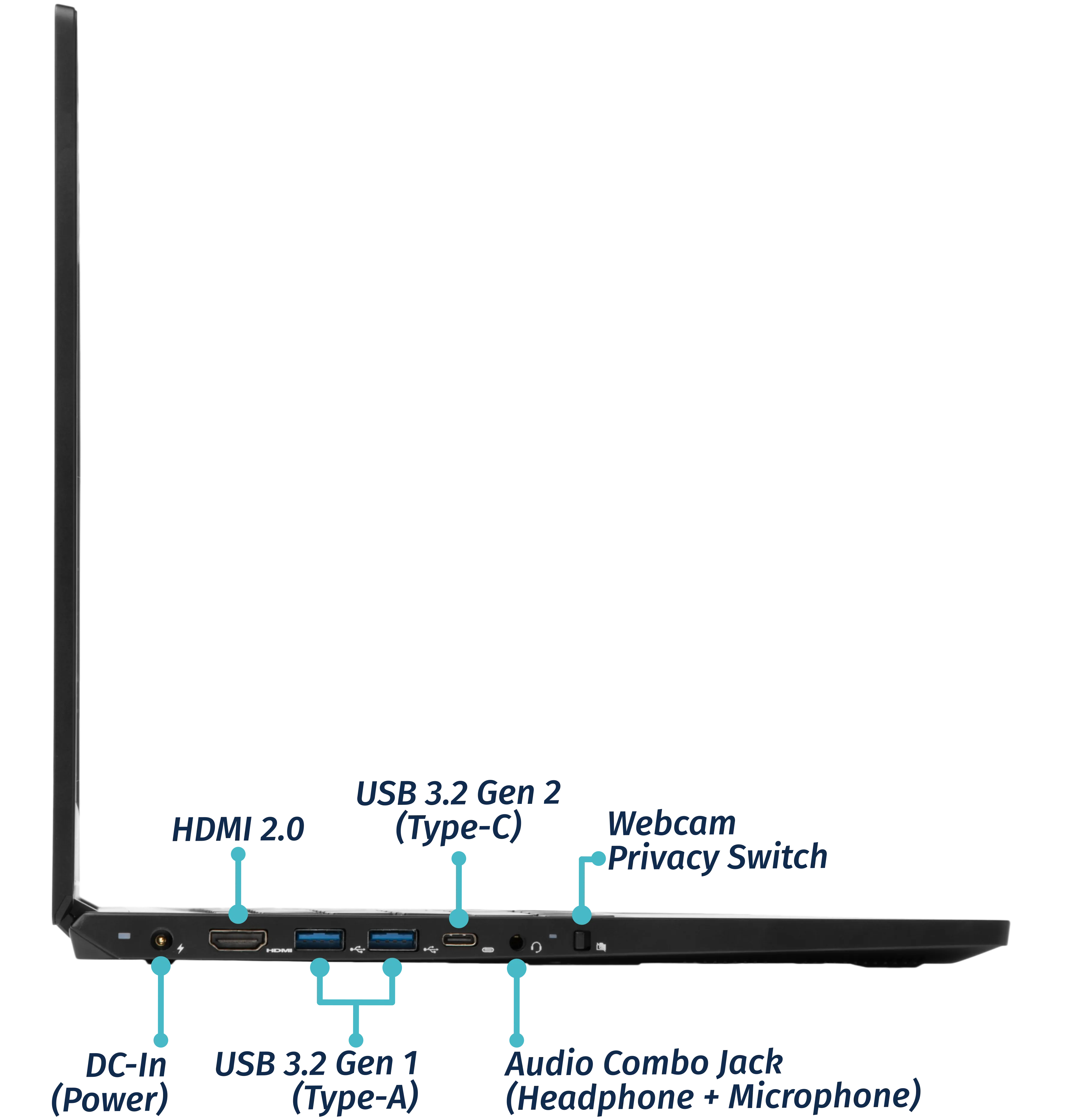

Left side:
Section titled “Left side:”

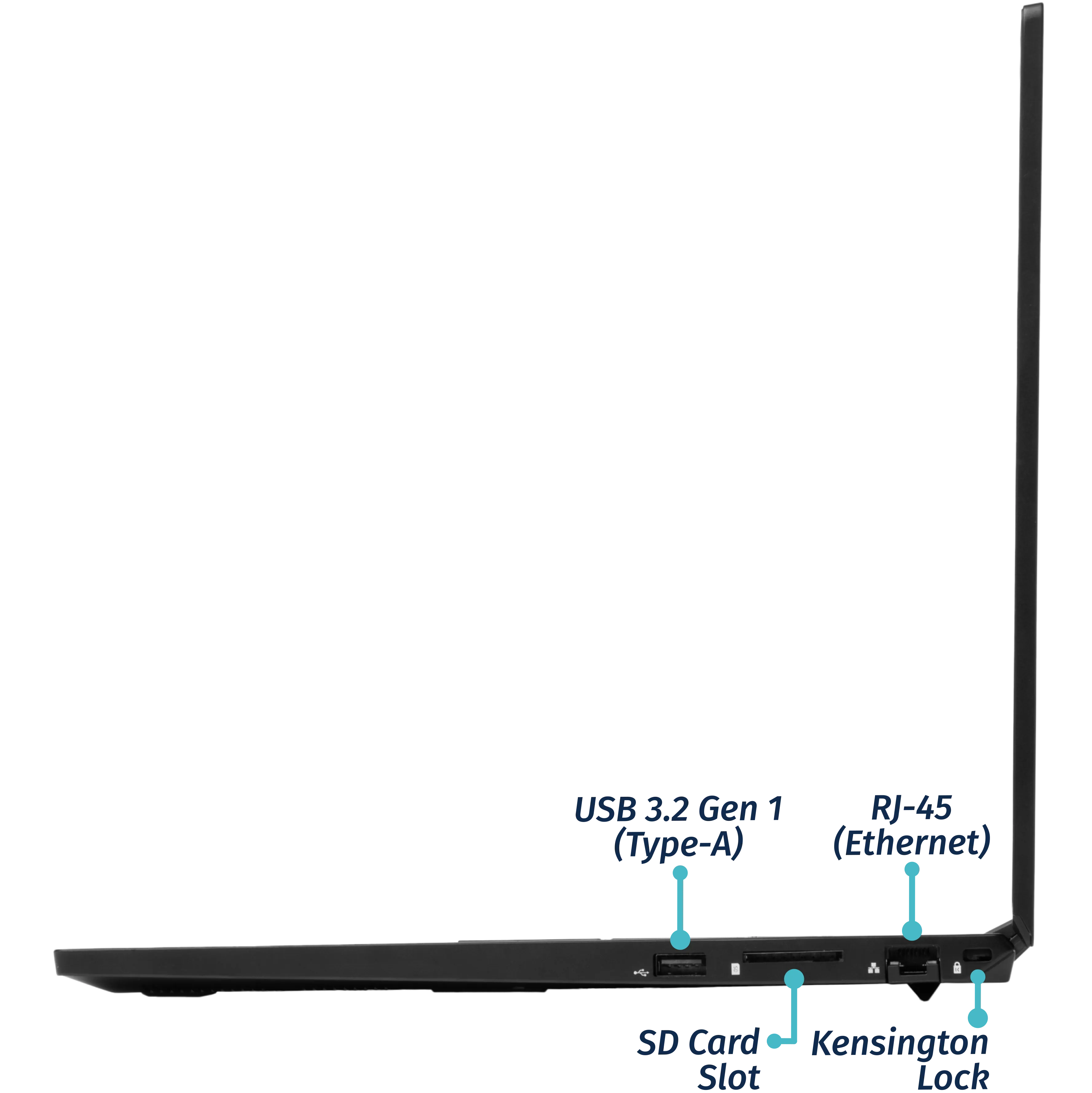

Right side:
Section titled “Right side:”

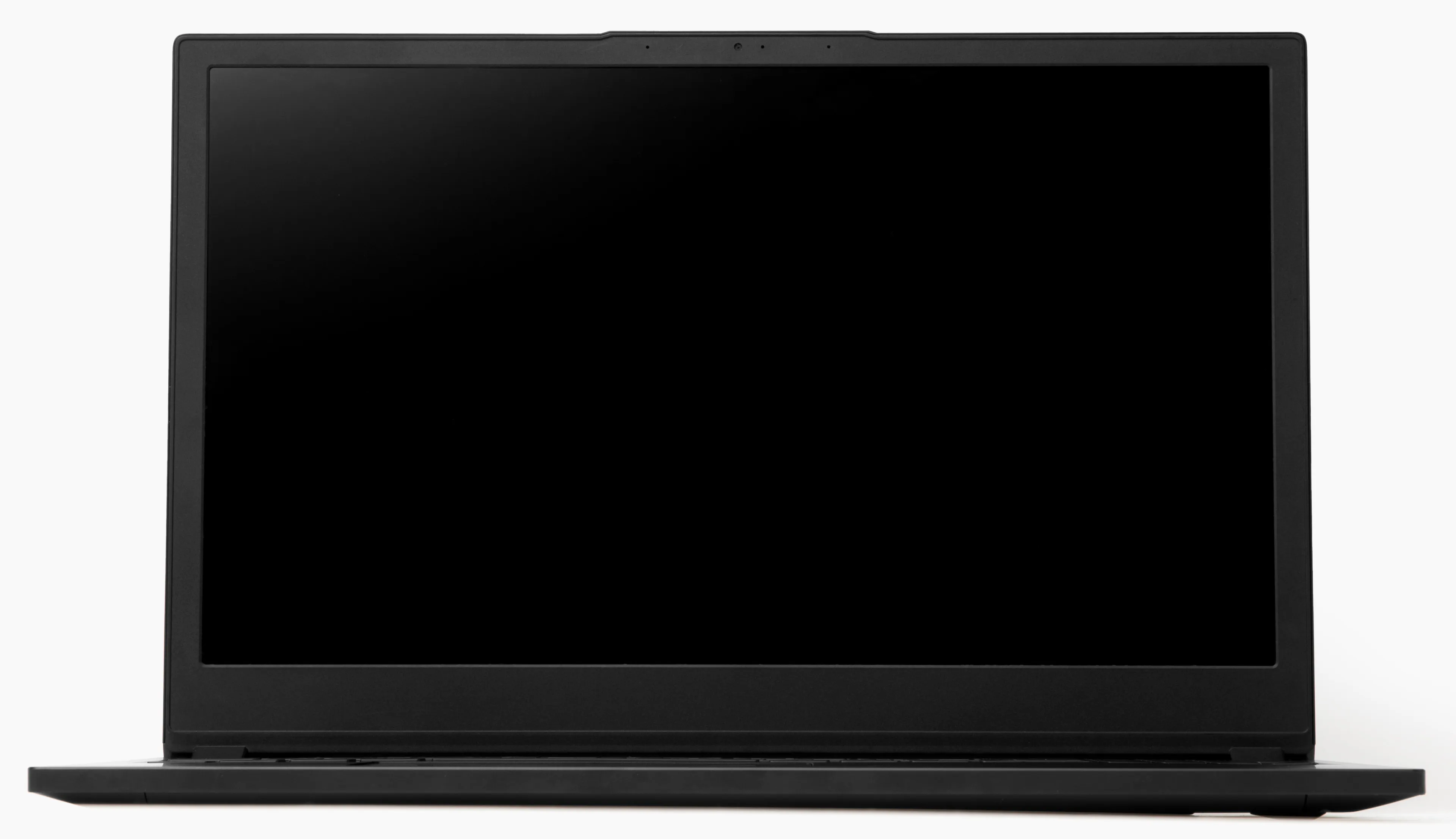

Front side:
Section titled “Front side:”

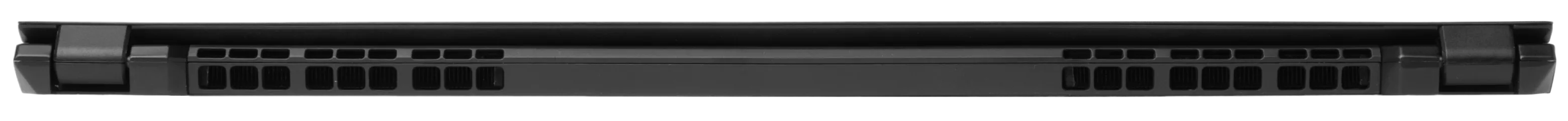

Back side:
Section titled “Back side:”

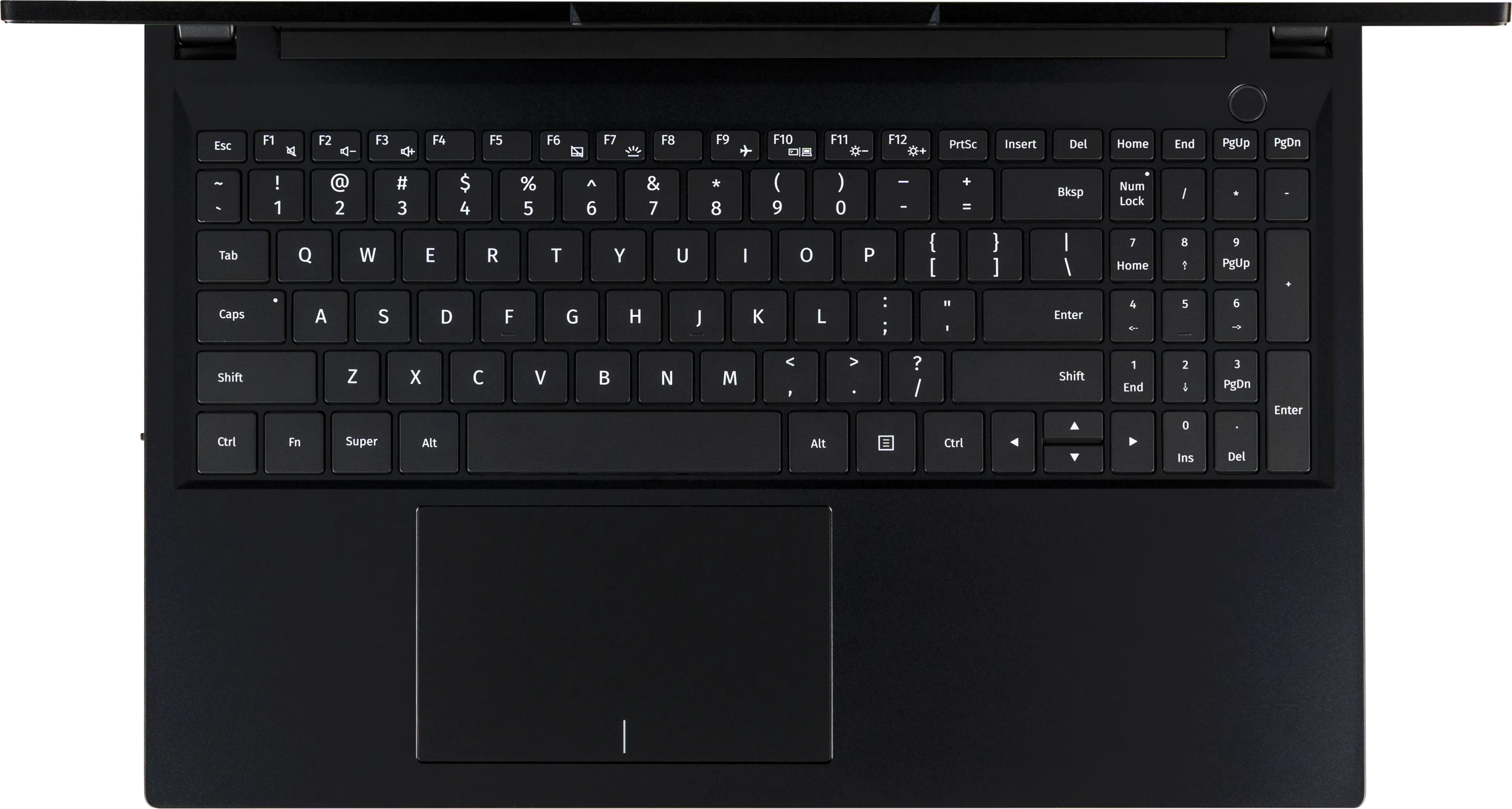

Keyboard & touchpad:
Section titled “Keyboard & touchpad:”

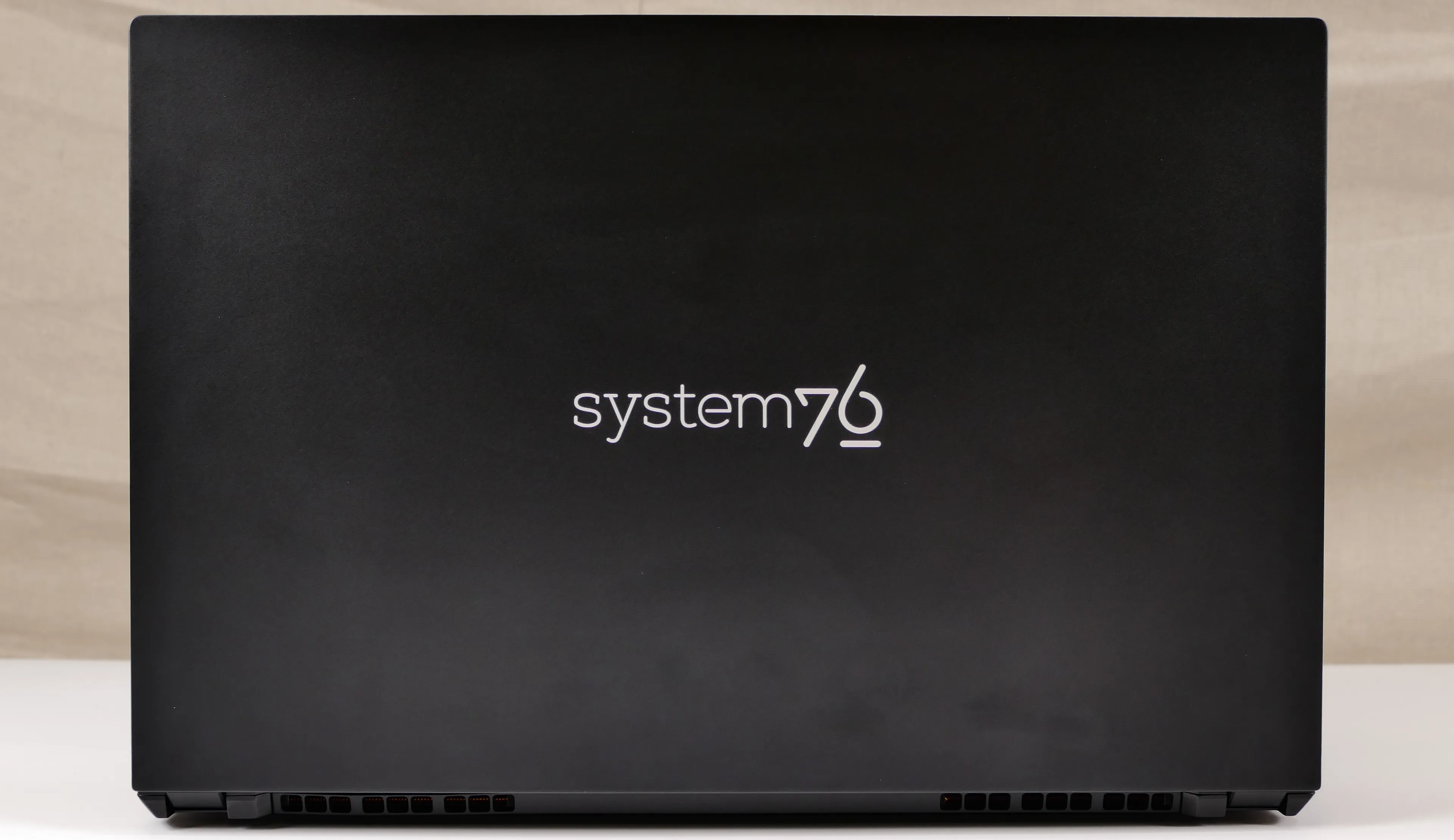

Materials
Section titled “Materials”| Part | Material |
|---|---|
| LCD back cover (lid) | Magnesium Alloy |
| LCD front cover (bezel) | Plastic |
| Top case (palm rests/port covers) | Magnesium Alloy |
| Bottom panel | Magnesium Alloy |
LED indicators:
Section titled “LED indicators:”| Icon | State | Description |
|---|---|---|
 |
On | Charging |
| Off | Fully charged | |
 |
On | Webcam disabled (privacy mode on) |
| Off | Webcam enabled (privacy mode off) | |
 |
On | Powered on |
| Pulsing | Suspended | |
| Off | Powered off |
Keyboard shortcuts
Section titled “Keyboard shortcuts”| Key | Shortcut | Action |
|---|---|---|
 |
Fn+F1 | Mute |
 |
Fn+F2 | Volume down |
 |
Fn+F3 | Volume up |
 |
Fn+F6 | Toggle trackpad |
 |
Fn+F7 | Cycle keyboard brightness |
 |
Fn+F9 | Toggle airplane mode |
 |
Fn+F10 | Toggle displays |
 |
Fn+F11 | Screen brightness down |
 |
Fn+F12 | Screen brightness up |
