Pangolin (External Overview)

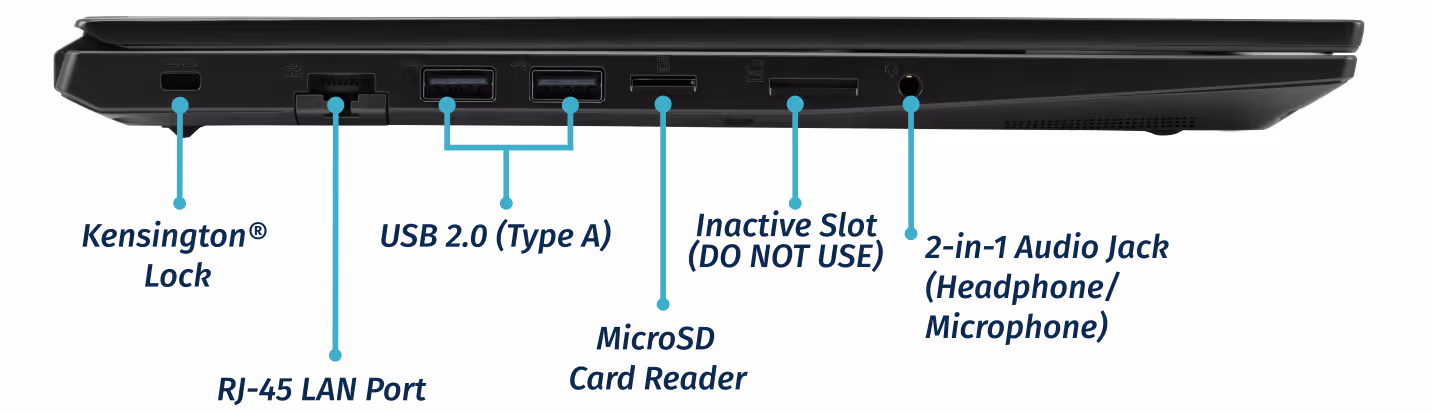

Left side:
Section titled “Left side:”

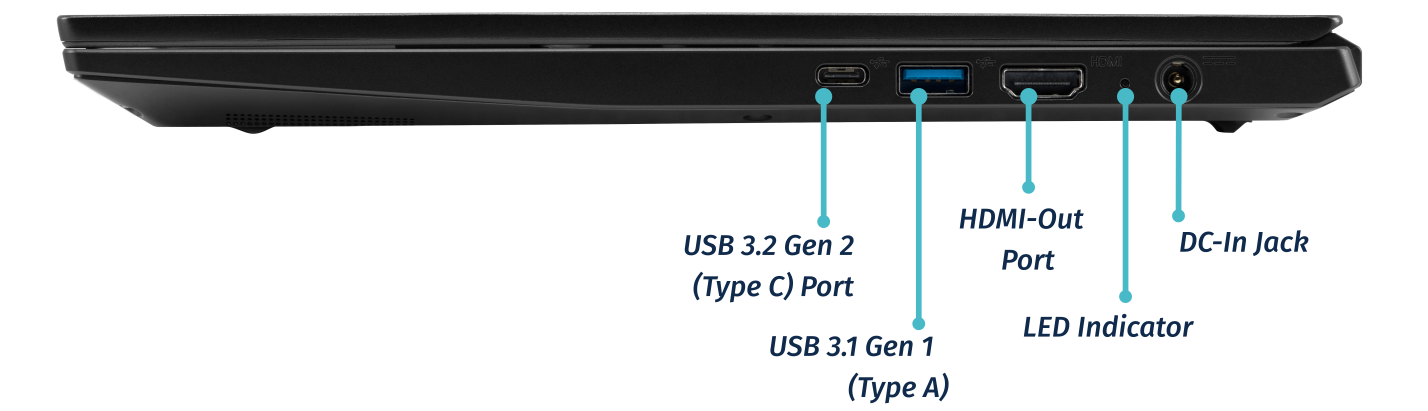

Right side:
Section titled “Right side:”
Front side:
Section titled “Front side:”
Back side:
Section titled “Back side:”
Materials
Section titled “Materials”| Part | Material |
|---|---|
| LCD back cover (lid) | Aluminum |
| LCD front cover (bezel) | Plastic |
| Top case (palm rests/port covers) | Plastic |
| Bottom panel | Aluminum |
LED indicators
Section titled “LED indicators”| Icon | Color | Description |
|---|---|---|
 | Orange | Plugged in, battery charging |
| Green | Plugged in, battery fully charged | |
| Blinking orange | Battery critically low |
Keyboard shortcuts
Section titled “Keyboard shortcuts”| Key | Shortcut | Action |
|---|---|---|
 | Fn+F1 | Toggle trackpad |
 | Fn+F2 | Toggle built-in LCD |
 | Fn+F3 | Mute |
 | Fn+F5 | Volume down |
 | Fn+F6 | Volume up |
 | Fn+F7 | Toggle displays |
 | Fn+F8 | Screen brightness down |
 | Fn+F9 | Screen brightness up |
 | Fn+F10 | Toggle webcam |
 | Fn+F11 | Toggle airplane mode |
 | Fn+F12 | Suspend |
 | Fn+` | Play/Pause |
 | Fn+* | Toggle keyboard backlight |
| / | Fn+/ | Cycle keyboard color |
| - | Fn+- | Decrease keyboard brightness |
| + | Fn++ | Increase keyboard brightness |
| 1 | Fn+1 | Toggle fan between max/automatic |
