Adder WS (External Overview)

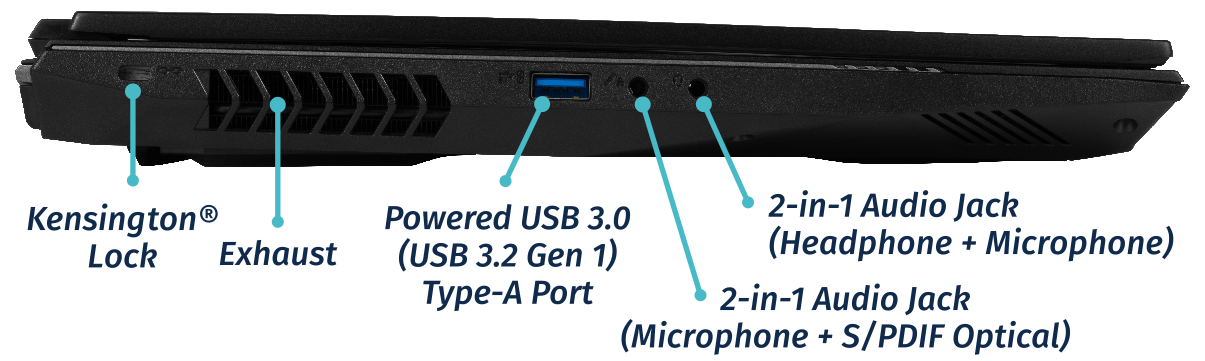

Left side overview:
Section titled “Left side overview:”

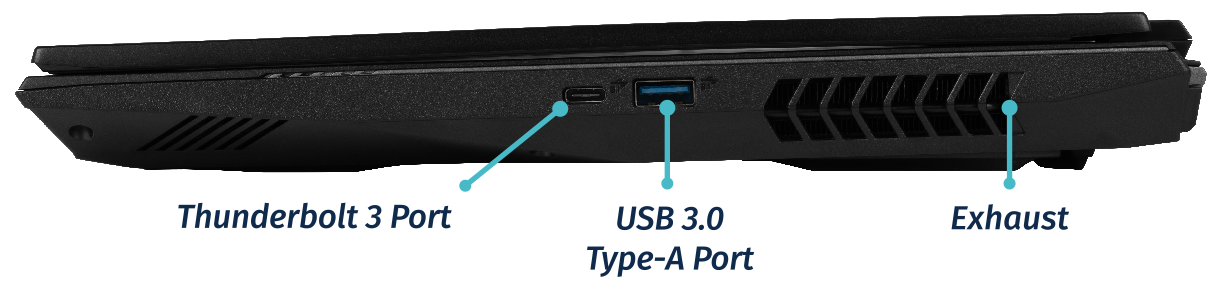

Right side overview:
Section titled “Right side overview:”

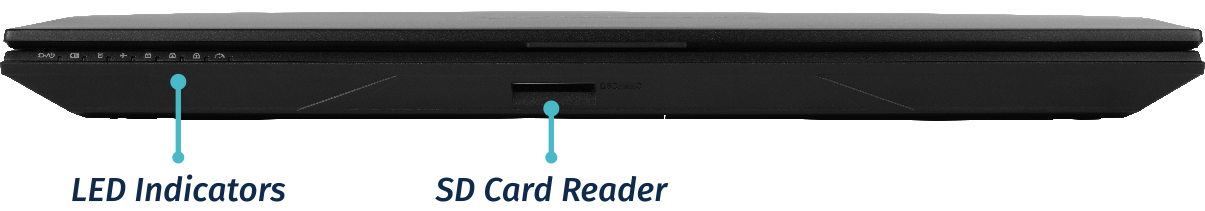

Front side overview:
Section titled “Front side overview:”

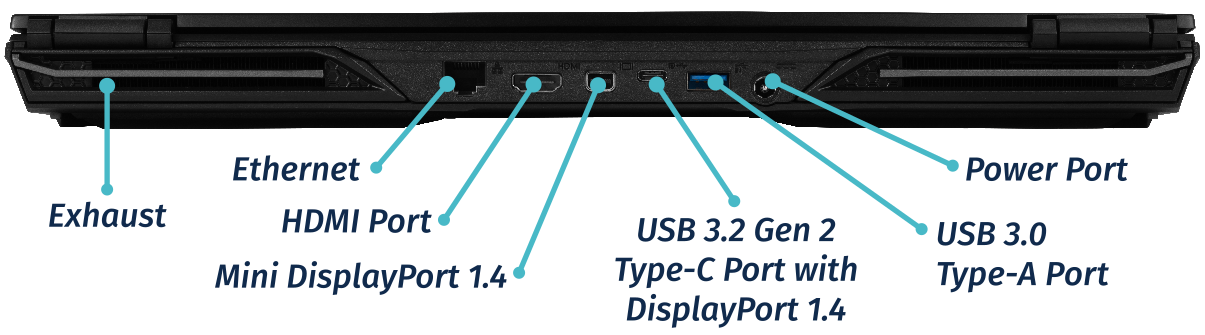

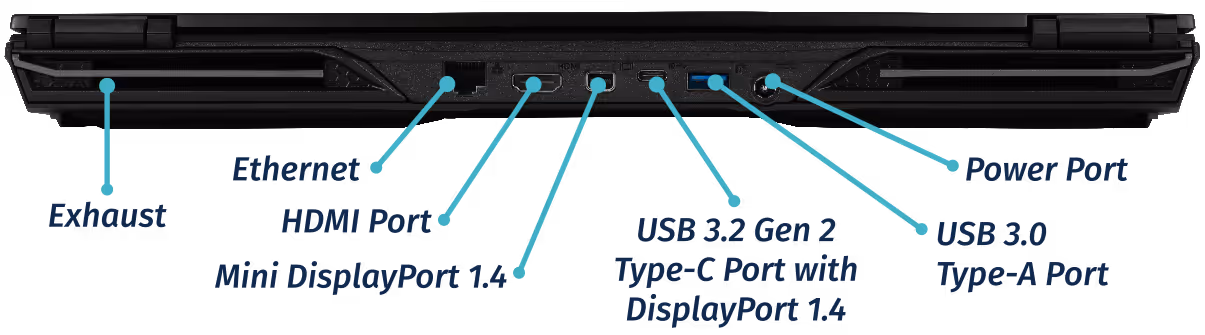

Back side overview:
Section titled “Back side overview:”
Keyboard Shortcuts
Section titled “Keyboard Shortcuts”The Adder WS has the following actions available using the Fn and Function keys:
| Key | Shortcut | Action |
|---|---|---|
 | Fn+F1 | Toggle trackpad |
 | Fn+F2 | Lock screen and toggle built-in LCD |
 | Fn+F3 | Mute |
 | Fn+F5 | Volume down |
 | Fn+F6 | Volume up |
 | Fn+F7 | Toggle displays |
 | Fn+F8 | Screen brightness down |
 | Fn+F9 | Screen brightness up |
 | Fn+F10 | Toggle webcam |
 | Fn+F11 | Toggle airplane mode |
 | Fn+F12 | Suspend |
| 1 | Fn+1 | Toggle fan between max/automatic |
 | Fn+* | Toggle keyboard backlight |
| / | Fn+/ | Cycle keyboard color |
| - | Fn+- | Decrease keyboard brightness |
| + | Fn++ | Increase keyboard brightness |

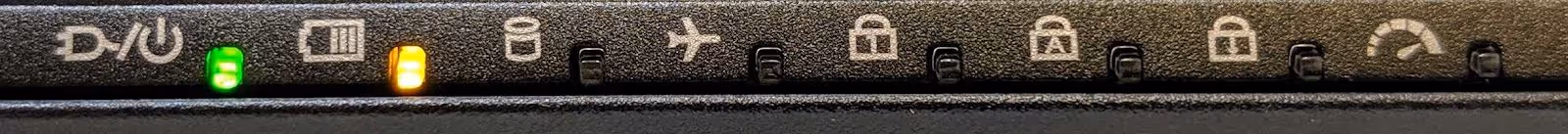

LED indicators
Section titled “LED indicators”
| Icon | Color | Description |
|---|---|---|
 | Orange | DC power plugged in |
| Green | Computer is on | |
| Blinking green | Computer is sleeping | |
 | Orange | Battery charging |
| Green | Battery fully charged | |
| Blinking orange | Battery critically low | |
 | Green | Airplane mode is on (WiFi/Bluetooth disabled) |
 | Green | Storage drive activity |
 | Green | Num Lock enabled |
 | Green | Caps Lock enabled |
 | Green | Scroll Lock enabled |
 | Off | GPU in MSHYBRD Mode |
| Green | GPU in Discrete Mode |
