Gazelle (External Overview)

15“ models:

Left side:

Right side:

3050 & 3050 Ti:

3060:

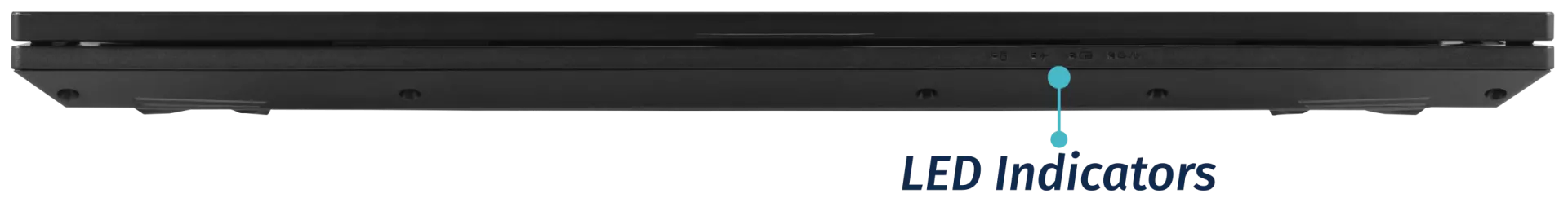

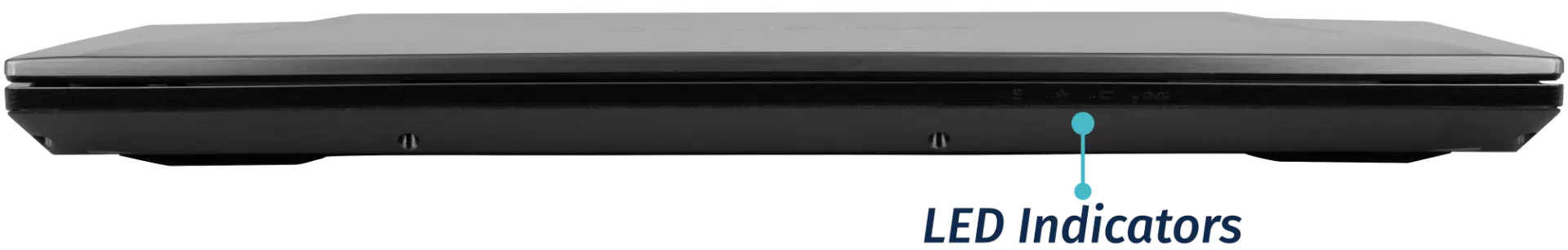

Front side:

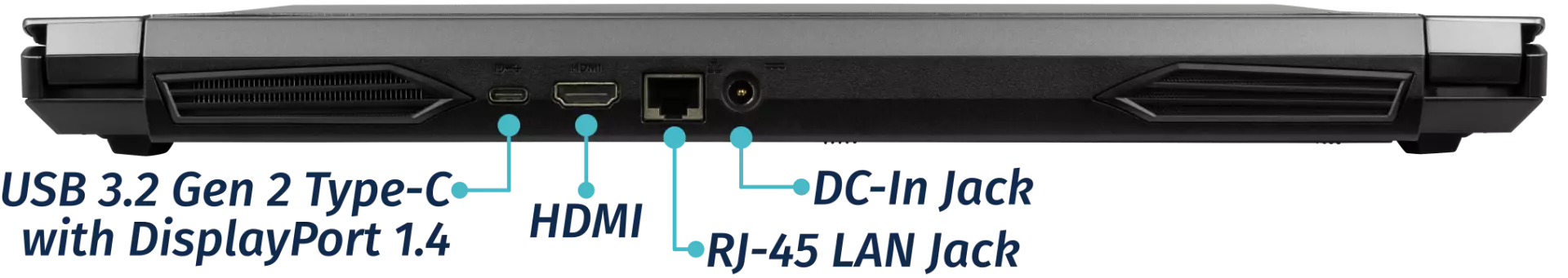

Back side:

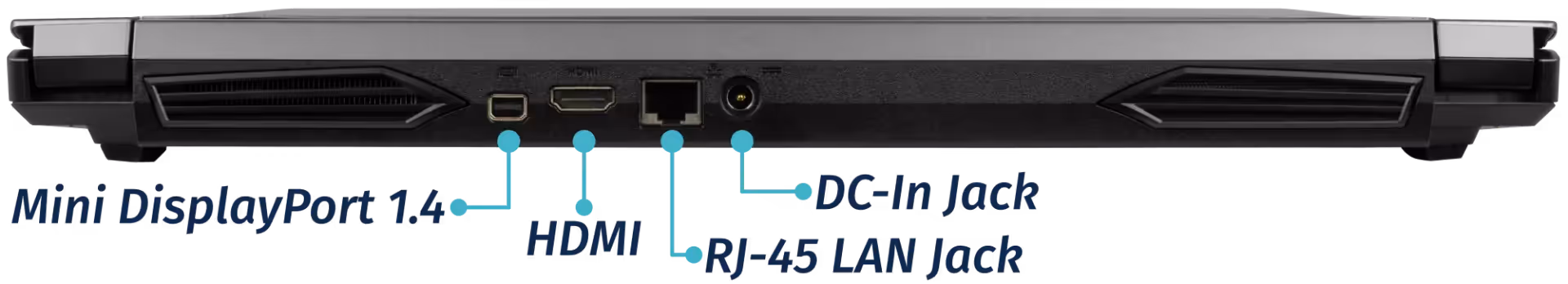

3050 & 3050 Ti:

3060:

17“ models:

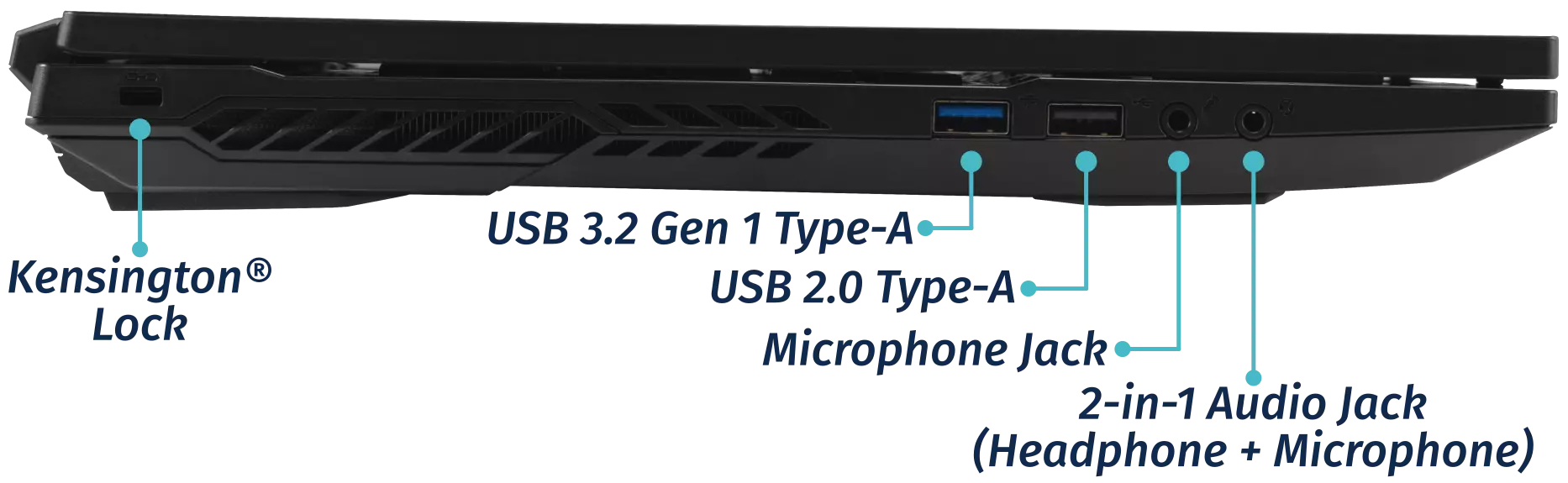

Left side:

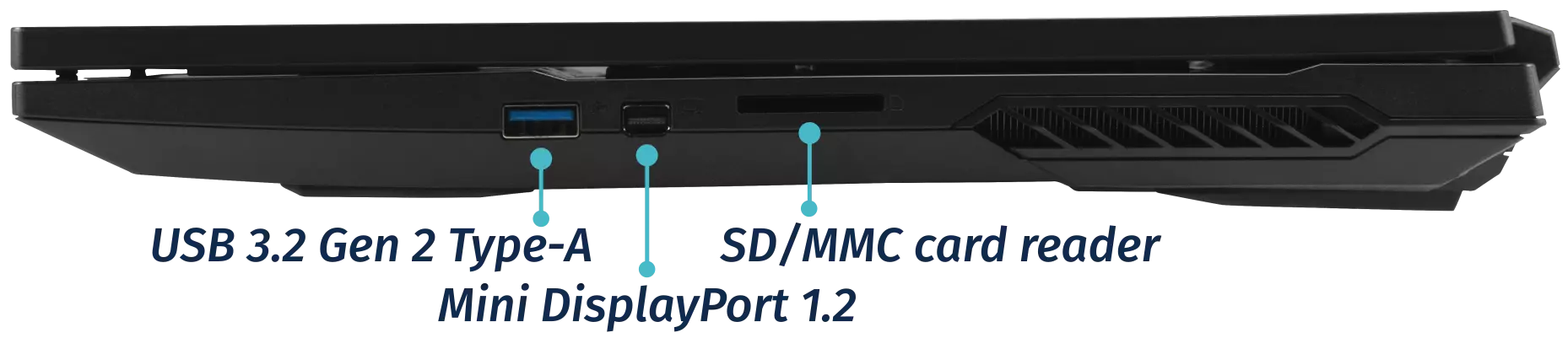

Right side:

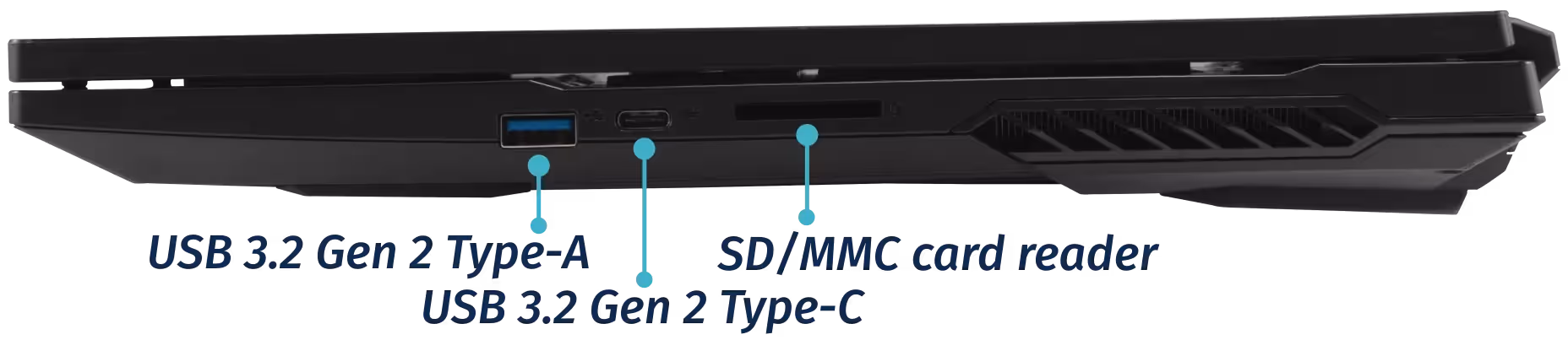

3050 & 3050 Ti:

3060:

Front side:

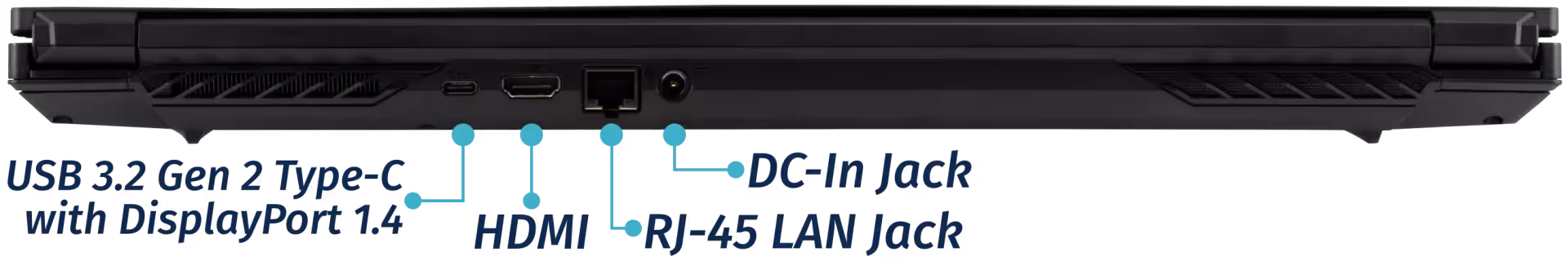

Back side:

3050 & 3050 Ti:

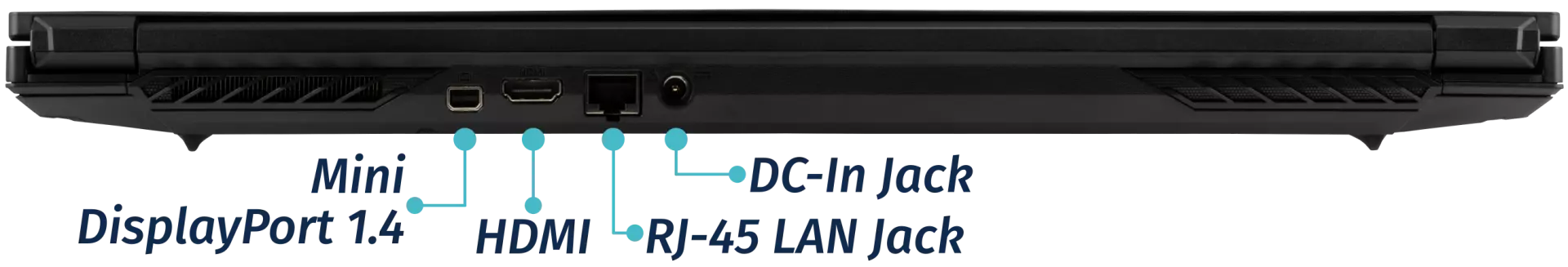

3060:

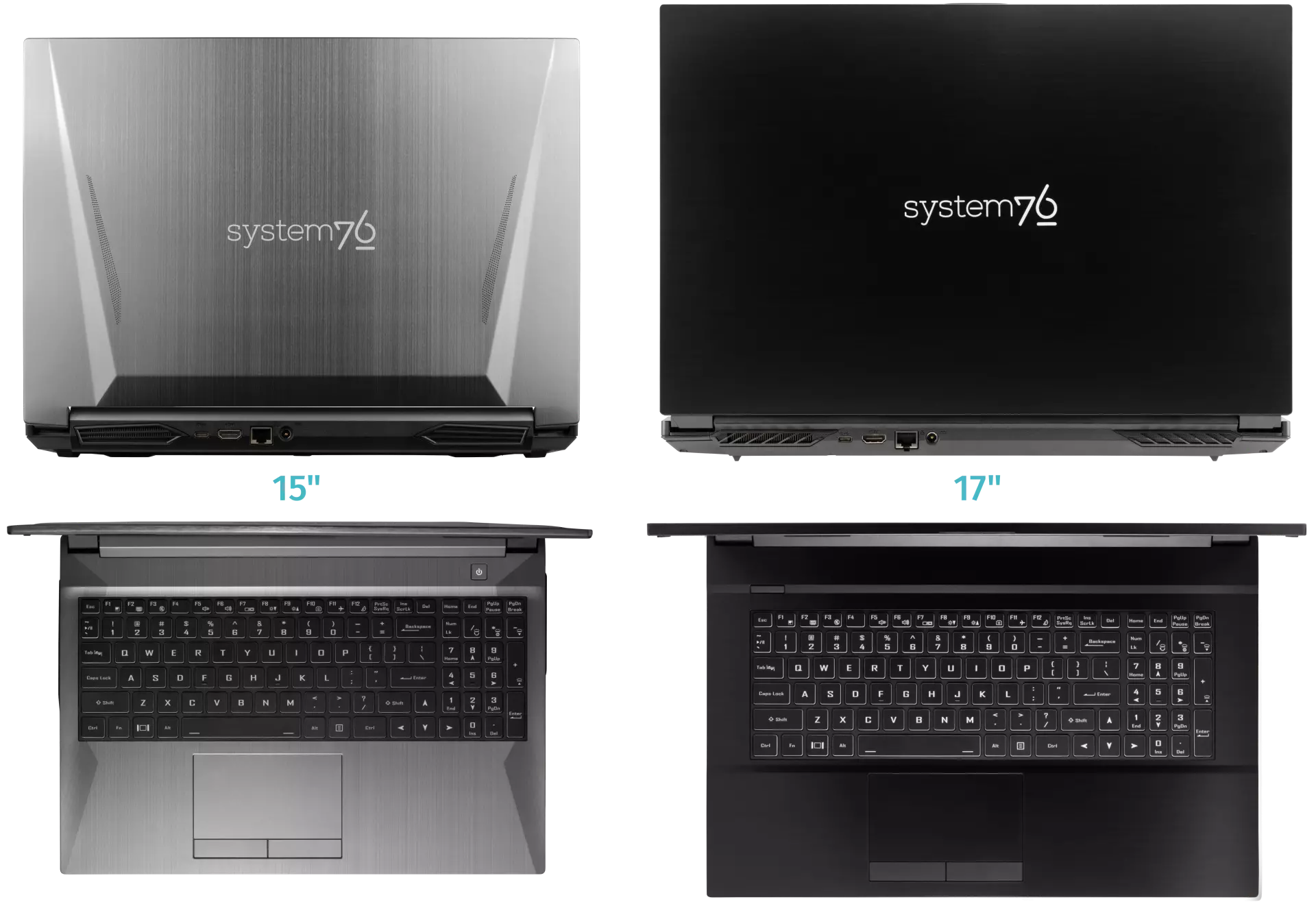

Lid/chassis design differences:

Materials:

15“ model:

Part	Material
LCD back cover (lid)	Aluminum
LCD front cover (bezel)	Plastic
Top case (palm rests/port covers)	Plastic
Bottom panel	Plastic

17“ model:

Part	Material
LCD back cover (lid)	Plastic
LCD front cover (bezel)	Plastic
Top case (palm rests/port covers)	Plastic
Bottom panel	Plastic

LED indicators:

The Gazelle has the following LED indicators:

Icon	Color	Description
	Orange	Powered off, DC power plugged in
	Green	Powered on
	Blinking green	Sleeping (suspended)
	Orange	Battery charging
	Green	Battery fully charged
	Blinking orange	Battery critically low
	Green	Storage drive activity

Keyboard shortcuts:

The Gazelle has the following actions available using the Fn and Function keys:

Key	Shortcut	Action
	Fn+F1	Toggle trackpad
	Fn+F2	Toggle built-in LCD
	Fn+F3	Mute
	Fn+F5	Volume down
	Fn+F6	Volume up
	Fn+F7	Toggle displays
	Fn+F8	Screen brightness down
	Fn+F9	Screen brightness up
	Fn+F10	Toggle webcam
	Fn+F11	Toggle airplane mode
	Fn+F12	Suspend
	Fn+`	Play/Pause
	Fn+*	Toggle keyboard backlight
/	Fn+/	Cycle keyboard color
-	Fn+-	Decrease keyboard brightness
+	Fn++	Increase keyboard brightness
