Equip yourself with up to 128GB RAM and two of the largest, most powerful graphics cards on the market. We’ve engineered the chassis to ensure your components perform to their fullest potential.
Thelio Mira’s pro-grade components propel your career to Mars and beyond. Compile faster with a 4th Gen AMD Ryzen or 11th Gen Intel Core processor. Swiftly organize large files with up to 4TB of PCIe 4.0 NVMe storage. Let ambition take the reins — your workflow can keep up.
Grind experience before a raid, discover new speedrunning shortcuts, or no-scope your way to the top of the leaderboard. Enjoy buttery-smooth conquest with all the RAM, fast storage, and graphics power your victory requires.
Master your field at your own pace. Start small or at full sprint with up to two NVIDIA Quadro RTX 8000 GPUs. Thelio Mira is built to last, with the ability to upgrade down the line. Grow faster with Tensorman on Pop!_OS, which manages your Tensorflow toolchain.

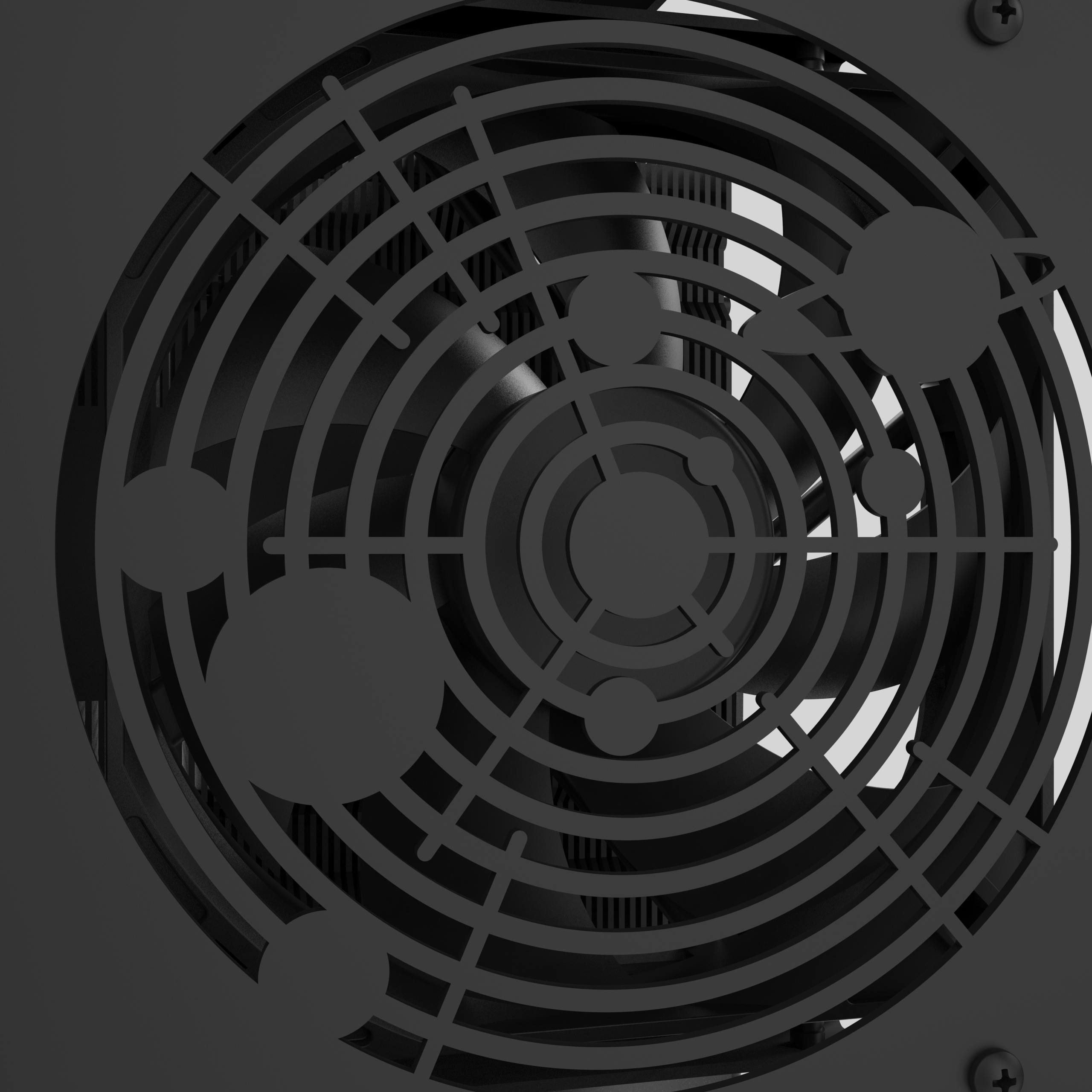

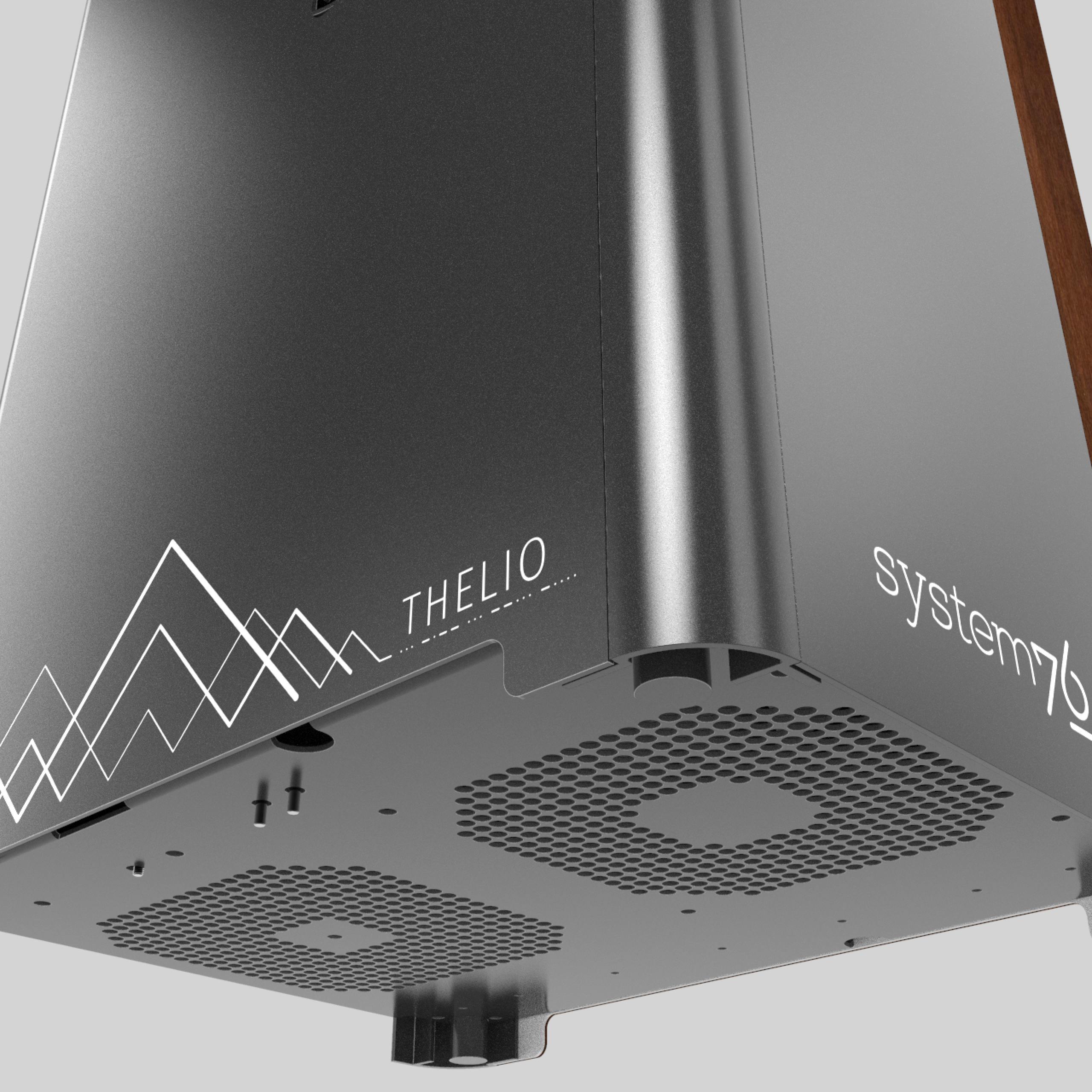

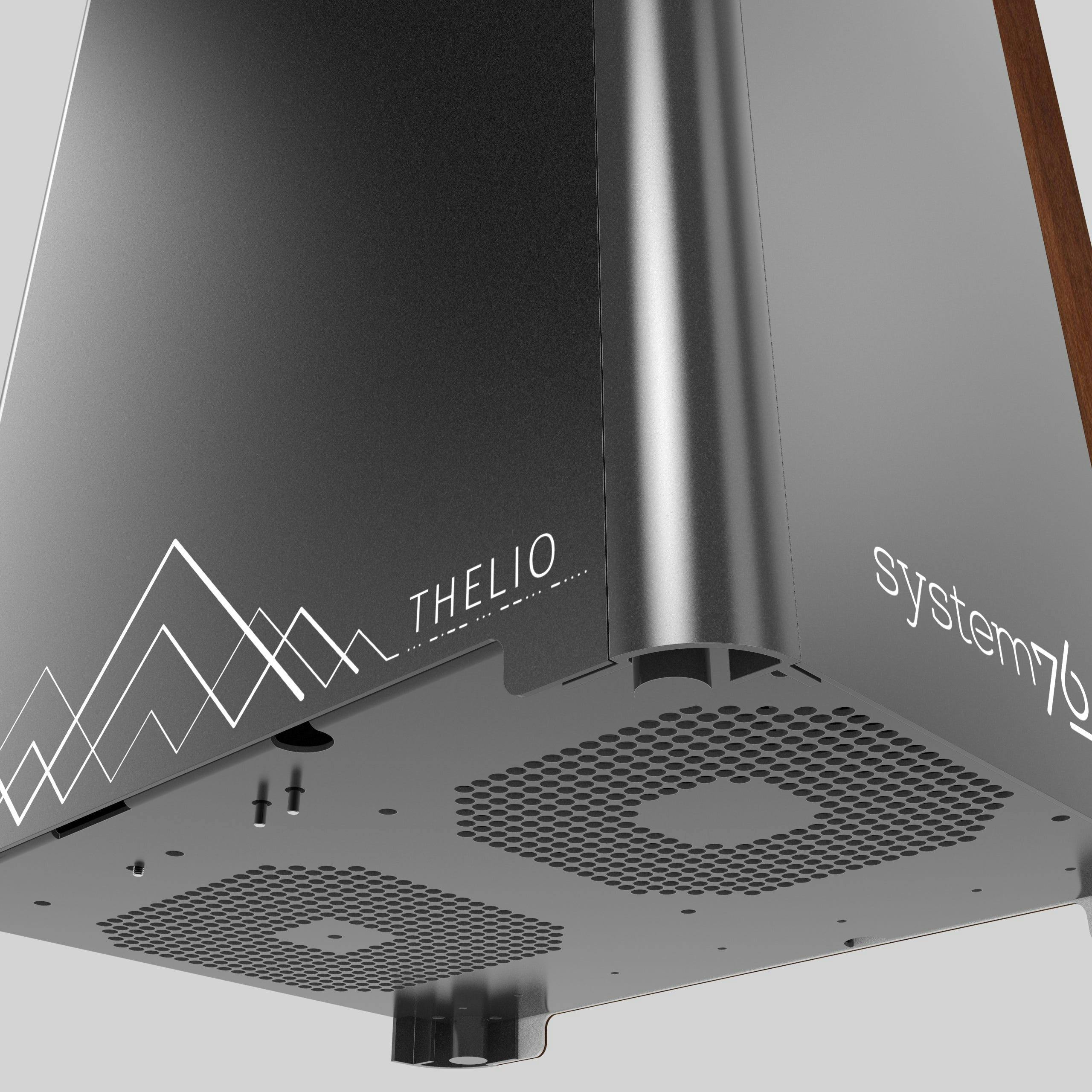

Thelio Mira is meticulously engineered to maximize performance and prevent throttling. Large-blade fans blow cool air up into the system. Meanwhile, copper pipes in the heat sink use phase-change cooling to move heat away from the CPU. Hot air is then expelled out the exhaust port. This bottom-up cooling system keeps your desktop running smoothly under high loads.
After countless iterations testing fan placement, CPU duct size, exhaust port design, and other factors, we landed on the most optimal arrangement for effective cooling at low decibels.
Thelio Mira leaves room for up to two large blower GPUs. Thanks to thermal engineering and a progressive fan curve, the heat generated by the graphics cards exhausts effectively without causing your system unnecessary stress.
Chassis-specific thermal engineering yields quiet and effective cooling in perfect balance. Large 140mm fans move air more effectively at a lower RPM, producing quieter acoustics. Operate in silence up to processor temperatures of just under 45 degrees Celsius, or knock out your workload running at max power. Thelio Mira is designed to prevent throttling and run efficiently at every level.
Thelio desktops are designed to provide easy access to your motherboard for upgrades and repairs. Slip in drives, add memory, and upgrade graphics cards at will with our open hardware design.
Unscrew the lid and access everything in the system. No obstructive wires, no loose parts.
Any wires you’ll ever need are already provided inside the system. Thelio Mira accommodates even the largest, most powerful GPUs on the market.

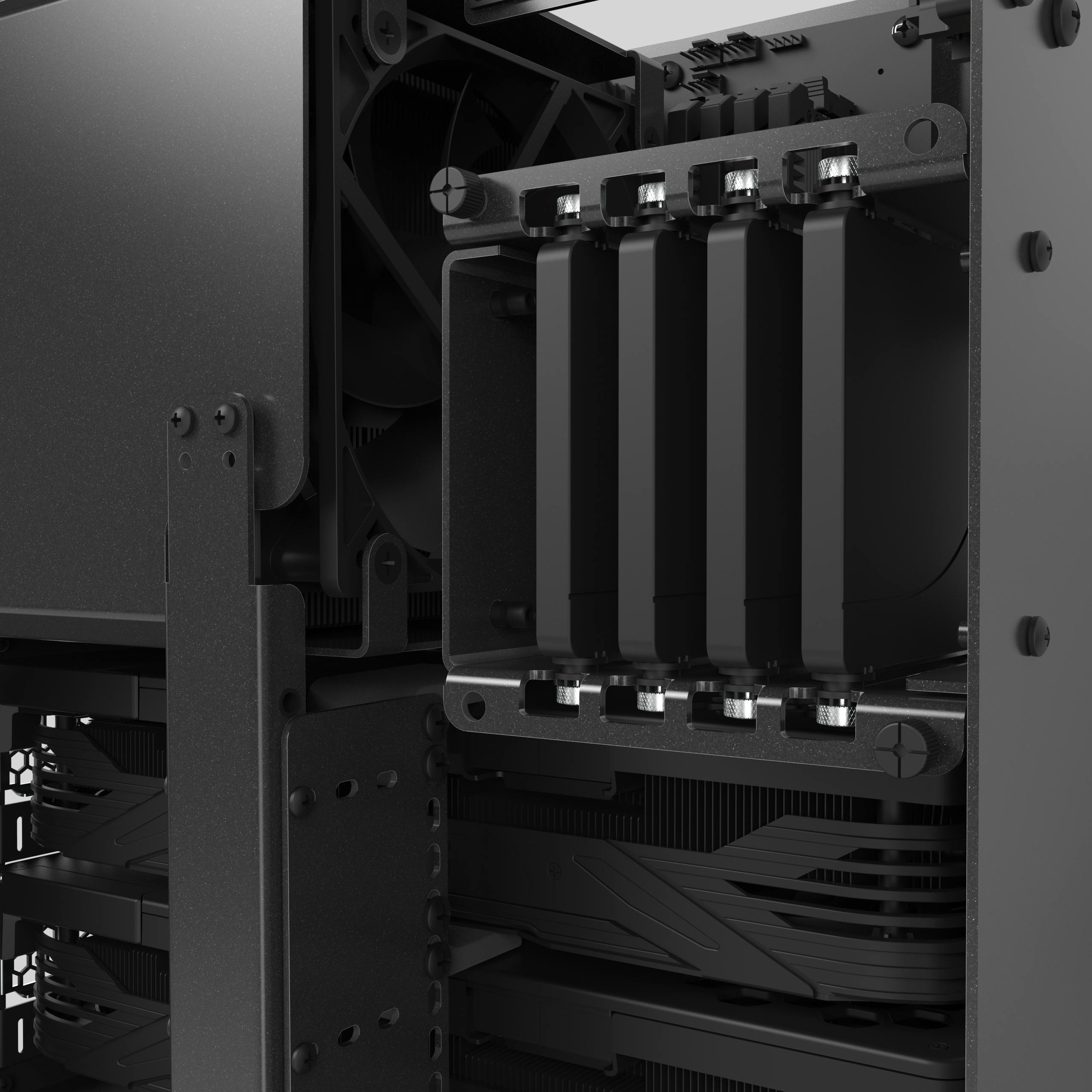

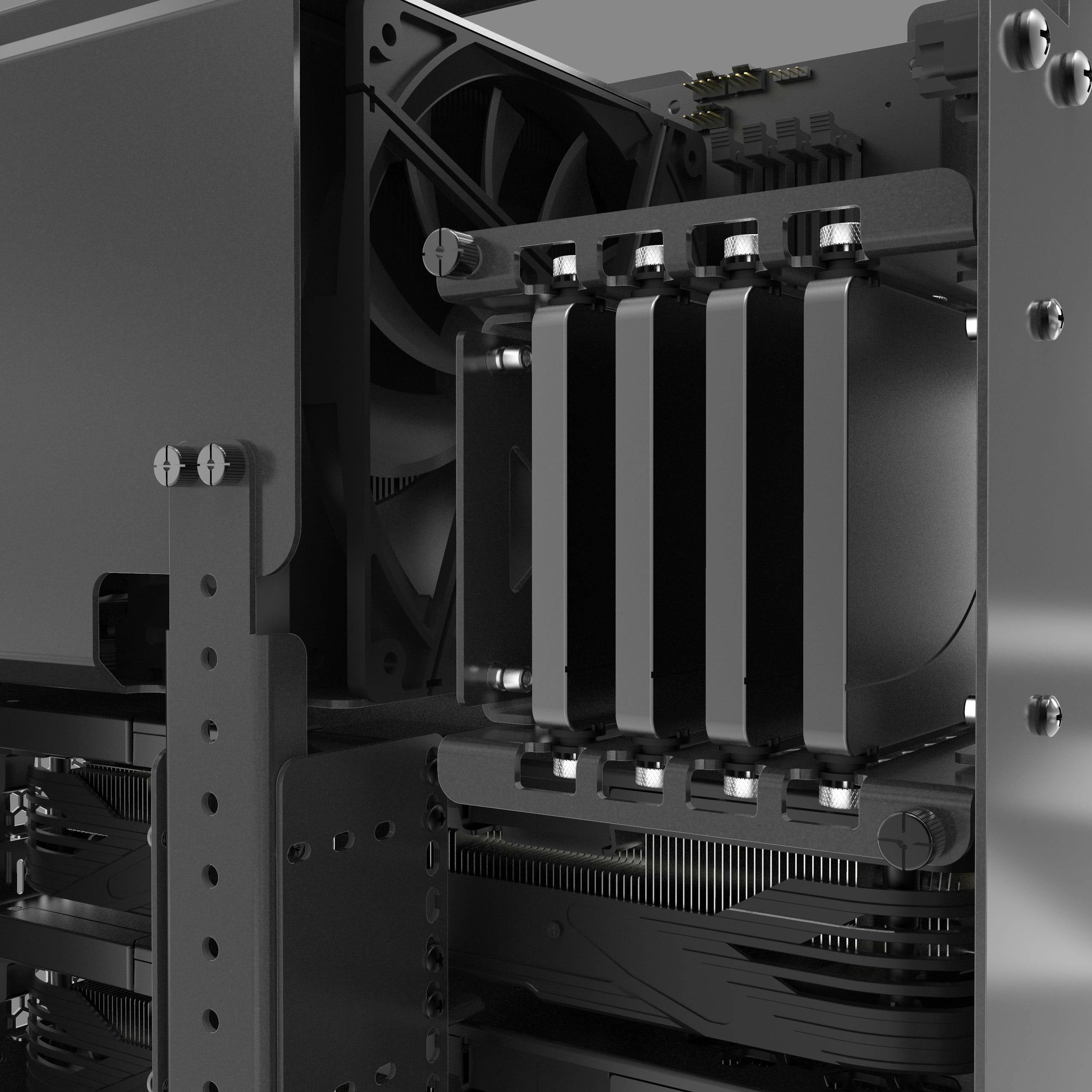

The screw bay on the top bar houses enough screws to install the maximum number of 2.5” storage SSDs. Hot swappable drives slide in and out of the aluminum drive cage with ease.

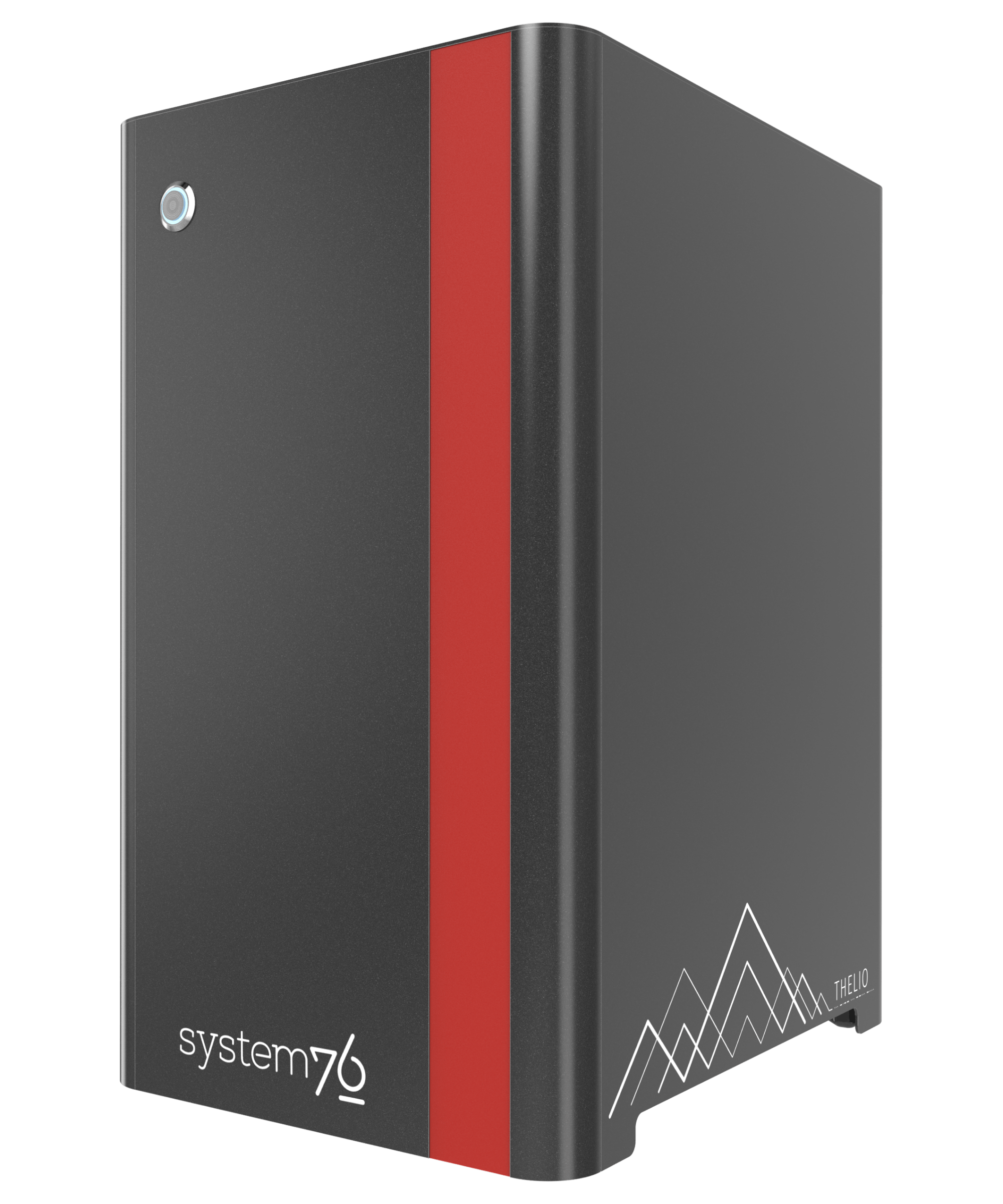

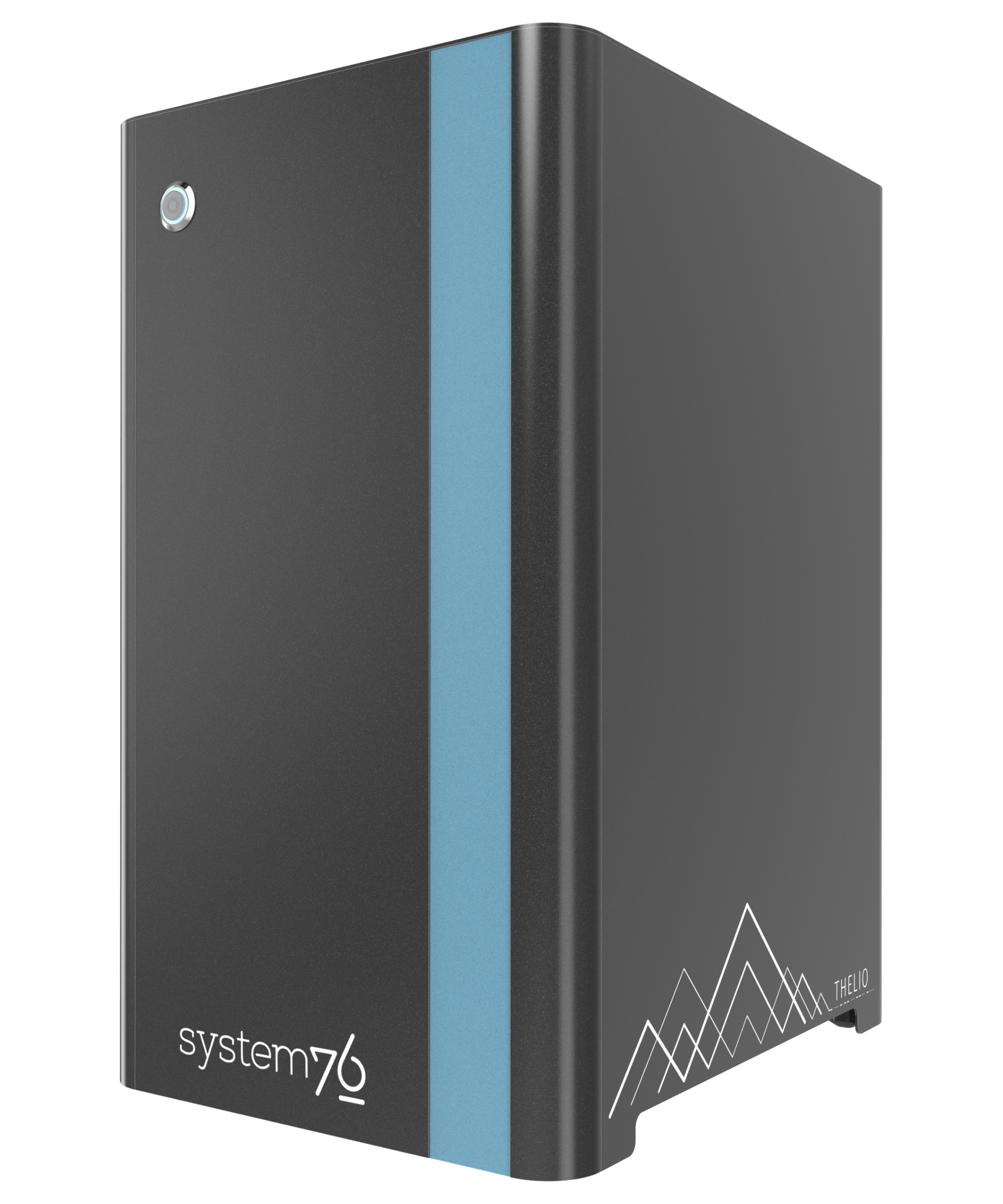

Create the best system to set yourself up for success. Customize Thelio Mira to fit your needs with a wide variety of component options across the board.

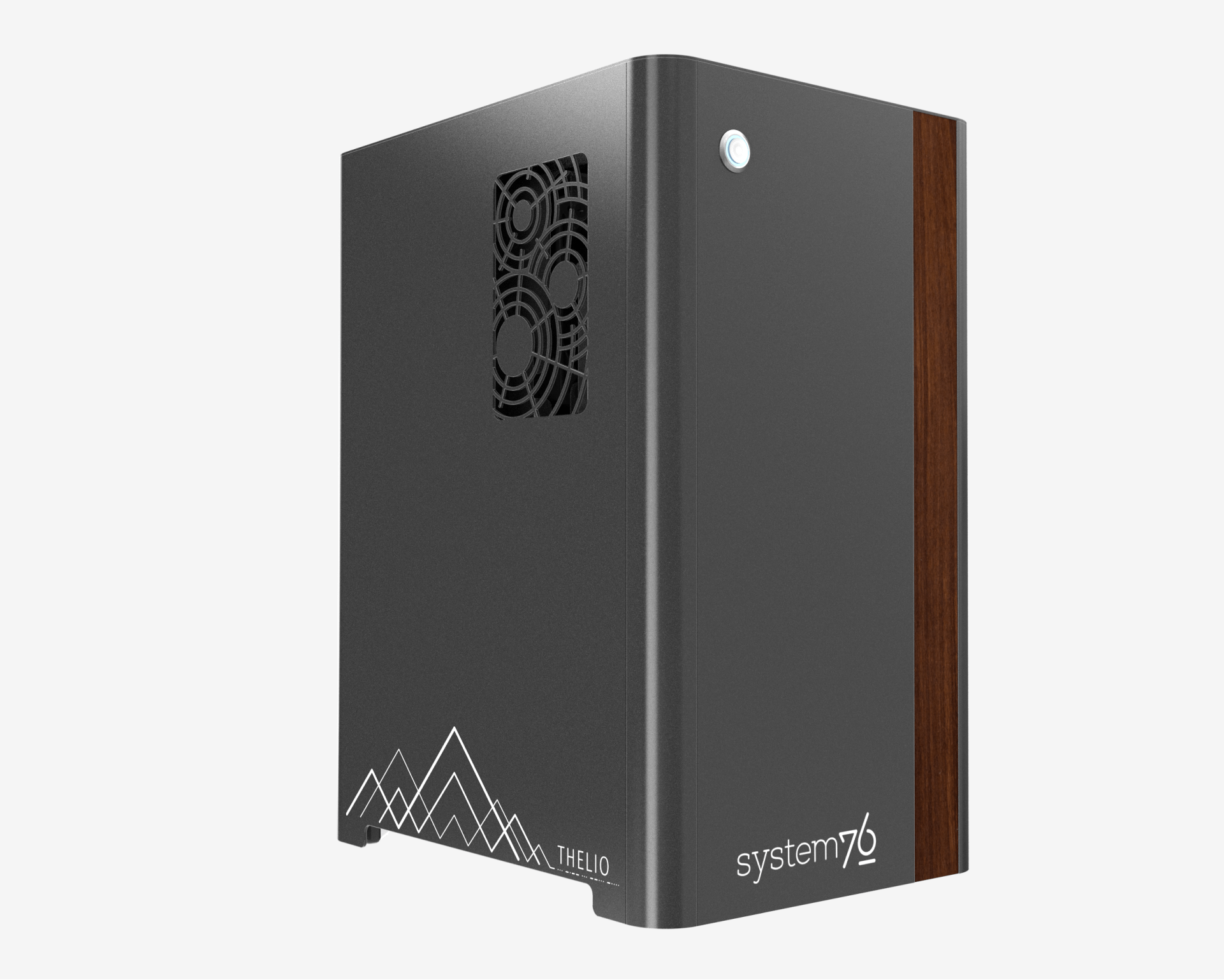

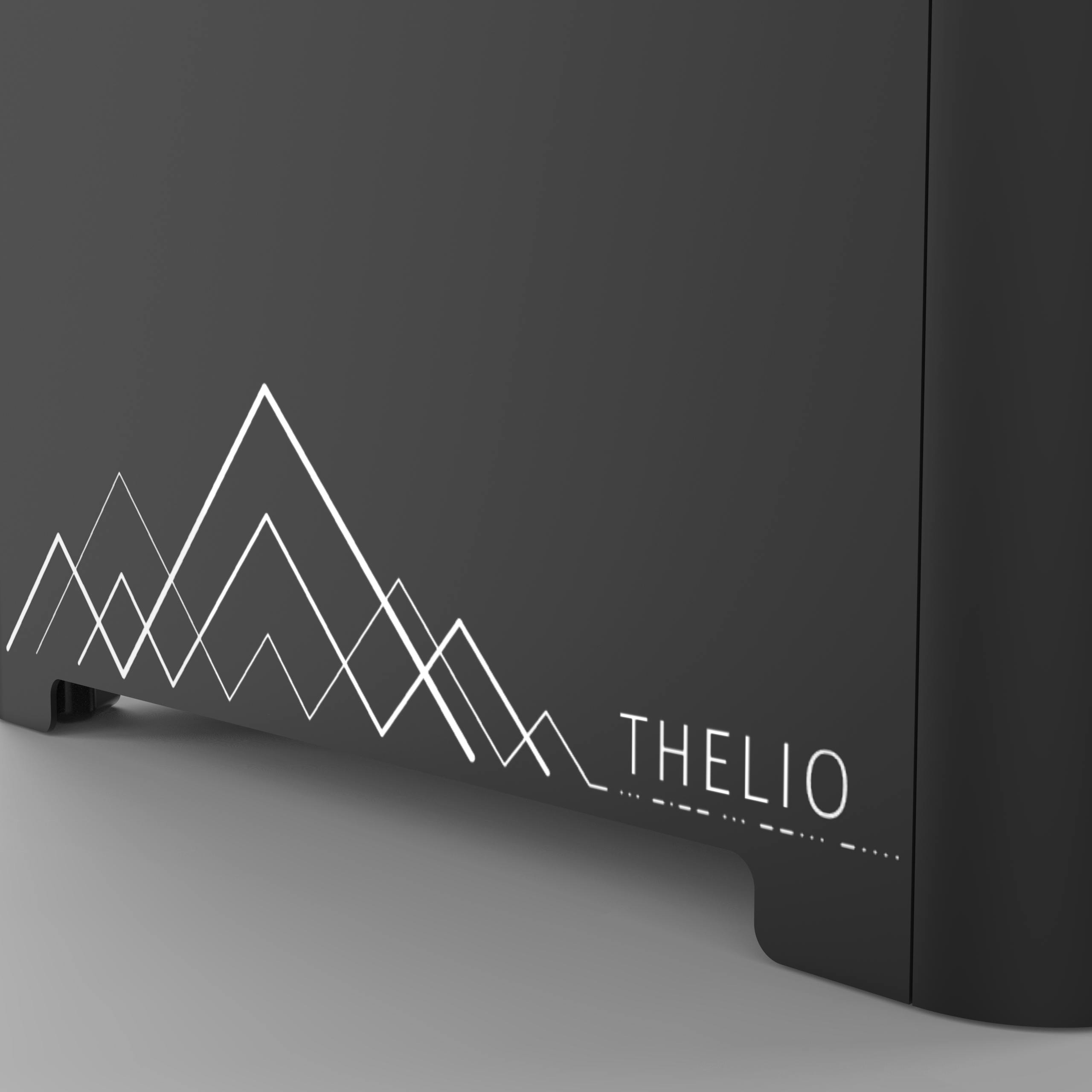

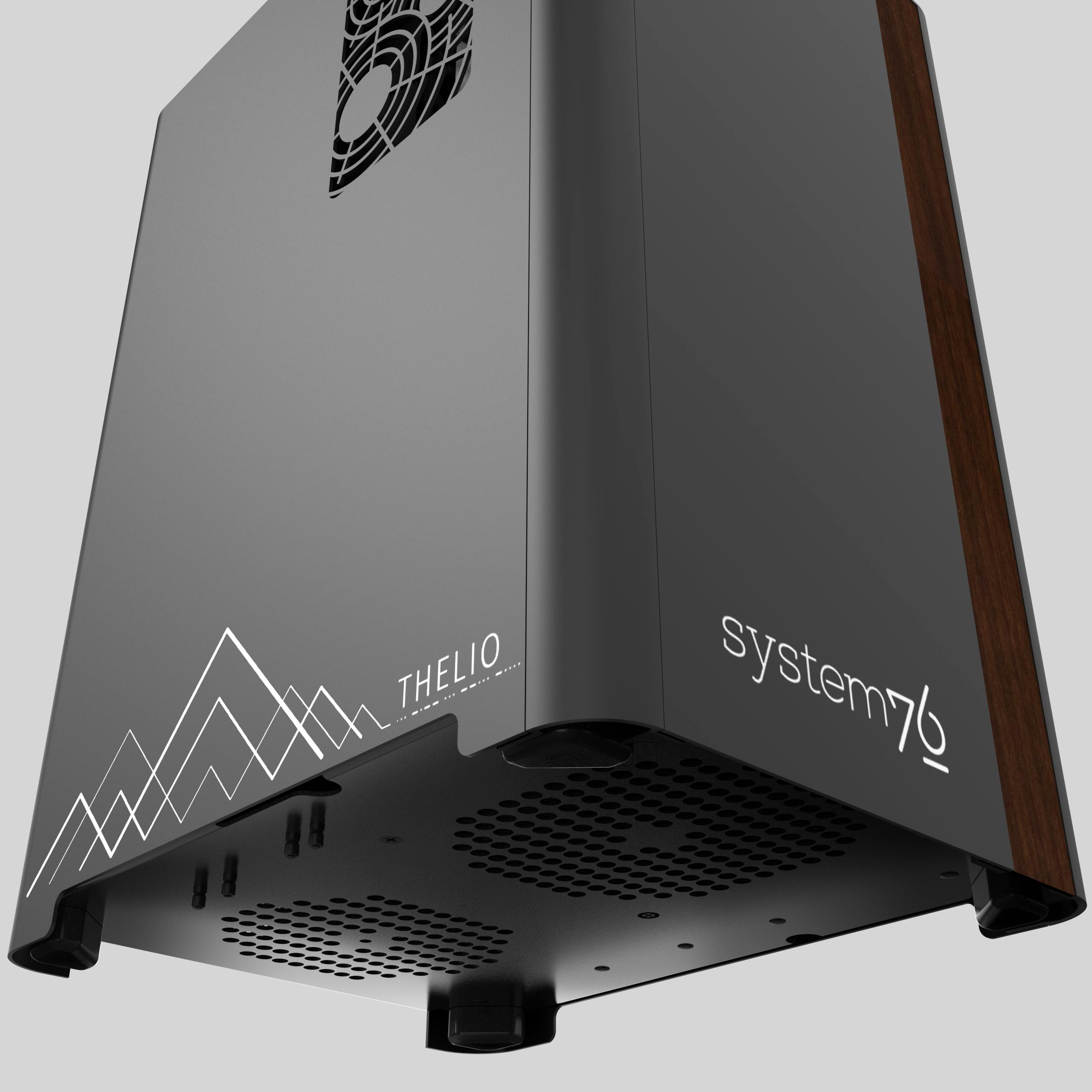

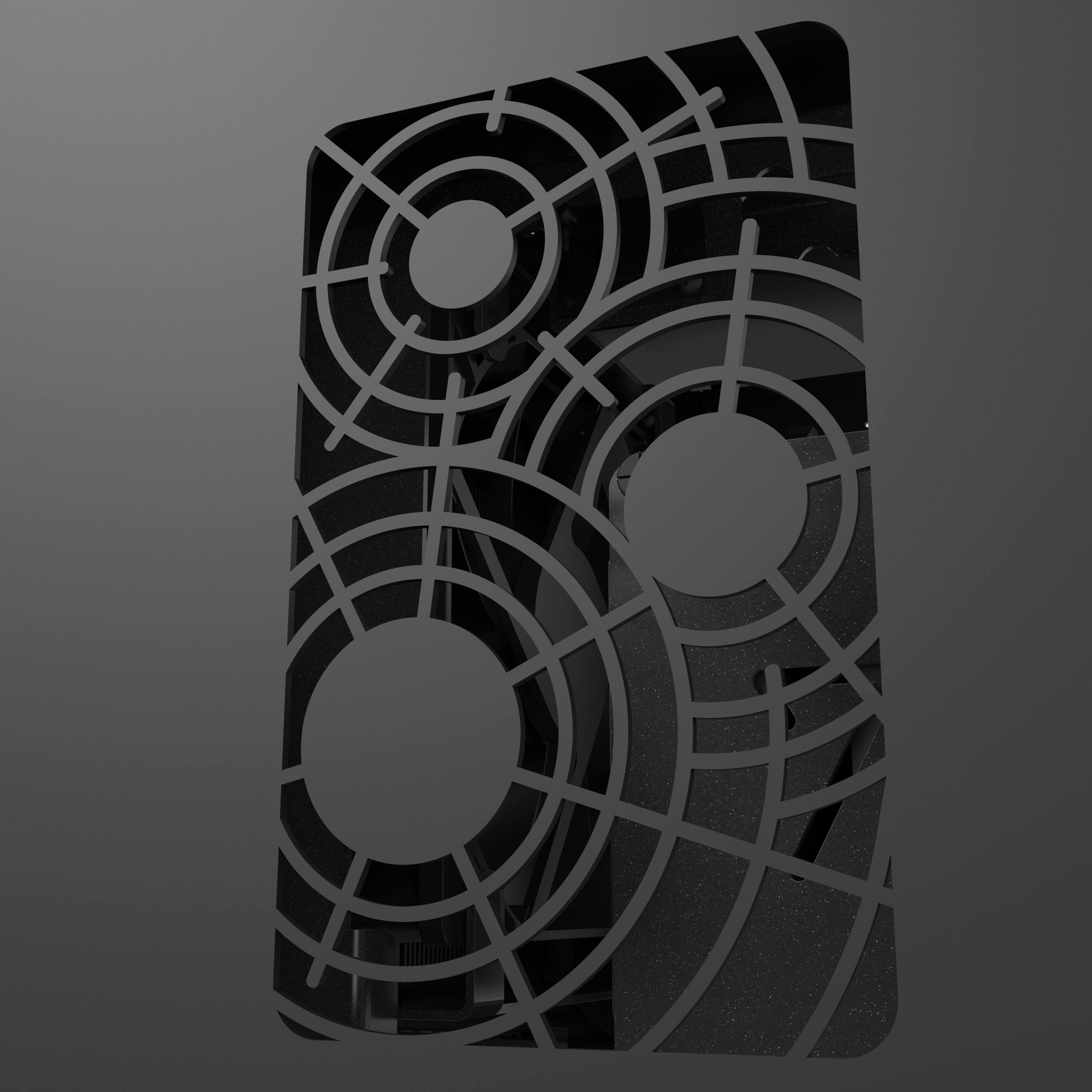

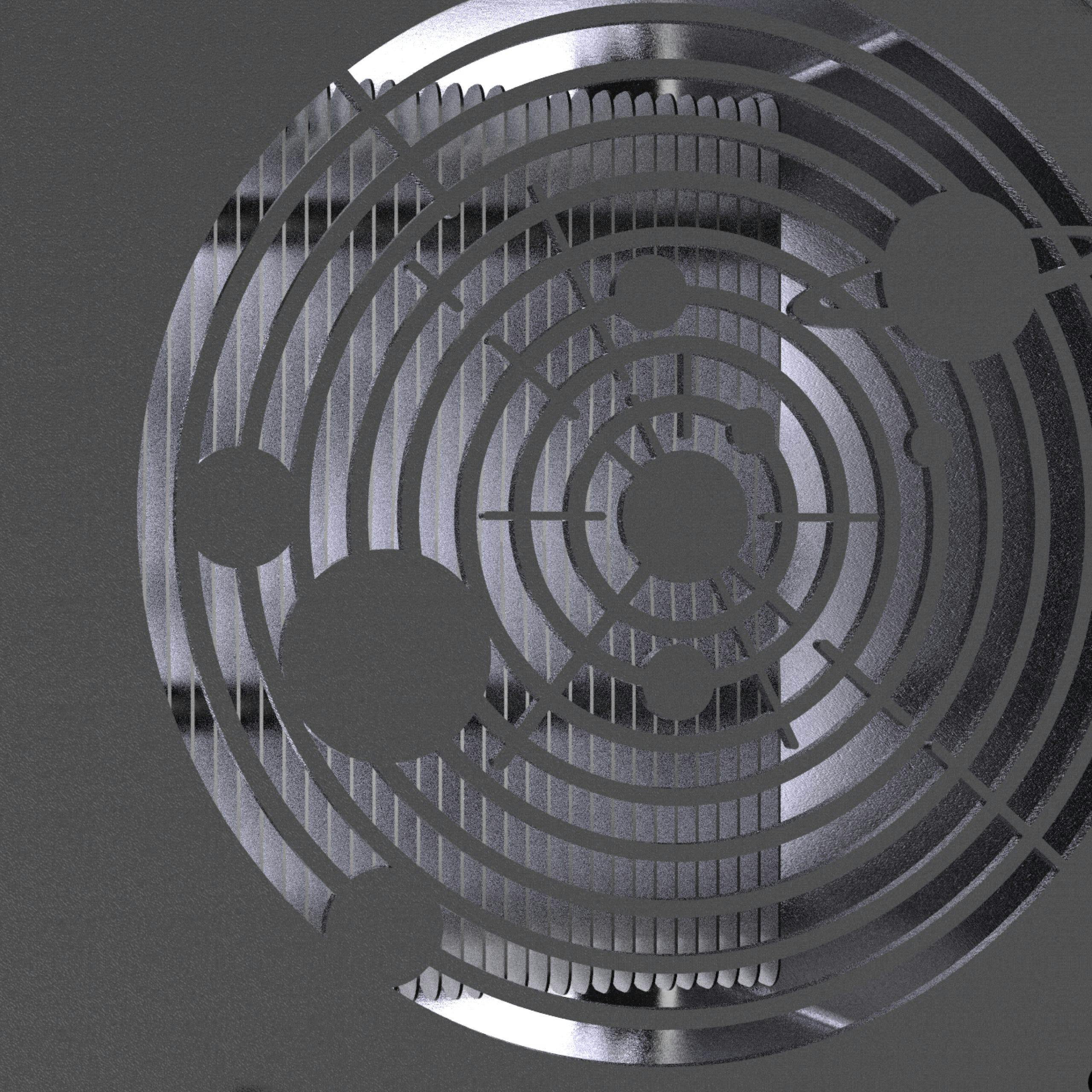

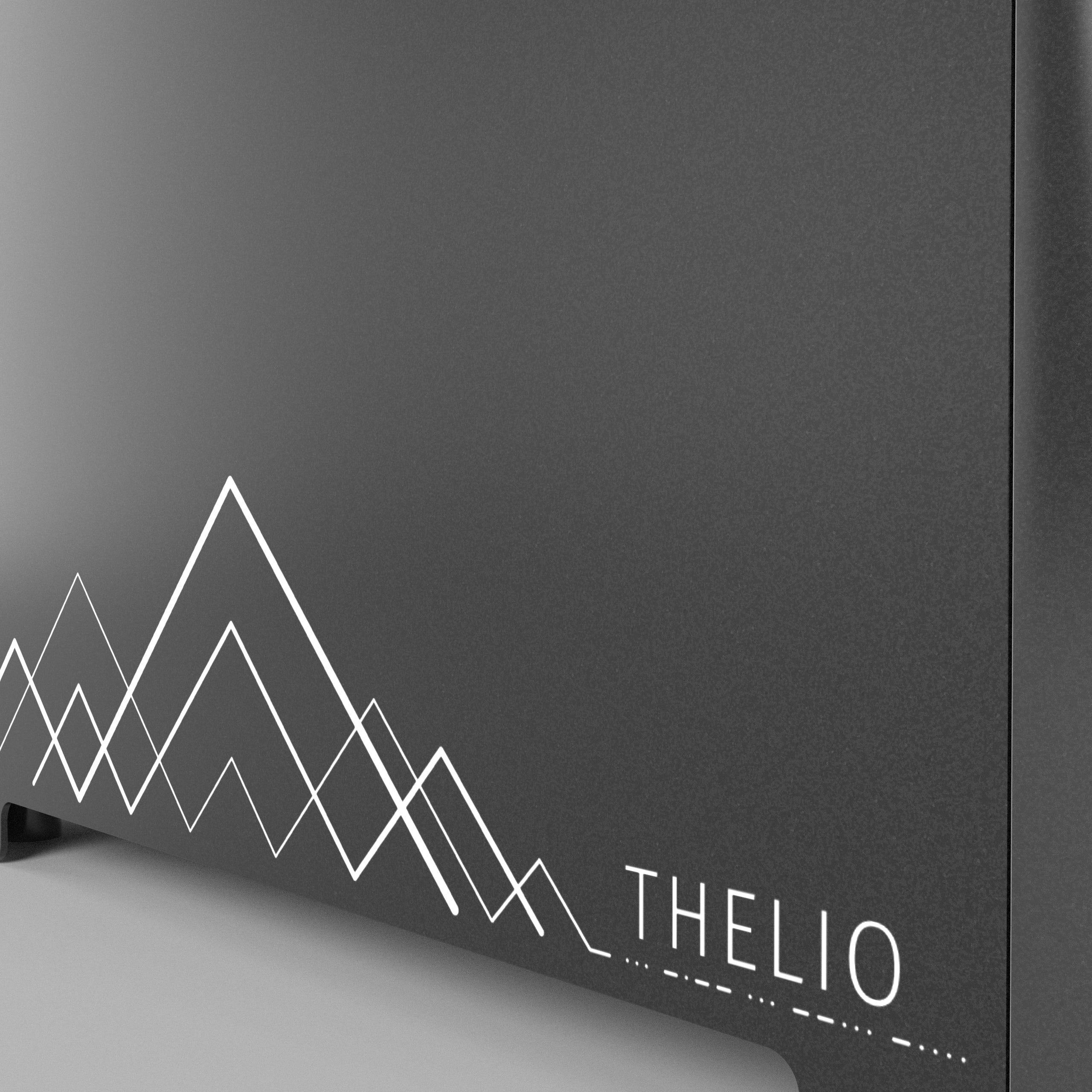

Rigid aluminum is cut, powder coated, and molded into a light, durable chassis. From the subtle mountainscape to the Solar System exhaust vent commemorating the UNIX Epoch, Thelio Mira adds elegance and character to your desk. Personalize it with natural or stained wood veneer options.
What could you accomplish at peak efficiency? Build the back-end systems for your new domain. Showcase your new game mod on stream. Develop an algorithm for predicting rainfall in Denver.
Thelio Mira pairs with Pop!_OS to keep you progressing at full speed, every step of the way. Auto-Tiling, Workspaces, and Keyboard Navigation accelerate your workflow with comprehensive shortcuts.
| Operating System | Pop!_OS 21.04 (64-bit), Pop!_OS 20.04 LTS (64-bit), or Ubuntu 20.04 LTS (64-bit) |
| Processor | 10th and 11th Gen Intel® Core™ |
| Graphics | Up to 2× Graphics Cards Intel® UHD Integrated Graphics, optional AMD® or NVIDIA® Graphics |
| Video Ports | Dependent on GPU selection: Intel® UHD Graphics: 1× DisplayPort 1.4, 1× HDMI 2.0 Radeon RX 6900 XT: 2 × DisplayPort, 1 × HDMI, 1 × USB-C RTX 3060: 3 × DisplayPort, 1 × HDMI RTX 3070: 3 × DisplayPort, 1 × HDMI RTX 3090: 3 × DisplayPort, 1 × HDMI Quadro RTX 4000: 3 × DisplayPort, 1 × DisplayPort over USB-C (VirtualLink) Quadro RTX 5000: 4 × DisplayPort, 1 × DisplayPort over USB-C (VirtualLink) Quadro RTX 6000: 4 x DisplayPort, 1 × DisplayPort over USB-C (VirtualLink) Quadro RTX 8000: 4 x DisplayPort, 1 × DisplayPort over USB-C (VirtualLink) RTX A6000: 4 x DisplayPort 1.4 |
| Memory | Up to 128 GB Dual Channel DDR4 |
| Storage | Up to 56 TB, 1 × M.2 PCIe Gen4 NVMe, 2 × M.2 PCIe Gen3 NVMe, and 4 × 2.5″ SATA drives |

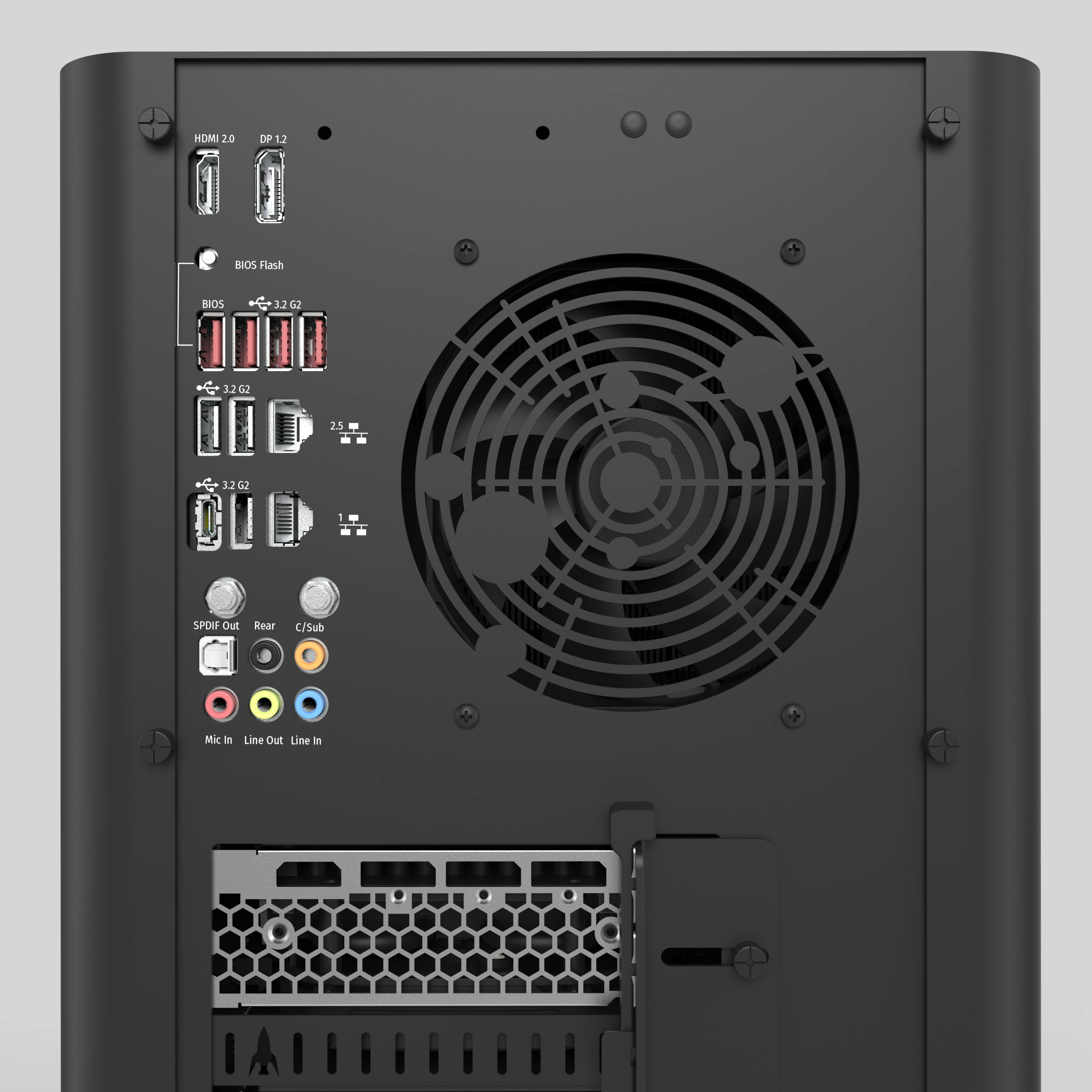

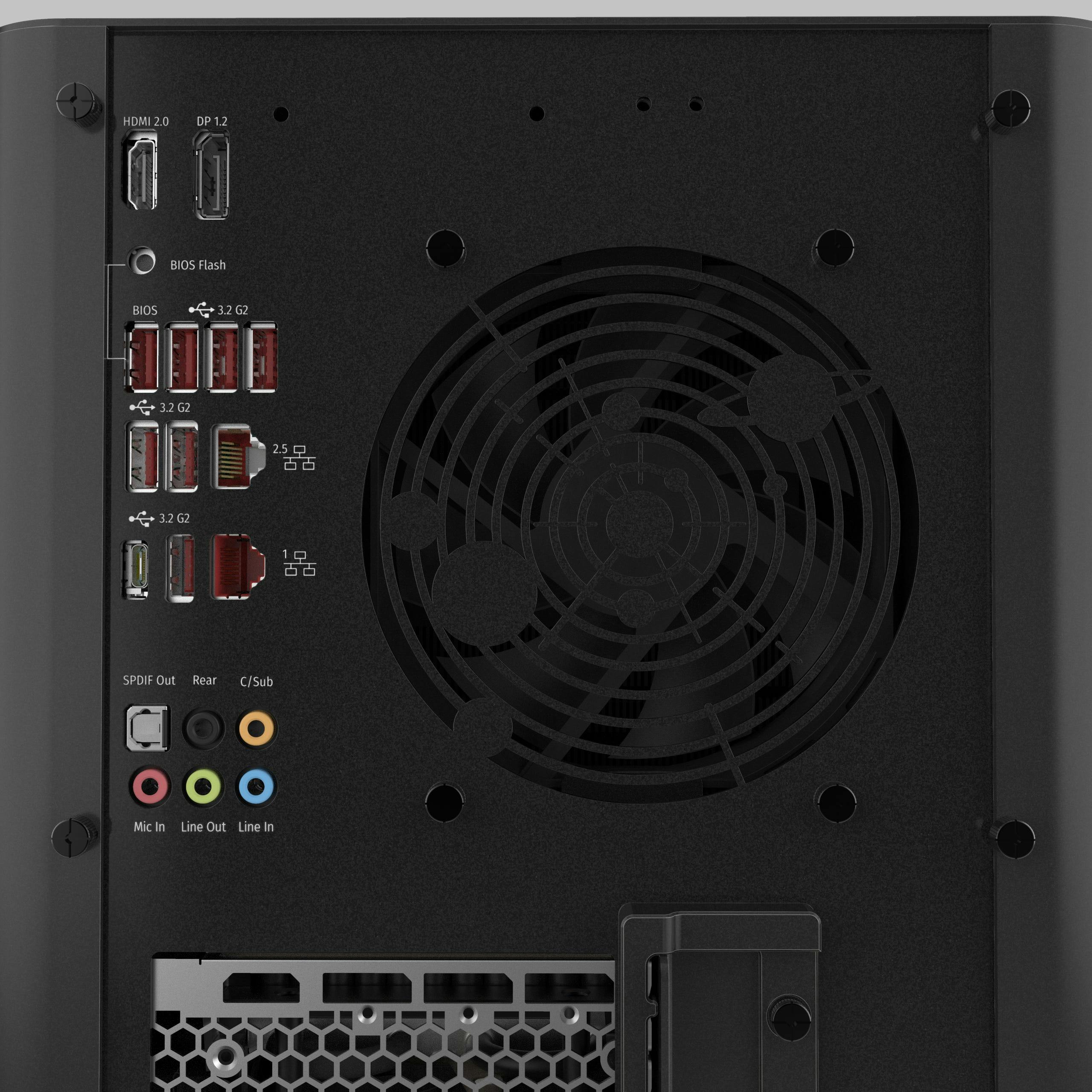

| Rear Ports | 1 × USB Type-C with USB 3.2 Gen 2x2 support, 4 × USB 3.2 Gen 2, 4 × USB 2.0 Gen 2 Type A, 1 × USB 2.0 Type-C, 1 × 2.5G RJ-45 port |
| Rear Audio | 5 × Audio Jacks |
| Networking | 1 × 2.5G Ethernet, built-in Wifi 6 (a/b/g/n/ac/ax) with Bluetooth 5.0 |
| Power Supply | Dependent on GPU selection: 650W 80+ Certified (82% or greater power efficiency) 750W 80+ Certified (87% or greater power efficiency) 1000W 80+ Certified (87% or greater power efficiency) |
| Dimensions | Height × Width × Depth 17.18″ × 9.96″ × 13.03″ (436.35 × 253 × 331mm) |
| Model | thelio-mira-b1 |
