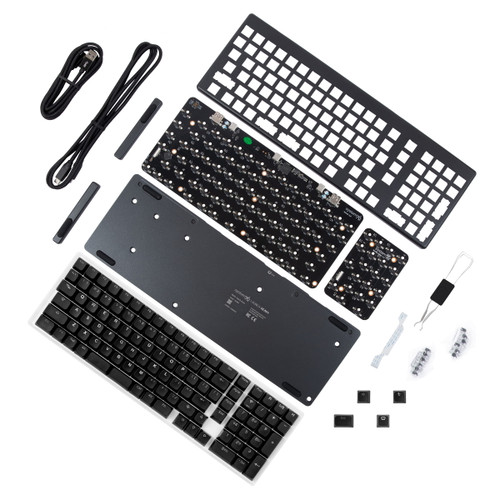

Build your own keyboard with the Launch Heavy Kit. People tell us they type faster on their Launch Heavy, thanks to this full-size keyboard’s ability to conform to their personal needs. With Launch Heavy, you can remap keys to eliminate Caps Lock or bring Shift or Backspace under your thumb. Then match your changes in the System76 Keyboard Configurator.
Order switches on the components page, and see steps for assembly here!
- Chassis:
- System76 Open Source milled chassis design
Detachable lift bar to adjust keyboard angle by 15 degrees
- Electronics:
- System76 Open Source PCB design
Individually addressable RGB LED backlighting
N-Key Rollover - Switch Compatibility:
- 3-pin or 5-pin MX switches, surface mount LED windows
- Key Caps:
- Doubleshot PBT, Shine-through legend, Bobo profile
- Layout:
- ANSI US QWERTY
- Custom Configurations:
- Customize layout and lighting in firmware with the System76 Keyboard Configurator , available on Linux, Windows, and macOS
- Integrated Hub::
- 2 x USB 3.2 Gen 2 x 1 Type C (Up to 10 Gbps), 2 x USB 3.2 Gen 2 x 1 Type A (Up to 10 Gbps)
- Firmware:
- System76 Open Source QMK Firmware
- Connectivity:
- Wired, with detachable USB cable (USB-C to USB-C and USB-A to USB-C cables included)
- Dimensions:
- 15.51" x 5.32" x 1.19" (394mm x 135.1mm x 30.3mm)
- Weight:
- 2.8 lbs (1315.42g)
- Model:
- launchkit-heavy-3
