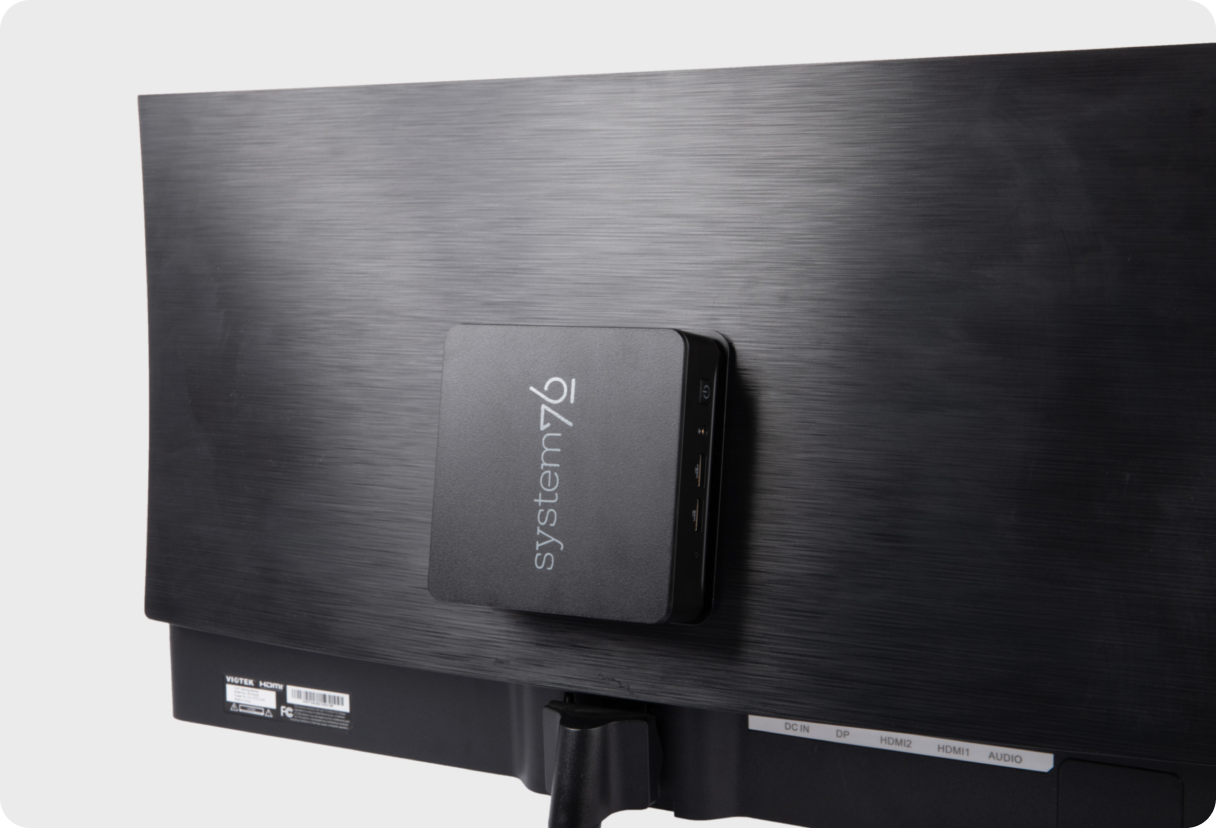

The mighty mini with a high performance-to-space ratio. Mount the Meerkat behind your monitor for maximum spaceage. Up to 20TB storage and 64GB RAM. Featuring a 12-core, 16-thread Intel processor.
Features:
 |
Mere 4.5" square of desk space |  |
Energy-efficient |
 |
13th Gen Intel Core CPU |  |
VESA mount included |
Great for:
- Dorm, cubicle, or home office
- Robotics and tinkering
- Small server
- Operating System:
- Pop!_OS 22.04 LTS, Ubuntu 22.04 LTS or Ubuntu 24.04 LTS
- Processor:
- 13th gen Intel® Core™
i3-1315U: Up to 4.5GHz - 10MB Cache - 6 Cores - 8 Threads
i5-1340P: Up to 4.6GHz - 12MB Cache - 12 Cores - 16 Threads
i7-1360P: Up to 5.0GHz - 18MB Cache - 12 Cores - 16 Threads - Graphics:
- Dependent on CPU:
i3-1315U: Intel® UHD Graphics
i5-1340P: Intel® Iris® Xe Graphics
i7-1360P: Intel® Iris® Xe Graphics - Memory:
- Up to 64 GB Dual Channel DDR4 at 3200 MHz
- Storage:
- Short: Up to 12 TB, 1 × M.2 PCIe Gen4 NVMe, 1 × M.2 PCIe Gen3 SATA
Tall: Up to 20 TB, 1 × M.2 PCIe Gen4 NVMe, 1 × M.2 PCIe Gen3 SATA, 1 × 2.5″ drive - Expansion:
- Front: 2 × USB 3.2 Gen2 Type-A
Rear: 1 × USB 3.2 Gen2 Type-A, 1 × USB 2.0 Type A, 2 × USB 4 / Thunderbolt™ 4 (Type C)
Optional Add-on card: 2 × USB 2.0 Type A - Networking:
- 2.5 GbE Ethernet, Intel® Wifi 6E, Bluetooth
Optional Add-on card: 1 × 2.5 GbE Ethernet - Video Ports:
- 2 × HDMI 2.1, 2 x DisplayPort (1.4a) via USB Type C
- Audio:
- 3.5mm headphone/mic combo jack
7.1 channel (via HDMI, USB Type-C) - Power Supply:
- Dependent on CPU:
i3-1315U: 19V, 90W Power Adapter
i5-1340P: 20V, 120W Power Adapter
i7-1360P: 20V, 120W Power Adapter - Security:
- Kensington® Lock
- Dimensions:
- Height × Width × Depth
Short: 1.46″ × 4.61″ × 4.41″ (37 × 117 × 112mm)
Tall: 2.12″ × 4.61″ × 4.41″ (54 × 117 × 112mm) - Model:
- meer8 - Technical Documentation
