Thelio Major is a high-end desktop (HEDT) designed with an all-star roster of components that breeze through intensive computing. We take this power even further by engineering the desktop to ensure it performs to its fullest potential.
Productive HEDT CPUs like the Intel Core-X i9 or AMD Threadripper 3990X want to see your project completed as quickly as possible. With up to 64 CPU cores and 128 threads, Thelio Major drastically reduces wait times when processing your final file—no matter how many “final” versions you end up making.
The more GPU cores in your desktop, the faster your project can be visualized. Thelio Major offers full-core performance with up to two NVIDIA Quadro RTX 8000 GPUs so you can model, simulate, and animate your work in record time.
Compile and Render Fast
HEDT users benefit from faster processing and reliable ECC memory. If you’re frequently rendering visualizations or compiling long sequences of code, these advantages will greatly accelerate your project’s timeline.

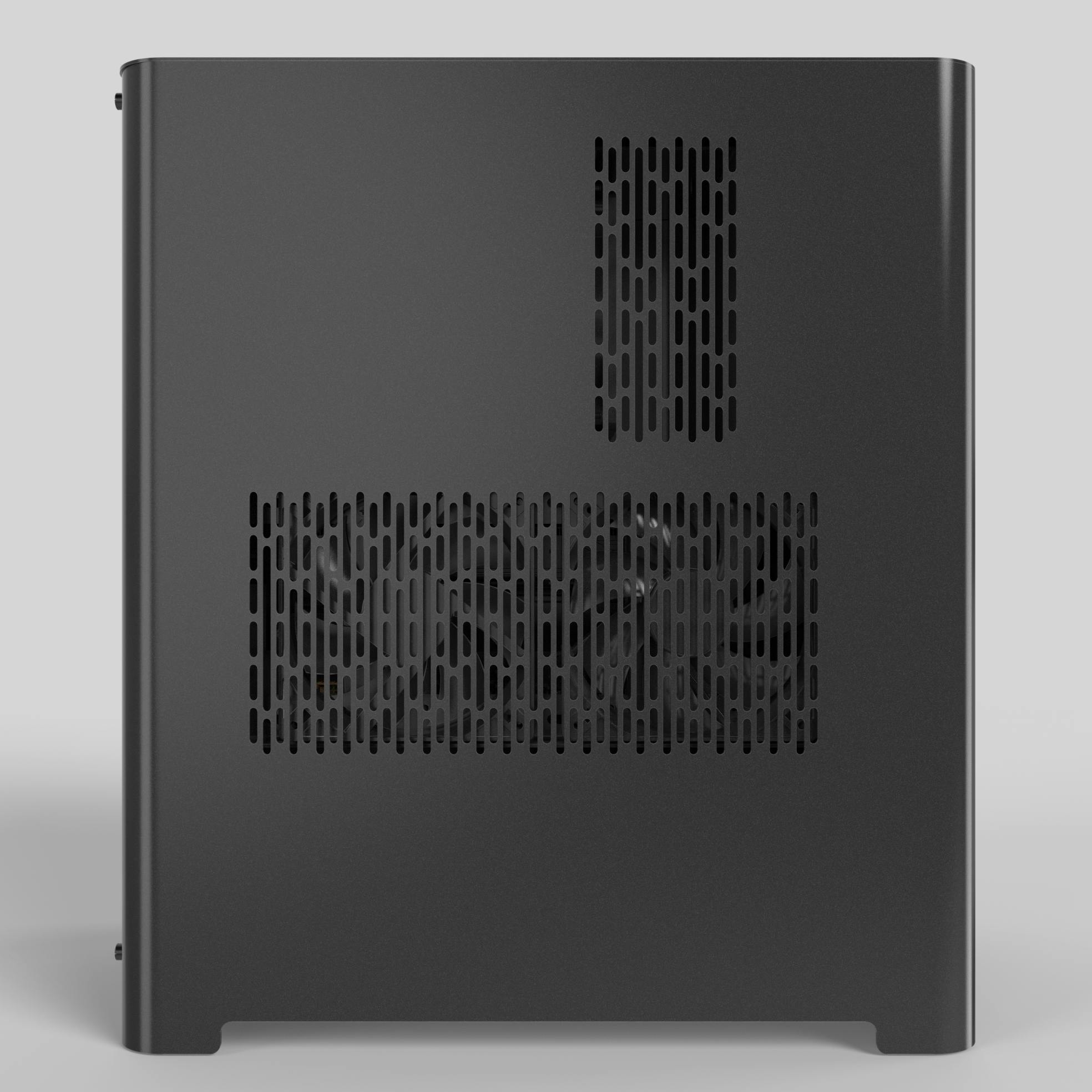

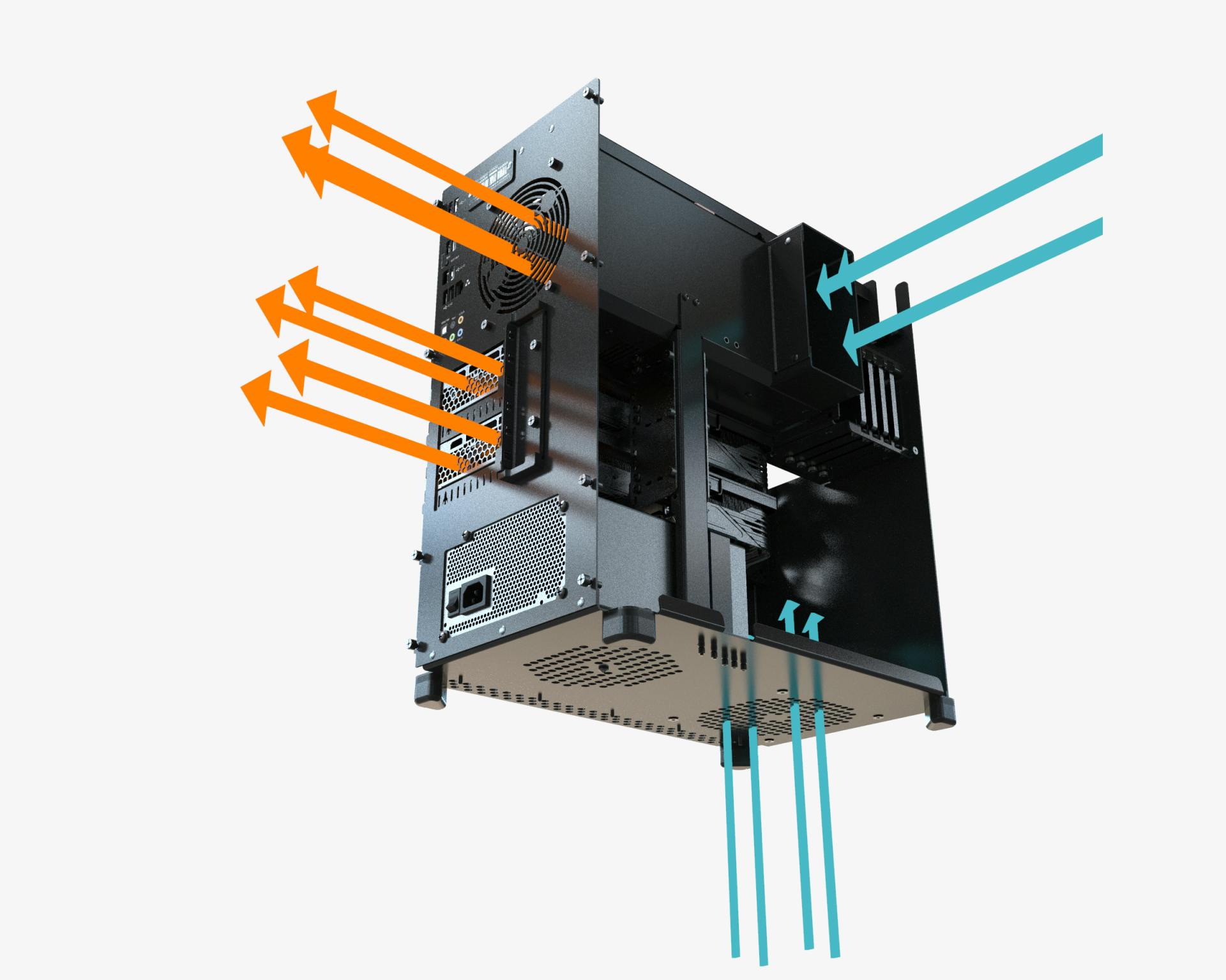

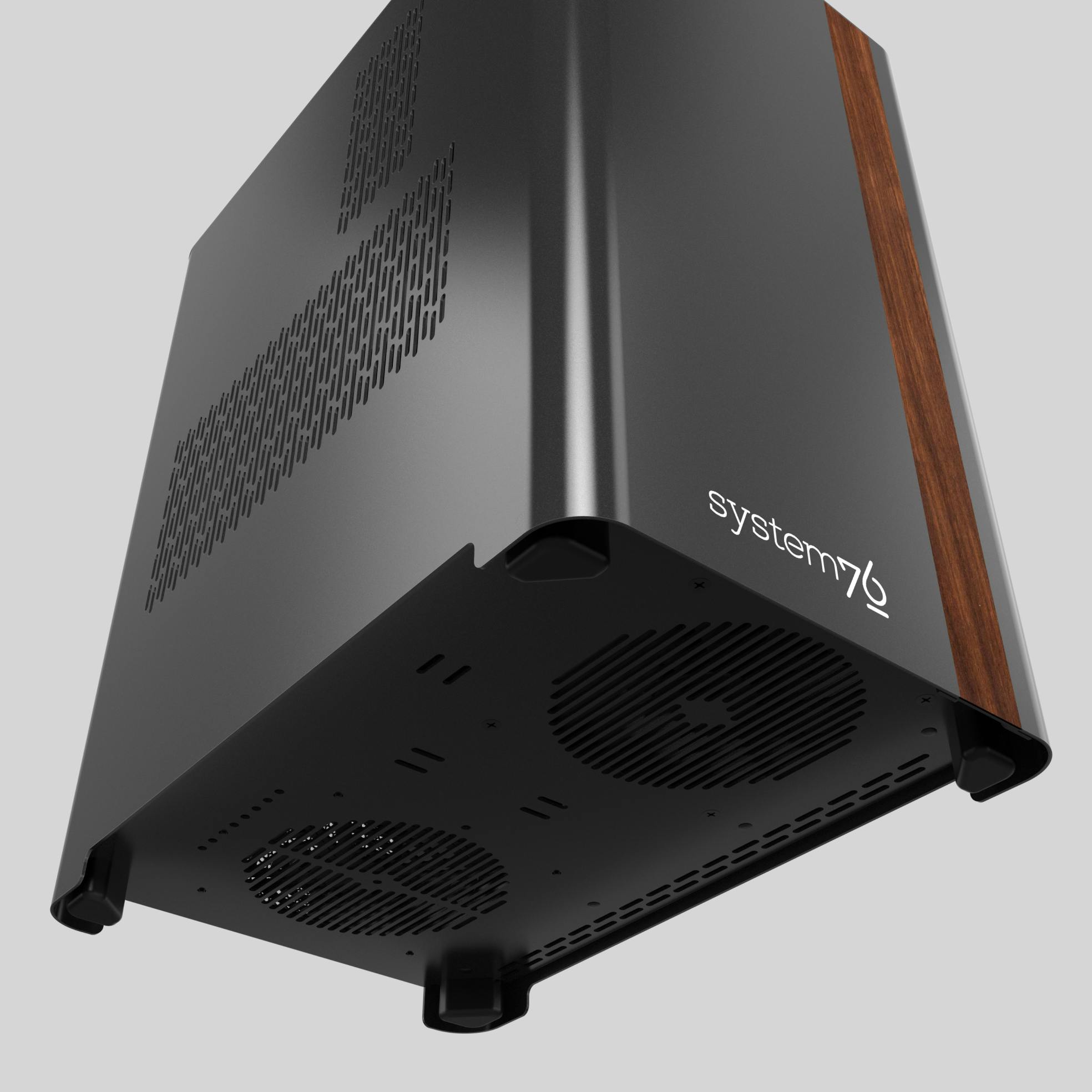

Thelio Major is meticulously engineered to maximize performance and prevent throttling. Large-blade fans blow cool air up into the system. Meanwhile, copper pipes in the heat sink use phase-change cooling to move heat away from the CPU. Hot air is then expelled out the exhaust port. This bottom-up cooling system keeps your desktop running smoothly under high loads.
Optimized Ducted Cooling
After countless iterations testing fan placement, CPU duct size, exhaust port design, and other factors, we landed on the most optimal arrangement for effective cooling at low decibels.

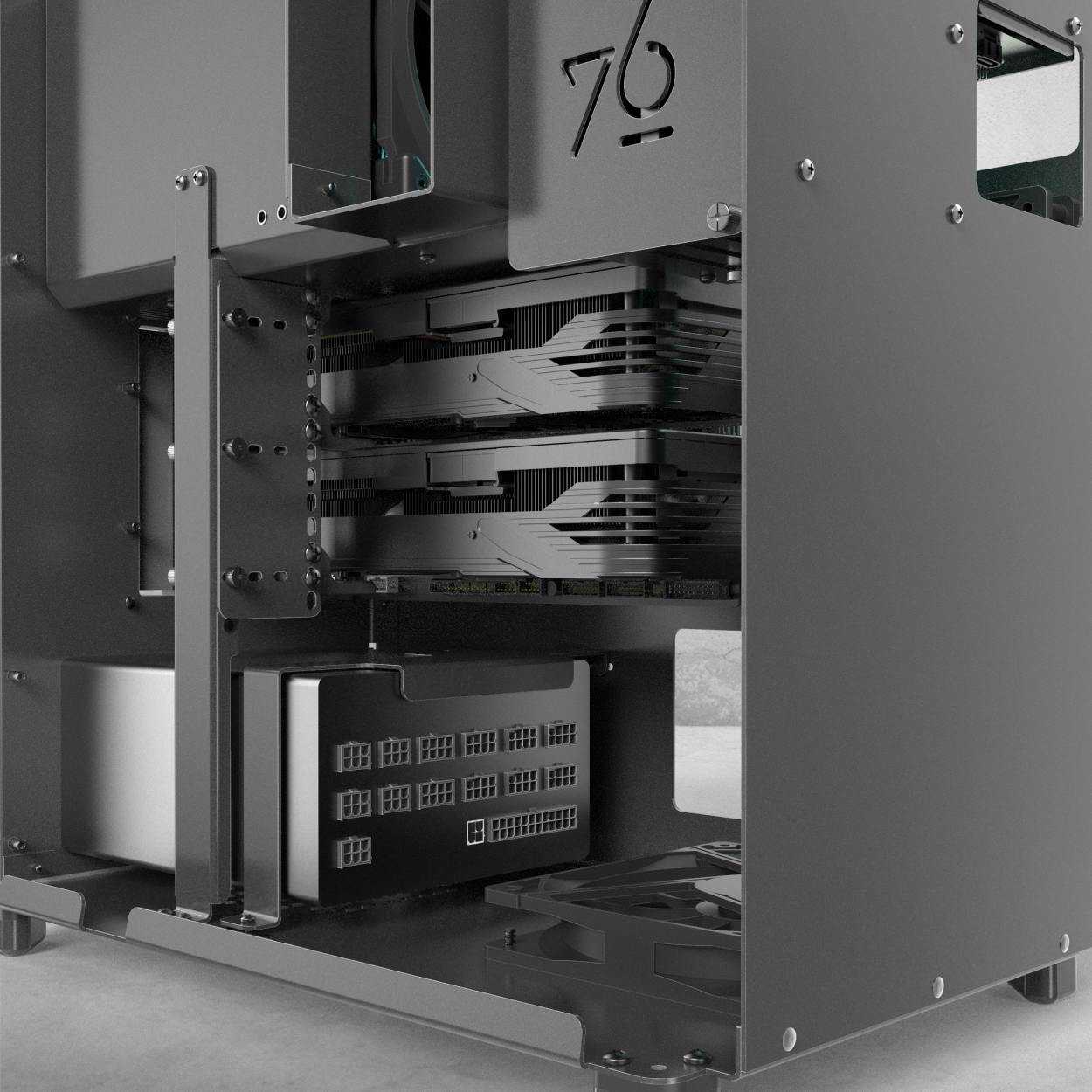

Room for One More

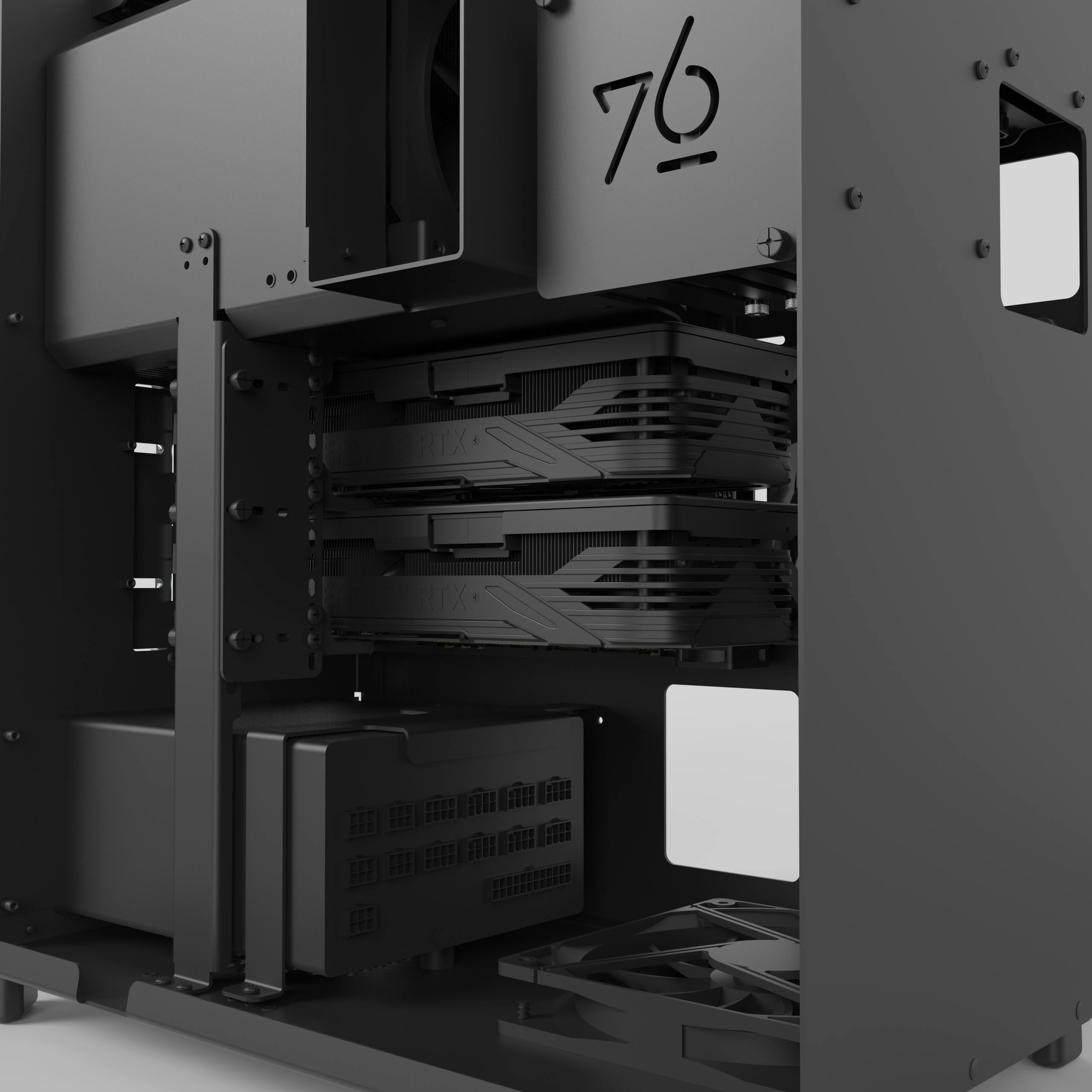

Thelio Major leaves room for up to two large blower GPUs. Thanks to thermal engineering and a progressive fan curve, the heat generated by the graphics cards exhausts effectively without causing your system unnecessary stress.
Controlled Thermal Environment
Chassis-specific thermal engineering yields quiet and effective cooling in perfect balance. The Thelio IO board allows your operating system to monitor the temperature of your GPUs and adjust fan speeds for intensive computing. Large 140mm fans move air more effectively at a lower RPM, producing quieter acoustics. In short, Thelio Major is designed to prevent throttling and run efficiently at every level.

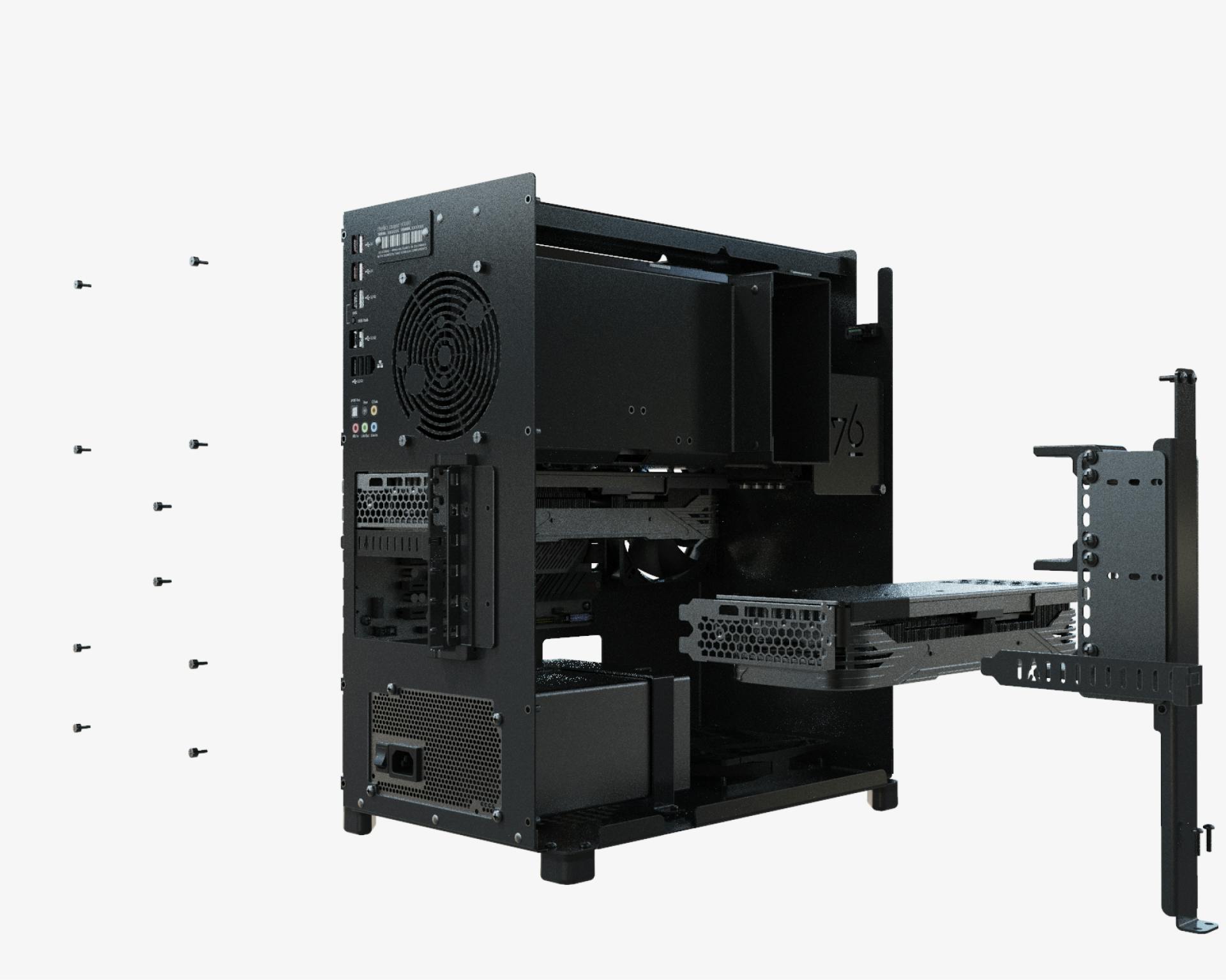

Thelio desktops are designed to provide easy access to your motherboard for upgrades and repairs. Slip in drives, add memory, and upgrade graphics cards at will with our open hardware design.

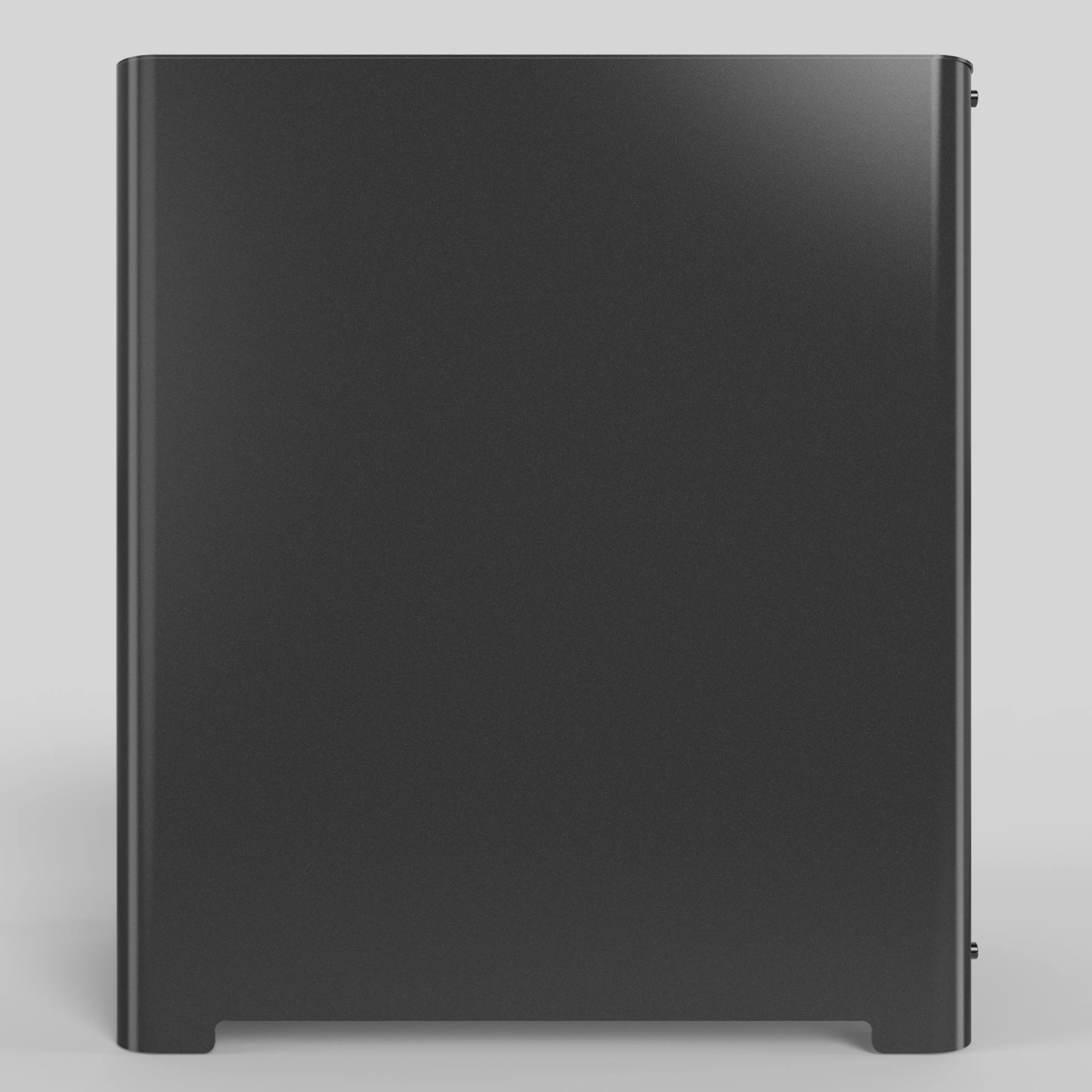

Side Panel Access
Unscrew the lid and access everything in the system. No obstructive wires, no loose parts.

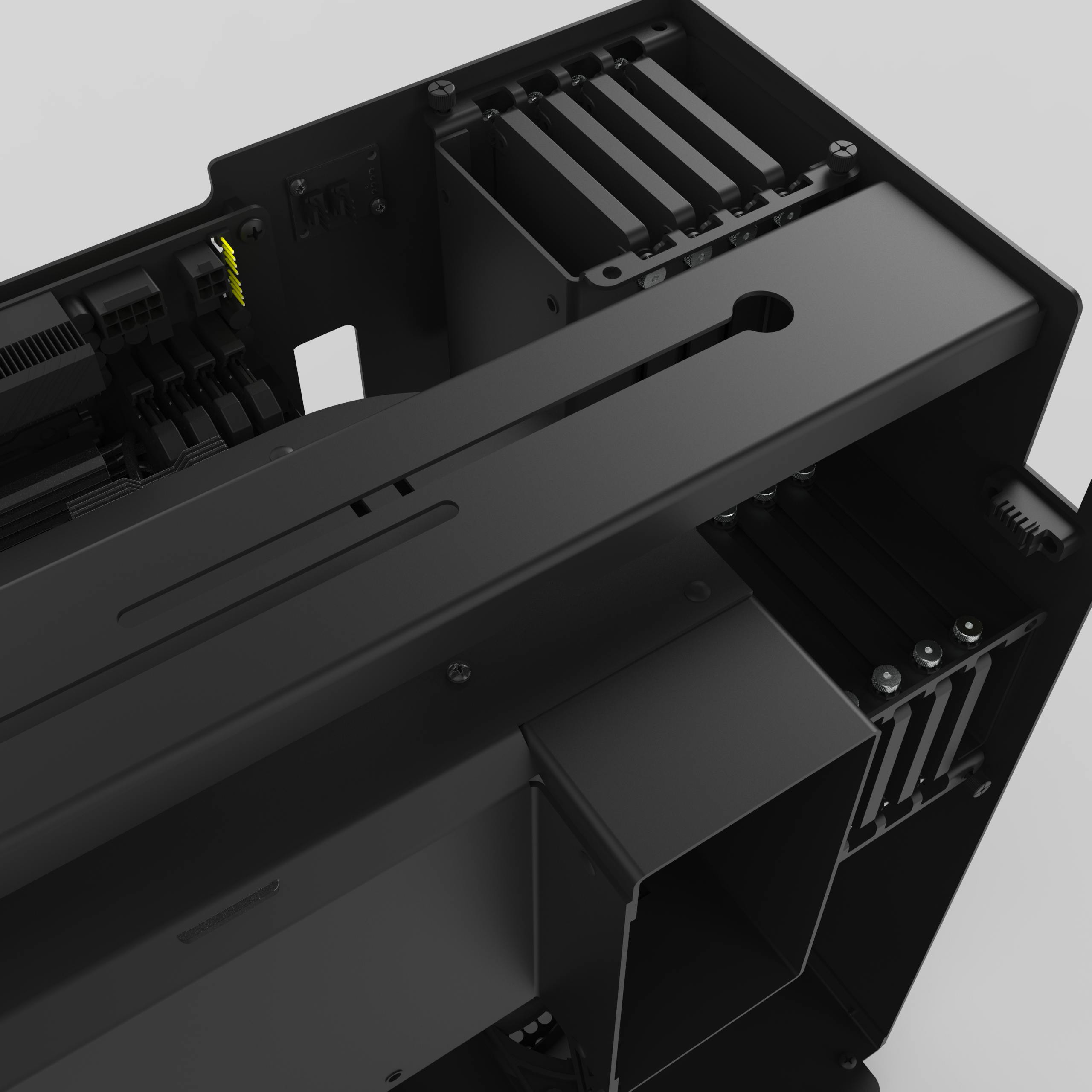

Room (and Wires) for Upgrades
Any wires you’ll ever need are already provided inside the system. Thelio Major accommodates even the largest, most powerful GPUs on the market.

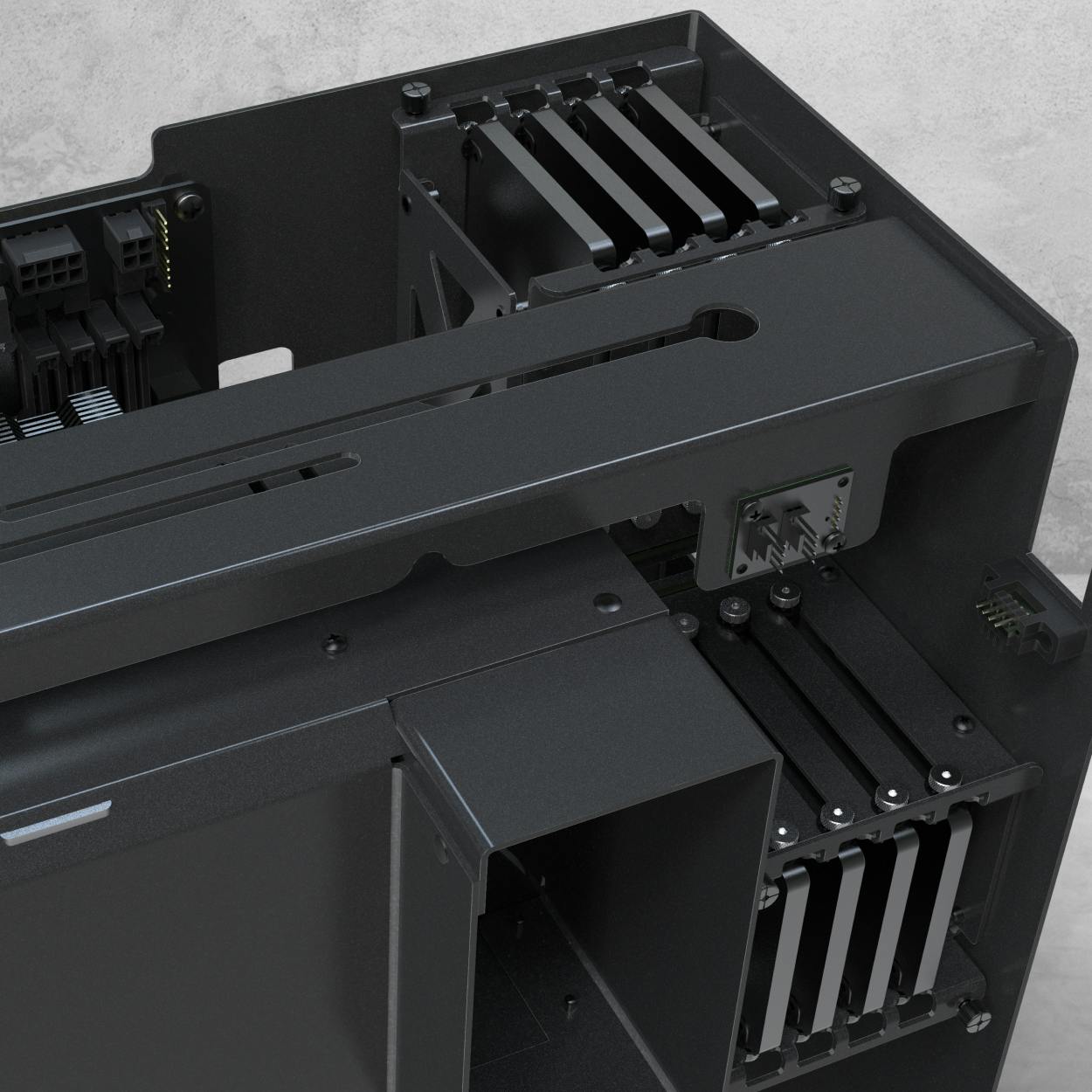

Easy Storage Expansion
The screw bay on the top bar houses enough screws to install the maximum number of 2.5” storage SSDs. Hot swappable drives slide in and out of the aluminum drive cage with ease.
MAKE IT YOUR OWN
Create the best system to set yourself up for success. Customize Thelio Major to fit your needs with a wide variety of HEDT component options across the board.
- Intel Core-X CPUs
- Up to 256GB of Memory
- 5 GbE and 1 GbE Ethernet
- Up to 80TB of Storage
- Wi-Fi 5
- AMD or NVIDIA graphics
- 2 x Thunderbolt 3
- AMD Threadripper 3 CPUs
- ECC Memory for better data integrity
- 1 GbE Ethernet
- Up to 88TB of Storage
- Fast Wi-Fi 6
- AMD or NVIDIA graphics
- PCIe Gen 4.0 Storage and Graphics support
HANDCRAFTED IN DENVER, CO

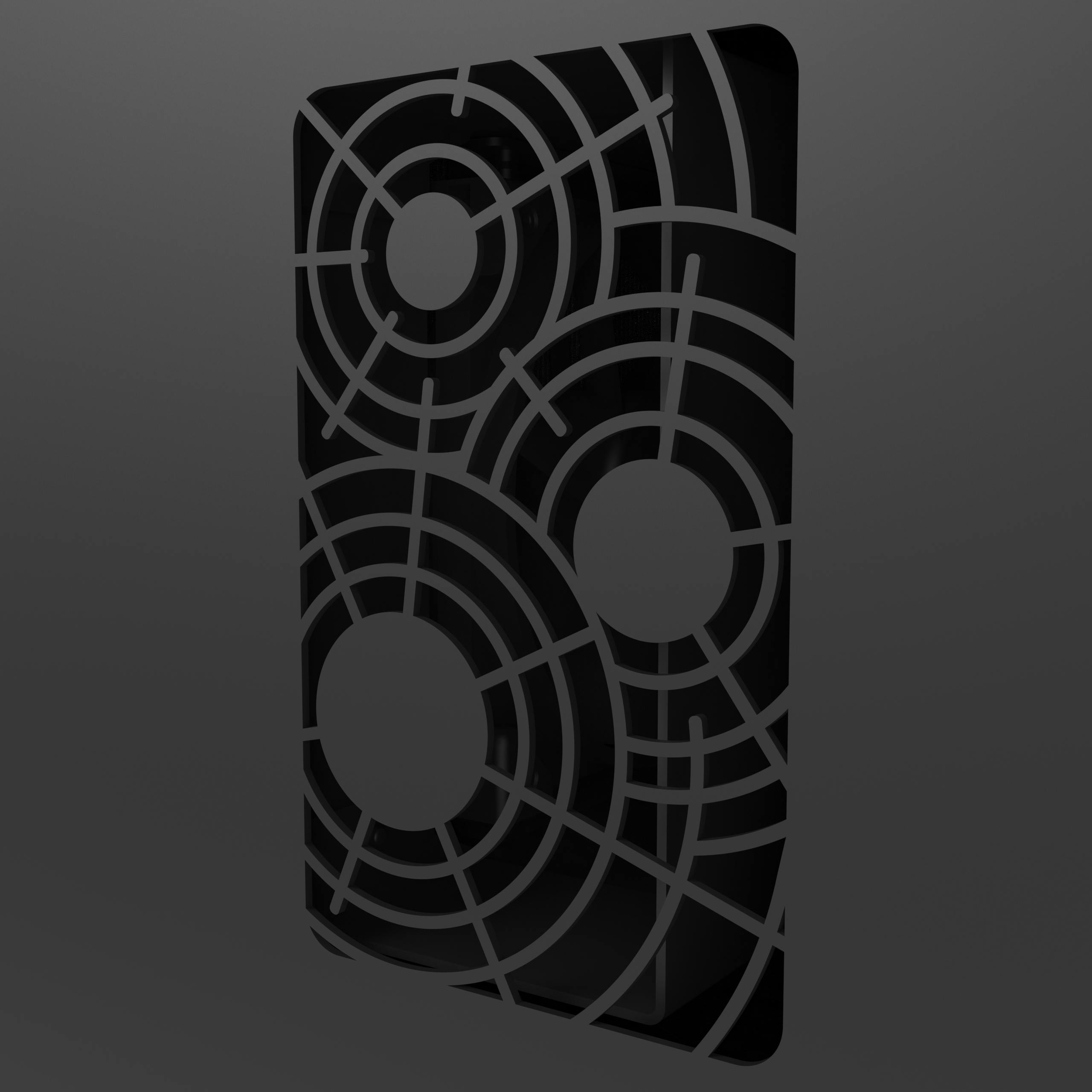

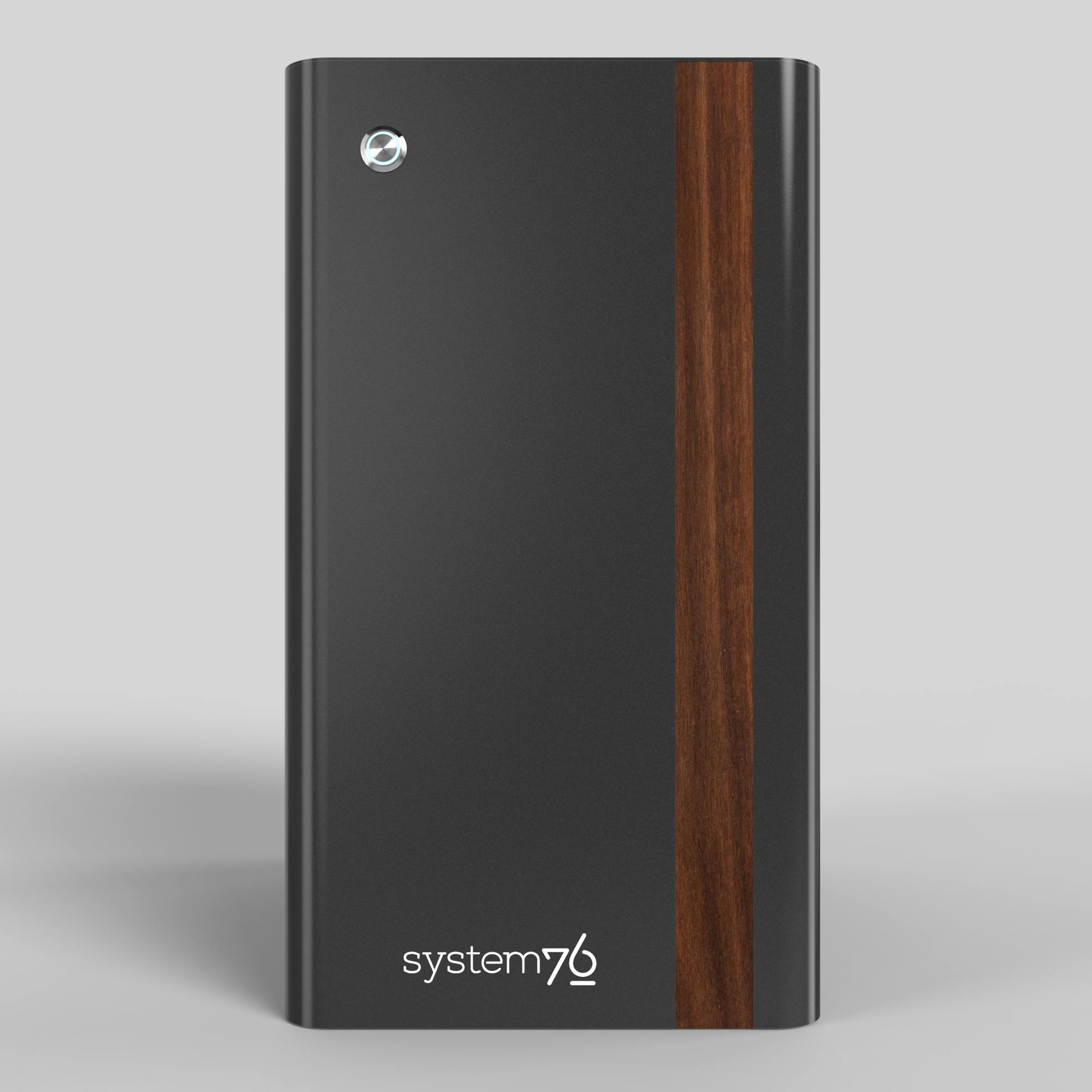

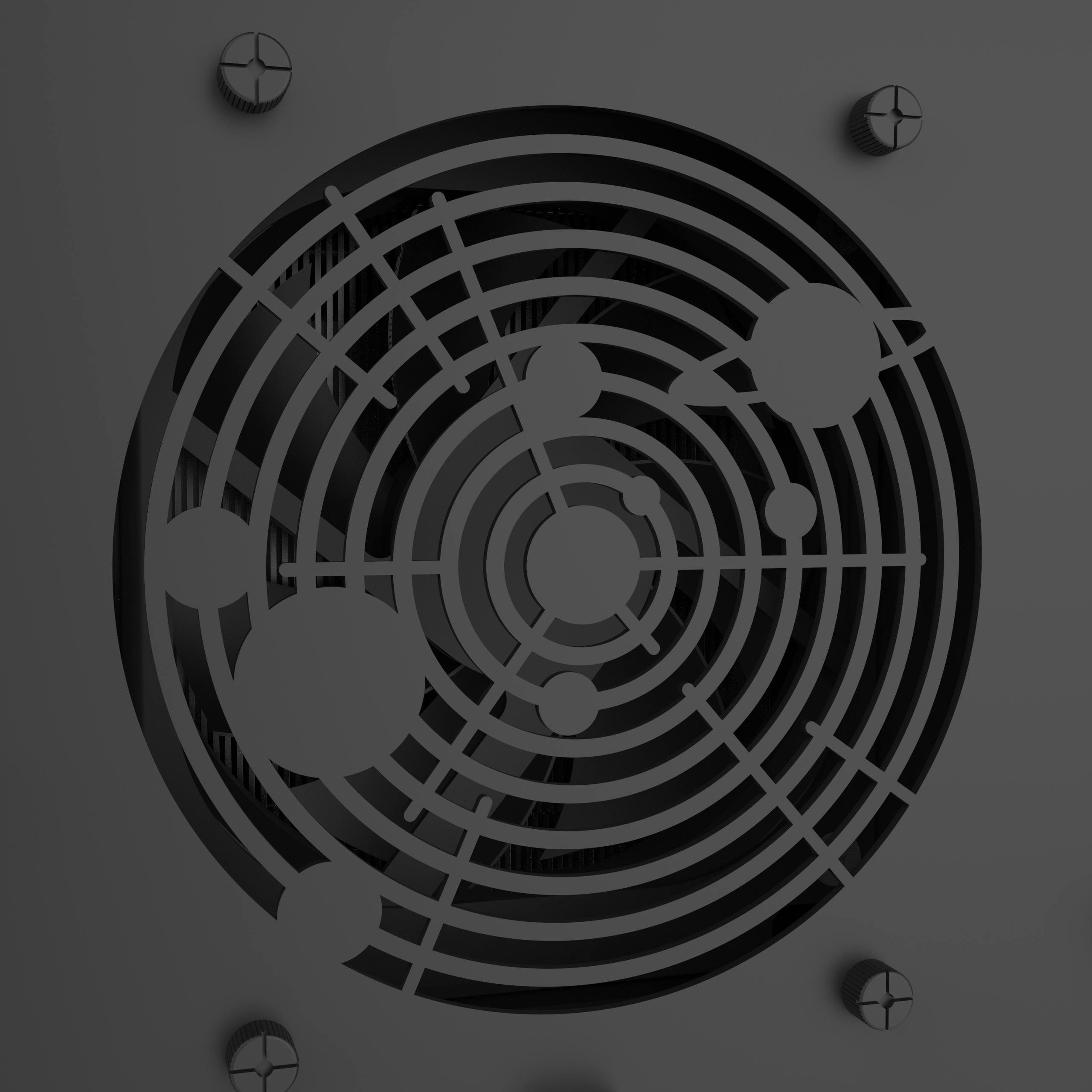

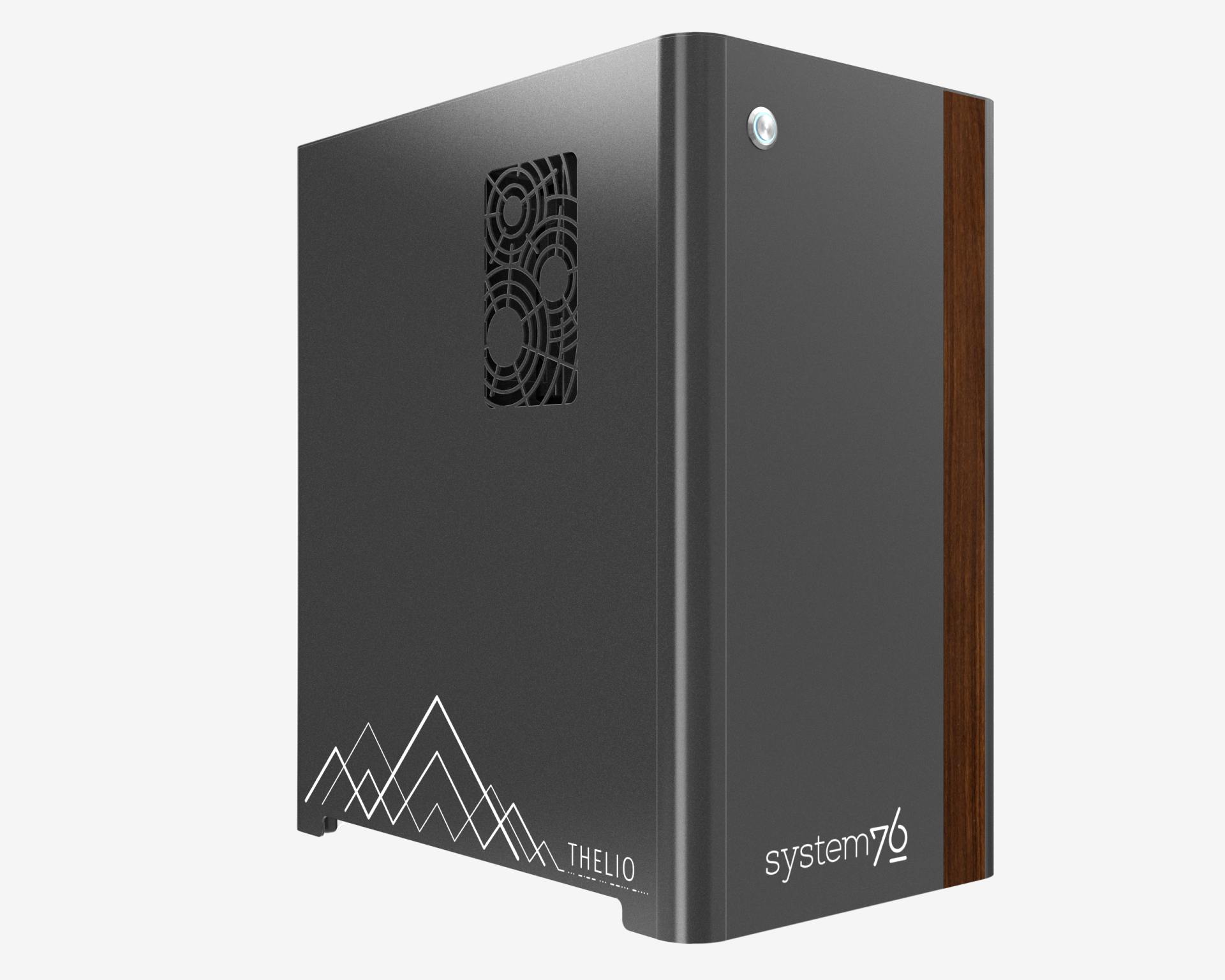

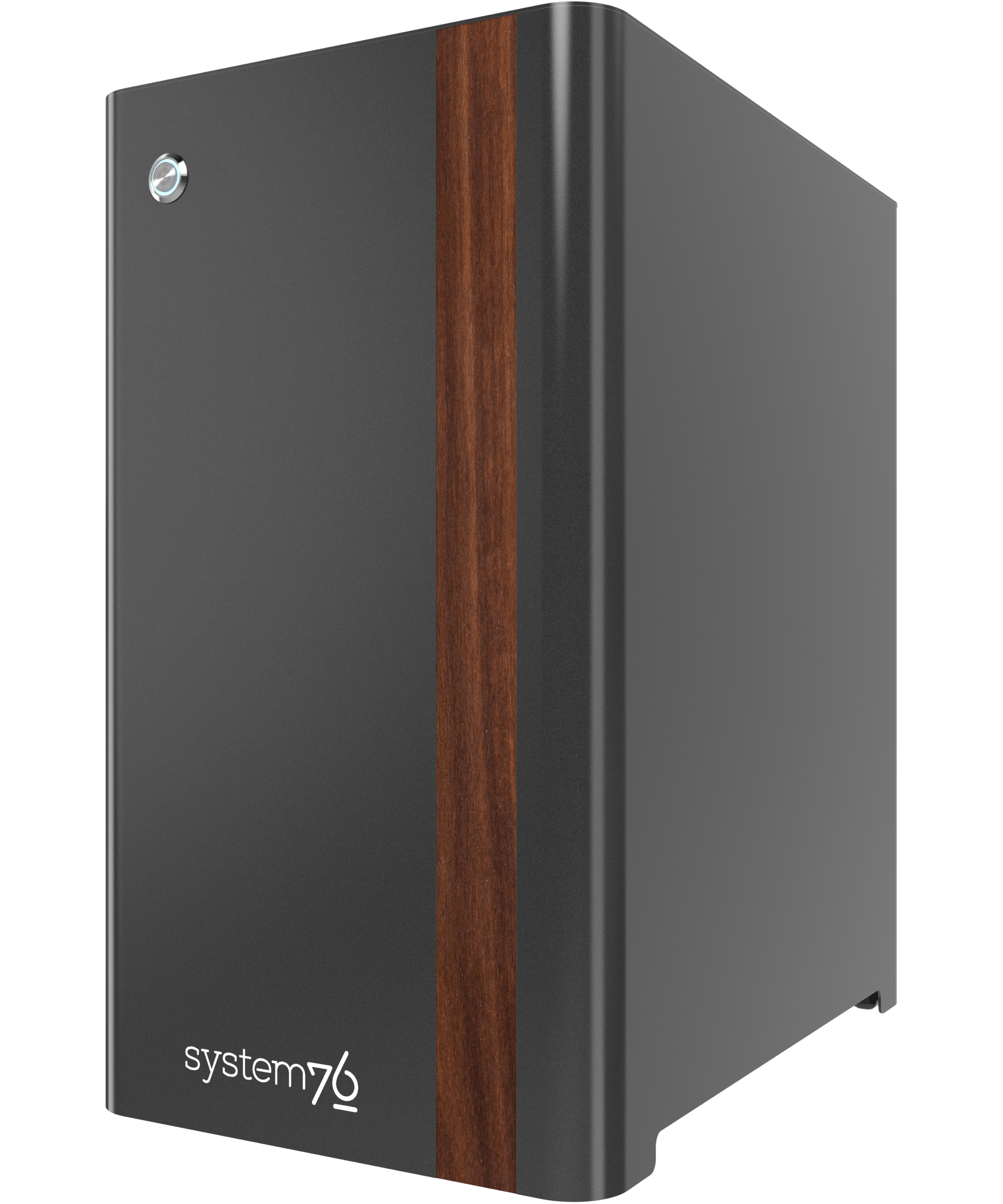

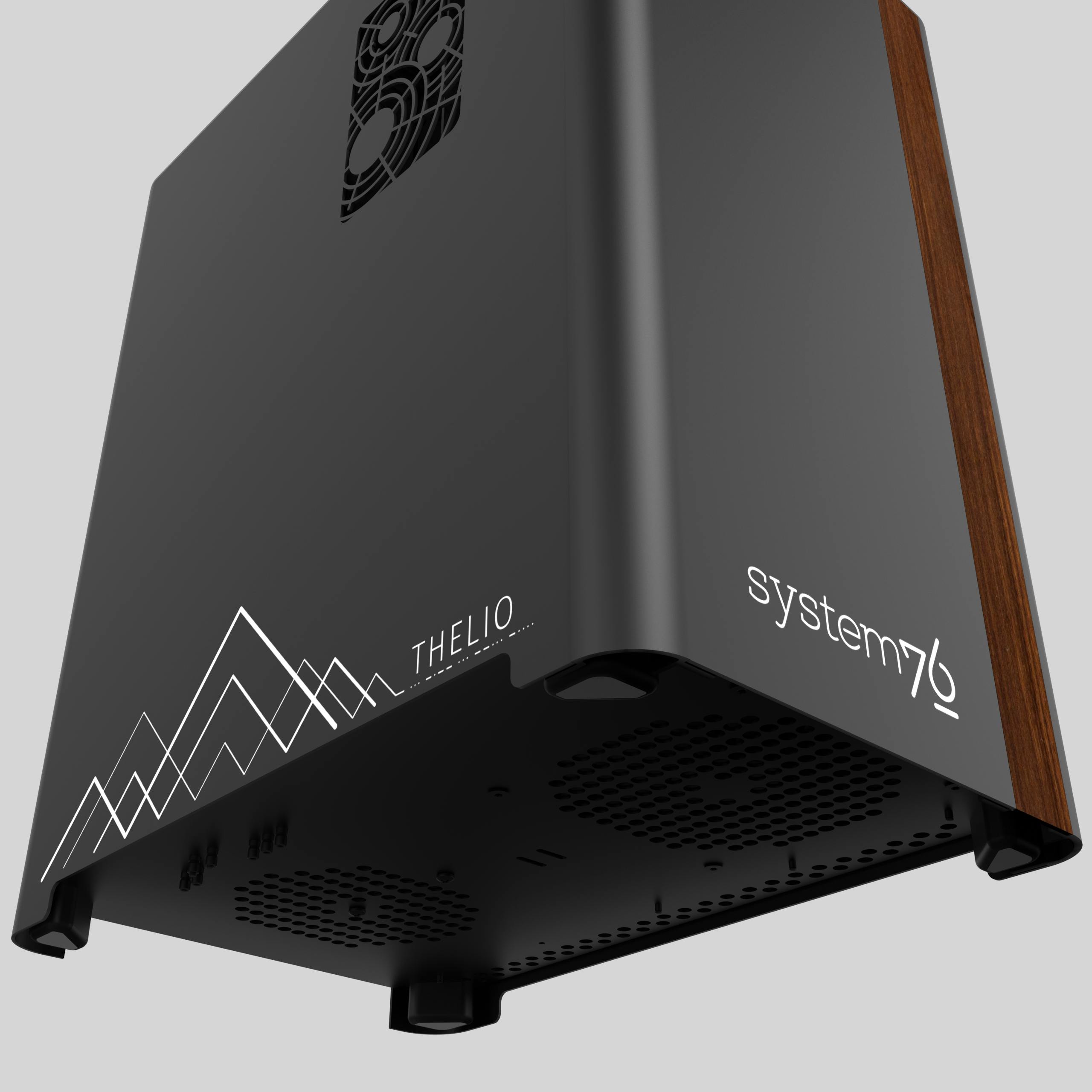

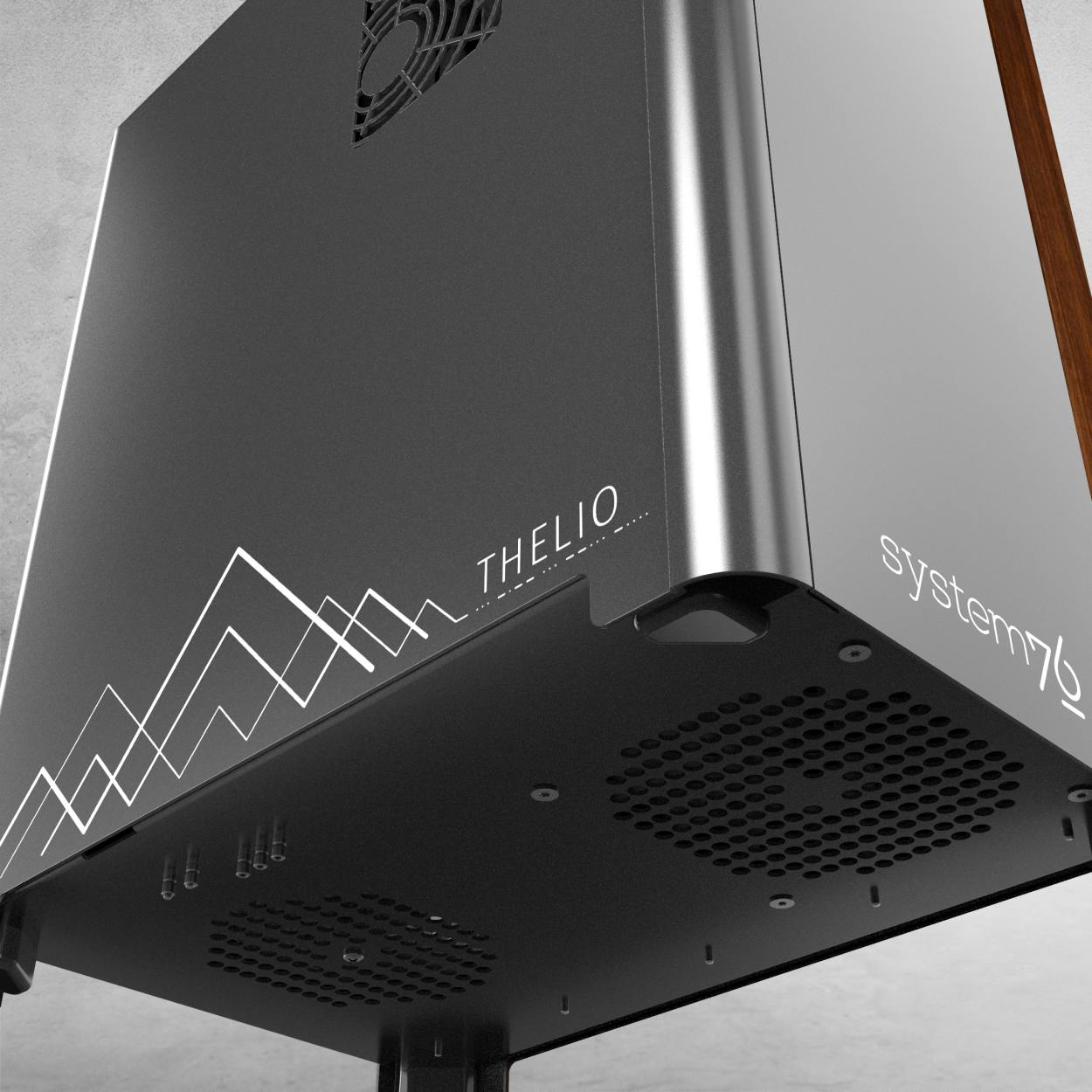

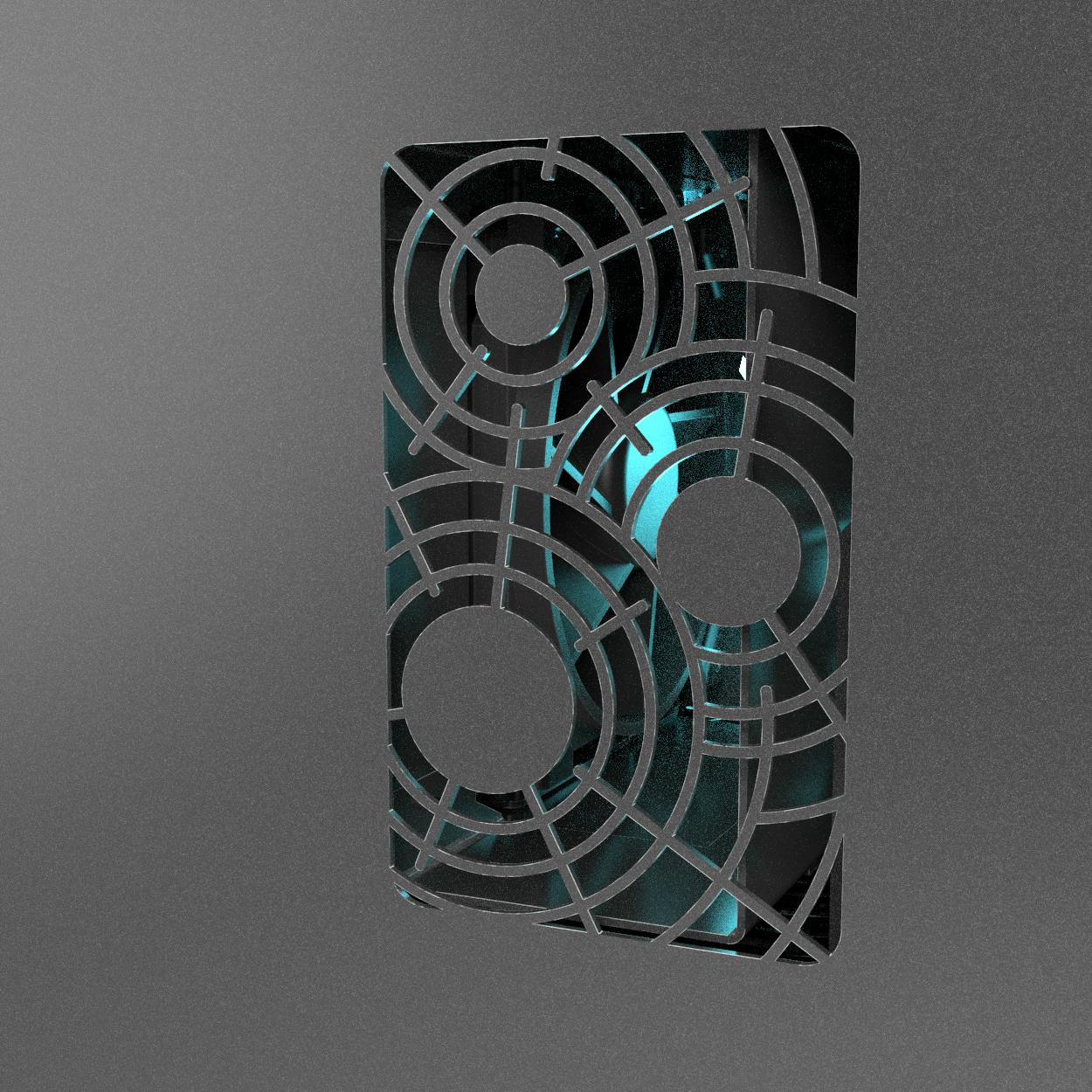

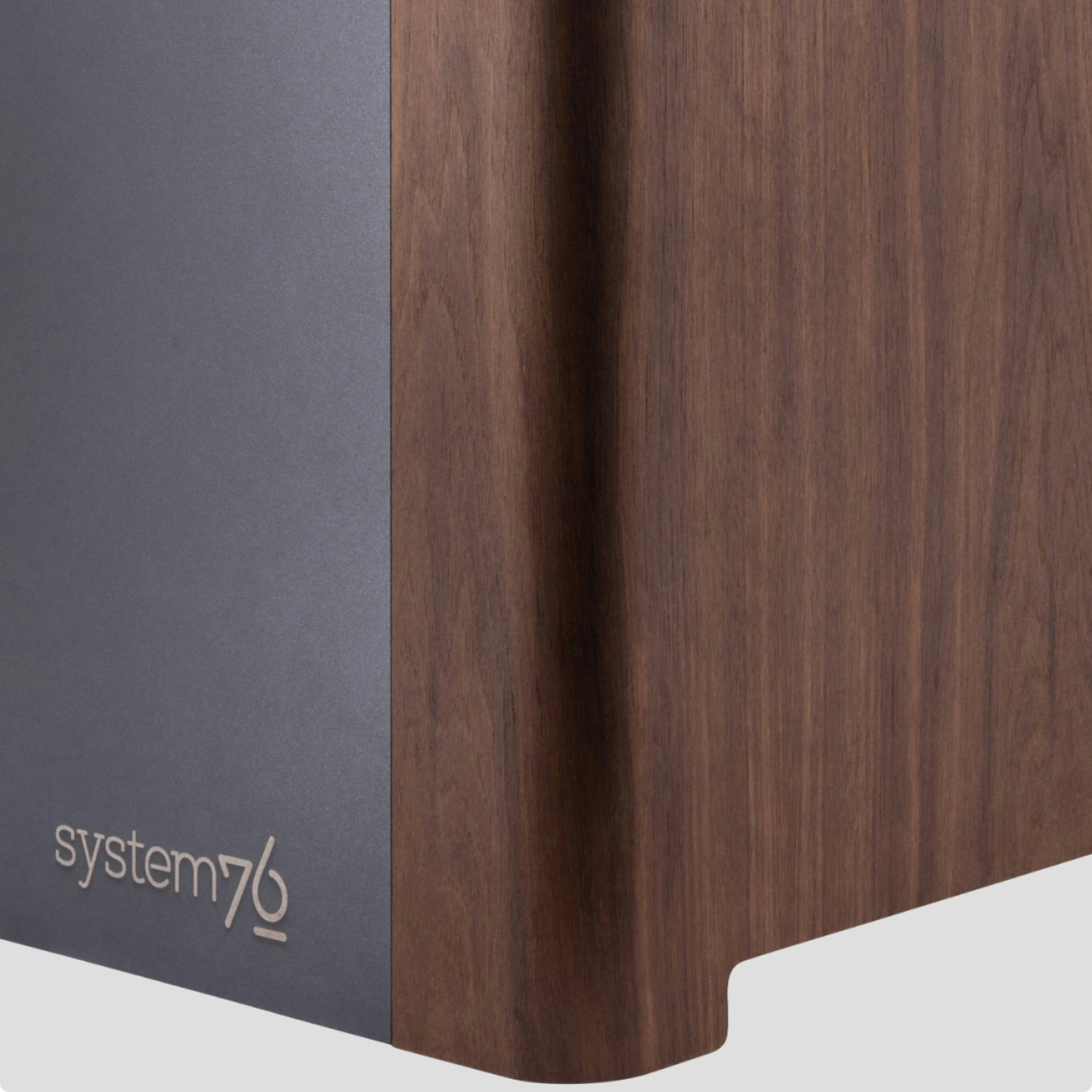

Rigid aluminum is cut, powder coated, and molded into a light, durable chassis. From the 3-Body Problem intake to the subtle mountainscape etch, Thelio Major adds elegance and character to your desk. Personalize it with natural or stained wood veneer options.
Add Ports with Launch Keyboard
- Match your Thelio
- Dual, high-speed USB-A and USB-C ports
- Optimized for Pop!_OS
- Fully configurable
- Customizable colors and LEDs
- Buy separately or add when configuring your Thelio
UNLEASH YOUR POTENTIAL ON POP!_OS
What could you accomplish at peak efficiency? Develop a new software feature. Finalize your animated short film. Model the latest iteration of your IOT device.
Thelio Major pairs with Pop!_OS to keep you progressing at full speed, every step of the way. Auto-Tiling, Workspaces, and Keyboard Navigation accelerate your workflow with comprehensive shortcuts.
- Operating System
Pop!_OS 21.04 (64-bit), Pop!_OS 20.04 LTS (64-bit), or Ubuntu 20.04 LTS (64-bit)
Intel® Core™ X series
Up to 2× Graphics Cards
AMD® or NVIDIA® Graphics available
- Video Ports
Dependent on GPU selection:
GT 710: Varies based on model
Radeon RX 6700 XT: 3 × DisplayPort, 1 × HDMI
Radeon RX 6800: 3 × DisplayPort, 1 × HDMI
Radeon RX 6800 XT: 3 × DisplayPort, 1 × HDMI
Radeon RX 6900 XT: 2 × DisplayPort, 1 × HDMI, 1 × USB-C
RTX 3070: 3 × DisplayPort, 1 × HDMI
RTX 3080: 3 × DisplayPort, 1 × HDMI
RTX 3090: 3 × DisplayPort, 1 × HDMI
Quadro RTX 4000: 3 × DisplayPort, 1 × DisplayPort over USB-C (VirtualLink)
Quadro RTX 5000: 4 × DisplayPort, 1 × DisplayPort over USB-C (VirtualLink)
Quadro RTX 6000: 4 x DisplayPort, 1 × DisplayPort over USB-C (VirtualLink)
Quadro RTX 8000: 4 x DisplayPort, 1 × DisplayPort over USB-C (VirtualLink)
Up to 256 GB Quad Channel DDR4
Up to 80 TB, M.2 NVMe and 2.5″ SATA drives

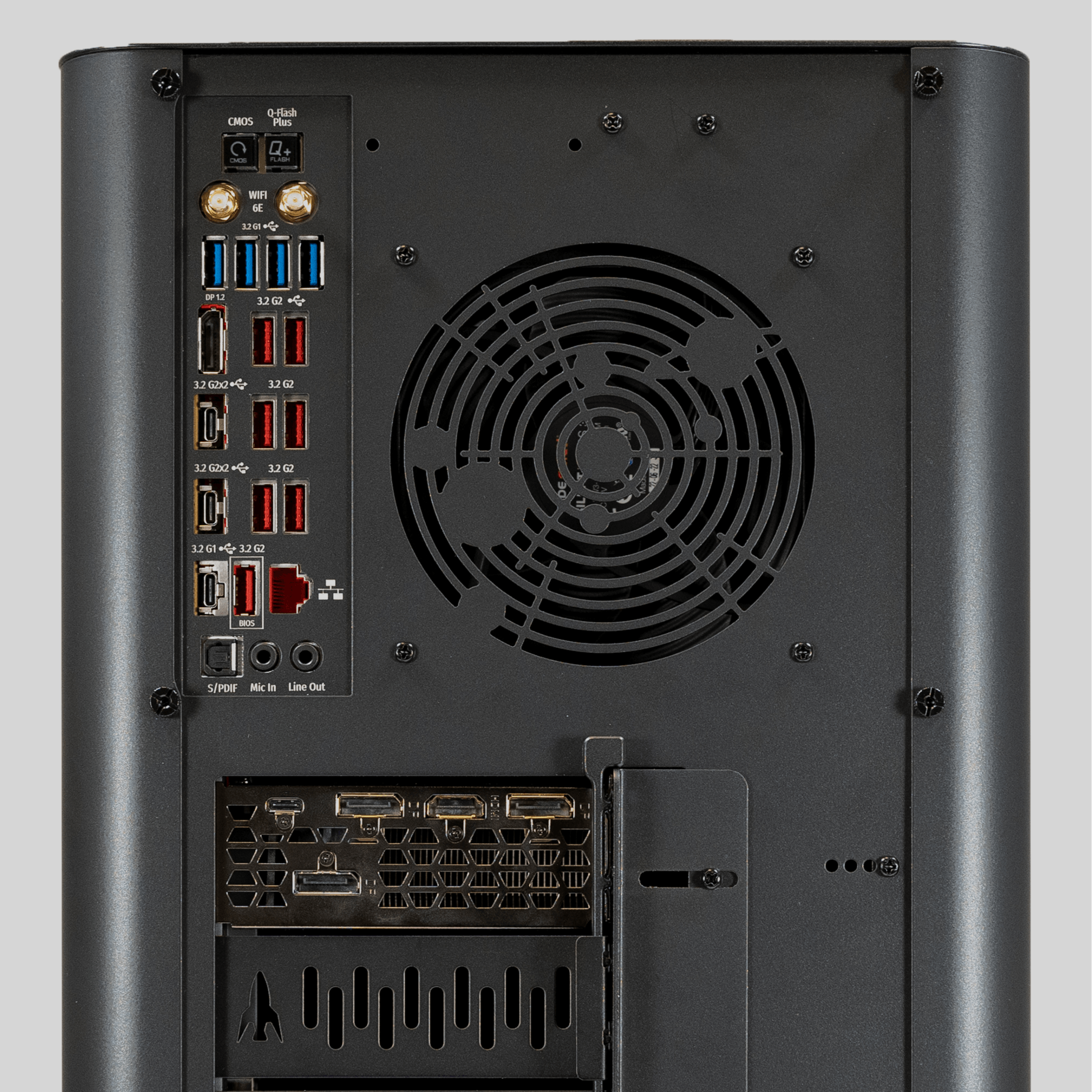

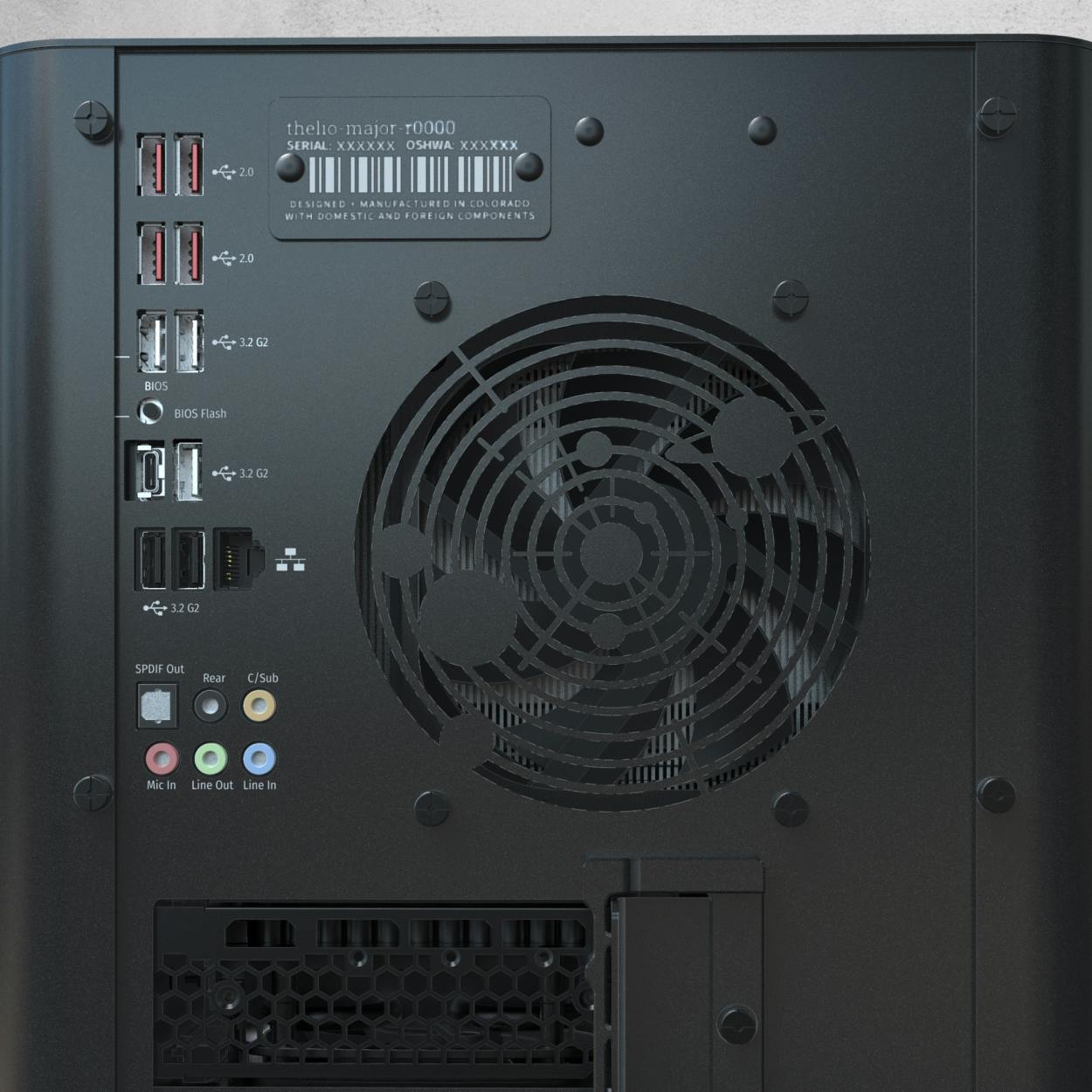

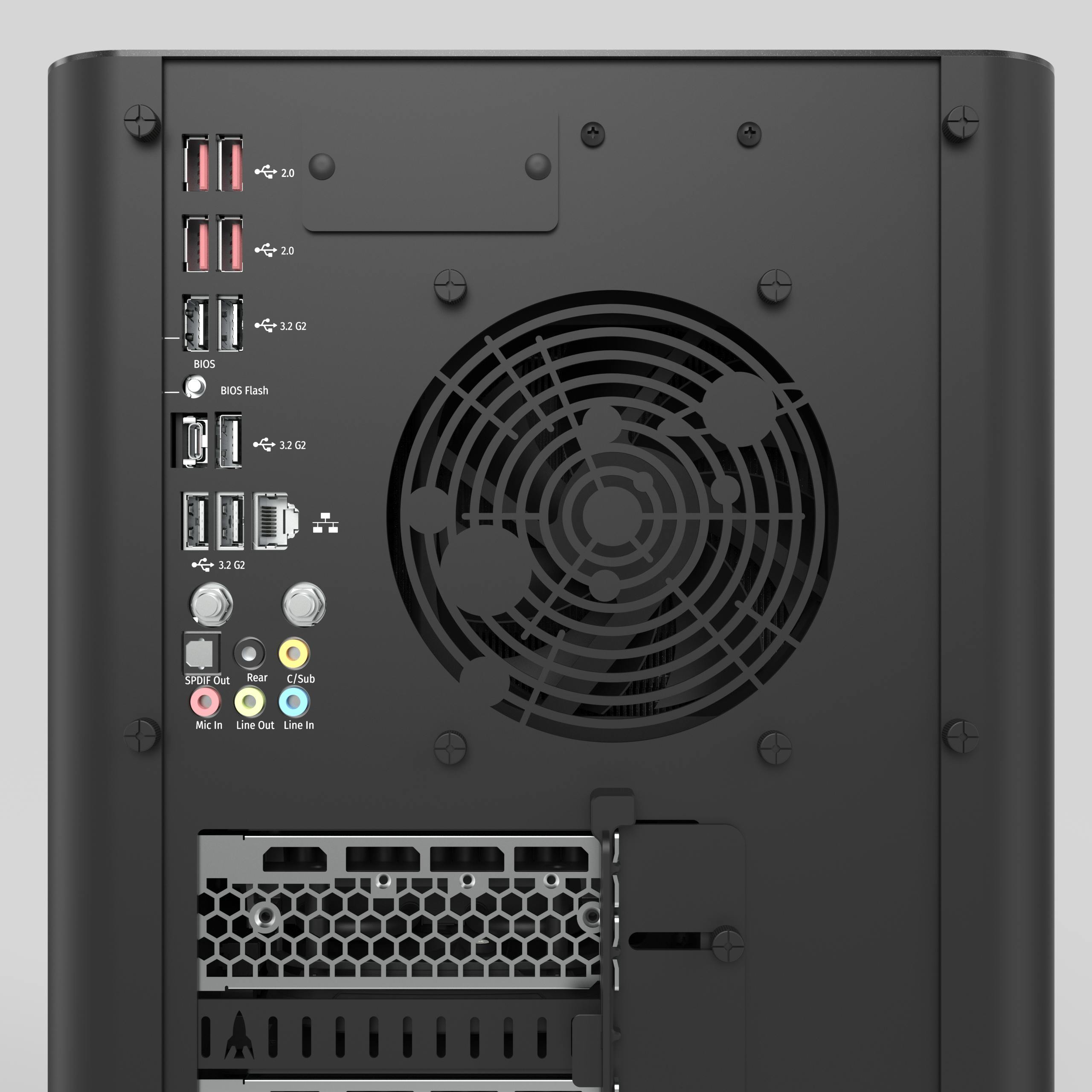

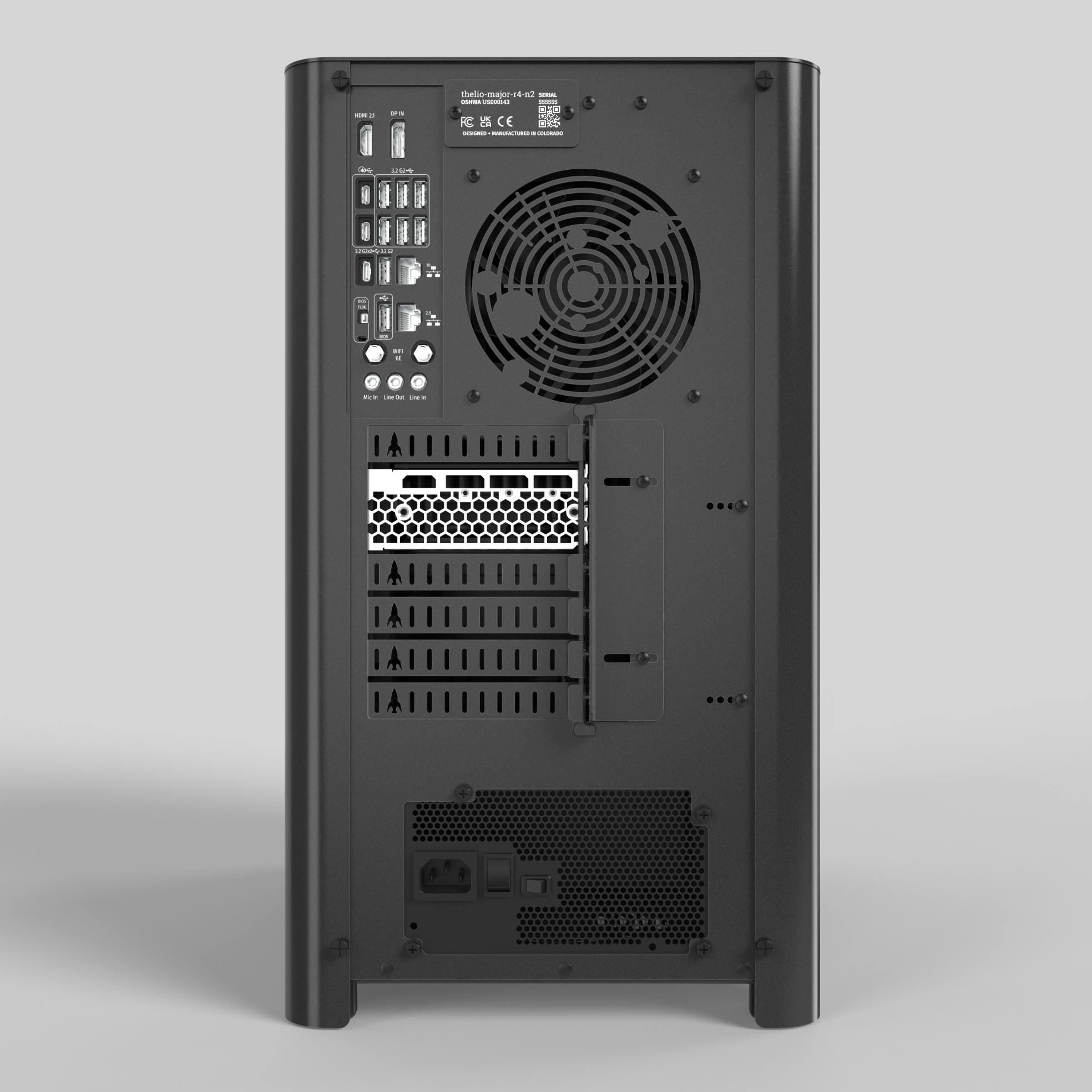

- Rear Ports
2× USB 3.2 Gen 2x2 Type C/Thunderbolt™ 3, 4× USB 3.1 Gen 1 Type A, 2× USB 2.0 Type A, 1× GBe RJ-45 Port, 1× 5 GBe RJ-45 Port
- Rear Audio
5 × Audio Jacks, 1 × Optical S/PDIF out
1 × 5 GbE LAN
1 × GbE LAN
Built-in Intel® WiFi 5 + Bluetooth 5.0
- Power Supply
1000W 80+ Certified (90% or greater power efficiency)
Height × Width × Depth
18.19″ × 10.32″ × 16.06″ (462 × 262 × 408mm)
