- Dual Intel XEON E5 v4 processors
- Up to 1.5 TB of memory
- Up to 64 TB of hot swap storage
- Dual 10 Gigabit network adapters
- Optional independent SSD Ubuntu installation
Tech Specs
| Operating System | Ubuntu Server 16.04.3 LTS (64-bit) or Ubuntu Server 17.04 (64-bit) |
| Processor | Dual Socket Intel Xeon E5 v4 2600 Series |
| Virtualization | Intel VT |
| Memory | Up to 1536 GB Quad-channel Registered ECC DDR4 @ 2400 MHz |
| Storage | Up to 8× 3.5″ drives, 48 TB of SATA III storage (JBOD, RAID 1, 5, or 10) |
| LSI RAID Features | Management Suite, SNMP support, Online Capacity Expansion, RAID Level Migration |
| Networking | Dual 10 Gigabit Ethernet |
| Graphics | Integrated graphics with VGA out |
| Expansion | Dependent on CPU options 1st CPU: 2× PCIe x8 Gen 3 (optional RAID conroller will occupy one slot) 2nd CPU: adds 5× PCIe x8 Gen 3, 1× PCIe x4 Gen 3 |

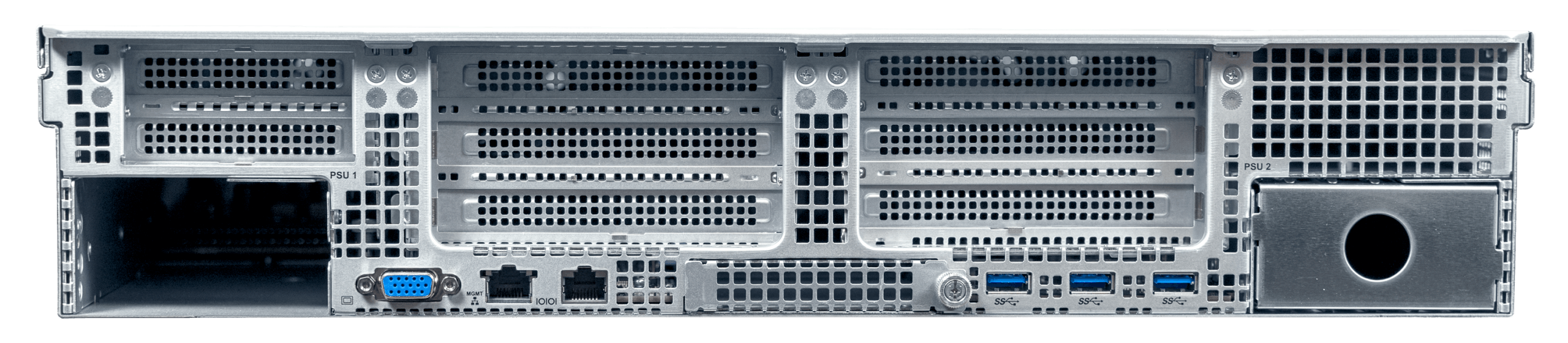

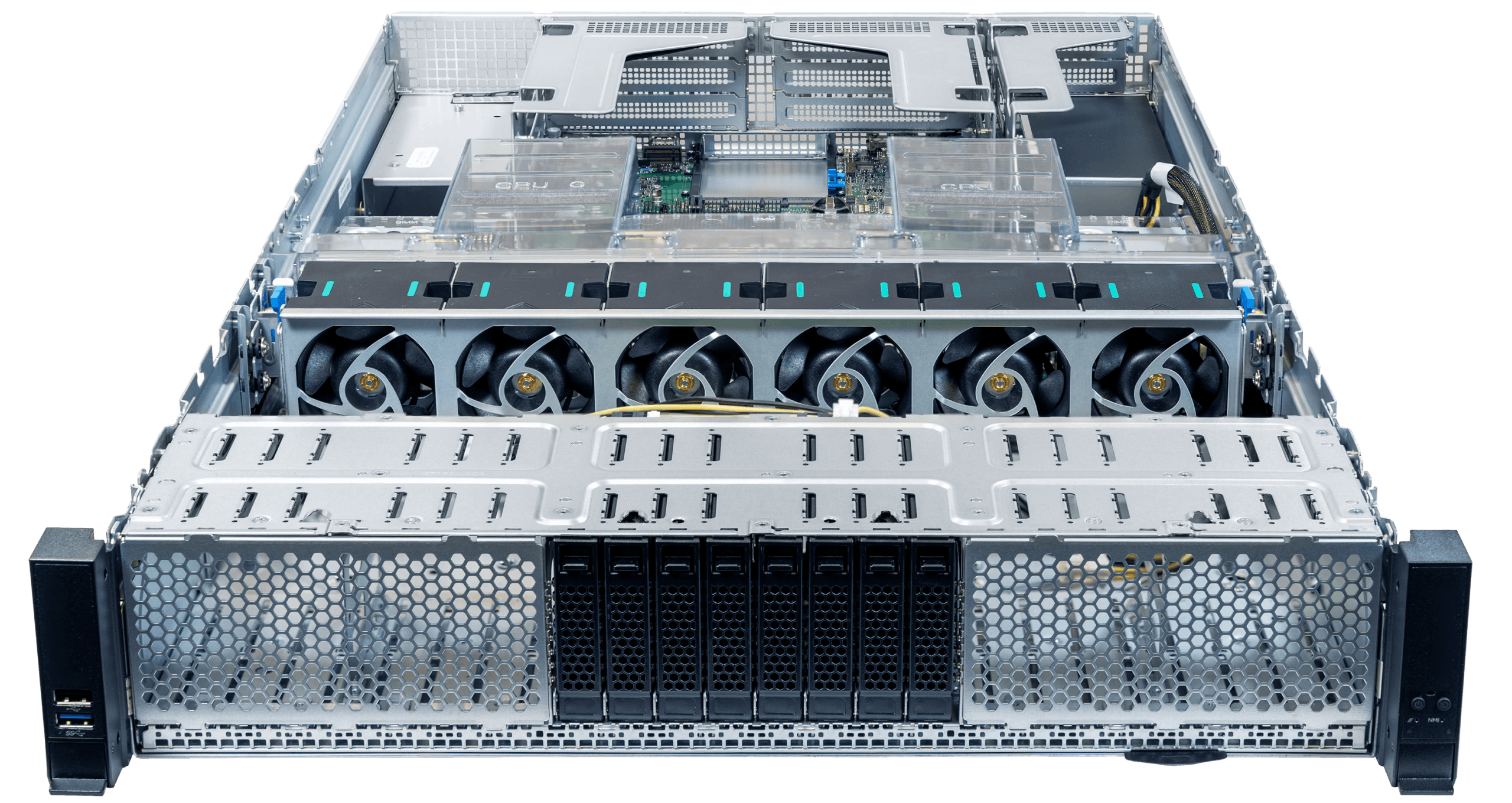

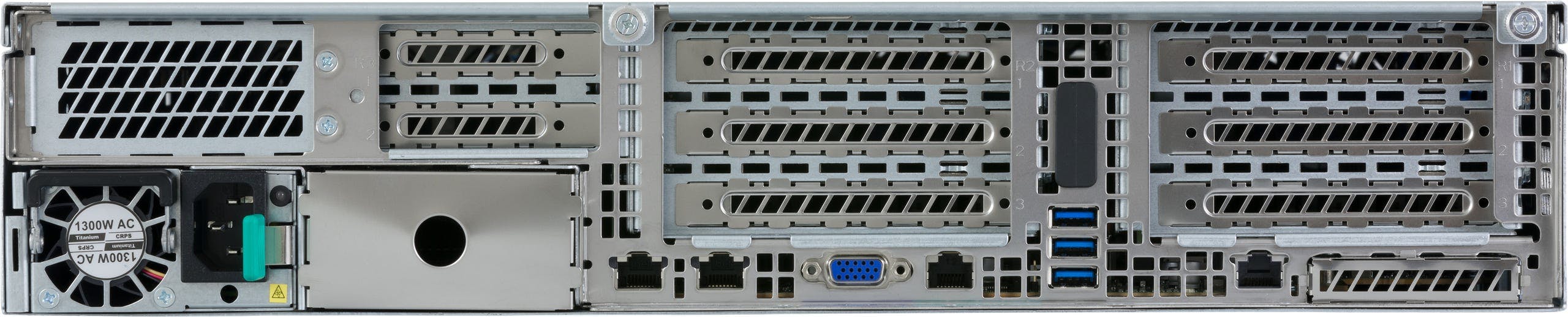

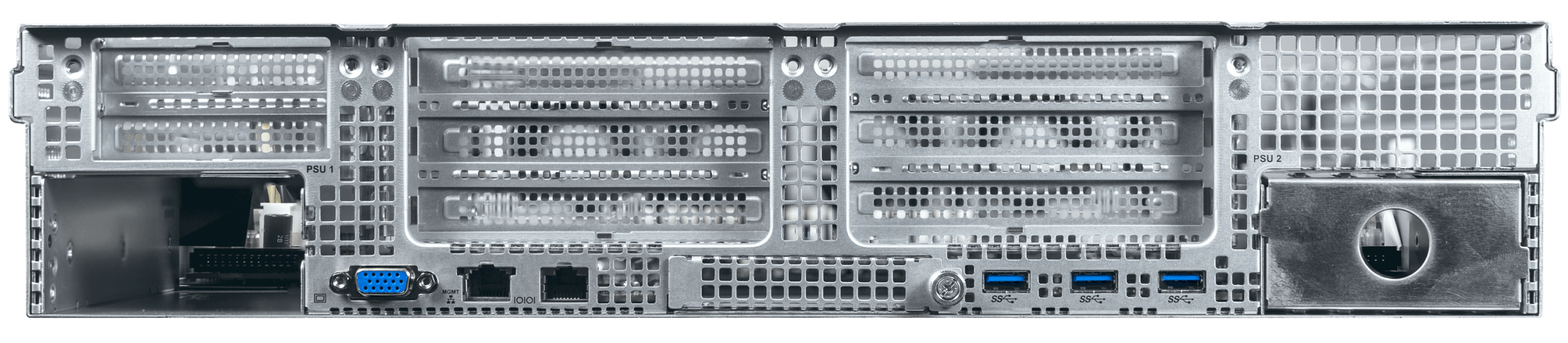

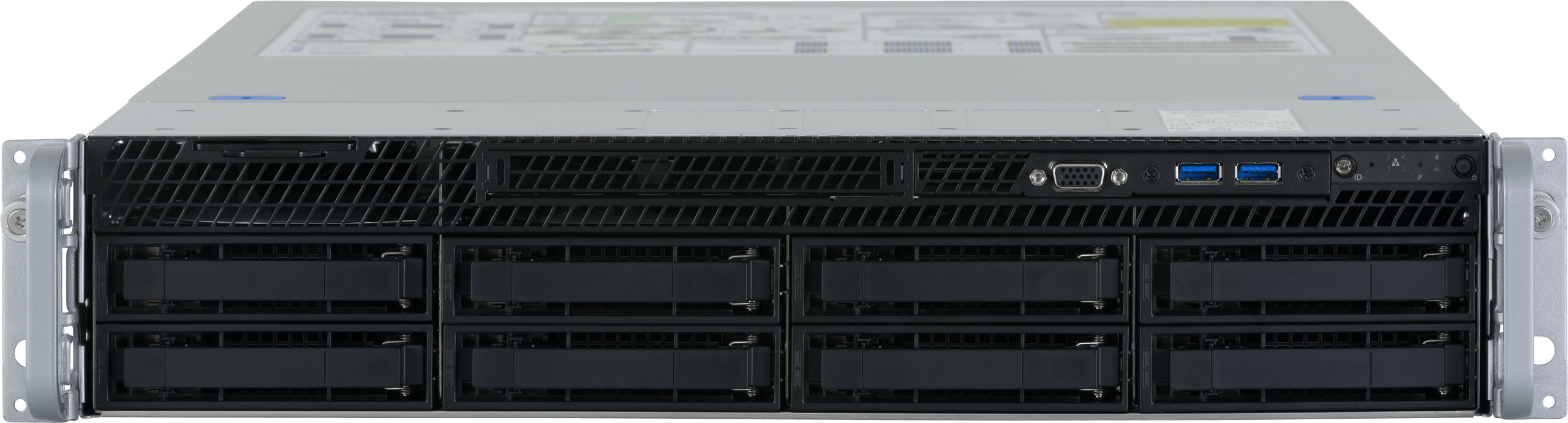

| Data Ports | Front: Power on/off button, Locate button, VGA, 2× USB 3.0 Rear: 3× USB 3.0, 1× VGA, 1× Serial port, 2× 1 Gigabit LAN (10 Gigabit optional), 1× management via LAN port |
| LEDs | Front: Power, System Status, Locate, NIC Activity, HDD Activity |
| Power Management | Suspend |
| Power Supply | 1100 Watt High Efficiency w/optional Dual Redundancy |
| Dimensions | 16.9″ × 27.9″ × 3.4″ (43 × 70.99 × 8.74cm) |
| Weight | 38 lbs (17.24 kg) Base weight. Varies on configuration. |
| Model | jacp11 |
