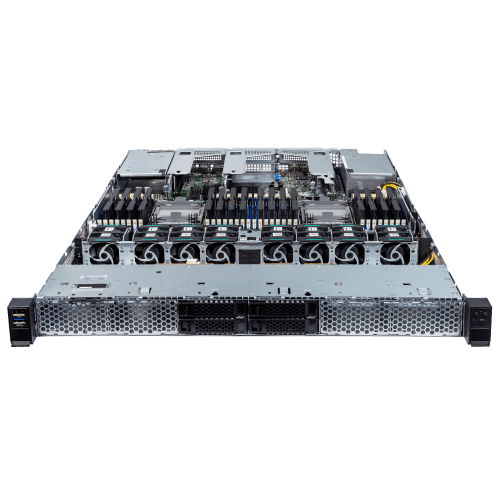

Jackal Pro 1U

  • 3rd Generation Intel® Xeon® Scaleable
  • Up to 12x 2.5” hot swap drive bays
  • Up to 8 TB 3200 MHz ECC memory
  • Dedicated M.2 NVMe OS Available
Hero thumbnail background image

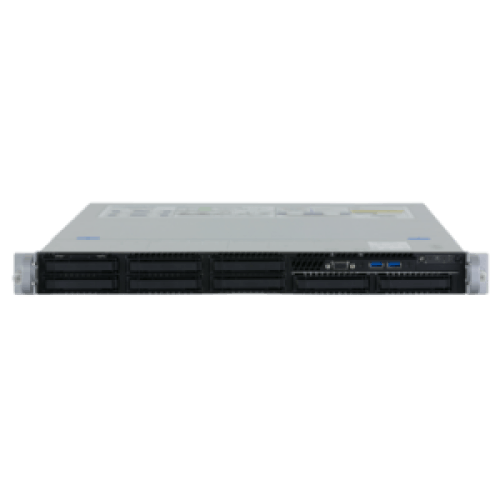

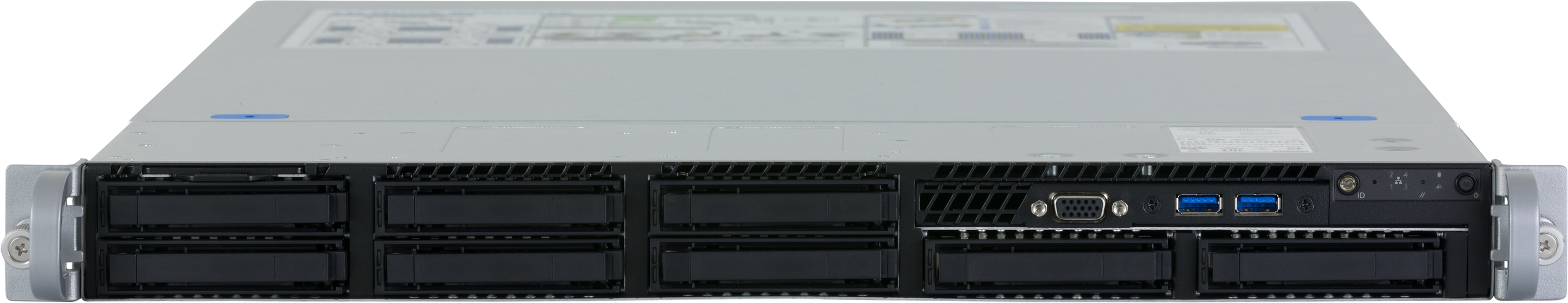

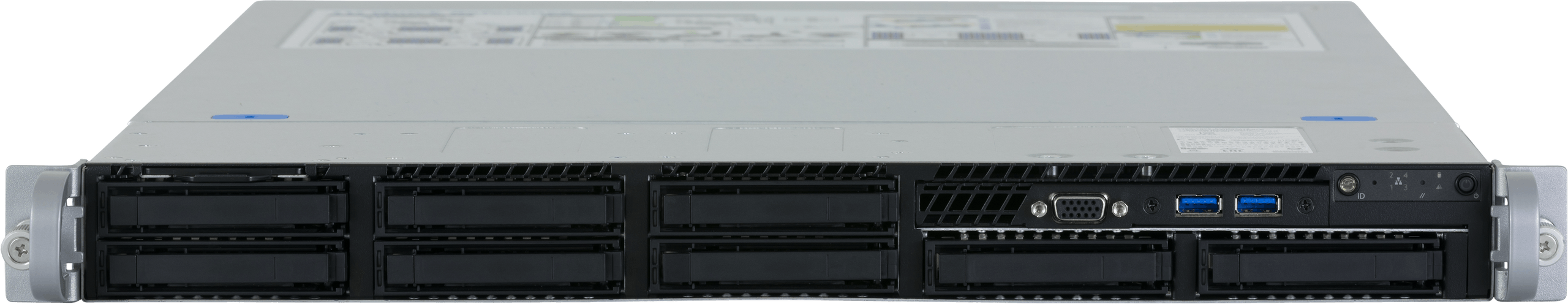

Front ports of the Jackal Pro 1U server
  • 3rd Generation Intel® Xeon® Scaleable
  • Up to 12x 2.5” hot swap drive bays
  • Up to 8 TB 3200 MHz ECC memory
  • Dedicated M.2 NVMe OS Available

Make it your own

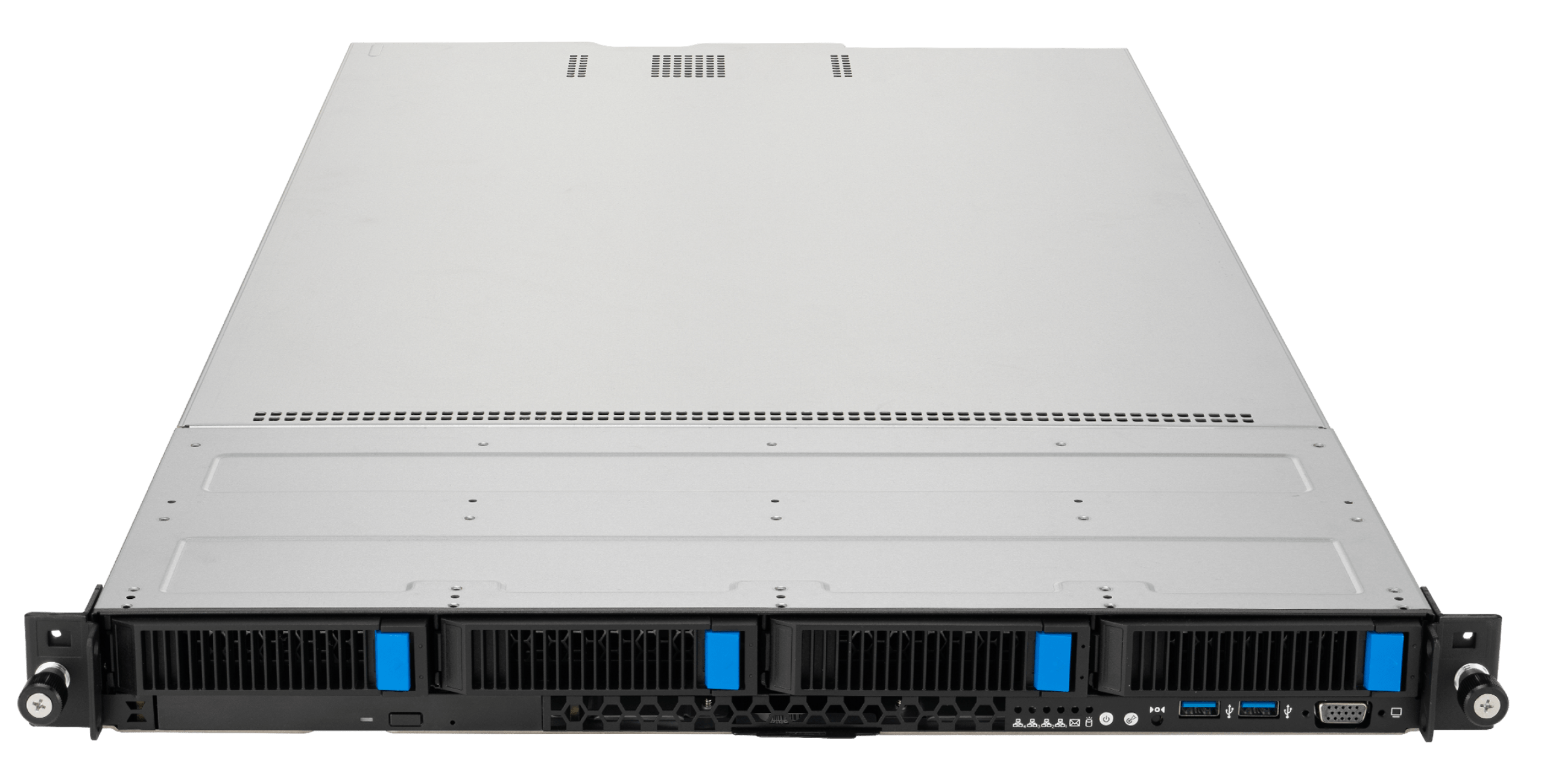

Intel 2.5” SSD/HDD

  • 4x 2.5” SSD/HDD hot swap drive bays
  • Up to Dual 3rd Generation Intel® Xeon® Scaleable
  • Up to 8 Channel 4096 GB ECC DDR4-3200 per processor
  • Available M.2 Gen4 NVMe OS drive
  • Custom Configurations Available Upon Request

Intel 2.5” SSH/HDD

  • 12x 2.5” SSD/HDD hot swap drive bays
  • Up to Dual 3rd Generation Intel® Xeon® Scaleable
  • Up to 8 Channel 4096 GB ECC DDR4-3200 per processor
  • Available M.2 Gen4 NVMe OS drive
  • Custom Configurations Available Upon Request

Jackal Pro 1U

Tech Specs

Operating System

Ubuntu Server 22.04LTS(64-bit)

Processor

Up to Dual 3nd Gen Intel® Xeon® Scalable Processors

Virtualization

Intel VT

Memory

Up to 8192 GB ECC DDR4 @3200MHz (32 DIMM slots)
(Memory speed dependant on CPU model)

Storage

Up to 4× 2.5″ Hot Swap Bays
Up to 2 x M.2 drives

Networking

2 x 1GbE

Expansion

Riser slot 1 - 1 x PCIe x16

Riser slot 2 - 1 x PCIe x16 or 1 x PCIe x16 and PCIe x8 NVMe Riser Card

Riser slot 3 - 2 x PCIe x8 two slot NVMe Riser Card

Ports

Front: Power on/off button, 1× USB 3.0, 1x USB 2.0

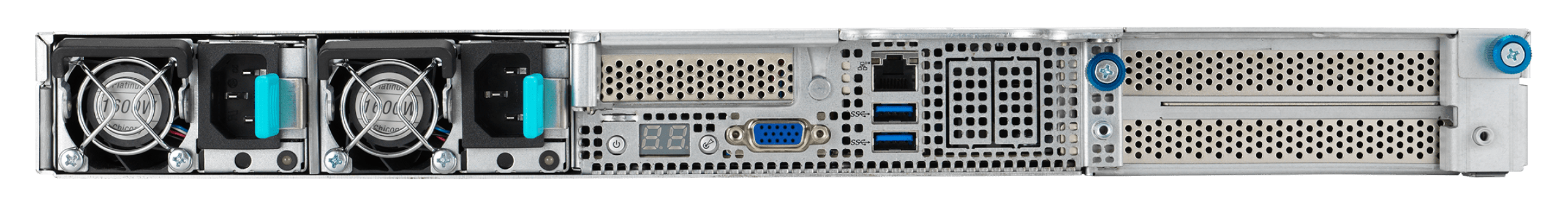

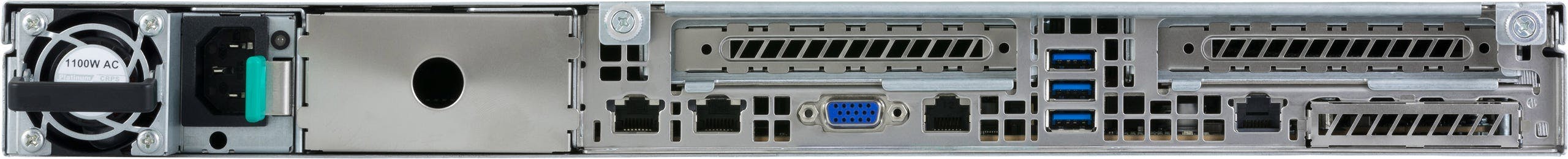

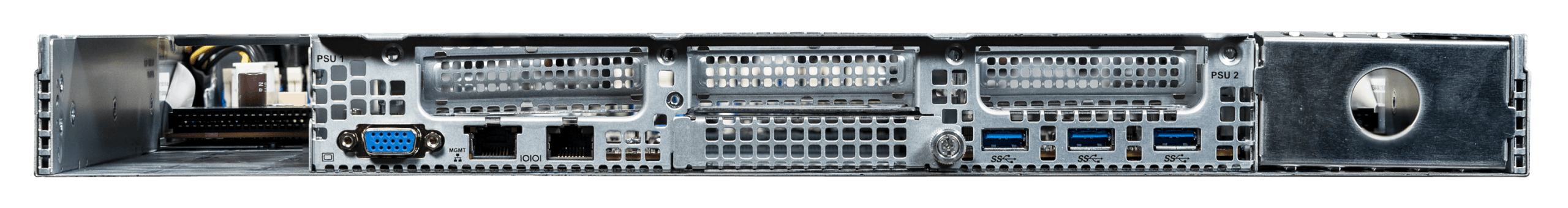

Rear: 3× USB 3.0, 1× VGA out, 1× Serial Port, 1× Remote Management Port

LEDs

Front: Power, System ID, System Status, HDD Activity

Power Supply

1300 Watt High Efficiency w/optional Dual Redundancy

Dimensions

30.7” x 17.2” x 1.7” (781 x 438 x 43 mm)

Weight

38 lbs (17.24 kg)

Model

 jacp1-b1
