Ibex Pro GPU
- Up to 8x NVIDIA 80GB PCIe A100 GPUs
- Dual AMD® EPYC® 7003 Series processors
- 4x 2.5” SATA III & 4x 2.5” NVMe
- Up to 6TB 3200 MHz ECC memory
- Dual 10 Gigabit network
- Up to 8x NVIDIA 80GB PCIe A100 GPUs
- Dual AMD® EPYC® 7003 Series processors
- 4x 2.5” SATA III & 4x 2.5” NVMe
- Up to 6TB 3200 MHz ECC memory
- Dual 10 Gigabit network
Make it your own
AMD
- 8x NVIDIA Quadro or Tesla GPUs
- Dual 7003 AMD® EPYC®
- 4x 2.5” SATA III SSD/HDD
- 4x 2.5” PCIe Gen3 NVMe
- Up to 2TB 3200 MHz ECC memory per processor
- Custom Configurations available upon request
$7,199.00
Ibex Pro 2U
$7,199.00
Tech Specs
- Operating System
Ubuntu Server 22.04LTS(64-bit)
- Processor
AMD EPYC™ 7003 series processor family dual processors
Compatible with AMD EPYC™ 7002 series processor family- Memory
Up to 4096 GB ECC DDR4 @3200MHz (16 DIMM slots)
- Storage
8 x 2.5" hot-swappable HDD/SSD bays
4 x amber HDD trays compatible with Gen3 U.2 or SATA/SAS devices
4 x blue HDD trays compatible with SATA/SAS devices only
- Networking
2 x 10Gb/s BASE-T LAN ports (Intel® X550-AT2 controller)
1 x 10/100/1000 management LAN
- Expansion
8 x PCIe x16 slots (Gen4 x16 bus) for GPUs ( Microchip solution)
2 x PCIe x16 (Gen4 x16 bus) Half-length low-profile slots
System is validated with a uniform GPU model configuration
Mixed GPU populations results will vary
- Ports

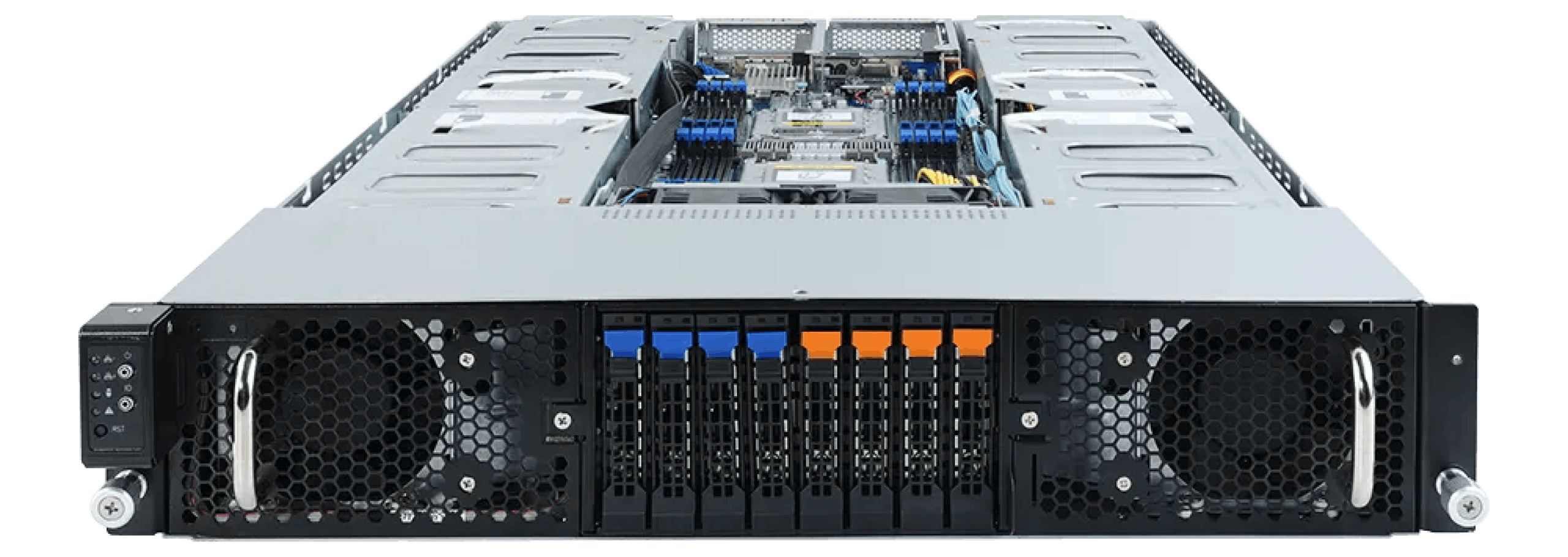

Front I/O : 1 x Power button with LED, 1 x ID button with LED, 2 x LAN activity LEDs, 1 x HDD activity LED, 1 x System status LED, 1 x Reset button

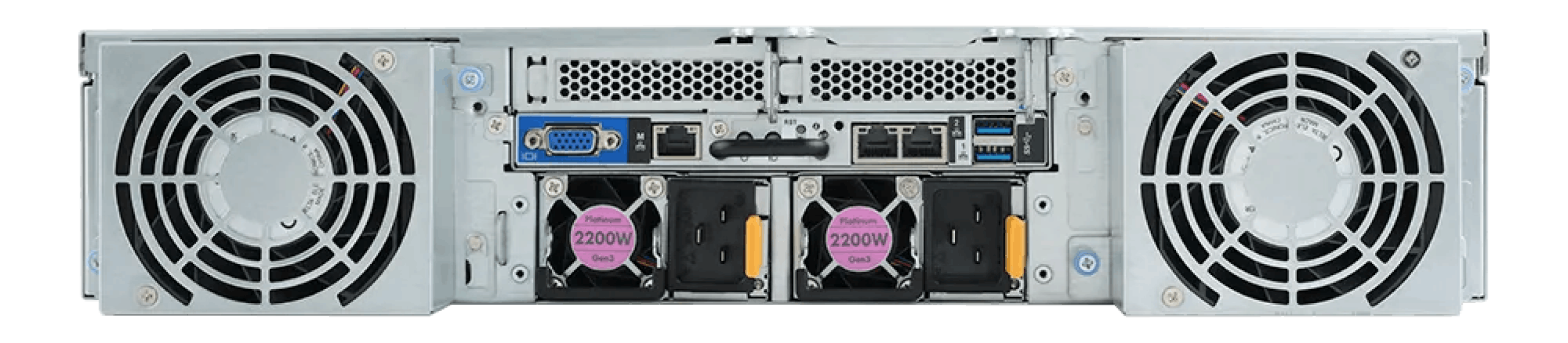

Rear I/O: 2 x USB 3.0, 1 x VGA, 2 x RJ45, 1 x MLAN, 1 x Power button with LED, 1 x ID button with LED, 1 x Reset button, 1 x NMI button, 1 x System status LED
- Power Supply
2+0 2200W 80 PLUS Platinum power supply
- Dimensions
16.3” x 31.4” x 3.4” (448 x 800 x 87.5 mm)
- Weight
79.3 lbs (36 kg)
Base weight. Varies on configuration.
- Model
ibep2-r1 - Technical Documentation
