Tech Specs

Operating System

Ubuntu Server 22.04LTS(64-bit)

Processor

AMD EPYC™ 7003 series processor family dual processors
Compatible with AMD EPYC™ 7002 series processor family

Memory

Up to 8192 GB ECC DDR4 @3200MHz

Storage

Front: Up to 12 x 3.5" or 2.5” SATA drives, or 4 x SATA and 8 x SAS drive combination

Rear: 2 x 2.5" SATA/SAS hot-swappable HDD/SSD drives

Note: CPU TDP is limited to 225w if using M.2 device

Networking

2 x 1GbE LAN ports (1 x Intel® I350-AM2)

1 x 10/100/1000 management LAN

Expansion

Riser Card CRS2027:

1 x PCIe x8 slot (Gen4 x8)

1 x PCIe x8 slot (Gen4 x8)

     Riser Card CRS2033:

1 x PCIe x16 slot (Gen4 x16)

1 x PCIe x8 slot (Gen4 x8)

1 x PCIe x8 slot (Gen4 x8)

Riser Card CRS2033:

1 x PCIe x16 slot (Gen4 x16)

1 x PCIe x8 slot (Gen4 x8)

 1 x PCIe x8 slot (Gen4 x8)

Ports

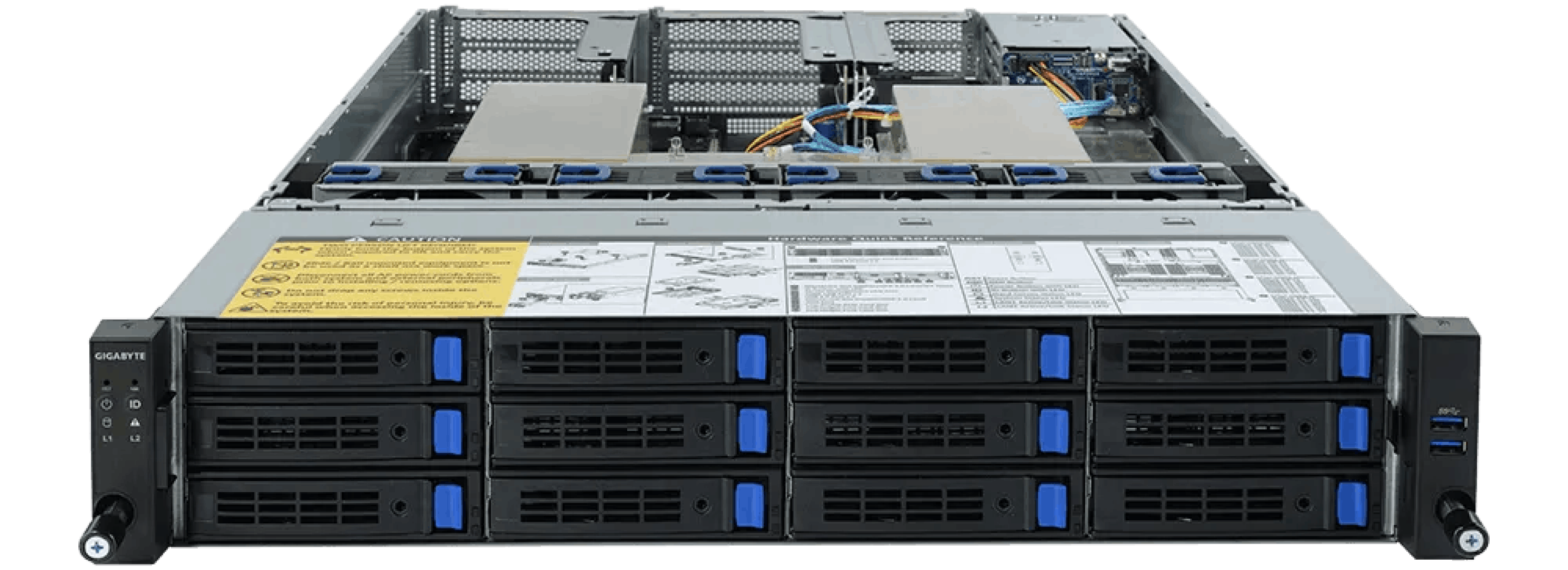

Front I/O : 2 x USB 3.0, 1 x Power button with LED, 1 x ID button with LED, 1 x Reset button, 1 x NMI button, 1 x System status LED, 1 x HDD activity LED, 2 x LAN activity LEDs

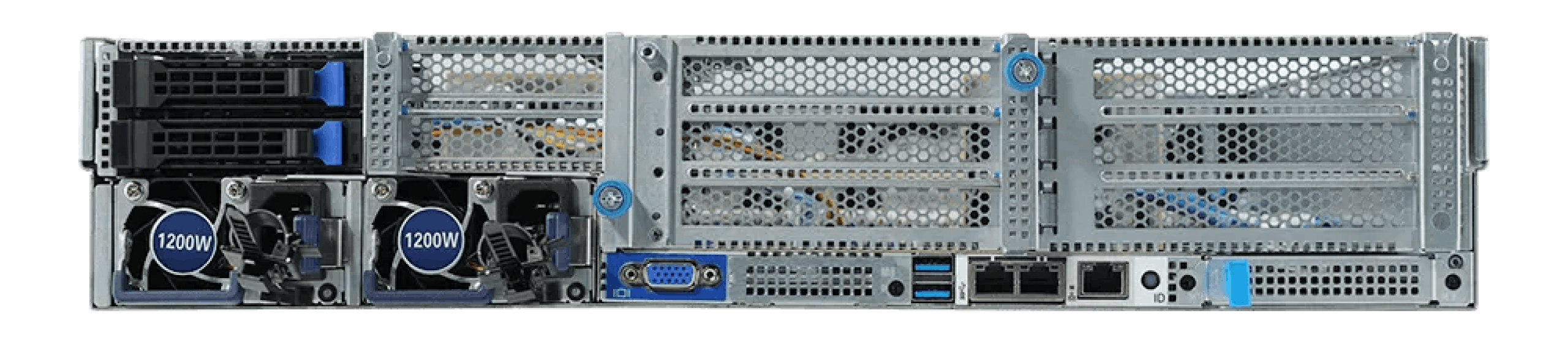

Rear I/O: 2 x USB 3.0, 1 x VGA, 2 x RJ45, 1 x MLAN 1 x ID button with LED

Power Supply

2 x 1200W redundant PSUs, 80 PLUS Platinum

NOTE: Select 1600W power supply if using 280W CPU with full loading configuration

Dimensions

17.2” x 28.7” x 3.4”  ( 438 x 730 x 87 mm)

Weight

56.2 lbs (25.5 kg)

Base weight. Varies on configuration.

Model

elap2-r1 - Technical Documentation
