Eland Pro 1U
- Dual Socket AMD® EPYC® 9004 series processors
- Up to 4x 3.5” hot swap drive bays
- Up to 12 Channel 1.5TB 4800 MHz DDR5 Registered RAM
- Available PCIe 5.0 expansion slots
- Dual Socket AMD® EPYC® 9004 series processors
- Up to 4x 3.5” hot swap drive bays
- Up to 12 Channel 1.5TB 4800 MHz DDR5 Registered RAM
- Available PCIe 5.0 expansion slots
Make it your own
AMD 10-Bay
- 10x 2.5” Gen4 NVMe hot swap drive bays
- Up to Dual 7003 AMD® EPYC®
- Up to 8 Channel 4TB ECC DDR4-3200 per processor
- Available M.2 Gen4 NVMe OS drive
- Custom Configurations Available Upon Request
$4,399.00
AMD 4-Bay
- 4x 3.5” HDD/SSD/NVMe hot swap drive bays
- AMD® EPYC® 9004 series processors with up to 96 Cores
- Up to 12 Channel 24x DDR5 Registered memory
- Available M.2 PCIe 4.0 NVMe OS drive
- Custom Configurations Available Upon Request
$5,198.00
Eland Pro 1U
$4,399.00
Tech Specs
- Operating System
Ubuntu Server 22.04LTS(64-bit)
- Processor
AMD EPYC™ 7003 series processor family dual processors
- Memory
Up to 8192 GB ECC DDR4 @3200MHz (32 DIMM slots)
- Storage
10 x 2.5" Gen4 U.2 hot-swappable SSD bays
1 x PCIe Gen4 M.2
Note: CPU TDP is limited to 225w if using M.2 device
- Networking
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN
- Expansion
1 x PCIe x16 slot (Gen4)
- Ports

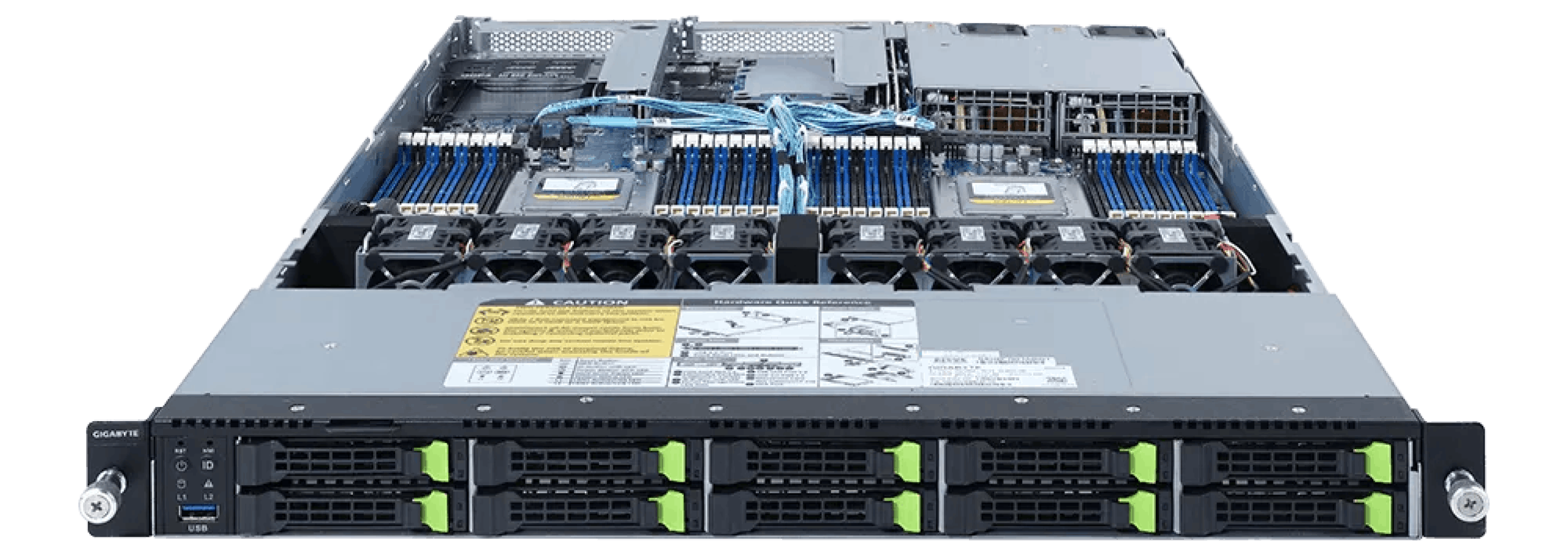

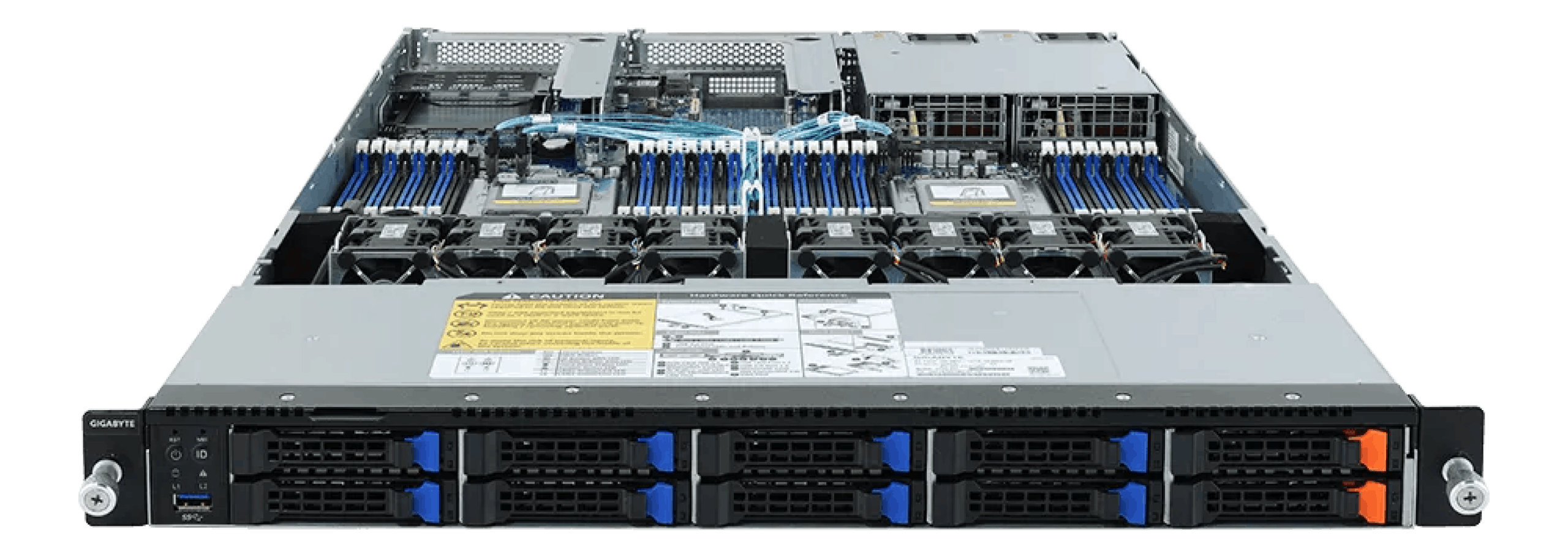

Front I/O : 1 x USB 3.0, 1 x Power button with LED, 1 x ID button with LED, 1 x NMI button, 1 x Reset button, 2 x LAN activity LEDs, 1 x HDD activity LED, 1 x System status LED

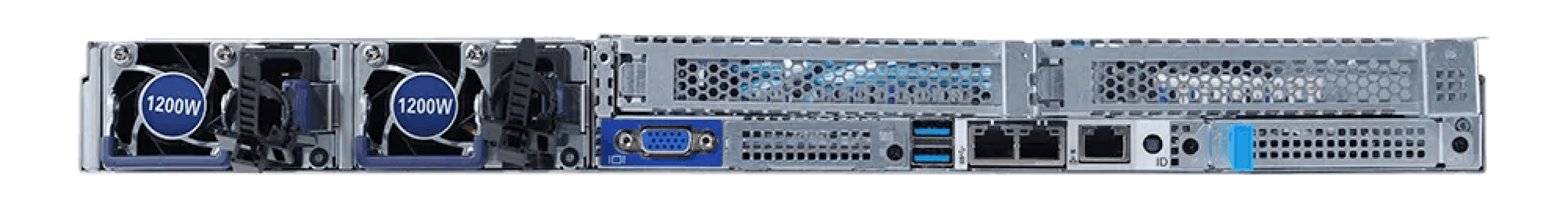

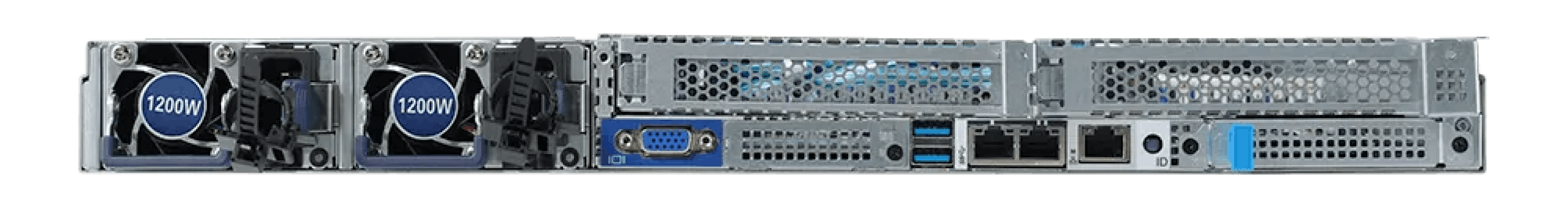

Rear I/O: 2 x USB 3.0, 1 x VGA, 2 x RJ45, 1 x MLAN, 1 x ID button with LED
- Power Supply
2 x 1200W redundant PSUs, 80 PLUS Platinum
NOTE: Select 1600W power supply if using 280W CPU with full loading configuration
- Dimensions
17.2” x 28.7” x 1.7” (438 x 730 x 43.5 mm)
- Weight
48.5 lbs (22 kg)
Base weight. Varies on configuration.
- Model
elap1-r2 - Technical Documentation
