Compare Storage Layout






Ubuntu Server 22.04LTS(64-bit)
AMD EPYC™ 9004 series processor
Up to 1,536GB DDR5 4800 RDIMM (24 DIMM slots)
2 x PCIe Gen4 M.2 slots
4 x 3.5" HDD/SSD/NVMe Hot Swap Storage Bays or
12 x 2.5" SSD/NVMe Hot Swap Storage Bays
1 x Dual Port Intel I350-AM2 GbE LAN Controller
1 x Management Port
1 x PCIe x16 slot (Gen5 x16 link, FH, HL)
1 x PCIe x16 slot (Gen5 x16 link, LP, HL)
1 x PCIe x16 slot (Gen5 x8 link, LP, HL)
1 x OCP3.0 socket (Gen5 x16 link)
4 Hot Swap Storage option:

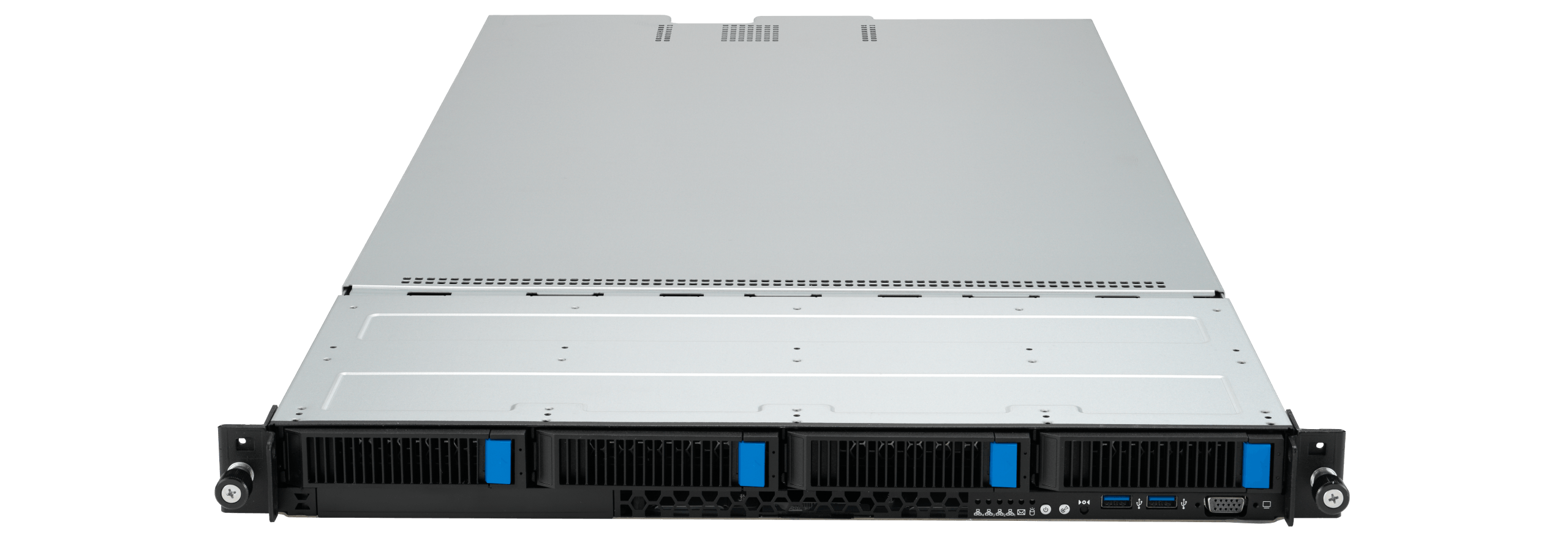

Front - 2 x USB 3.2 Gen1, 1x VGA port, 1x Power Button/LED, 1 x Location Button/LED, 1x Message LED, 1 x HDD LED, 4x LAN LED (1-2 for on-board LAN, 3-4 for OCP LAN)

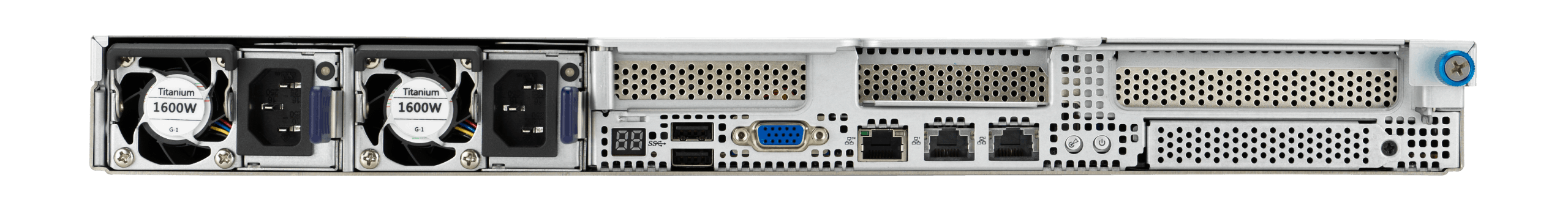

Rear - 2 x USB 3.2 Gen1, 1x VGA port, 1x Management port, 1 x Port80 LED (Q-Code), 1x Power Button/LED, 1x Location Button/LED, 1x Message LED
12 Hot Swap Storage option:
Front - 1 x Power Button/LED, 1x Location Button/LED, 1x Message LED, 2x LAN LED
Rear - 2 x USB 3.2 Gen1 ports, 1x VGA port, 1x Management Port, 1x Location Button/LED, 1x Message LED
1+1 Redundant 1600W Power Supply
33.17" x 17.68" x 1.73" (842.5mm x 449mm x 43.85mm)
Up to 31.22 LBS (14.16 kg)
elan1-r3
